Description

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

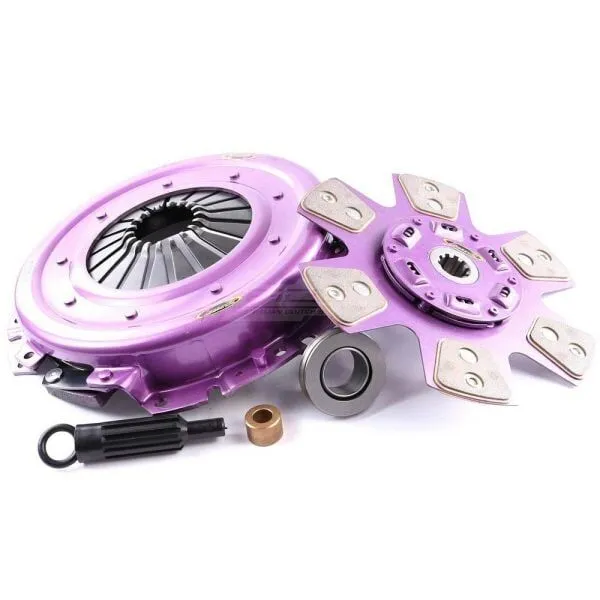

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    10

  • Hub Profile:

    28,6x10T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Max. transferable engine torque [Nm]:

    870

  • Friction Lining Outer Diameter [mm]:

    280

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1972 - 1974 > CHEVROLET > CAMARO > Petrol Engine 5.7 Coupe 108KW
    • 1974 - 1975 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Convertible 123KW
    • 1975 - 1977 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 134KW
    • 1975 - 1977 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 156KW
    • 1965 - 1967 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Convertible 291KW
    • 1965 - 1967 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Coupe 291KW
    • 1964 - 1966 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Convertible 317KW
    • 1964 - 1966 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Coupe 317KW
    • 1966 - 1967 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Convertible 324KW
    • 1966 - 1967 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Coupe 324KW
    • 1965 - 1967 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Coupe 343KW
    • 1966 - 1967 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Convertible 343KW
    • 1974 - 1975 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 123KW
    • 1973 - 1981 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 142KW
    • 1977 - 1978 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 164KW
    • 1968 - 1970 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Convertible 224KW
    • 1968 - 1970 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 224KW
    • 1971 - 1974 > CHEVROLET > CORVETTE > Petrol Engine 7.4 Coupe 201KW
    • 1977 - 1978 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 138KW
    • 1972 - 1973 > CHEVROLET > CORVETTE > Petrol Engine 7.4 Coupe 205KW
    • 1970 - 1971 > HOLDEN > MONARO > Petrol Engine 5.7 HG Coupe 205KW
    • 1969 - 1970 > HOLDEN > MONARO > Petrol Engine 5.7 HT Coupe 205KW
    • 1970 - 1971 > HOLDEN > MONARO > Petrol Engine 5.7 HG Coupe 224KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    10

  • Hub Profile:

    28,6x10T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Max. transferable engine torque [Nm]:

    870

  • Friction Lining Outer Diameter [mm]:

    280

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

    • 1972 - 1974 > CHEVROLET > CAMARO > Petrol Engine 5.7 Coupe 108KW
    • 1974 - 1975 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Convertible 123KW
    • 1975 - 1977 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 134KW
    • 1975 - 1977 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 156KW
    • 1965 - 1967 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Convertible 291KW
    • 1965 - 1967 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Coupe 291KW
    • 1964 - 1966 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Convertible 317KW
    • 1964 - 1966 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Coupe 317KW
    • 1966 - 1967 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Convertible 324KW
    • 1966 - 1967 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Coupe 324KW
    • 1965 - 1967 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Coupe 343KW
    • 1966 - 1967 > CHEVROLET > CORVETTE > Petrol Engine 7.0 C2 Convertible 343KW
    • 1974 - 1975 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 123KW
    • 1973 - 1981 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 142KW
    • 1977 - 1978 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 164KW
    • 1968 - 1970 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Convertible 224KW
    • 1968 - 1970 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 224KW
    • 1971 - 1974 > CHEVROLET > CORVETTE > Petrol Engine 7.4 Coupe 201KW
    • 1977 - 1978 > CHEVROLET > CORVETTE > Petrol Engine 5.7 Coupe 138KW
    • 1972 - 1973 > CHEVROLET > CORVETTE > Petrol Engine 7.4 Coupe 205KW
    • 1970 - 1971 > HOLDEN > MONARO > Petrol Engine 5.7 HG Coupe 205KW
    • 1969 - 1970 > HOLDEN > MONARO > Petrol Engine 5.7 HT Coupe 205KW
    • 1970 - 1971 > HOLDEN > MONARO > Petrol Engine 5.7 HG Coupe 224KW
