Description

Stage 1A Sprung Organic Clutch Kits are recommended for Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

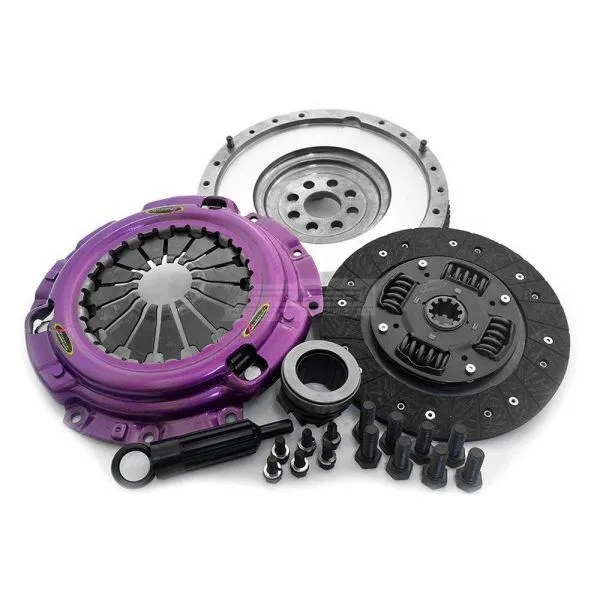

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    10

  • Hub Profile:

    29,0x10T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch:

    Conversion from dual-mass flywheel to single-mass flywheel

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    7,5

  • Max. transferable engine torque [Nm]:

    340

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Organic

  • Compatibility

    • 1996 - 2000 > BMW > Z3 > Petrol Engine 2.8 i E36 Convertible 142KW
    • 1997 - 1999 > BMW > Z3 > Petrol Engine 1.9 i E36 Convertible 103KW
    • 1998 - 2000 > BMW > Z3 > Petrol Engine 2.8 i E36 Coupe 142KW
    • 1999 - 2000 > BMW > Z3 > Petrol Engine 2.0 i E36 Convertible 110KW
    • 2000 - 2002 > BMW > Z3 > Petrol Engine 2.2 i E36 Convertible 125KW
    • 1990 - 1991 > BMW > 3 > Petrol Engine 318 is E30 Sedan 100KW
    • 1993 - 1995 > BMW > 3 > Petrol Engine 318 is E36 Sedan 103KW
    • 1992 - 1995 > BMW > 3 > Petrol Engine 318 is E36 Coupe 103KW
    • 1995 - 1999 > BMW > 3 > Petrol Engine 318 is E36 Coupe 103KW
    • 1996 - 1998 > BMW > 3 > Petrol Engine 318 is E36 Sedan 103KW
    • 1996 - 1999 > BMW > 3 > Petrol Engine 318 ti E36 Hatchback 103KW
    • 1996 - 2000 > BMW > 5 > Petrol Engine 523 i E39 Sedan 125KW
    • 1995 - 2000 > BMW > 5 > Petrol Engine 528 i E39 Sedan 142KW
    • 1996 - 2000 > BMW > 5 > Petrol Engine 528 i E39 Wagon 142KW

    Stage 1A Sprung Organic Clutch Kits are recommended for Street use in vehicles with minor engine modifications.

    Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate
    • Flywheel

    This kit does not include:

    • Concentric Slave Cylinder

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    10

  • Hub Profile:

    29,0x10T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch:

    Conversion from dual-mass flywheel to single-mass flywheel

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    7,5

  • Max. transferable engine torque [Nm]:

    340

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Organic

    • 1996 - 2000 > BMW > Z3 > Petrol Engine 2.8 i E36 Convertible 142KW
    • 1997 - 1999 > BMW > Z3 > Petrol Engine 1.9 i E36 Convertible 103KW
    • 1998 - 2000 > BMW > Z3 > Petrol Engine 2.8 i E36 Coupe 142KW
    • 1999 - 2000 > BMW > Z3 > Petrol Engine 2.0 i E36 Convertible 110KW
    • 2000 - 2002 > BMW > Z3 > Petrol Engine 2.2 i E36 Convertible 125KW
    • 1990 - 1991 > BMW > 3 > Petrol Engine 318 is E30 Sedan 100KW
    • 1993 - 1995 > BMW > 3 > Petrol Engine 318 is E36 Sedan 103KW
    • 1992 - 1995 > BMW > 3 > Petrol Engine 318 is E36 Coupe 103KW
    • 1995 - 1999 > BMW > 3 > Petrol Engine 318 is E36 Coupe 103KW
    • 1996 - 1998 > BMW > 3 > Petrol Engine 318 is E36 Sedan 103KW
    • 1996 - 1999 > BMW > 3 > Petrol Engine 318 ti E36 Hatchback 103KW
    • 1996 - 2000 > BMW > 5 > Petrol Engine 523 i E39 Sedan 125KW
    • 1995 - 2000 > BMW > 5 > Petrol Engine 528 i E39 Sedan 142KW
    • 1996 - 2000 > BMW > 5 > Petrol Engine 528 i E39 Wagon 142KW
