Description

Twin Plate Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

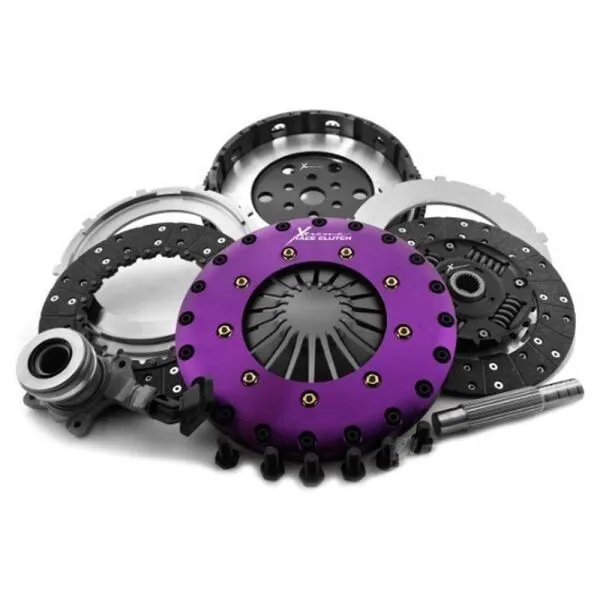

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plate
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    26

  • Hub Profile:

    35,0x26T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    2,2

  • Max. transferable engine torque [Nm]:

    1200

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 2011 - 2012 > BMW > 1 > Petrol Engine M E82 Coupe 250KW
    • 2007 - 2013 > BMW > 1 > Petrol Engine 135 i E82 Coupe 225KW
    • 2008 - 2013 > BMW > 1 > Petrol Engine 135 i E88 Convertible 225KW
    • 2006 - 2012 > BMW > 3 > Petrol Engine 335 i E92 Coupe 225KW
    • 2006 - 2011 > BMW > 3 > Petrol Engine 335 i E90 Sedan 225KW
    • 2006 - 2012 > BMW > 3 > Petrol Engine 335 i E91 Wagon 225KW
    • 2006 - 2012 > BMW > 3 > Petrol Engine 335 i E93 Convertible 225KW
    • 2011 - 2015 > BMW > 3 > Petrol Engine 335 i F30,F80 Sedan 225KW
    • 2011 - 2017 > BMW > X3 > Petrol Engine xDrive 20 i F25 SUV 135KW
    • 2010 - 2016 > BMW > 5 > Petrol Engine 535 i F10 Sedan 225KW
    • 2010 - 2017 > BMW > 5 > Petrol Engine 535 i F11 Wagon 225KW
    • 2013 - 2016 > BMW > 4 > Petrol Engine 435 i F32,F82 Coupe 225KW
    • 2013 - 2016 > BMW > 4 > Petrol Engine 435 i F33,F83 Convertible 225KW

    Twin Plate Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Discs
    • Intermediate Plate
    • Pressure Plate
    • Flywheel

    This kit does not include:

    • Concentric Slave Cylinder

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    26

  • Hub Profile:

    35,0x26T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    2,2

  • Max. transferable engine torque [Nm]:

    1200

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

    • 2011 - 2012 > BMW > 1 > Petrol Engine M E82 Coupe 250KW
    • 2007 - 2013 > BMW > 1 > Petrol Engine 135 i E82 Coupe 225KW
    • 2008 - 2013 > BMW > 1 > Petrol Engine 135 i E88 Convertible 225KW
    • 2006 - 2012 > BMW > 3 > Petrol Engine 335 i E92 Coupe 225KW
    • 2006 - 2011 > BMW > 3 > Petrol Engine 335 i E90 Sedan 225KW
    • 2006 - 2012 > BMW > 3 > Petrol Engine 335 i E91 Wagon 225KW
    • 2006 - 2012 > BMW > 3 > Petrol Engine 335 i E93 Convertible 225KW
    • 2011 - 2015 > BMW > 3 > Petrol Engine 335 i F30,F80 Sedan 225KW
    • 2011 - 2017 > BMW > X3 > Petrol Engine xDrive 20 i F25 SUV 135KW
    • 2010 - 2016 > BMW > 5 > Petrol Engine 535 i F10 Sedan 225KW
    • 2010 - 2017 > BMW > 5 > Petrol Engine 535 i F11 Wagon 225KW
    • 2013 - 2016 > BMW > 4 > Petrol Engine 435 i F32,F82 Coupe 225KW
    • 2013 - 2016 > BMW > 4 > Petrol Engine 435 i F33,F83 Convertible 225KW
