Description

Notes: Shell bushing design - suits models to - 02/2000

Eliminate back end squirm and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Heavy duty formulation for outstanding abrasion resistance and high load bearing capability.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Specially bonded design for optimised strength typically required in high load bearing applications.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This kit is covered by a limited lifetime warranty including parts and labour.

Specifications

Bush Type 16 16
Bush Qty 1 1
OD (A) 45.2 mm 45.2 mm
ID (B) 25.2 mm 31.6 mm
L (C) 48.5 mm 48.5 mm
FL (D) 5.2 mm 5.2 mm
FLOD (E)
C/Tube QTY 1 / 1 1 / 1
C/Tube Size 25.4x14.3x48 / 31.8x26x48 mm 25.4x14.3x48 / 31.8x26x48 mm
Similar Bushing Size







Bush Image

What's Included

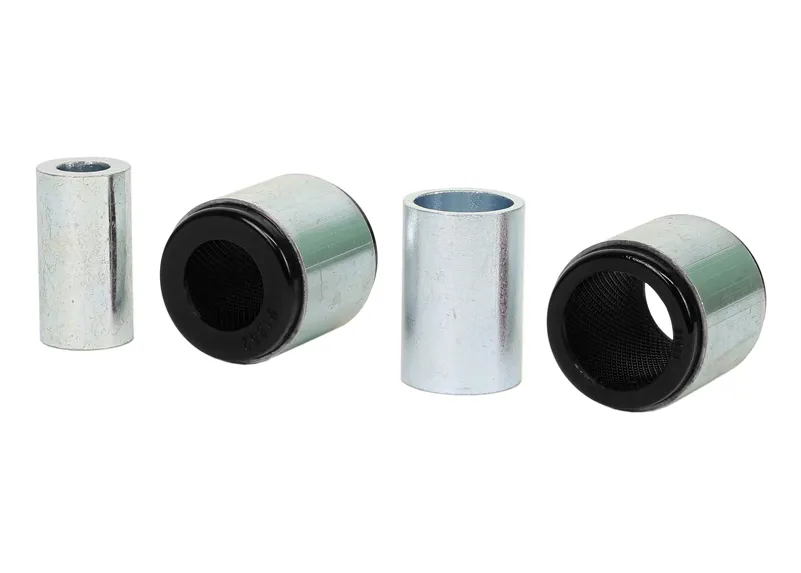

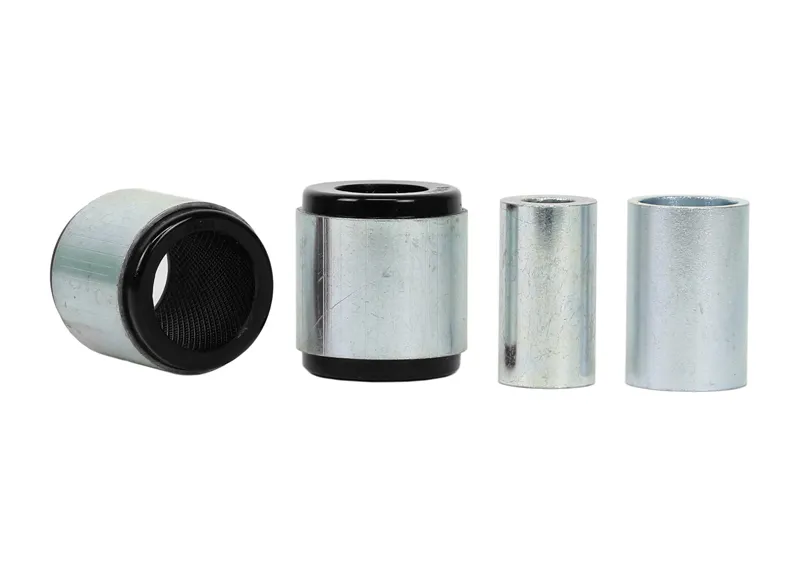

  • 2 Shell Bushings
  • 2 Tubes
  • Grease

Compatibility

  • 1988-1994 FORD MAVERICK, DA Wagon (Coil Spring)
  • 2017-2020 MERCEDES-BENZ X-CLASS, 470 2WD
  • 2017-2020 MERCEDES-BENZ X-CLASS, 470 4WD
  • 2015-2025 NISSAN NAVARA, D23, NP300 4WD Coil Spring Rear
  • 1988-1997 NISSAN PATROL, Y60 GQ Cab Chassis (Leaf Spring Front & Rear)
  • 1988-1997 NISSAN PATROL, Y60 GQ Wagon
  • 1997-2016 NISSAN PATROL, Y61 Cab Chassis - Coil Springs Front & Rear
  • 1997-2016 NISSAN PATROL, Y61 GU LWB Wagon

Notes: Shell bushing design - suits models to - 02/2000

Eliminate back end squirm and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Heavy duty formulation for outstanding abrasion resistance and high load bearing capability.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Specially bonded design for optimised strength typically required in high load bearing applications.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This kit is covered by a limited lifetime warranty including parts and labour.
Bush Type 16 16
Bush Qty 1 1
OD (A) 45.2 mm 45.2 mm
ID (B) 25.2 mm 31.6 mm
L (C) 48.5 mm 48.5 mm
FL (D) 5.2 mm 5.2 mm
FLOD (E)
C/Tube QTY 1 / 1 1 / 1
C/Tube Size 25.4x14.3x48 / 31.8x26x48 mm 25.4x14.3x48 / 31.8x26x48 mm
Similar Bushing Size







Bush Image

  • 2 Shell Bushings
  • 2 Tubes
  • Grease
  • 1988-1994 FORD MAVERICK, DA Wagon (Coil Spring)
  • 2017-2020 MERCEDES-BENZ X-CLASS, 470 2WD
  • 2017-2020 MERCEDES-BENZ X-CLASS, 470 4WD
  • 2015-2025 NISSAN NAVARA, D23, NP300 4WD Coil Spring Rear
  • 1988-1997 NISSAN PATROL, Y60 GQ Cab Chassis (Leaf Spring Front & Rear)
  • 1988-1997 NISSAN PATROL, Y60 GQ Wagon
  • 1997-2016 NISSAN PATROL, Y61 Cab Chassis - Coil Springs Front & Rear
  • 1997-2016 NISSAN PATROL, Y61 GU LWB Wagon
