Description

Suffering uneven tyre wear, unbalanced braking or a less predictable rear end while cornering. It could be your trailing arm bushings have failed. Replace these worn parts with Whiteline bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This kit is covered by a limited lifetime warranty including parts and labour.

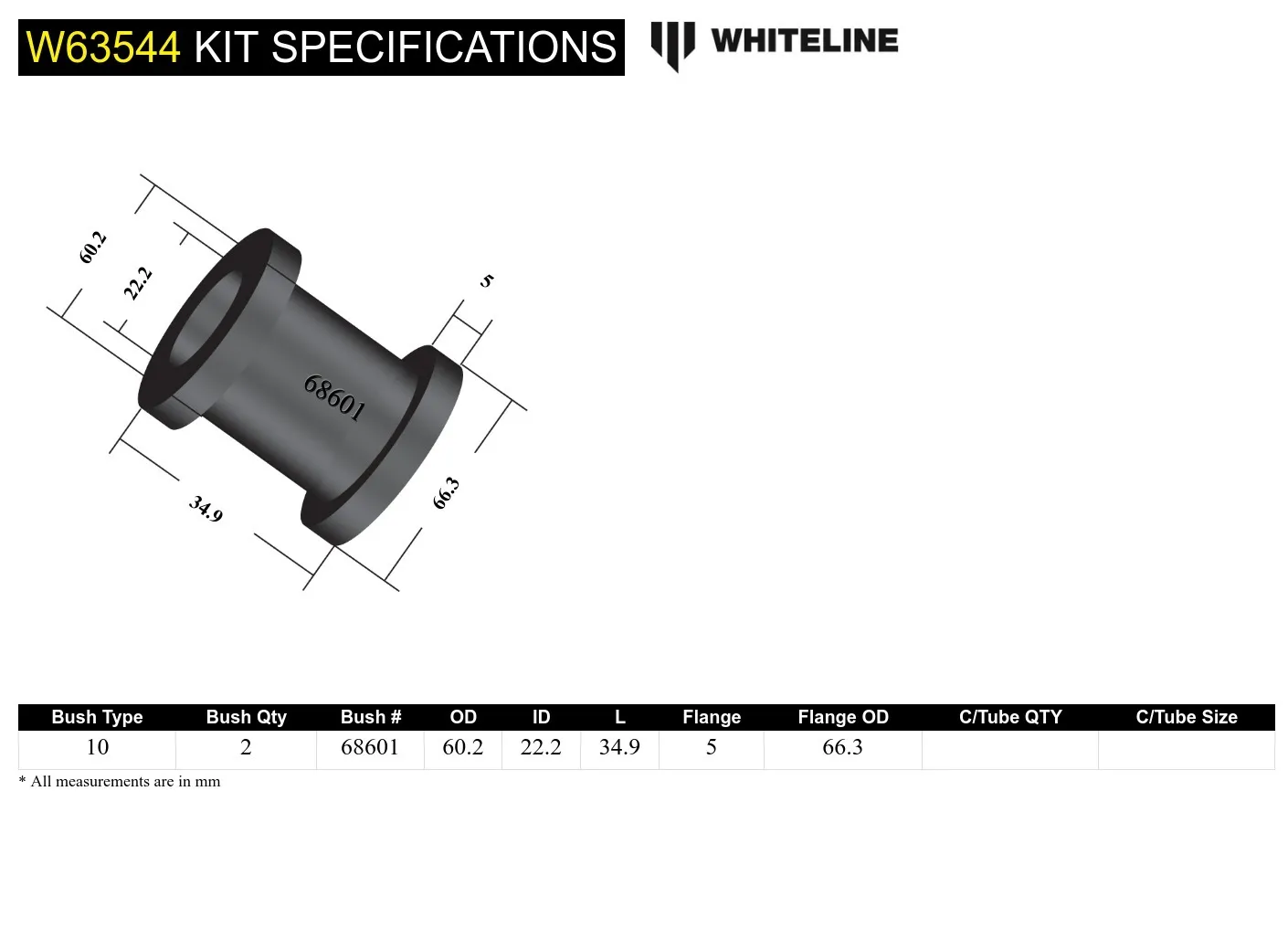

Specifications

Bush Type10
Bush Qty2
OD (A)60.2 mm
ID (B)22.2 mm
L (C)34.9 mm
FL (D)5 mm
FLOD (E)66.3 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size


Bush Image

What's Included

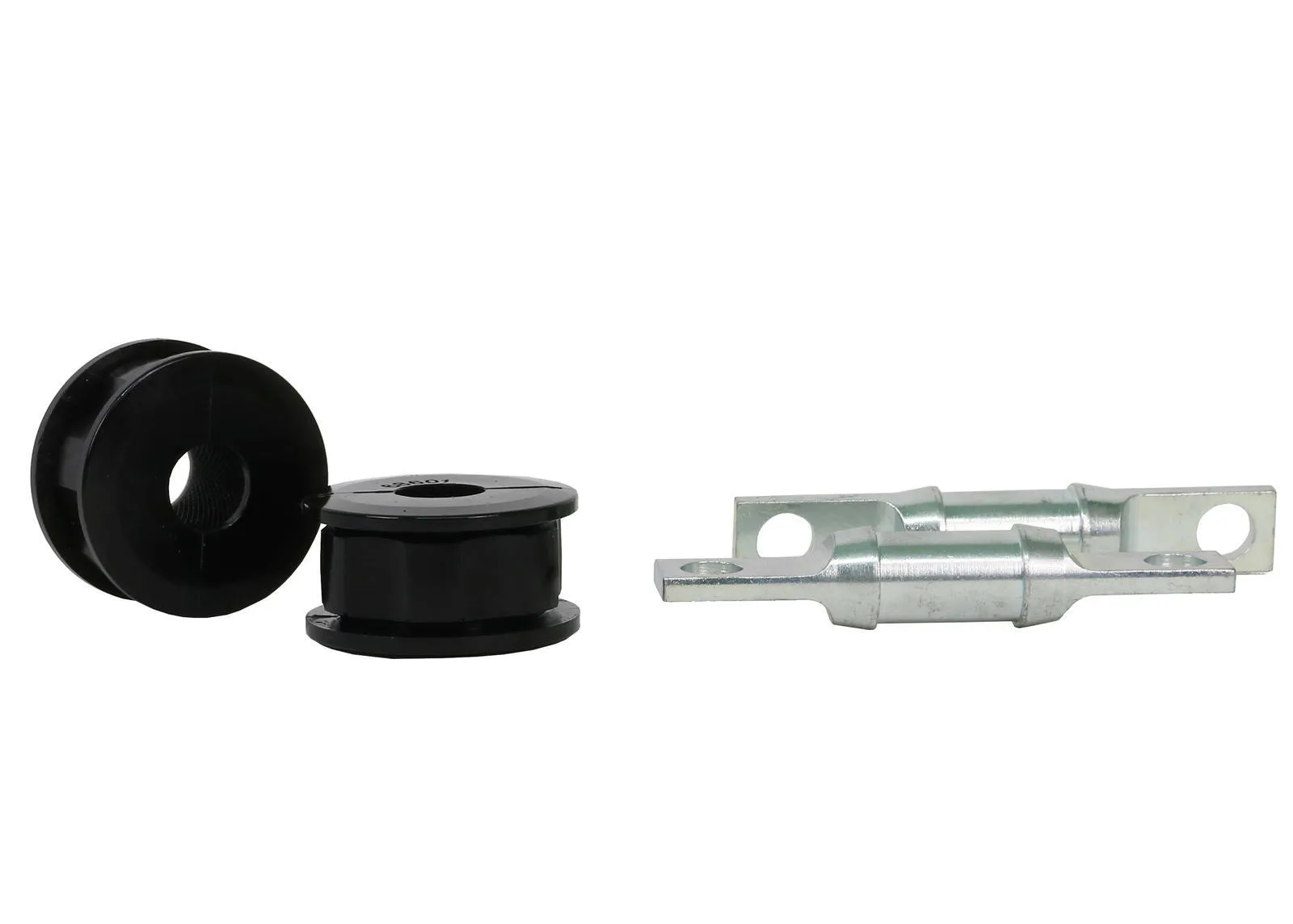

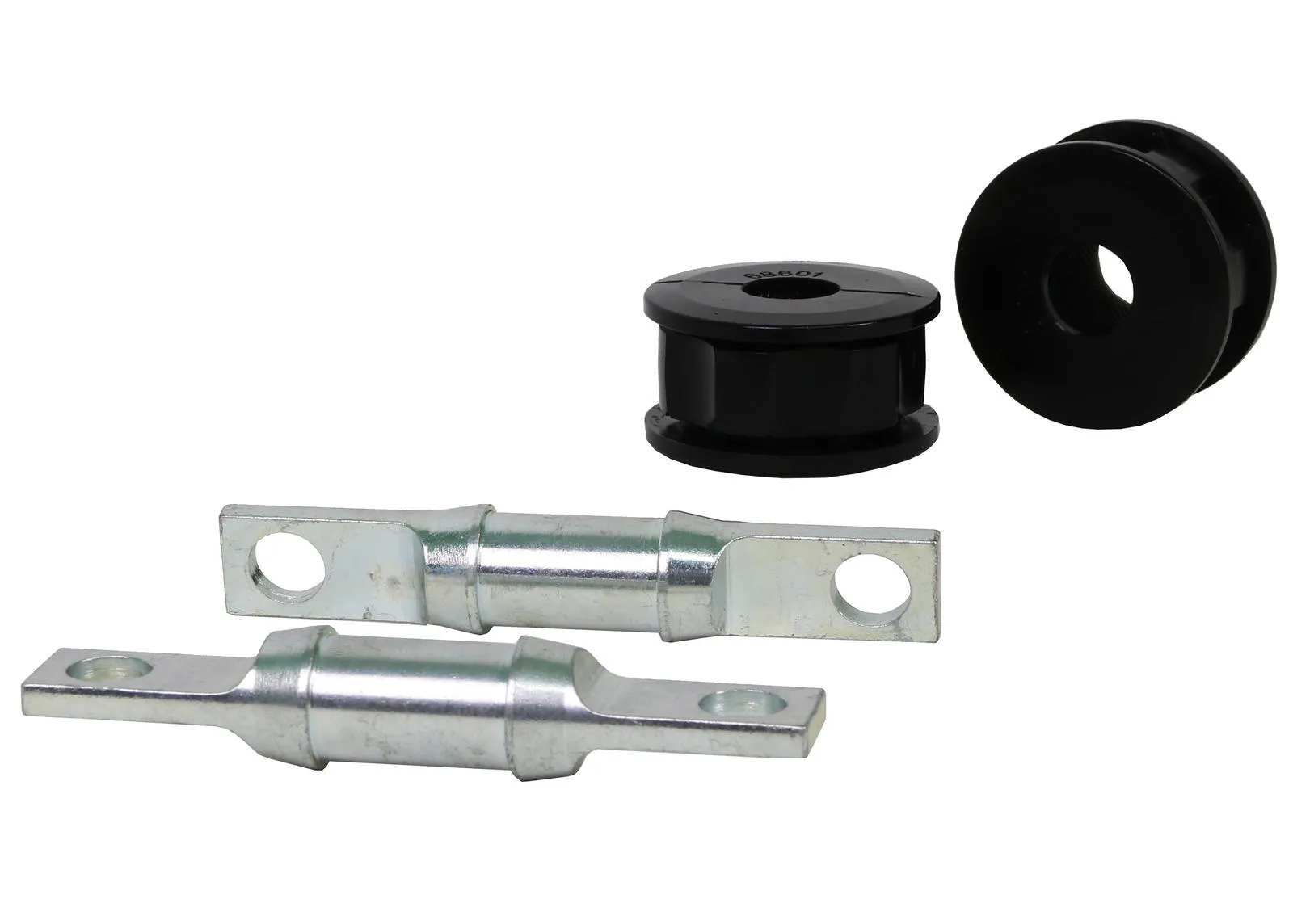

  • 2 Bushings
  • 2 Pins
  • Grease

Compatibility

  • 2003-2010 FORD C-Max, Mk1
  • 2002-2005 FORD FOCUS, LR
  • 2003-2005 FORD FOCUS, LR ST170
  • 2005-2011 FORD FOCUS, LS, LT, LV
  • 2006-2011 FORD FOCUS, LS, LT, LV XR5
  • 2010-2010 FORD FOCUS, LV RS
  • 2011-2018 FORD FOCUS, LW, LZ
  • 2012-2018 FORD FOCUS, LW, LZ ST
  • 2015-2018 FORD FOCUS, LZ RS
  • 2005-2012 FORD FOCUS, Mk2 RS, ST
  • 2003-2009 MAZDA 3, BK
  • 2003-2009 MAZDA 3, BK MPS
  • 2009-2013 MAZDA 3, BL
  • 2009-2013 MAZDA 3, BL MPS
  • 2005-2010 MAZDA 5, CR19
  • 2003-2009 MAZDA AXELA, BK
  • 2009-2013 MAZDA AXELA, BL
  • 2008-2018 MAZDA BIANTE, CC
  • 2006-2009 MAZDA SPEED 3, BK MPS
  • 2006-2012 VOLVO C30, Mk I
  • 2006-2013 VOLVO C70, Mk II
  • 2004-2012 VOLVO S40, MS
  • 2004-2010 VOLVO V50, MW

Suffering uneven tyre wear, unbalanced braking or a less predictable rear end while cornering. It could be your trailing arm bushings have failed. Replace these worn parts with Whiteline bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This kit is covered by a limited lifetime warranty including parts and labour.
Bush Type10
Bush Qty2
OD (A)60.2 mm
ID (B)22.2 mm
L (C)34.9 mm
FL (D)5 mm
FLOD (E)66.3 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size


Bush Image

  • 2 Bushings
  • 2 Pins
  • Grease
  • 2003-2010 FORD C-Max, Mk1
  • 2002-2005 FORD FOCUS, LR
  • 2003-2005 FORD FOCUS, LR ST170
  • 2005-2011 FORD FOCUS, LS, LT, LV
  • 2006-2011 FORD FOCUS, LS, LT, LV XR5
  • 2010-2010 FORD FOCUS, LV RS
  • 2011-2018 FORD FOCUS, LW, LZ
  • 2012-2018 FORD FOCUS, LW, LZ ST
  • 2015-2018 FORD FOCUS, LZ RS
  • 2005-2012 FORD FOCUS, Mk2 RS, ST
  • 2003-2009 MAZDA 3, BK
  • 2003-2009 MAZDA 3, BK MPS
  • 2009-2013 MAZDA 3, BL
  • 2009-2013 MAZDA 3, BL MPS
  • 2005-2010 MAZDA 5, CR19
  • 2003-2009 MAZDA AXELA, BK
  • 2009-2013 MAZDA AXELA, BL
  • 2008-2018 MAZDA BIANTE, CC
  • 2006-2009 MAZDA SPEED 3, BK MPS
  • 2006-2012 VOLVO C30, Mk I
  • 2006-2013 VOLVO C70, Mk II
  • 2004-2012 VOLVO S40, MS
  • 2004-2010 VOLVO V50, MW
