Description

Notes: Important
24mm
Kits Required: 1

Warranty: Lifetime
Kit Contents:   2 Bushings, Grease

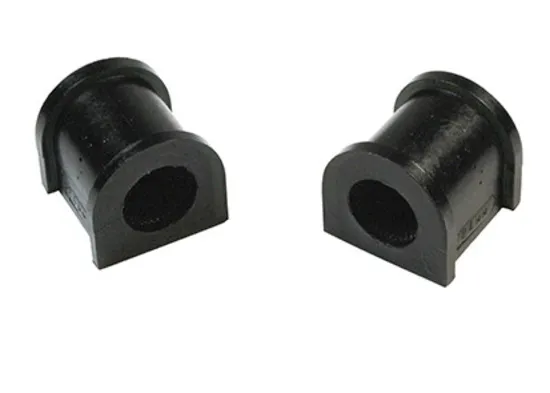

One of the most common suspension service items as they are easily inspected and simple to replace. Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.
Features
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • This Whiteline kit is covered by a limited lifetime warranty.


Specifications

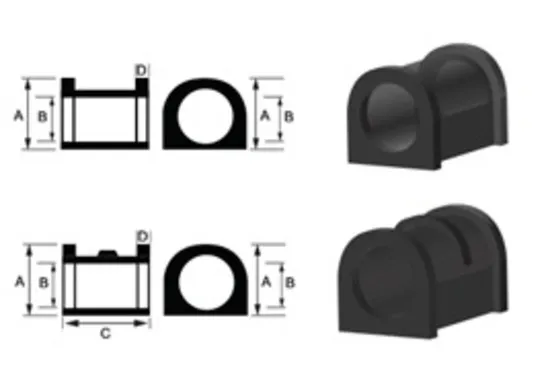

Kit Specifications

Bush
Type
Bush
Qty
OD
A
ID
B
L
C
FL
D
FLOD
E
4 2 36.2 mm 24 mm 42 mm 4.8 mm 39.5 mm

Compatibility

  • 1998-2008 LEXUS LX, LX470 (J100)
  • 2005-2014 MAZDA MX-5, NC
  • 2003-2012 MAZDA RX-8, SE17
  • 2006-2011 TOYOTA AURION, ACV4_, GSV4_
  • 2006-2011 TOYOTA CAMRY, XV40
  • 1998-2007 TOYOTA LAND CRUISER, 100 Series
Notes: Important
24mm
Kits Required: 1

Warranty: Lifetime
Kit Contents:   2 Bushings, Grease
One of the most common suspension service items as they are easily inspected and simple to replace. Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.
Features
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • This Whiteline kit is covered by a limited lifetime warranty.

Kit Specifications

Bush
Type
Bush
Qty
OD
A
ID
B
L
C
FL
D
FLOD
E
4 2 36.2 mm 24 mm 42 mm 4.8 mm 39.5 mm
  • 1998-2008 LEXUS LX, LX470 (J100)
  • 2005-2014 MAZDA MX-5, NC
  • 2003-2012 MAZDA RX-8, SE17
  • 2006-2011 TOYOTA AURION, ACV4_, GSV4_
  • 2006-2011 TOYOTA CAMRY, XV40
  • 1998-2007 TOYOTA LAND CRUISER, 100 Series
