Description

Notes: Important
20mm - suits models to - 12/1989
Kits Required: 1

Warranty: Lifetime

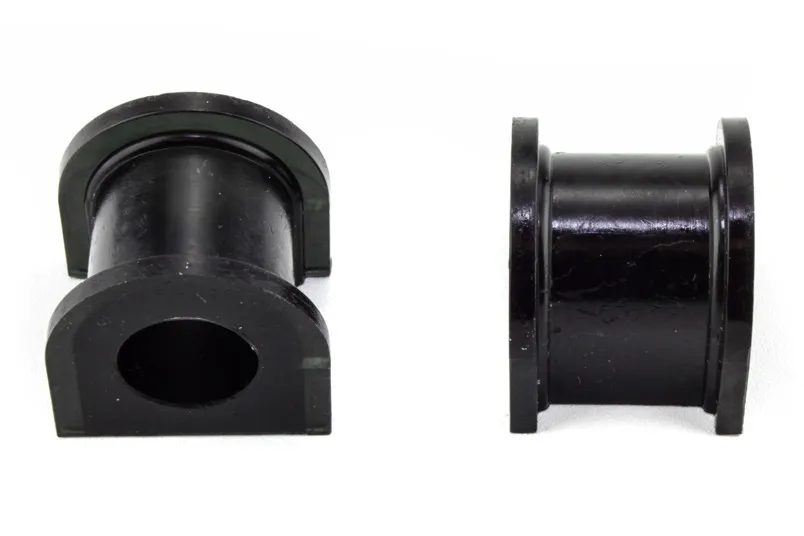

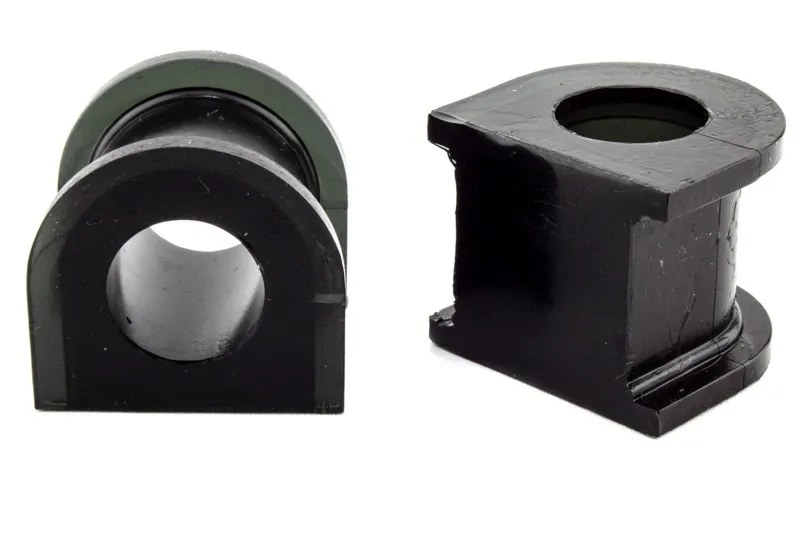

Kit Contents:   2 Bushings, Grease
One of the most common suspension service items as they are easily inspected and simple to replace. Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.
Features
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • This Whiteline kit is covered by a limited lifetime warranty.


Specifications

Kit Specifications

Bush
Type
Bush
Qty
OD
A
ID
B
L
C
FL
D
4 2 29.5 mm 20 mm 32.3 mm 3.8 mm


Compatibility

  • 2001-2012 FORD ESCAPE, BA, ZA-ZD
  • 1983-1987 FORD TELSTAR, AR, AS
  • 1987-1992 FORD TELSTAR, AT, AV
  • 1983-1987 MAZDA 626, GC
  • 1987-1992 MAZDA 626, GD
  • 1987-1997 MAZDA 626, GV
  • 1987-1991 MAZDA MX-6, GD
  • 1983-1987 MAZDA TELSTAR, GC
  • 1987-1992 MAZDA TELSTAR, GD
  • 2001-2006 MAZDA TRIBUTE, CU, YU
Notes: Important
20mm - suits models to - 12/1989
Kits Required: 1

Warranty: Lifetime
Kit Contents:   2 Bushings, Grease
One of the most common suspension service items as they are easily inspected and simple to replace. Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.
Features
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • This Whiteline kit is covered by a limited lifetime warranty.

Kit Specifications

Bush
Type
Bush
Qty
OD
A
ID
B
L
C
FL
D
4 2 29.5 mm 20 mm 32.3 mm 3.8 mm

  • 2001-2012 FORD ESCAPE, BA, ZA-ZD
  • 1983-1987 FORD TELSTAR, AR, AS
  • 1987-1992 FORD TELSTAR, AT, AV
  • 1983-1987 MAZDA 626, GC
  • 1987-1992 MAZDA 626, GD
  • 1987-1997 MAZDA 626, GV
  • 1987-1991 MAZDA MX-6, GD
  • 1983-1987 MAZDA TELSTAR, GC
  • 1987-1992 MAZDA TELSTAR, GD
  • 2001-2006 MAZDA TRIBUTE, CU, YU
