Description

Kits Required: 1

Warranty: 3 Year / 60,000Kms

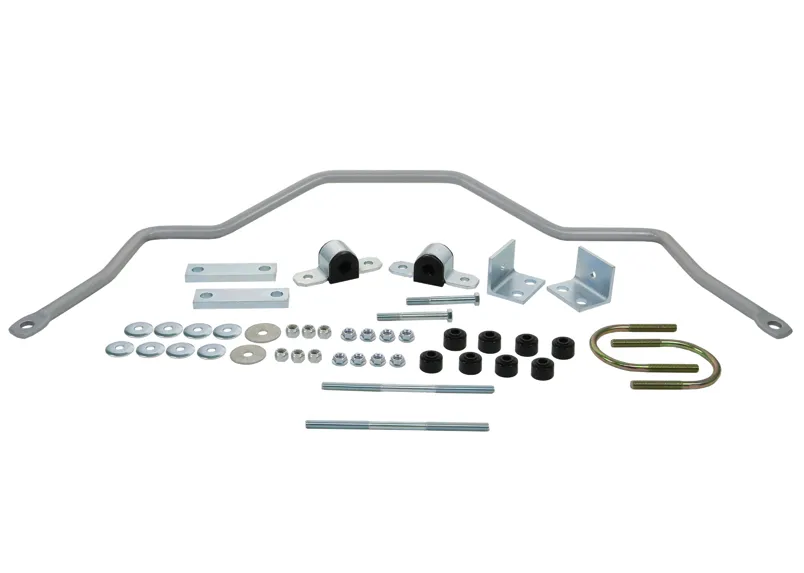

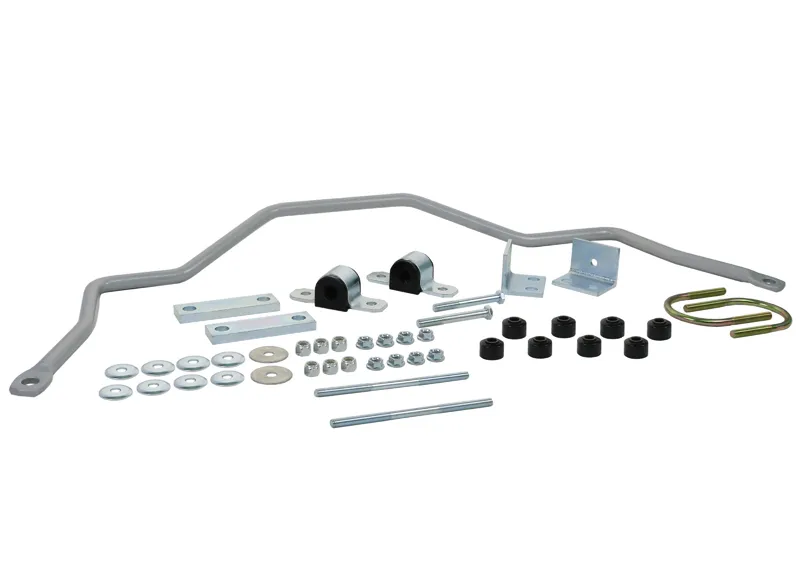

Kit Contents:   1 Sway Bar, 2 Links, 10 Bushings, 2 Saddles, 2 Plates, 2 Brackets, 2 U-Bolts, 10 Washers, 16 Nuts, Install Guide
Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 18mm fixed position sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.
  • Whiteline sway bars are principally designed to reduce body roll or sway while cornering.
  • Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.
  • Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
  • Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
  • By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality steel and utilise the latest technology synthetic elastomer link bushings ensuring maximum strength and durability.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty.

Specifications

Kit Specifications

Diameter(mm) Diameter(in) Material Adjustment %Chart
18mm 23/32" Solid Spring Steel Non adjustable BL-281
Comments
For Rear Applications Fitted With Optional Detroit 9" Ls Diff Order Part Number KU4 Oversize "U" Bolt Kit.
Download Installation Instructions

Compatibility

  • 1972-1976 FORD FAIRLANE, ZF, ZG
  • 1976-1979 FORD FAIRLANE, ZH
  • 1972-1976 FORD FAIRMONT, XA, XB Sedan and Coupe
  • 1976-1979 FORD FAIRMONT, XC Sedan and Coupe
  • 1965-1966 FORD FAIRMONT, XP Sedan
  • 1967-1969 FORD FAIRMONT, XR, XT Sedan
  • 1969-1972 FORD FAIRMONT, XW, XY Sedan
  • 1972-1976 FORD FALCON, XA, XB
  • 1976-1979 FORD FALCON, XC
  • 1960-1966 FORD FALCON, XK-XP
  • 1966-1969 FORD FALCON, XR-XT
  • 1969-1972 FORD FALCON, XW, XY
  • 1973-1979 FORD LTD, P5, P6
  • 1964-1973 FORD MUSTANG, Classic 1st Gen
Kits Required: 1

Warranty: 3 Year / 60,000Kms
Kit Contents:   1 Sway Bar, 2 Links, 10 Bushings, 2 Saddles, 2 Plates, 2 Brackets, 2 U-Bolts, 10 Washers, 16 Nuts, Install Guide
Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 18mm fixed position sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.
  • Whiteline sway bars are principally designed to reduce body roll or sway while cornering.
  • Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.
  • Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
  • Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
  • By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality steel and utilise the latest technology synthetic elastomer link bushings ensuring maximum strength and durability.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty.
Kit Specifications

Diameter(mm) Diameter(in) Material Adjustment %Chart
18mm 23/32" Solid Spring Steel Non adjustable BL-281
Comments
For Rear Applications Fitted With Optional Detroit 9" Ls Diff Order Part Number KU4 Oversize "U" Bolt Kit.
  • 1972-1976 FORD FAIRLANE, ZF, ZG
  • 1976-1979 FORD FAIRLANE, ZH
  • 1972-1976 FORD FAIRMONT, XA, XB Sedan and Coupe
  • 1976-1979 FORD FAIRMONT, XC Sedan and Coupe
  • 1965-1966 FORD FAIRMONT, XP Sedan
  • 1967-1969 FORD FAIRMONT, XR, XT Sedan
  • 1969-1972 FORD FAIRMONT, XW, XY Sedan
  • 1972-1976 FORD FALCON, XA, XB
  • 1976-1979 FORD FALCON, XC
  • 1960-1966 FORD FALCON, XK-XP
  • 1966-1969 FORD FALCON, XR-XT
  • 1969-1972 FORD FALCON, XW, XY
  • 1973-1979 FORD LTD, P5, P6
  • 1964-1973 FORD MUSTANG, Classic 1st Gen
