Description

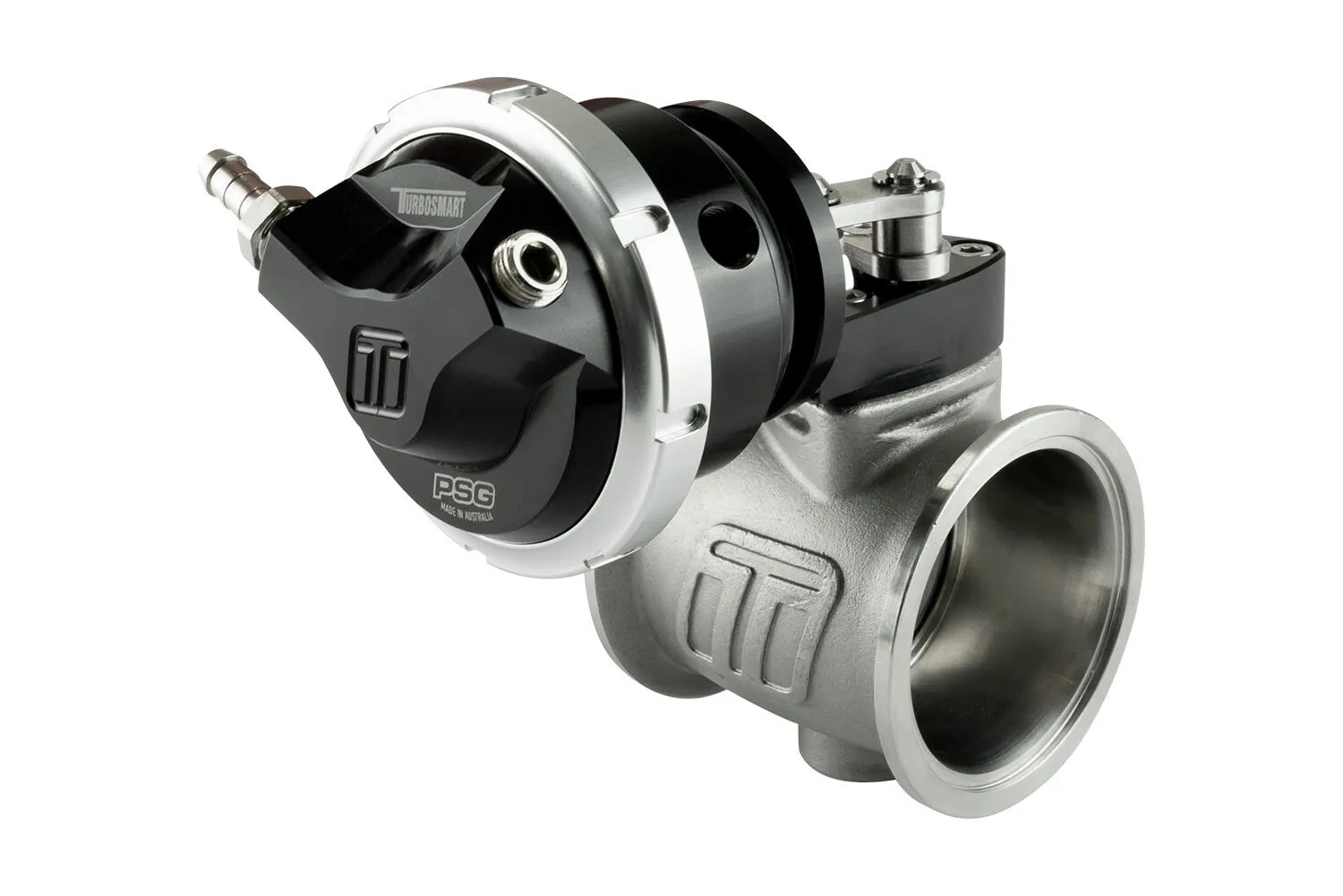

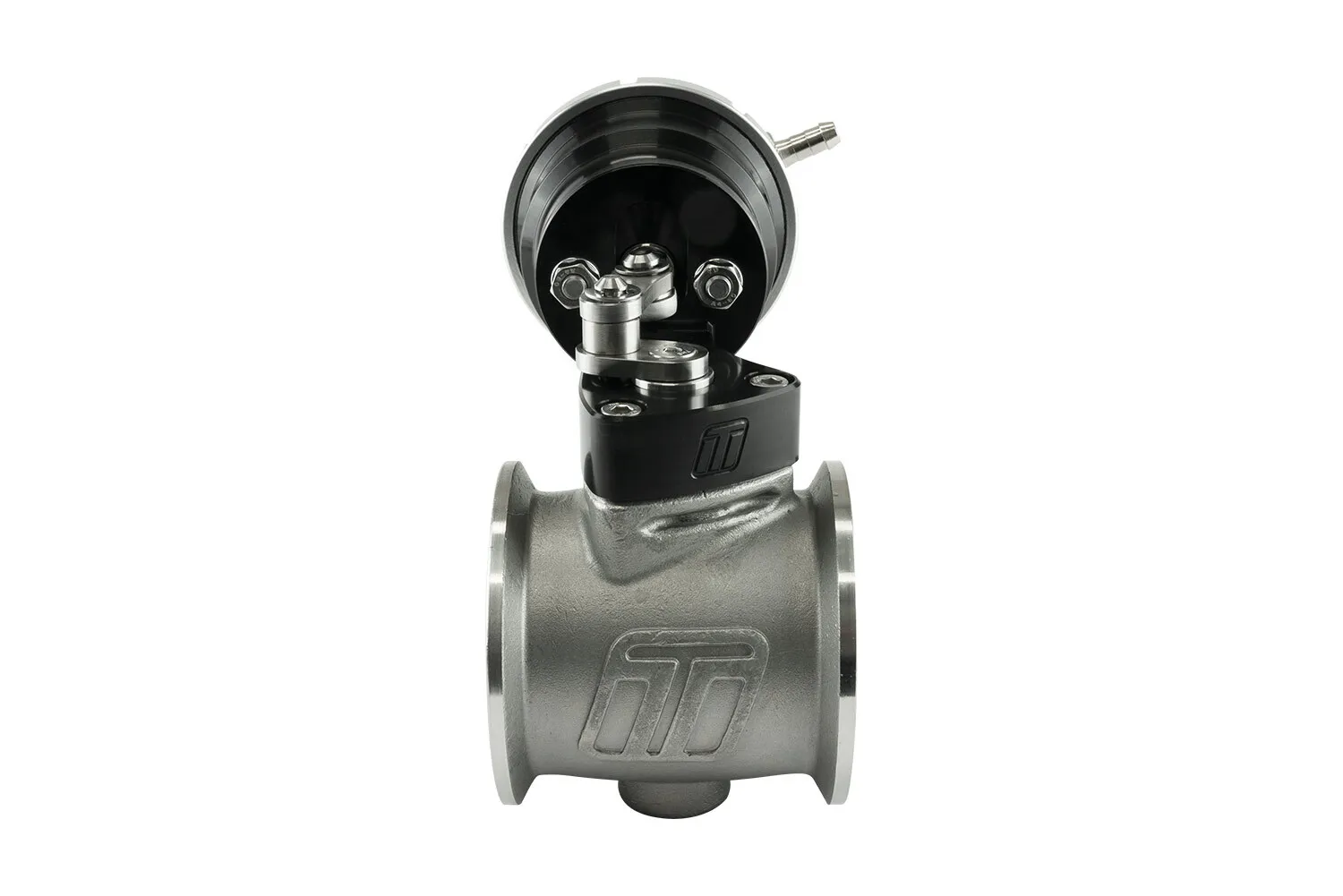

The StraightGate50 from Turbosmart is the world’s highest-flowing external wastegate! The StraightGate50 is a zero-offset butterfly-style wastegate that allows enormous flow and almost linear control, and unparalleled boost control throughout the entire operating range.

The Boost-Based Pneumatic StraightGate50 takes the Multiple Award Winning eSG50 and simplifies control via a traditional boost-based actuator. The Self-Balancing nature of the StraightGate50 means a huge tuning window of over 5 times base spring pressure can be obtained! Pre-fitted with 6 psi springs to the GenV actuator featuring both single & Twin port control, the StraightGate50 is simple to use, and packed with performance, flow and features!

The Turbosmart StraightGate50 has been designed from the ground up & validated in-house to create a new level of control and flow, never seen in a wastegate before. The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves of the valve, which pivots centrally, resulting in a self-balanced valve against any drive pressure. This self-balancing means less work is required to act against even the highest drive pressures, and a wider tuning window is possible, no matter how the valve is actuated. The increased flow is achieved through the efficiency of a straight-through valve versus a poppet-style valve where the exhaust gas must be turned 90 degrees by the valve.

Specifications

  • 50mm (1.97in) Butterfly Style Zero-Offset Valve
  • 383.9 CFM / 10.87m3 per minute flow
  • Stainless Steel (630) Butterfly and shaft
  • Stainless Steel (347) Main Body
  • Stainless Steel (Heat Treated 431) V-Band Clamps
  • Aluminium (6262 T6 Anodised) Bracket & Actuator
  • Turbosmart unique Locking Collar Ring
  • Base Spring Options from 6psi to 42psi
  • Suitable for Single or Twin Port Boost-Based Control
  • Stainless Steel (N60) Linkages & Control Arm

What's Included

  • Boost-Based Pneumatic StraightGate50
  • StraihgtGate50 Inlet & Outlet Flanges
  • StraightGate50 Inlet & Outlet Weld Flanges
  • 6psi Springs Pre-Installed
  • All Other Springs including in box
  • 2 x 1/8 NPT Hose Tail Fittings
  • 2 x 1/8 NPT Blanking Plugs
  • Turbosmart Decal

Compatibility

  • Universal Part

The StraightGate50 from Turbosmart is the world’s highest-flowing external wastegate! The StraightGate50 is a zero-offset butterfly-style wastegate that allows enormous flow and almost linear control, and unparalleled boost control throughout the entire operating range.

The Boost-Based Pneumatic StraightGate50 takes the Multiple Award Winning eSG50 and simplifies control via a traditional boost-based actuator. The Self-Balancing nature of the StraightGate50 means a huge tuning window of over 5 times base spring pressure can be obtained! Pre-fitted with 6 psi springs to the GenV actuator featuring both single & Twin port control, the StraightGate50 is simple to use, and packed with performance, flow and features!

The Turbosmart StraightGate50 has been designed from the ground up & validated in-house to create a new level of control and flow, never seen in a wastegate before. The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves of the valve, which pivots centrally, resulting in a self-balanced valve against any drive pressure. This self-balancing means less work is required to act against even the highest drive pressures, and a wider tuning window is possible, no matter how the valve is actuated. The increased flow is achieved through the efficiency of a straight-through valve versus a poppet-style valve where the exhaust gas must be turned 90 degrees by the valve.

  • 50mm (1.97in) Butterfly Style Zero-Offset Valve
  • 383.9 CFM / 10.87m3 per minute flow
  • Stainless Steel (630) Butterfly and shaft
  • Stainless Steel (347) Main Body
  • Stainless Steel (Heat Treated 431) V-Band Clamps
  • Aluminium (6262 T6 Anodised) Bracket & Actuator
  • Turbosmart unique Locking Collar Ring
  • Base Spring Options from 6psi to 42psi
  • Suitable for Single or Twin Port Boost-Based Control
  • Stainless Steel (N60) Linkages & Control Arm
  • Boost-Based Pneumatic StraightGate50
  • StraihgtGate50 Inlet & Outlet Flanges
  • StraightGate50 Inlet & Outlet Weld Flanges
  • 6psi Springs Pre-Installed
  • All Other Springs including in box
  • 2 x 1/8 NPT Hose Tail Fittings
  • 2 x 1/8 NPT Blanking Plugs
  • Turbosmart Decal
  • Universal Part
