Description

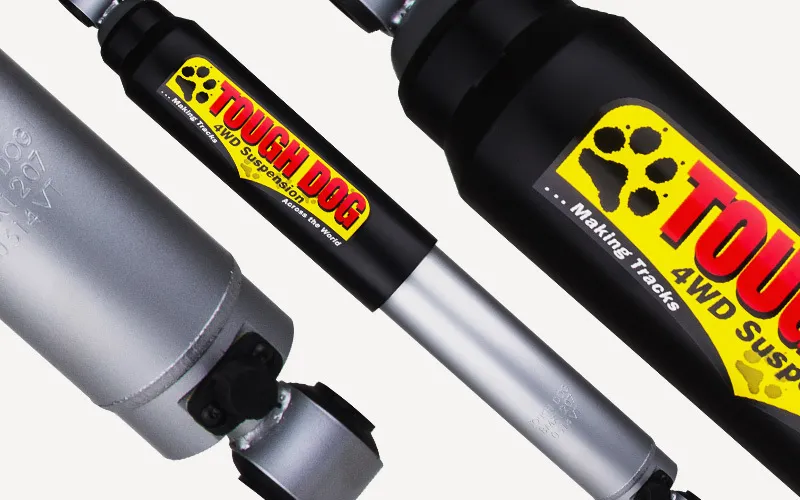

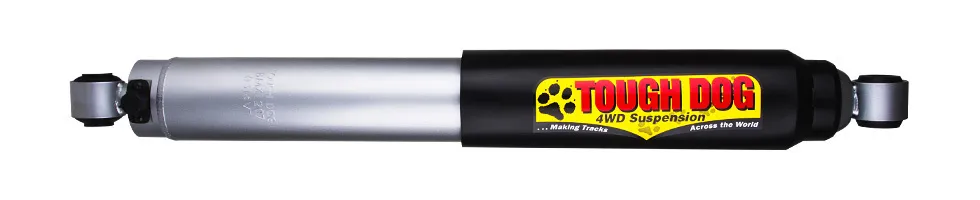

These tough puppies are the largest bore externally adjustable shocks available on the market. There is nothing that can compare to the 45mm bore in a 70mm outer casing. This is one serious shock.

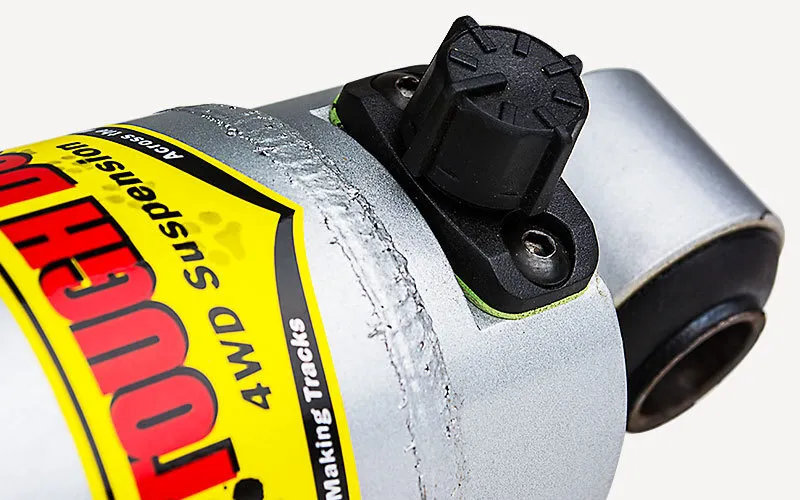

The 9 stages of adjustment mean you can control the firmness of your shocks easily, and adapt to the conditions as required. Choose a firmer ride for your highway travels, and then dial them down when it’s time to get down to business. 45mm big bore adjustables are designed for big lift applications up to six inches over factory in some vehicles. Our adjustable shocks are built tough for the Aussie outback. As well as the Foam Cell insert to combat shock fade, the 45mm adjustable also incorporate an ABS plastic dust shield as well as an external dust wiper seal to protect the shock’s internals from grit which can damage the oil seals around the chrome rod. When fully extended, the shock is at its most vulnerable to damage from side load. The internal bump stop and piston rod guide ensure the shock is supported at the extremes of its travel. Our big bore shocks also have a DU bushing fitted internally to protect the seals from damage caused by side load at full extension.

  • 45mm internal bore
  • 70mm external casing
  • 22mm chrome plated rod
  • High temperature, all weather oil
  • Foam cell technology
  • 9 Stage external adjustment
  • Additional welding on all studs and eyerings
  • 3 Year / unlimited km warranty recreational use (Conditions Apply)
  • 2 Year / unlimited km warranty commercial use (Conditions Apply)

Specifications

Compatibility

Nissan Patrol 1992 - 2015 GQ, GU Cab Chassis (Coil/Leaf) - suits 50mm Lift ONLY

These tough puppies are the largest bore externally adjustable shocks available on the market. There is nothing that can compare to the 45mm bore in a 70mm outer casing. This is one serious shock.
The 9 stages of adjustment mean you can control the firmness of your shocks easily, and adapt to the conditions as required. Choose a firmer ride for your highway travels, and then dial them down when it’s time to get down to business. 45mm big bore adjustables are designed for big lift applications up to six inches over factory in some vehicles. Our adjustable shocks are built tough for the Aussie outback. As well as the Foam Cell insert to combat shock fade, the 45mm adjustable also incorporate an ABS plastic dust shield as well as an external dust wiper seal to protect the shock’s internals from grit which can damage the oil seals around the chrome rod. When fully extended, the shock is at its most vulnerable to damage from side load. The internal bump stop and piston rod guide ensure the shock is supported at the extremes of its travel. Our big bore shocks also have a DU bushing fitted internally to protect the seals from damage caused by side load at full extension.

  • 45mm internal bore
  • 70mm external casing
  • 22mm chrome plated rod
  • High temperature, all weather oil
  • Foam cell technology
  • 9 Stage external adjustment
  • Additional welding on all studs and eyerings
  • 3 Year / unlimited km warranty recreational use (Conditions Apply)
  • 2 Year / unlimited km warranty commercial use (Conditions Apply)
Nissan Patrol 1992 - 2015 GQ, GU Cab Chassis (Coil/Leaf) - suits 50mm Lift ONLY
