Description

Lifetime warranty ribbongThese are super heavy duty Competition Use Heim Jointed solid bar Tie Rod Suitable For Nissan Patrol GU.

These Drag Links are fitted with High Quality 7/8" Heim Joints on each end for increased flex and reduction of tie rod end failures when flexing offroad.

WARNING: Heim joints wear faster than tie rod ends do, and as such Superior recommends these for use on competition vehicles only.

Made from quality High Tensile Chromoly Bar, 7/8" thread with lock nuts and the patented ITS Seal Technology.

All steering arms come coated in a rust-resistant zinc finish and come with high flex Heim Joints fitted.

100% Street Legal, These Steering Rods are NCOP/VSB Approved for on-road use.

Sold each.


A single solid bar heim joint tierod on a white background

ITS Seal Technology

Superior Engineering now includes ITS Seal Technology on internally threaded adjustable suspension linkages, eliminating the ingress of moisture or liquids that can cause corrosion or rust.

By adding a specially machined seal groove and incorporating a hydraulic seal between the locking nuts, the thread and the link, a perfect pressure-tight seal is created.

This patented process (PN-2015101600) is EXCLUSIVE to Superior Engineering's internally threaded items such as tierods, draglinks, Panhard rods and control arms (upper and lower).

ITS Seal Technology Diagram

Patent Number: 2015101600

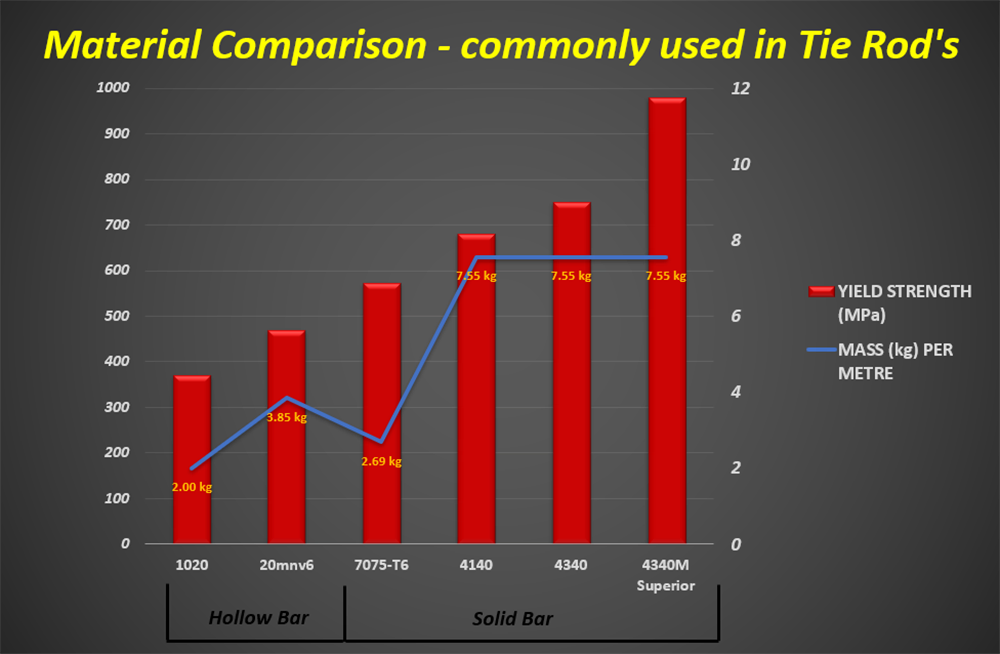

Material Strength Comparison Chart

DISCLAIMER: Superior Engineering and other branded steering components are aftermarket replacement parts that are often upgraded for increased strength and durability compared to factory components. While these products meet or exceed OEM specifications, regular maintenance is essential to ensure safety and longevity. It is the responsibility of the vehicle owner to inspect all steering components, including rod ends, internal and external threads, and hollow bars at every service or at least every six months. Any signs of looseness, damage, or rust must be addressed immediately, as rust formation, particularly in harsh environments such as beach driving or off-roading, can compromise performance and may void the product warranty. Any wear or "play" in ball joints, tie rod ends, or threads requires immediate replacement to maintain safe vehicle operation. Failure to perform regular inspections and necessary replacements may result in component failure, which could lead to serious injury or damage.

Specifications

Compatibility

  • 1997 - 2016 Nissan Patrol GU, Ute Diesel 3.0, 4.2 & 4.2ltr TD
  • 2000 - 2016 Nissan Patrol GU, Ute Diesel 3ltr
  • 1997 - 2010 Nissan Patrol GU, Ute 4.2 & 4.2ltr TD
  • 1997 - 1999 Nissan Patrol GU, Wagon Diesel 2.8ltr TD
  • 1997 - 1999 Nissan Patrol GU, Wagon Diesel 4.2ltr TD 98-99
  • 2000 - 2016 Nissan Patrol GU, Wagon Diesel 3ltr TD
  • 1997 - 1999 Nissan Patrol GU, Wagon Petrol 4.5ltr
  • 2000 - 2010 Nissan Patrol GU, Wagon Petrol 4.8ltr
  • 2000 - 2010 Nissan Patrol GU, Wagon Diesel 4.2ltr TD 2000 on

Lifetime warranty ribbongThese are super heavy duty Competition Use Heim Jointed solid bar Tie Rod Suitable For Nissan Patrol GU.

These Drag Links are fitted with High Quality 7/8" Heim Joints on each end for increased flex and reduction of tie rod end failures when flexing offroad.

WARNING: Heim joints wear faster than tie rod ends do, and as such Superior recommends these for use on competition vehicles only.

Made from quality High Tensile Chromoly Bar, 7/8" thread with lock nuts and the patented ITS Seal Technology.

All steering arms come coated in a rust-resistant zinc finish and come with high flex Heim Joints fitted.

100% Street Legal, These Steering Rods are NCOP/VSB Approved for on-road use.

Sold each.


A single solid bar heim joint tierod on a white background

ITS Seal Technology

Superior Engineering now includes ITS Seal Technology on internally threaded adjustable suspension linkages, eliminating the ingress of moisture or liquids that can cause corrosion or rust.

By adding a specially machined seal groove and incorporating a hydraulic seal between the locking nuts, the thread and the link, a perfect pressure-tight seal is created.

This patented process (PN-2015101600) is EXCLUSIVE to Superior Engineering's internally threaded items such as tierods, draglinks, Panhard rods and control arms (upper and lower).

ITS Seal Technology Diagram

Patent Number: 2015101600

Material Strength Comparison Chart

DISCLAIMER: Superior Engineering and other branded steering components are aftermarket replacement parts that are often upgraded for increased strength and durability compared to factory components. While these products meet or exceed OEM specifications, regular maintenance is essential to ensure safety and longevity. It is the responsibility of the vehicle owner to inspect all steering components, including rod ends, internal and external threads, and hollow bars at every service or at least every six months. Any signs of looseness, damage, or rust must be addressed immediately, as rust formation, particularly in harsh environments such as beach driving or off-roading, can compromise performance and may void the product warranty. Any wear or "play" in ball joints, tie rod ends, or threads requires immediate replacement to maintain safe vehicle operation. Failure to perform regular inspections and necessary replacements may result in component failure, which could lead to serious injury or damage.

  • 1997 - 2016 Nissan Patrol GU, Ute Diesel 3.0, 4.2 & 4.2ltr TD
  • 2000 - 2016 Nissan Patrol GU, Ute Diesel 3ltr
  • 1997 - 2010 Nissan Patrol GU, Ute 4.2 & 4.2ltr TD
  • 1997 - 1999 Nissan Patrol GU, Wagon Diesel 2.8ltr TD
  • 1997 - 1999 Nissan Patrol GU, Wagon Diesel 4.2ltr TD 98-99
  • 2000 - 2016 Nissan Patrol GU, Wagon Diesel 3ltr TD
  • 1997 - 1999 Nissan Patrol GU, Wagon Petrol 4.5ltr
  • 2000 - 2010 Nissan Patrol GU, Wagon Petrol 4.8ltr
  • 2000 - 2010 Nissan Patrol GU, Wagon Diesel 4.2ltr TD 2000 on
