Description

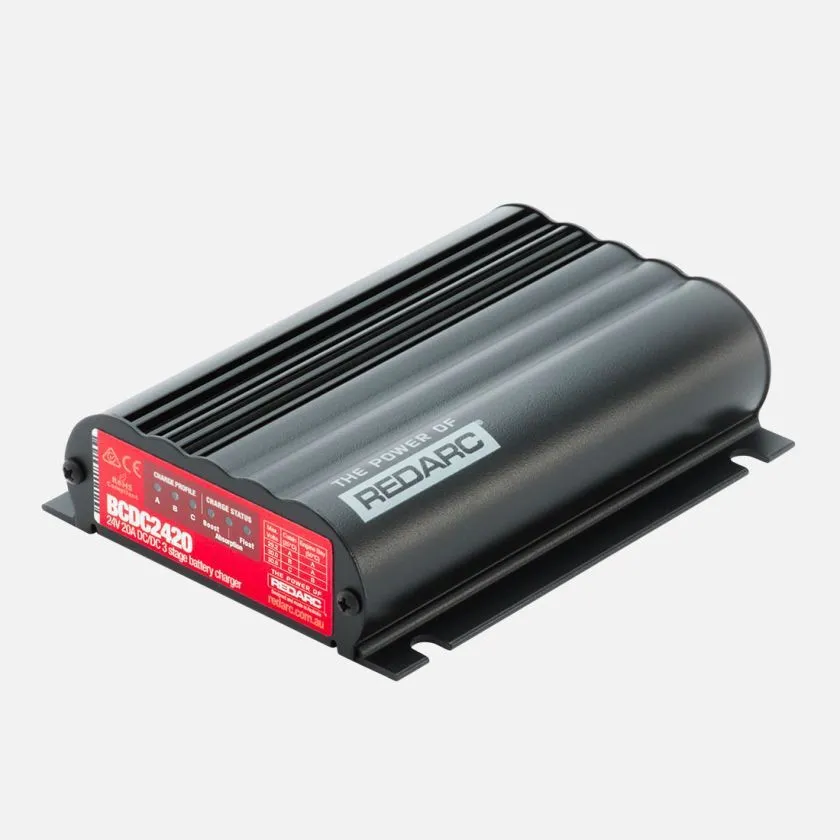

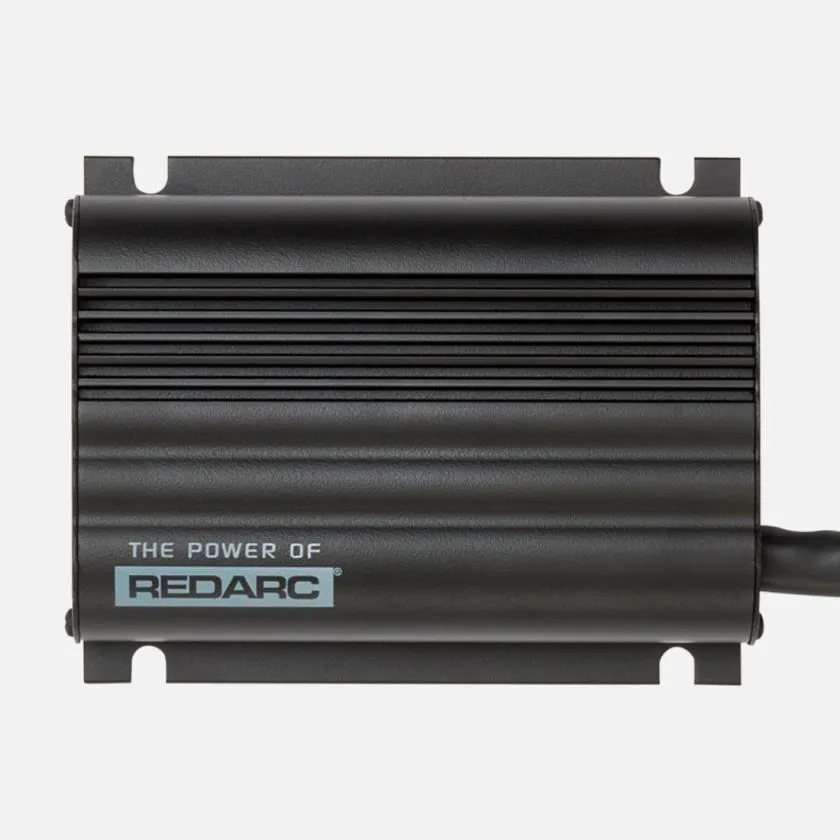

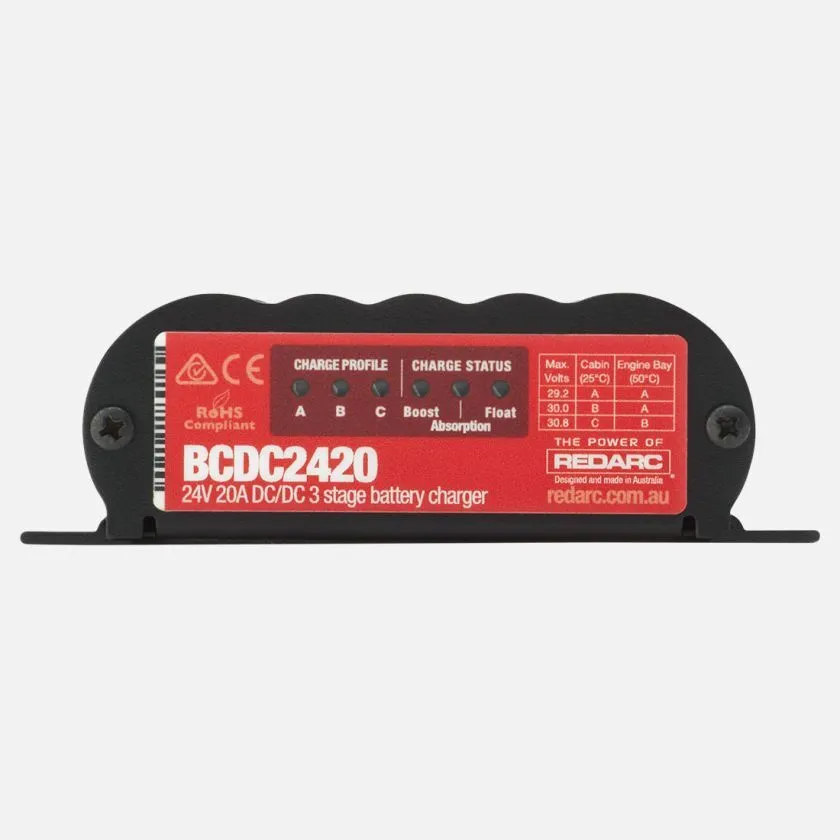

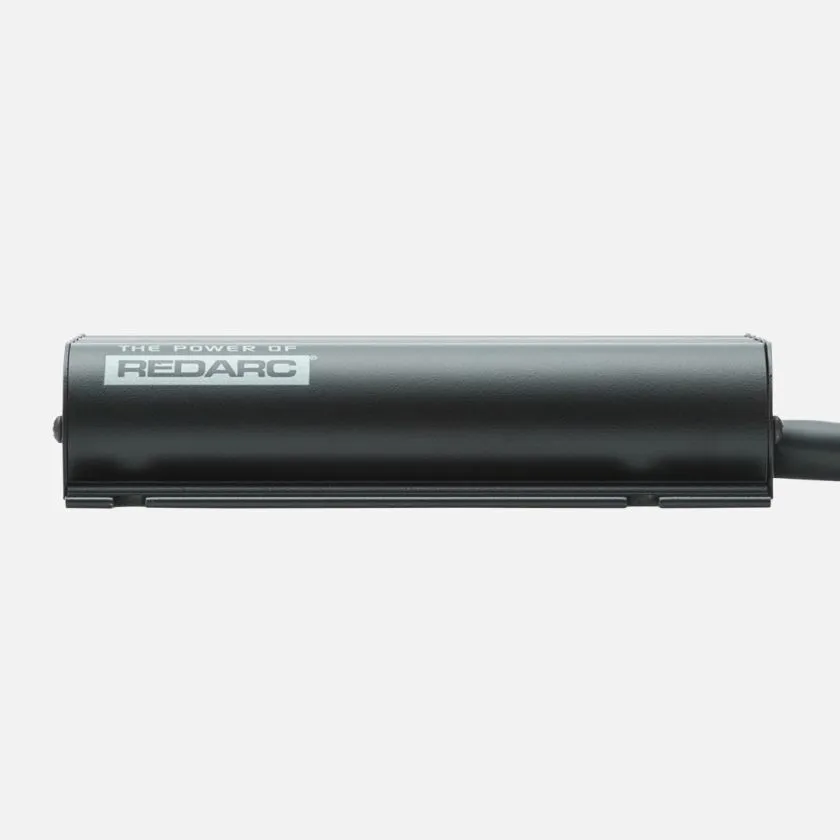

The REDARC BCDC2420 battery charger is a 24 Volt 20 Amp, three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge any commonly used automotive 24V battery system to an optimal level with chemistry specific battery charging algorithms.

Fully potted and sealed, this DC-DC charger is perfect for under bonnet installations to withstand heat, water, dust and vibration to deliver perfect performance every time.

The BCDC2420 features a multi-stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.

The BCDC2420 features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.

Mounting Brackets

REDARC offer a range of vehicle-specific mounting brackets for our BCDC DC-DC Charger range. The 304 stainless steel bracket allows installation into the front of the vehicle for cooler airflow, ensuring optimal performance. They have been designed to fit existing mounting points in the vehicle.

Specifications

  • Multi-Stage DC to DC Battery Charger
  • MPPT Solar Regulator
  • Start Battery Isolator
  • Fully sealed
  • No fan for super-quiet operation
  • Charges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteries
  • Warranty : 2 Years
  • gtin_barcode : 9338628003334
  • brand : REDARC
  • Continuous Rating : 20A
  • Power Type - AC DC : DC TO DC
  • Nominal Output Power : 600W
  • Input Fuse Rating : 60A (Not supplied) REDARC FK60 recommended
  • Solar Switch On Voltage : 17.5V
  • Suitable For 12V Systems : Yes
  • Suitable For 24V Systems : Yes
  • Solar Input Voltage : 9 - 32V
  • MPPT Solar Regulator : Yes
  • Cabin/ Canopy Install : Yes
  • No Load Current : <100mA
  • Trailer Install : Yes
  • Engine Bay Install : Yes
  • Max. Charging Voltage : 30.6V
  • Output Fuse Rating : 40A (Not supplied) REDARC FK40 recommended
  • Operating Temperature : -20°C to 80°C
  • Output Voltage : 24V DC
  • Max. Rated Output Current : 20A
  • Input Voltage : 9 - 32V
  • Standby Current : <8mA
  • Connector Type : Bare wire

Compatibility

  • Universal Part

The REDARC BCDC2420 battery charger is a 24 Volt 20 Amp, three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge any commonly used automotive 24V battery system to an optimal level with chemistry specific battery charging algorithms.

Fully potted and sealed, this DC-DC charger is perfect for under bonnet installations to withstand heat, water, dust and vibration to deliver perfect performance every time.

The BCDC2420 features a multi-stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.

The BCDC2420 features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.

Mounting Brackets

REDARC offer a range of vehicle-specific mounting brackets for our BCDC DC-DC Charger range. The 304 stainless steel bracket allows installation into the front of the vehicle for cooler airflow, ensuring optimal performance. They have been designed to fit existing mounting points in the vehicle.

  • Multi-Stage DC to DC Battery Charger
  • MPPT Solar Regulator
  • Start Battery Isolator
  • Fully sealed
  • No fan for super-quiet operation
  • Charges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteries
  • Warranty : 2 Years
  • gtin_barcode : 9338628003334
  • brand : REDARC
  • Continuous Rating : 20A
  • Power Type - AC DC : DC TO DC
  • Nominal Output Power : 600W
  • Input Fuse Rating : 60A (Not supplied) REDARC FK60 recommended
  • Solar Switch On Voltage : 17.5V
  • Suitable For 12V Systems : Yes
  • Suitable For 24V Systems : Yes
  • Solar Input Voltage : 9 - 32V
  • MPPT Solar Regulator : Yes
  • Cabin/ Canopy Install : Yes
  • No Load Current : <100mA
  • Trailer Install : Yes
  • Engine Bay Install : Yes
  • Max. Charging Voltage : 30.6V
  • Output Fuse Rating : 40A (Not supplied) REDARC FK40 recommended
  • Operating Temperature : -20°C to 80°C
  • Output Voltage : 24V DC
  • Max. Rated Output Current : 20A
  • Input Voltage : 9 - 32V
  • Standby Current : <8mA
  • Connector Type : Bare wire
  • Universal Part
