Description

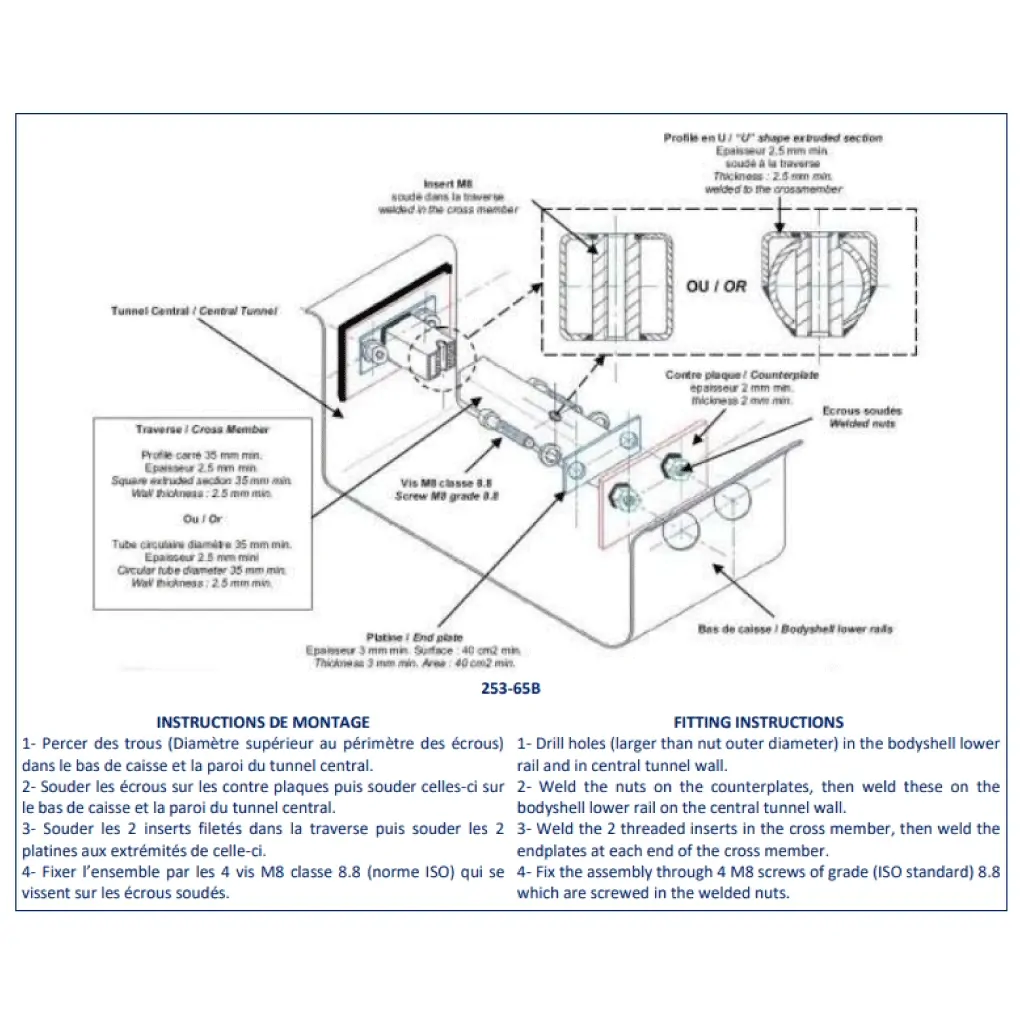

Simplify your racing seat installation and meet FIA Appendix J - Art. 253 requirements using our steel cross member set. This set does require some fabrication. Once the cross members are cut to suit, you must drill holes and weld in the inserts, weld the endplates. You will need to drill holes in the bodyshell lower rail and tunnel (larger than the nut outer diameter) then weld the counterplates to your bodyshell.

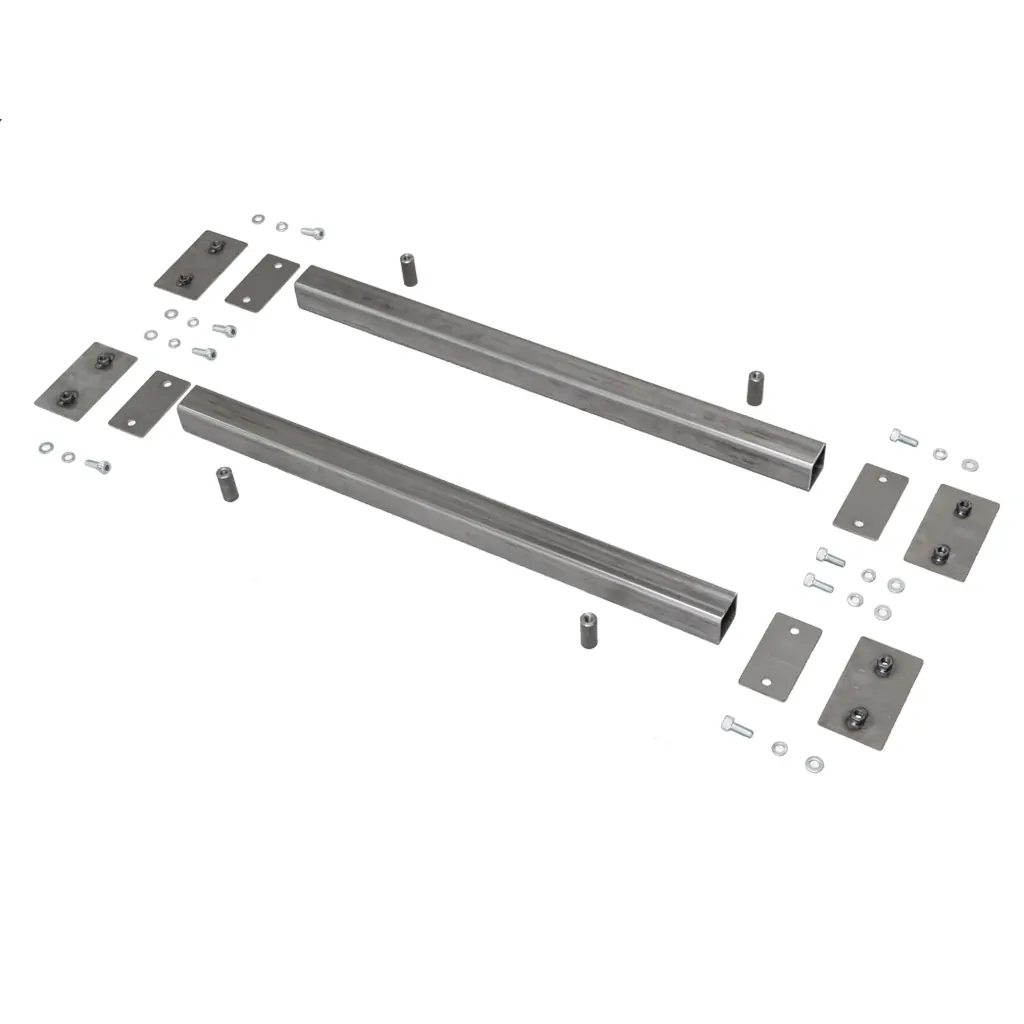

Kit Contents:

2x Steel transverse cross members - 608 x 38 x 38 x 2.5mm
4x Steel endplates - 88 x 46 x 3mm
4x Steel counterplates with welded nuts - 106 x 60 x 2mm
4x M8 threaded bosses - 32 x 16 x M8
8x M8 x 20 (12.9) cap screws, flat washers and spring washers

Specifications

Compatibility

  • Universal Part

Simplify your racing seat installation and meet FIA Appendix J - Art. 253 requirements using our steel cross member set. This set does require some fabrication. Once the cross members are cut to suit, you must drill holes and weld in the inserts, weld the endplates. You will need to drill holes in the bodyshell lower rail and tunnel (larger than the nut outer diameter) then weld the counterplates to your bodyshell.

Kit Contents:

2x Steel transverse cross members - 608 x 38 x 38 x 2.5mm
4x Steel endplates - 88 x 46 x 3mm
4x Steel counterplates with welded nuts - 106 x 60 x 2mm
4x M8 threaded bosses - 32 x 16 x M8
8x M8 x 20 (12.9) cap screws, flat washers and spring washers

  • Universal Part
