Description

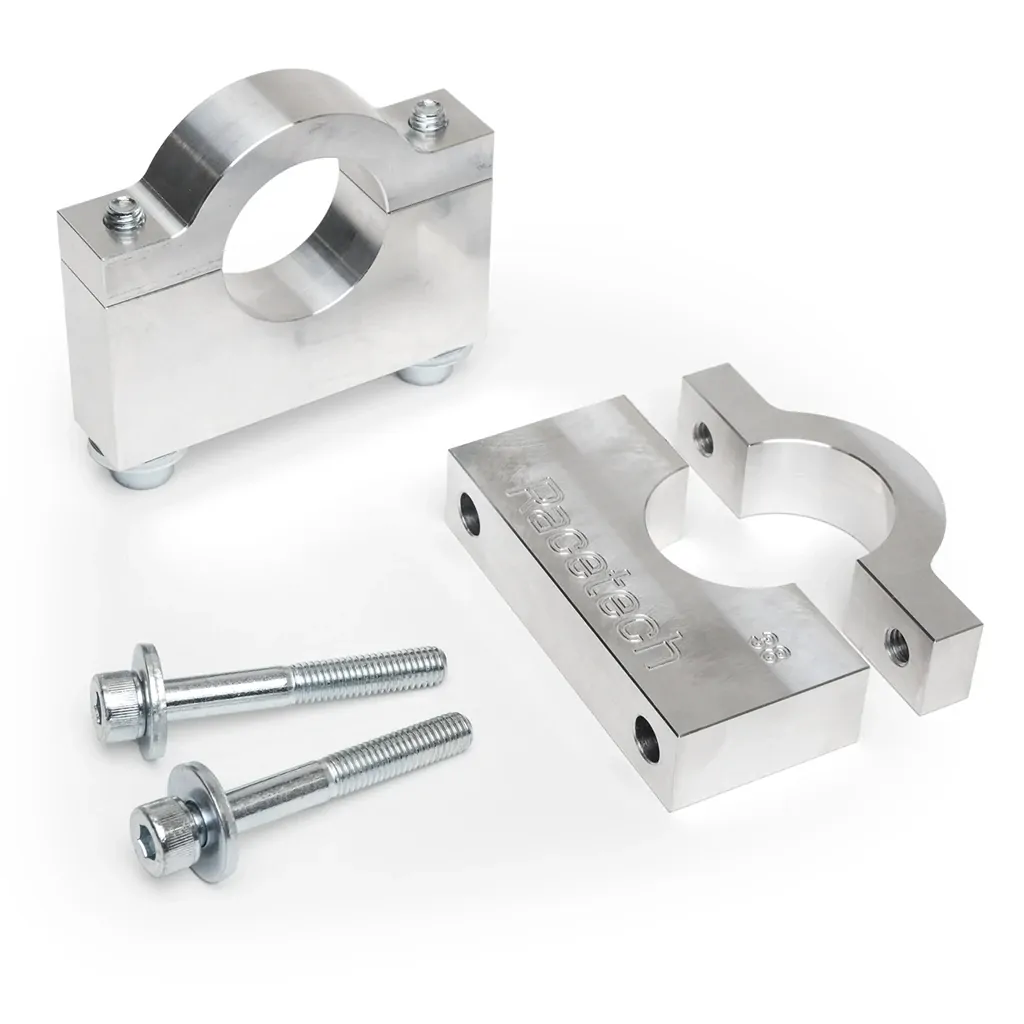

A pair of Racetech RTB2005C aluminium clamps for back-mounting seats. Precision cut from 20mm thick 6061 alloy sheet. Sold as a pair, these clamps fix around a rollcage tube and bolt to the RTB2115B bracket. This allows you to effectively back-mount a Racetech 119 or 4100 Series seat to the chassis/rollcage at the shoulder level. Supplied with 2x M8 bolts and 2x flat washers per clamp.

4 sizes are available to suit different rollcage tubing. Select your tube diameter from the dropdown box above.

Size Chart:

Part     Tube Diameter (mm)     Tube Diameter (inch)
RTB2005C38     38.1mm     11/2
RTB2005C40     40mm     137/64
RTB2005C41     41.3mm     15/8
RTB2005C45     44.5mm     13/4

Specifications

Compatibility

  • Universal Part

A pair of Racetech RTB2005C aluminium clamps for back-mounting seats. Precision cut from 20mm thick 6061 alloy sheet. Sold as a pair, these clamps fix around a rollcage tube and bolt to the RTB2115B bracket. This allows you to effectively back-mount a Racetech 119 or 4100 Series seat to the chassis/rollcage at the shoulder level. Supplied with 2x M8 bolts and 2x flat washers per clamp.

4 sizes are available to suit different rollcage tubing. Select your tube diameter from the dropdown box above.

Size Chart:

Part     Tube Diameter (mm)     Tube Diameter (inch)
RTB2005C38     38.1mm     11/2
RTB2005C40     40mm     137/64
RTB2005C41     41.3mm     15/8
RTB2005C45     44.5mm     13/4

  • Universal Part
