Description

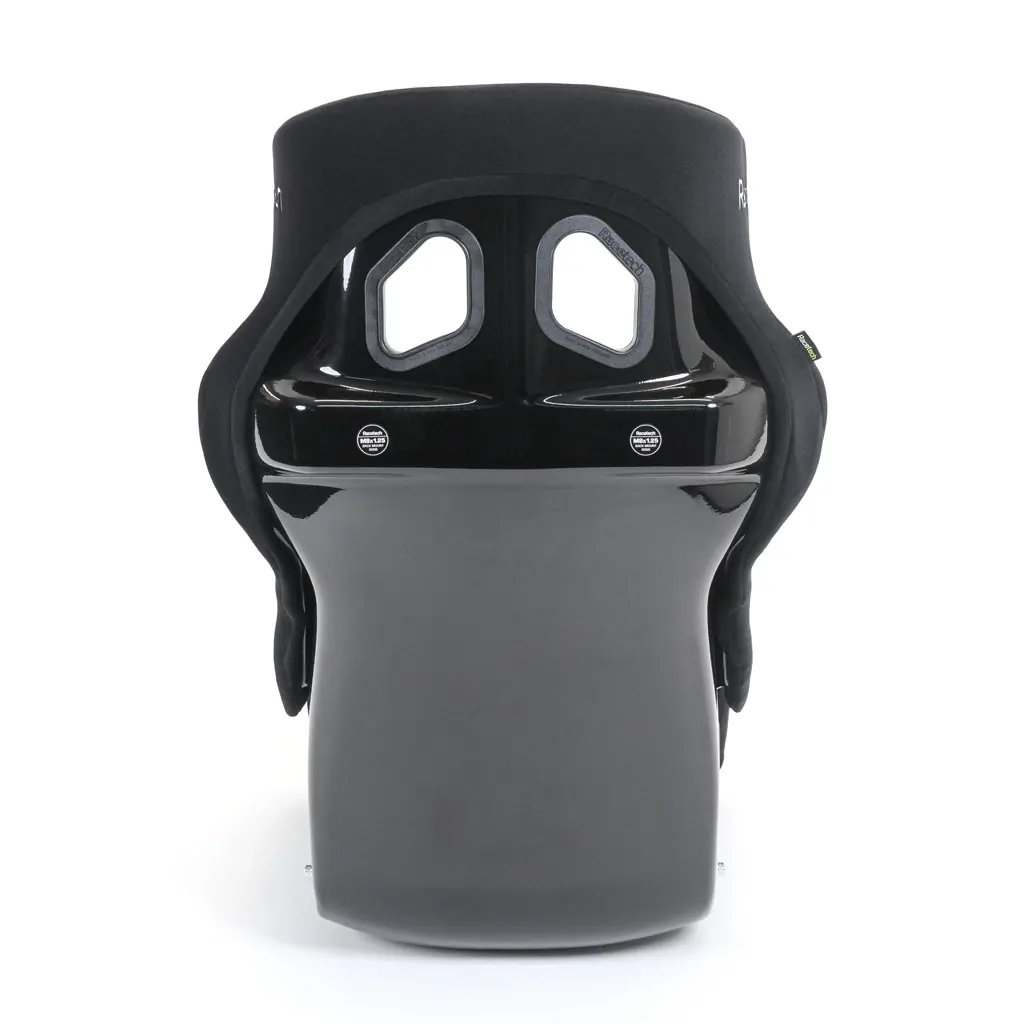

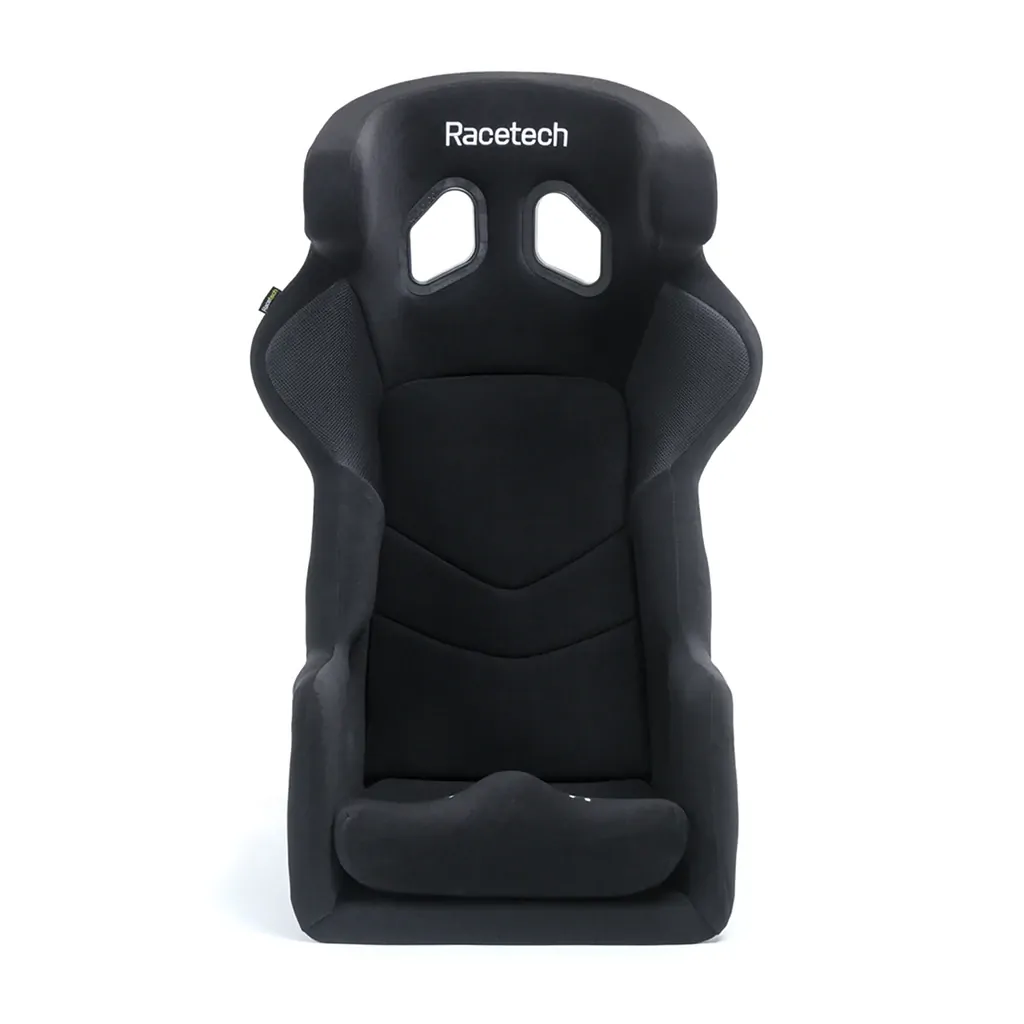

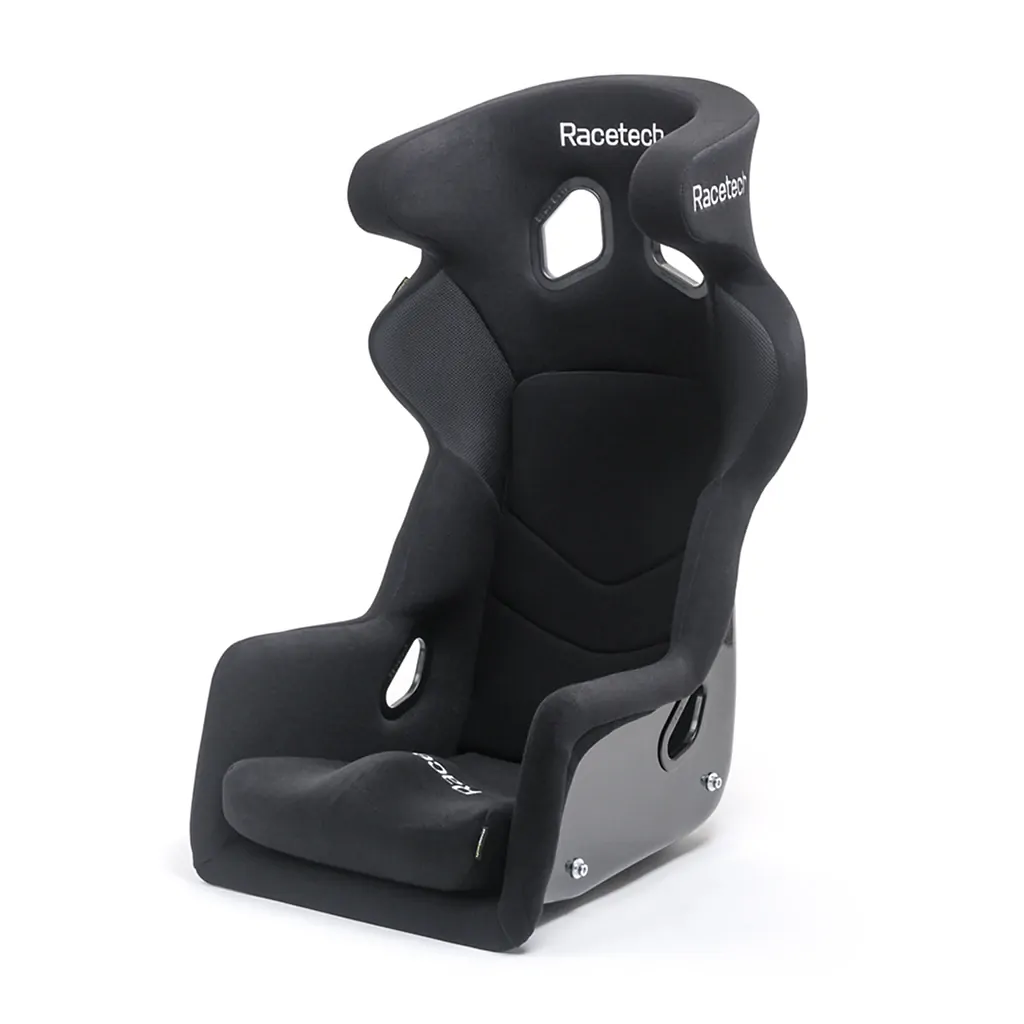

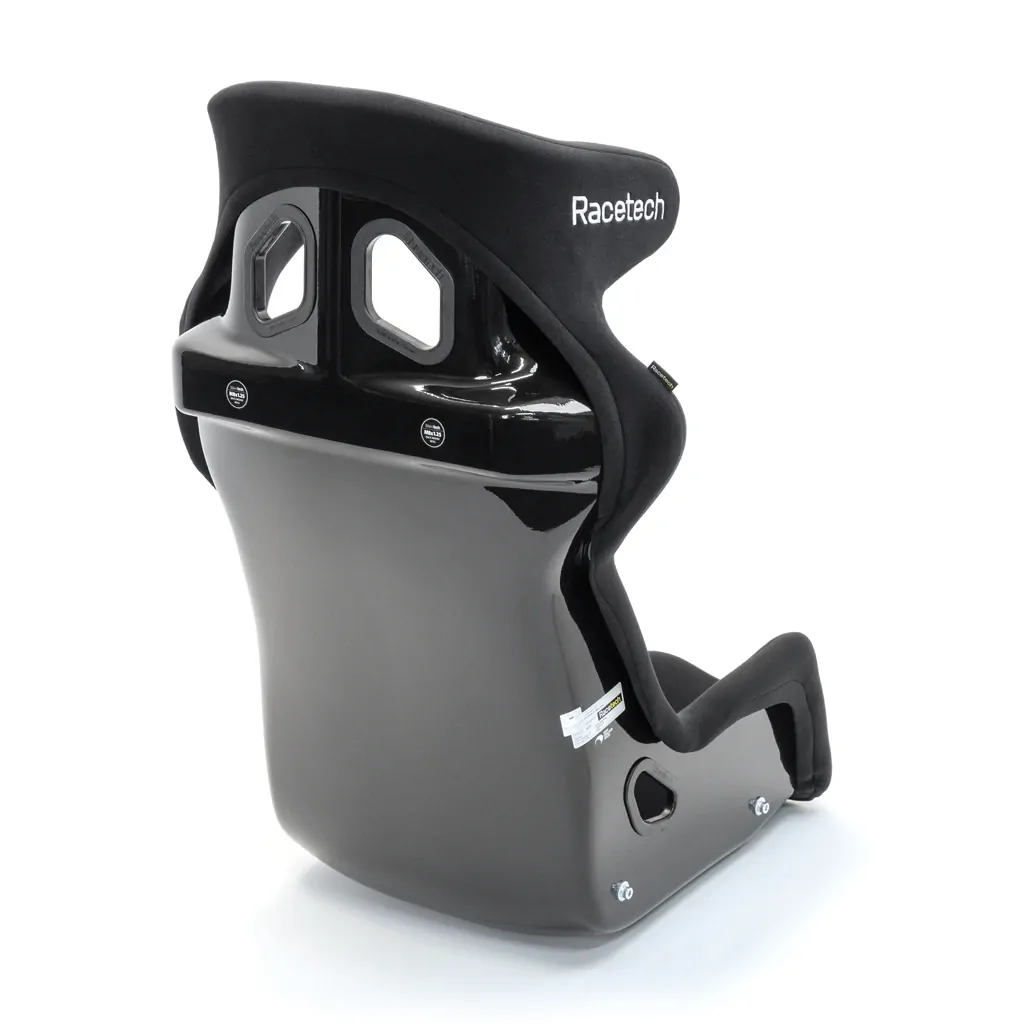

THE RACETECH RT4200 SERIES - FIA APPROVED FIBREGLASS RACE SEAT!

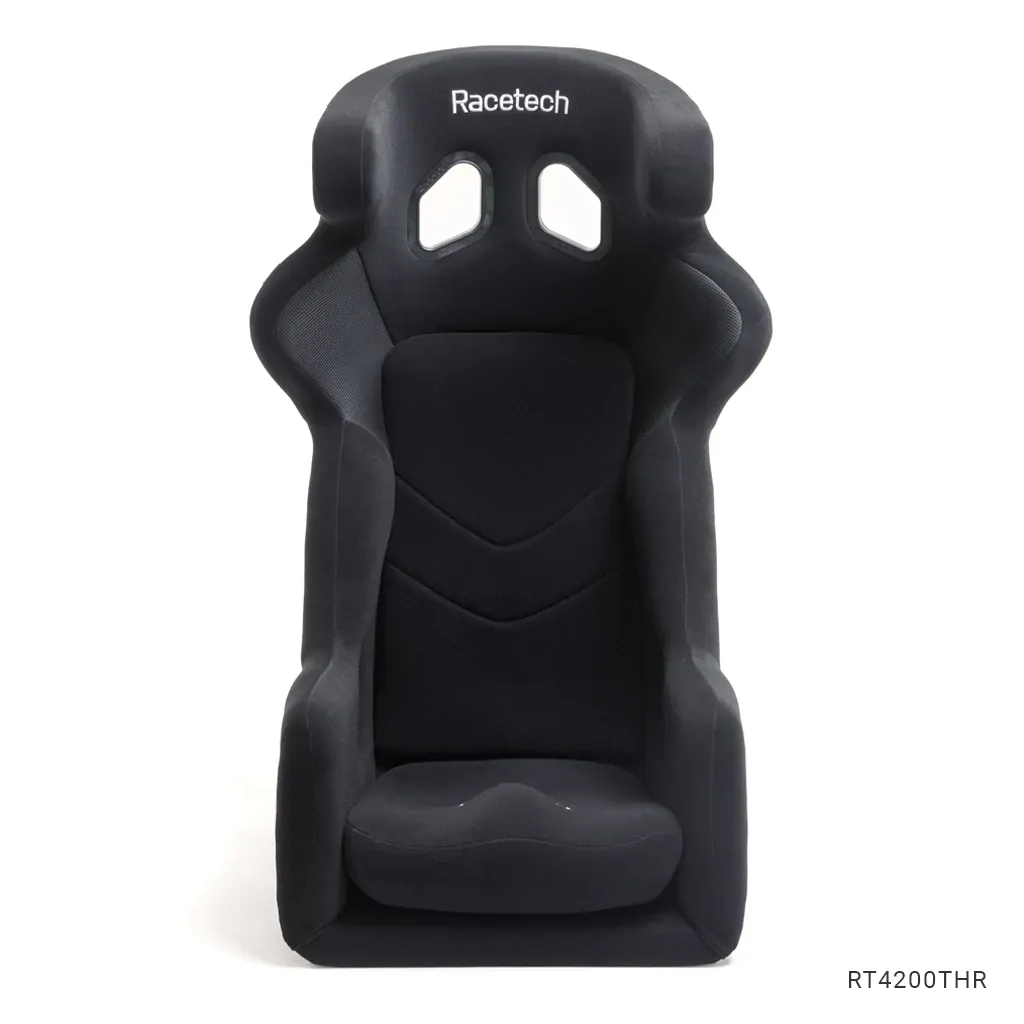

With increased rib support and enhanced head restraint foaming, the new RT4200 Series utilises the widely-respected RT4100 shell geometry but makes improvements in the areas of comfort and safety. The RT4200 is closer in feel through the rib and torso area when compared to our retired RT4009 Series. Racetech signature features such as back-mounting, pronounced thigh support, a moulded base cushion, parallel sides, and flush bosses for ease of mounting are all present, making this seat series hard to beat. Like all Racetech seats, these lightweight, resin-infused shells are crafted in Wellington, New Zealand. The RT4200 series comprises three sizes all with FIA 8855-1999 approval. For larger drivers', the RT4200THR is 60mm taller and the RT4200WTHR is both 60mm taller and 40mm wider.

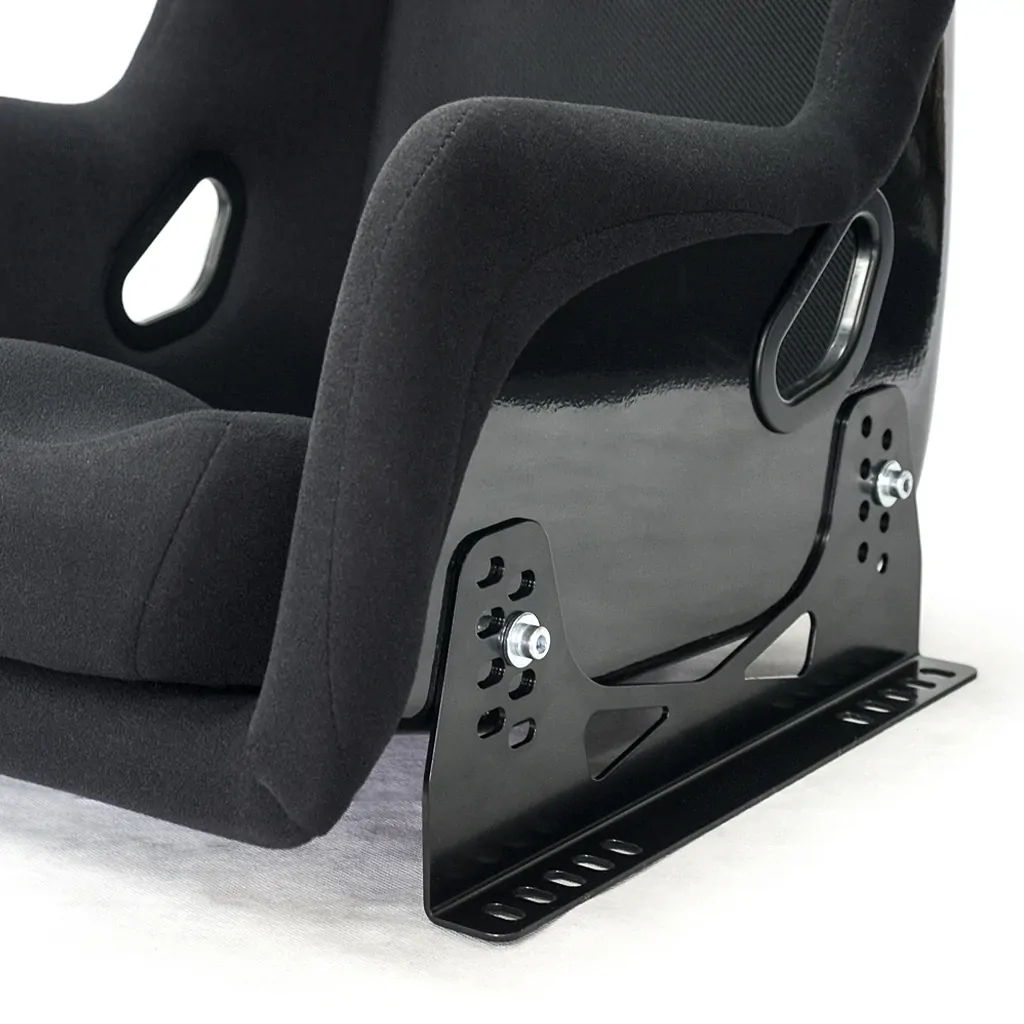

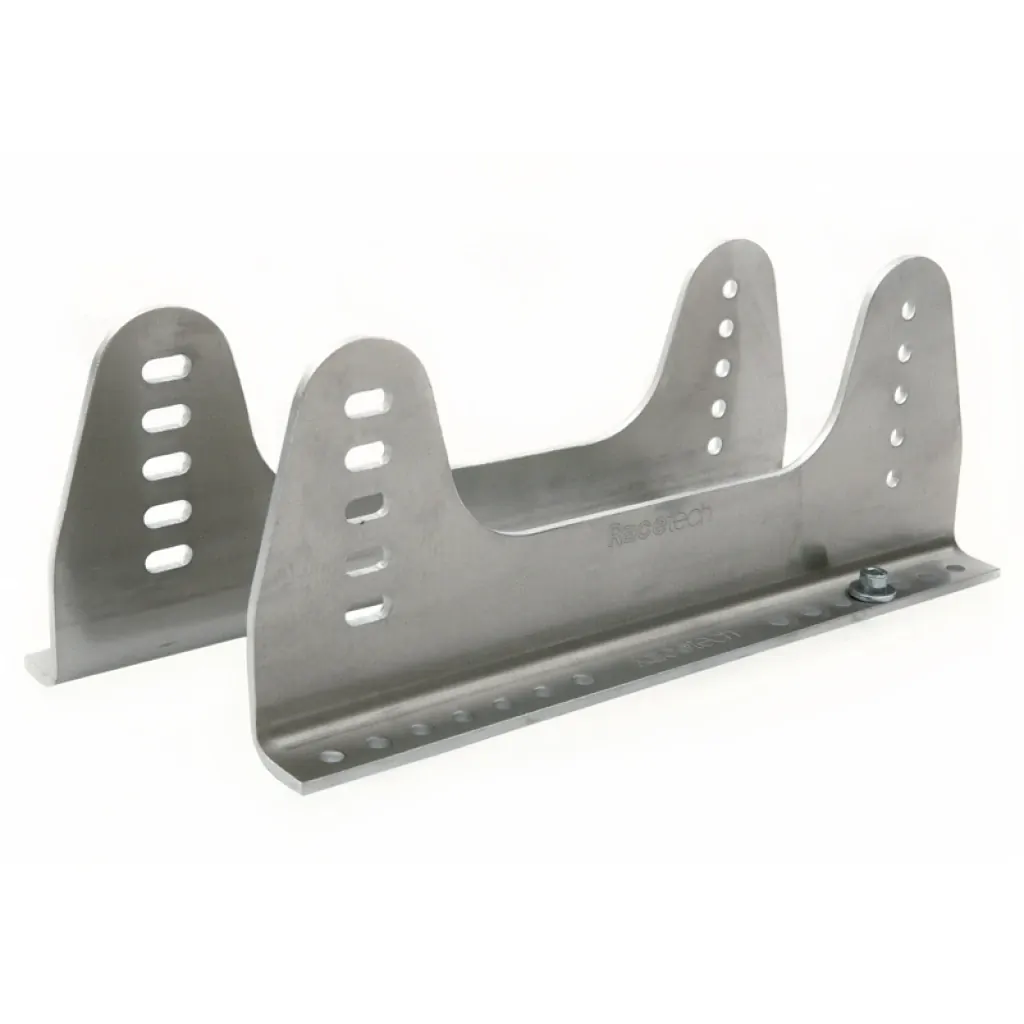

The 4200 Series seats use Racetech RTB2009S black powder-coated steel or RTB1009M aluminium side mounting brackets.

Dimensions and Weights:

Application
Common ApplicationsFrom clubsport to national-level circuit and rally
Stock Colour / Material
GelcoatGloss Black
Seat CoverBlack fire-retardant nylon fabric with Spacer mesh in the shoulders
Wear PatchesN/A
Technical
HomologationFIA 8855-1999 Approved (using the applicable RT4100HR/WTHR seat shell)
Shell ConstructionFibreglass Composite
Shell WeightFrom 6.1kg
Side Mount Hole Centres295mm
Back Mount Hole Centres250mm
Bolt Torque (Zinc)30Nm / 22 ft lb
Design
SizesHR - Standard THR - Tall WTHR - Wide & Tall
Head RestraintIntegrated head restraint
HANS CompatibleYes
Harness CompatibilityUp to 6-point harness
Large Harness GuidesYes
Air DuctingN/A
Back-mount CompatibleYes

Specifications

Compatibility

  • Universal Part

THE RACETECH RT4200 SERIES - FIA APPROVED FIBREGLASS RACE SEAT!

With increased rib support and enhanced head restraint foaming, the new RT4200 Series utilises the widely-respected RT4100 shell geometry but makes improvements in the areas of comfort and safety. The RT4200 is closer in feel through the rib and torso area when compared to our retired RT4009 Series. Racetech signature features such as back-mounting, pronounced thigh support, a moulded base cushion, parallel sides, and flush bosses for ease of mounting are all present, making this seat series hard to beat. Like all Racetech seats, these lightweight, resin-infused shells are crafted in Wellington, New Zealand. The RT4200 series comprises three sizes all with FIA 8855-1999 approval. For larger drivers', the RT4200THR is 60mm taller and the RT4200WTHR is both 60mm taller and 40mm wider.

The 4200 Series seats use Racetech RTB2009S black powder-coated steel or RTB1009M aluminium side mounting brackets.

Dimensions and Weights:

Application
Common ApplicationsFrom clubsport to national-level circuit and rally
Stock Colour / Material
GelcoatGloss Black
Seat CoverBlack fire-retardant nylon fabric with Spacer mesh in the shoulders
Wear PatchesN/A
Technical
HomologationFIA 8855-1999 Approved (using the applicable RT4100HR/WTHR seat shell)
Shell ConstructionFibreglass Composite
Shell WeightFrom 6.1kg
Side Mount Hole Centres295mm
Back Mount Hole Centres250mm
Bolt Torque (Zinc)30Nm / 22 ft lb
Design
SizesHR - Standard THR - Tall WTHR - Wide & Tall
Head RestraintIntegrated head restraint
HANS CompatibleYes
Harness CompatibilityUp to 6-point harness
Large Harness GuidesYes
Air DuctingN/A
Back-mount CompatibleYes
  • Universal Part
