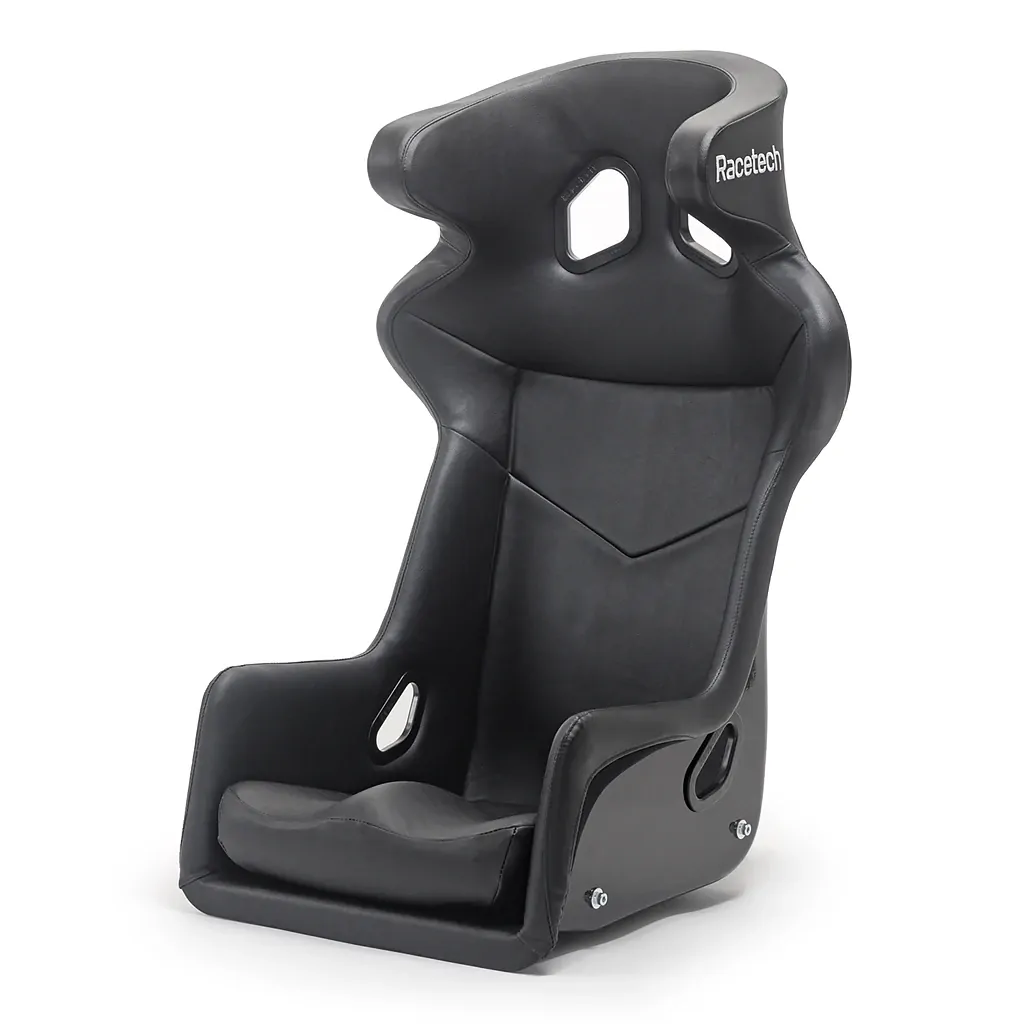

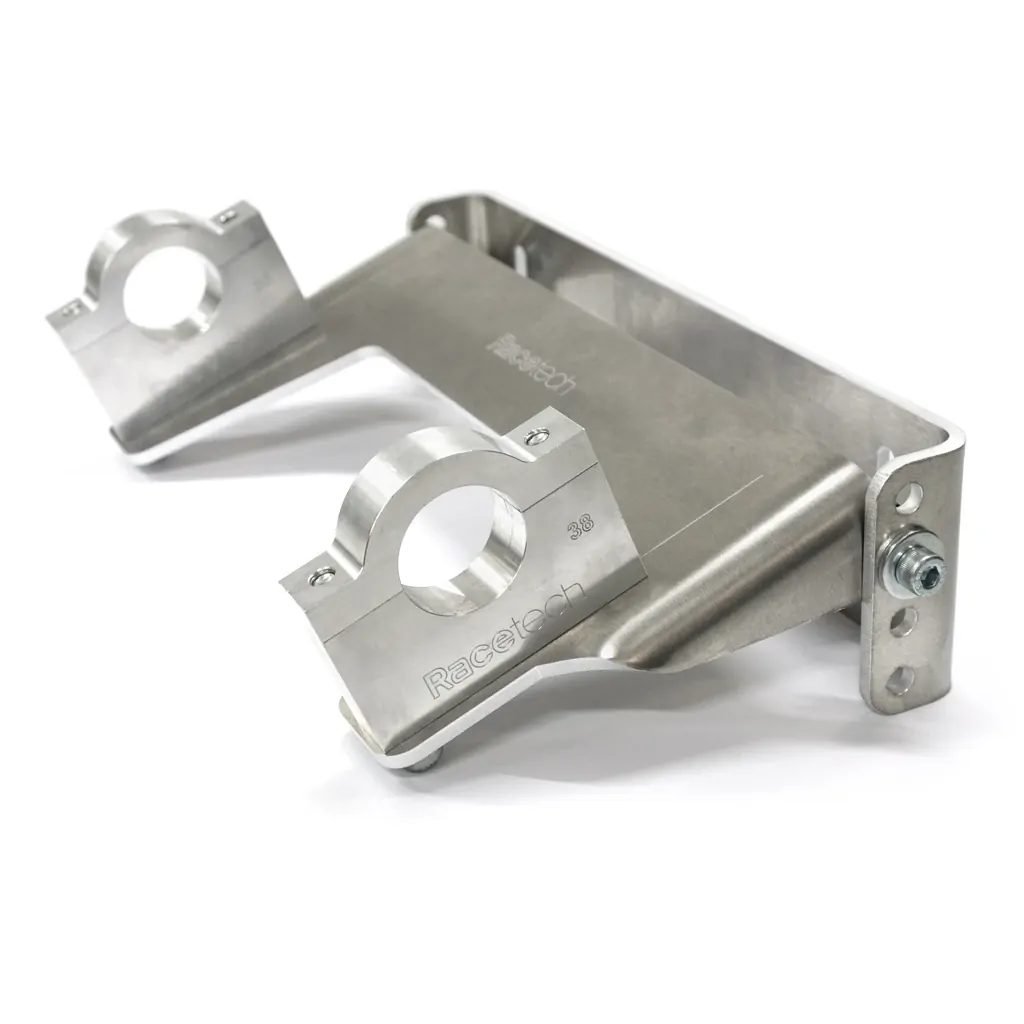

Announcing the all-new Vinyl Racetech 4100 Series! The RT4100HR is a standard-sized fibreglass race seat equipped with head restraint for enhanced safety. We have focused on achieving a lightweight seat shell with optimised geometry, straddling that line between designing the seat to be wide enough in the shoulders to suit the athletic build, but narrow enough to fit in most cockpits. The RT4100 Vinyl is designed for offroad and open vehicles where the seat is likely to get wet. Our back-mounted technology has trickled down from the 119 and 129 Series, giving you the option of fixing the seat to the roll cage at shoulder level. Large harness guides and a removable moulded base cushion allow a range of drivers' of varying heights to fit. Marine-grade vinyl, parallel sides and pronounced thigh support round off the features of this already accomplished seat. For the larger driver, the RT4100WTHR is 60mm taller and 40mm wider.

Dimensions and Weights:

Application
Common ApplicationsOffroad, boats, open-cockpit vehicles
Stock Colour / Material
GelcoatGloss Black
Seat CoverMarine-grade vinyl
Wear PatchesN/A
Technical
HomologationFIA 8855-1999
Shell ConstructionFibreglass Composite
Shell WeightFrom 5.7kg
Side Mount Hole Centres295mm
Back Mount Hole Centres250mm
Bolt Torque (Zinc)30Nm / 22 ft lb
Design

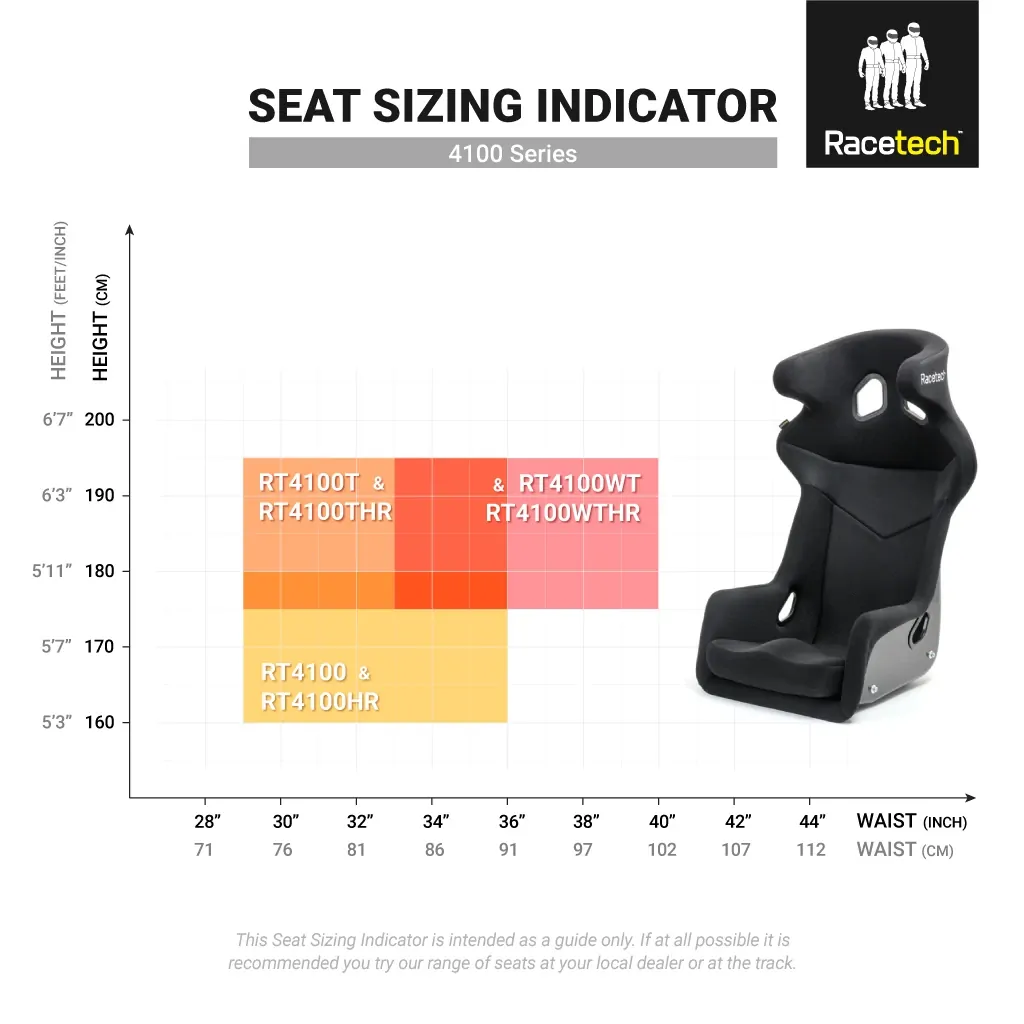

SizesStandard WT - Wide & Tall
Head RestraintYes
HANS CompatibleYes
Harness CompatibilityUp to 6-point harness
Large Harness GuidesYes
Air DuctingN/A

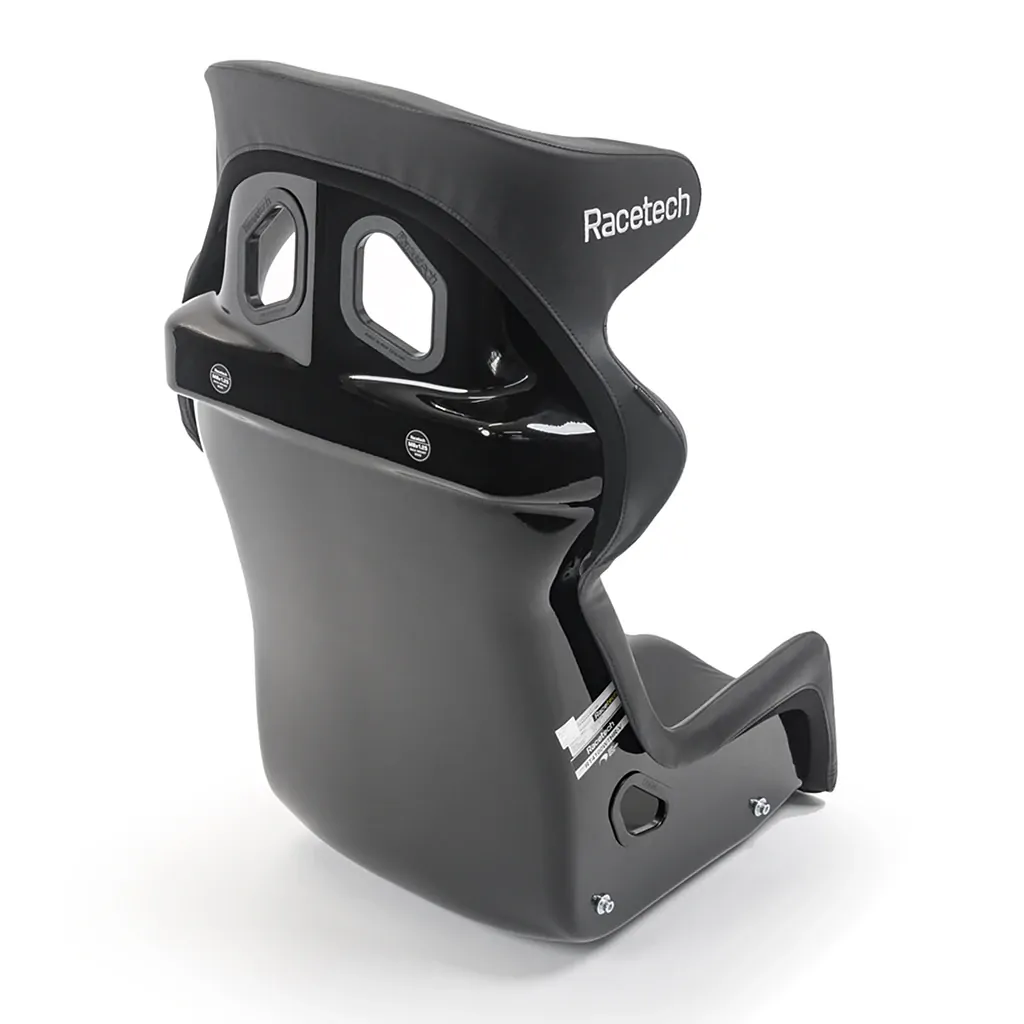

Back-mount CompatibleYes

Specifications

Compatibility

  • Universal Part

Announcing the all-new Vinyl Racetech 4100 Series! The RT4100HR is a standard-sized fibreglass race seat equipped with head restraint for enhanced safety. We have focused on achieving a lightweight seat shell with optimised geometry, straddling that line between designing the seat to be wide enough in the shoulders to suit the athletic build, but narrow enough to fit in most cockpits. The RT4100 Vinyl is designed for offroad and open vehicles where the seat is likely to get wet. Our back-mounted technology has trickled down from the 119 and 129 Series, giving you the option of fixing the seat to the roll cage at shoulder level. Large harness guides and a removable moulded base cushion allow a range of drivers' of varying heights to fit. Marine-grade vinyl, parallel sides and pronounced thigh support round off the features of this already accomplished seat. For the larger driver, the RT4100WTHR is 60mm taller and 40mm wider.

Dimensions and Weights:

Application
Common ApplicationsOffroad, boats, open-cockpit vehicles
Stock Colour / Material
GelcoatGloss Black
Seat CoverMarine-grade vinyl
Wear PatchesN/A
Technical
HomologationFIA 8855-1999
Shell ConstructionFibreglass Composite
Shell WeightFrom 5.7kg
Side Mount Hole Centres295mm
Back Mount Hole Centres250mm
Bolt Torque (Zinc)30Nm / 22 ft lb
Design
SizesStandard WT - Wide & Tall
Head RestraintYes
HANS CompatibleYes
Harness CompatibilityUp to 6-point harness
Large Harness GuidesYes
Air DuctingN/A
Back-mount CompatibleYes
  • Universal Part
