Description

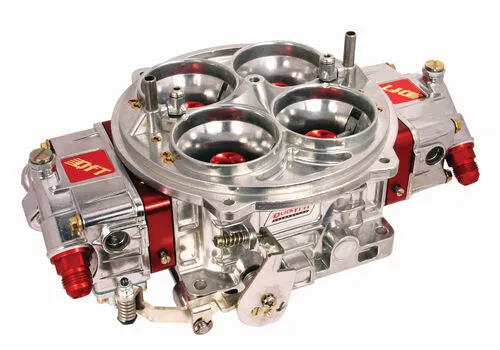

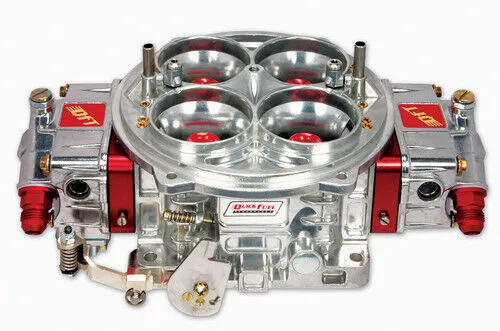

Serious drag racing demand a serious drag racing carburetor, and the QFX-Series stands as the flagship model in QFT's lineup. Raised air horns improve entry angle into the venturi while ensuring undisrupted flow over the air bleeds. Annular boosters with CNC-machined billet aluminum inserts provide increased air flow, a stronger signal, and less turbulence. QFX carbs offer unparalleled fuel atomization with annular boosters specific for either gas, methanol, or E85 fuels. Five-emulsion billet metering blocks and four-corner idle circuits offer flexible tunability that today's high-horsepower engines demand. To cover a broad range of applications, methanol- and E85-compatible models, as well as two- and three-circuit fuel systems, are available. Ready to run out of the box, the QFX-Series carburetor will help you get to the winner's circle.

Features

  • •QFX aluminum main body w/raised venturi
  • •Billet aluminum metering blocks with screw in restrictions
  • •Aluminum fuel bowls with dual sight windows and fuel inlets
  • •Nitrophyl® Floats (notched rear) and jet extensions
  • •Viton .130" Needles and Seats
  • •Billet Aluminum annular booster inserts

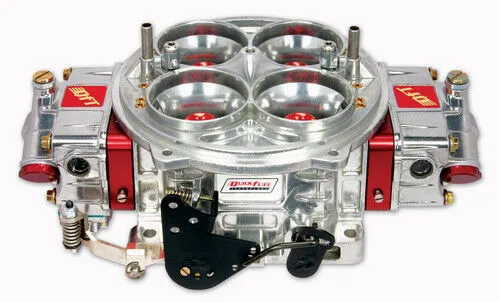

  • •QuickLink™ adjustable secondary opening adjustment
  • •Hand assembled and engine tested

Specifications

Barrel Quantity4
Barrels4
Billet ColourRed
BoosterAnnular
BrandQuick Fuel
Carburetor UseProfessional Race
CFM1150
Choke
Circuit3
ConditionNew
Cubic Feet Per Minute Rating1150
Emission Code4
FinishShiny

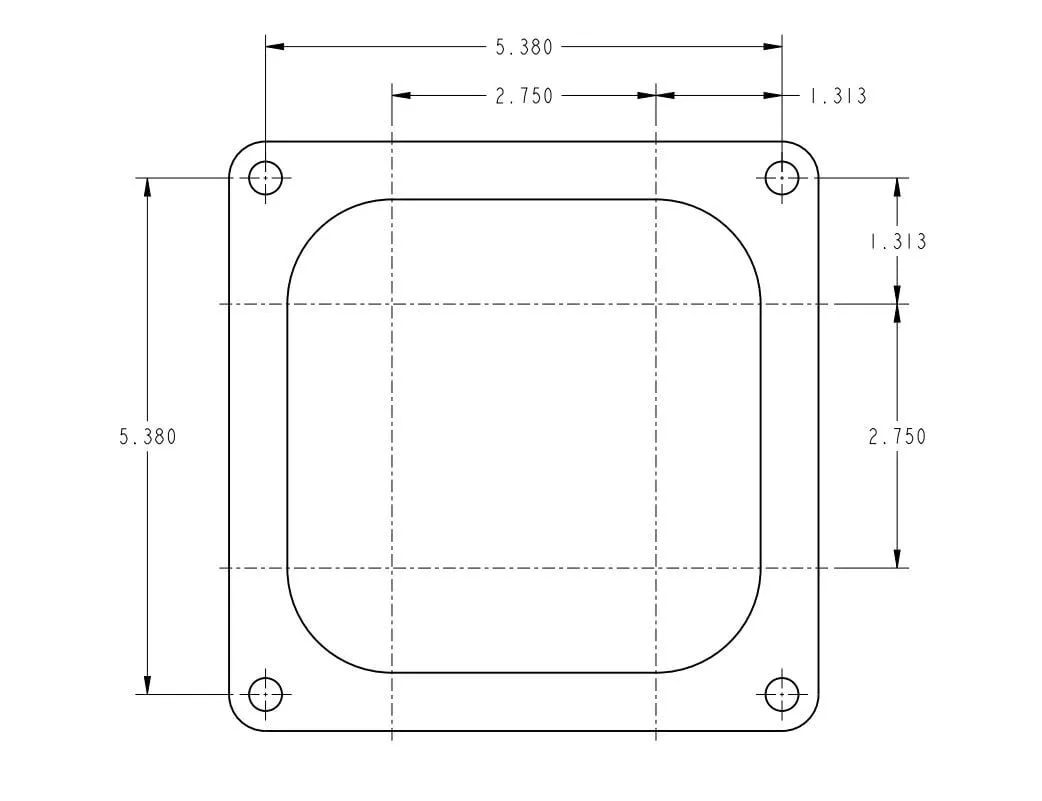

Flange TypeSquare/4150
FuelGasoline
Fuel SystemCarbureted
Gasket Or Seal IncludedYes
Grade TypePerformance
High Speed Air Bleed36
Idle Air Bleed Size47
Intermediate Air Bleed85
Linkage AttachedYes
Marine UseNo
MaterialAluminum
ModelFX Series
Primary Main Jet94
Primary Power Valve
Primary Pump Nozzle Size37
Product TypeCarburetor
Sale CategoryCarburetors and Components
SecondariesMechanical
Secondary Main Jet94
Supercharged ApplicationNo
Throttle Bore2.000 inch
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Serious drag racing demand a serious drag racing carburetor, and the QFX-Series stands as the flagship model in QFT's lineup. Raised air horns improve entry angle into the venturi while ensuring undisrupted flow over the air bleeds. Annular boosters with CNC-machined billet aluminum inserts provide increased air flow, a stronger signal, and less turbulence. QFX carbs offer unparalleled fuel atomization with annular boosters specific for either gas, methanol, or E85 fuels. Five-emulsion billet metering blocks and four-corner idle circuits offer flexible tunability that today's high-horsepower engines demand. To cover a broad range of applications, methanol- and E85-compatible models, as well as two- and three-circuit fuel systems, are available. Ready to run out of the box, the QFX-Series carburetor will help you get to the winner's circle.

Features

  • •QFX aluminum main body w/raised venturi
  • •Billet aluminum metering blocks with screw in restrictions
  • •Aluminum fuel bowls with dual sight windows and fuel inlets
  • •Nitrophyl® Floats (notched rear) and jet extensions
  • •Viton .130" Needles and Seats
  • •Billet Aluminum annular booster inserts
  • •QuickLink™ adjustable secondary opening adjustment
  • •Hand assembled and engine tested
Barrel Quantity4
Barrels4
Billet ColourRed
BoosterAnnular
BrandQuick Fuel
Carburetor UseProfessional Race
CFM1150
Choke
Circuit3
ConditionNew
Cubic Feet Per Minute Rating1150
Emission Code4
FinishShiny
Flange TypeSquare/4150
FuelGasoline
Fuel SystemCarbureted
Gasket Or Seal IncludedYes
Grade TypePerformance
High Speed Air Bleed36
Idle Air Bleed Size47
Intermediate Air Bleed85
Linkage AttachedYes
Marine UseNo
MaterialAluminum
ModelFX Series
Primary Main Jet94
Primary Power Valve
Primary Pump Nozzle Size37
Product TypeCarburetor
Sale CategoryCarburetors and Components
SecondariesMechanical
Secondary Main Jet94
Supercharged ApplicationNo
Throttle Bore2.000 inch
WarrantyLimited 90 Day
  • Universal Part
