Description

Ready to tune for more power? This Power Tune Pack will get your car ready for more boost and more horsepower. Including an upgraded Kinugawa TD05-18G turbo, ID1050 injectors and Process West intercooler capable of much bigger power. This package will be best suited to cars already fitted with basic modifications such as turbo-back exhaust, larger fuel pump and 3-Port boost solenoid (see our "First Tune Kit").

Package includes:



*Note: These modifications can produce power exceeding the safe limits of the standard engine and gearbox. Please consider these risks before purchasing*

Specifications

Turbo:

  • Replace Turbo It can replace VF40, VF46, VF52 without modification
  • Bearing Type Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger.
  • Cooling System Water cooled
  • Compressor Wheel 50.5 / 68mm (Greddy T518Z Wheel)
  • Turbine Wheel 49.1 / 56mm (TD05H Turbine wheel)
  • Turbine Housing 7cm / 8cm Wastegate Actuator 1.0 Bar / 15 psi
  • Turbo Boost Limit 2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Injectors:

  • Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
  • Fuel Compatibility: Compatible With All Known Fuels
  • Electrical Connector: USCAR

Intercooler:

  • Core Colour: Black
  • Core Size: 400 x 205 x 120mm
  • Includes suitable Hood Splitter
  • Reduces Heatsoak compared the factory Intercooler

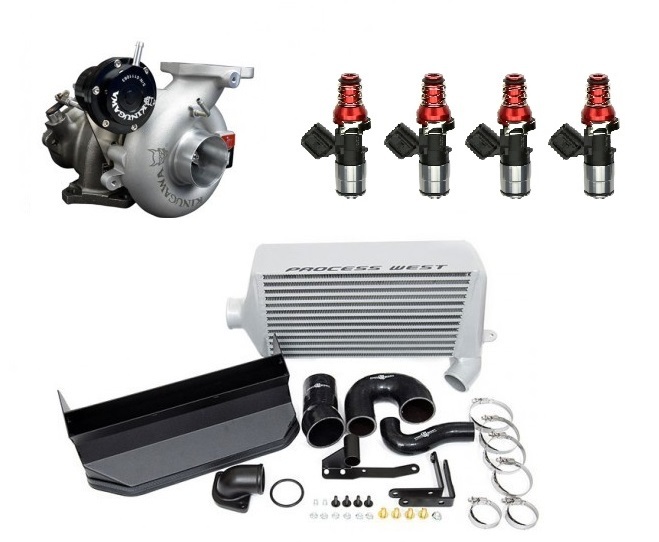

What's Included

  • Kinugawa TD05-18G with Billet compressor wheel and 9-blade turbine wheel
  • Injector Dynnamics ID1050X Injectors
  • Process West Top-Mount Verti-cooler kit

Compatibility

  • 2008-2014 Subaru WRX

Ready to tune for more power? This Power Tune Pack will get your car ready for more boost and more horsepower. Including an upgraded Kinugawa TD05-18G turbo, ID1050 injectors and Process West intercooler capable of much bigger power. This package will be best suited to cars already fitted with basic modifications such as turbo-back exhaust, larger fuel pump and 3-Port boost solenoid (see our "First Tune Kit").

Package includes:



*Note: These modifications can produce power exceeding the safe limits of the standard engine and gearbox. Please consider these risks before purchasing*

Turbo:

  • Replace Turbo It can replace VF40, VF46, VF52 without modification
  • Bearing Type Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger.
  • Cooling System Water cooled
  • Compressor Wheel 50.5 / 68mm (Greddy T518Z Wheel)
  • Turbine Wheel 49.1 / 56mm (TD05H Turbine wheel)
  • Turbine Housing 7cm / 8cm Wastegate Actuator 1.0 Bar / 15 psi
  • Turbo Boost Limit 2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Injectors:

  • Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
  • Fuel Compatibility: Compatible With All Known Fuels
  • Electrical Connector: USCAR

Intercooler:

  • Core Colour: Black
  • Core Size: 400 x 205 x 120mm
  • Includes suitable Hood Splitter
  • Reduces Heatsoak compared the factory Intercooler
  • Kinugawa TD05-18G with Billet compressor wheel and 9-blade turbine wheel
  • Injector Dynnamics ID1050X Injectors
  • Process West Top-Mount Verti-cooler kit
  • 2008-2014 Subaru WRX
