Description

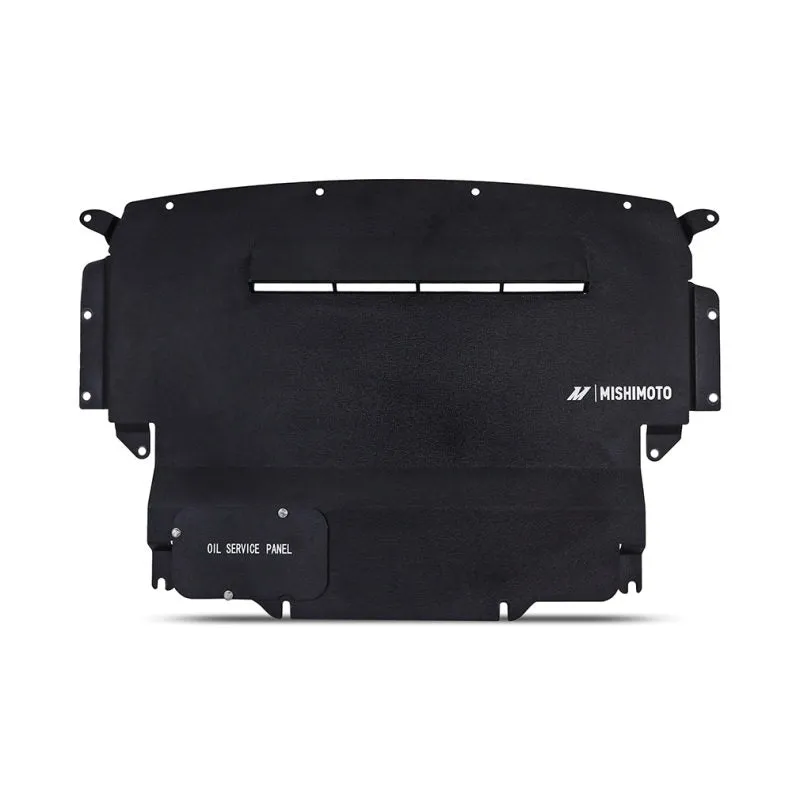

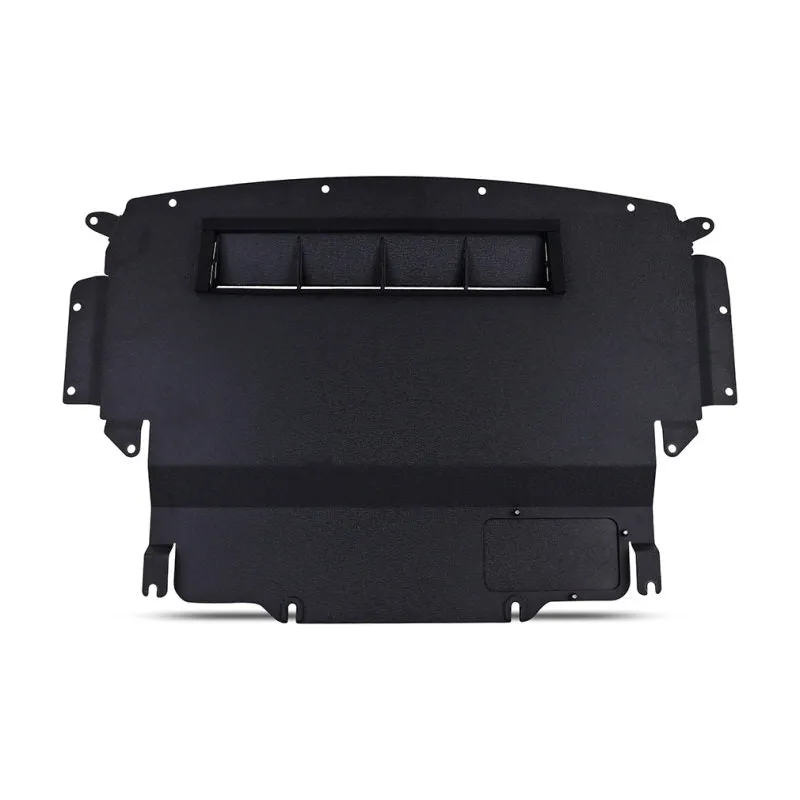

Mishimoto MMSD-Z-23WBK - 2023+ Nissan Z Skid Plate Engine - Wrinkle Black

Skid Plate, Black, fits Nissan Z 2023+

High-performance component engineered for durability, efficiency, and reliable operation under demanding conditions. Designed to support optimal system function across a wide range of automotive applications.

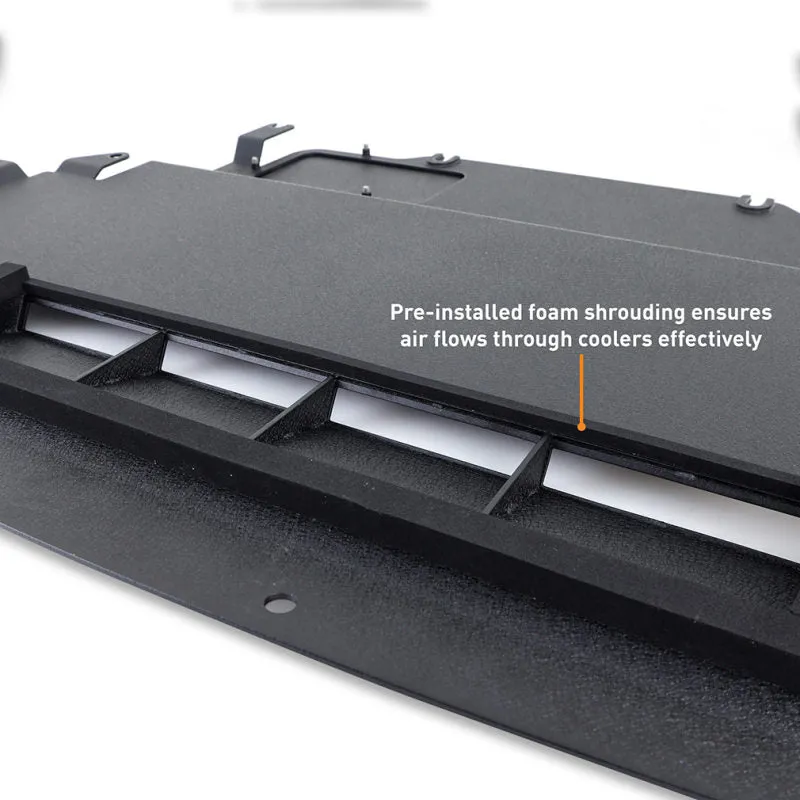

Your Z's factory splash shield is just that, a splash shield. It works to keep water and dirt out of the engine bay, but that's about all it does well. One well placed bump or unlucky rock and you can say goodbye to the stock splash shield, and if you're really unlucky, your engine. The Mishimoto skid plate for the 2023+ Nissan Z provides unmatched protection and performance. This skid plate is constructed from 3mm-thick powder-coated aluminum that's built to withstand impacts on the street or the track. Our skid plate attaches to the front fascia and extends all the way back to the subframe, covering and protecting your Z's plastic oil pan. A large vent with pre-installed foam shrouding creates a low-pressure zone under the car to help draw heat out of the engine bay and pull fresh air through the cooling stack. The one-piece construction and slotted rear mounting points make installation of the Mishimoto 2023+ Nissan Z skid plate is a breeze in about 30 minutes. Our skid plate reuses the factory mounting points, eliminating the need for any drilling, or cutting. Once installed, maintenance is made fast and mess-free thanks to the removable service panel. Our service panel is installed with just three bolts and threaded inserts, so there's no fumbling around with nuts or spacers for a simple oil change. Like all our 2023+ Nissan Z products, this skid plate is backed by our Mishimoto Lifetime Warranty for a lifetime of protection.

  • Protects engine bay and plastic oil pan from impacts and debris
  • 3mm-thick powder-coated aluminum offers maximum durability

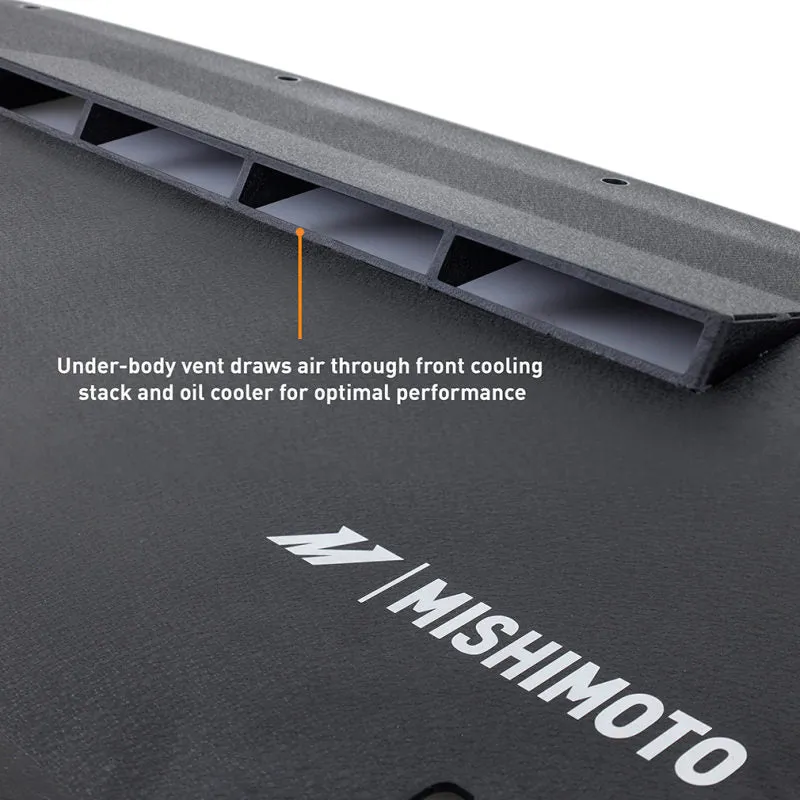

  • Large vent extracts engine bay heat and improves airflow through cooling stack
Direct fit for 2023+ Nissan Z without cutting or drilling
Protects engine bay and plastic oil pan from impacts and debris
3mm-thick powder-coated aluminum offers maximum durability

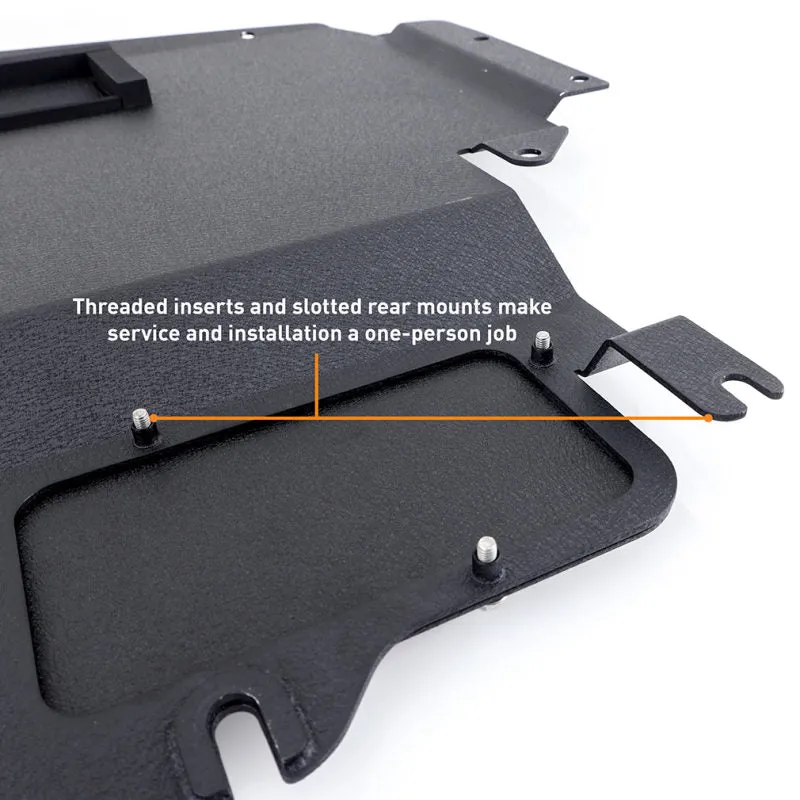

Threaded inserts make service panel install easy
One-piece construction improves rigidity and durability
Reuses factory mounting hardware to keep installation simple
Mishimoto Lifetime Warranty
Slotted rear mounting points make installation a one-person job

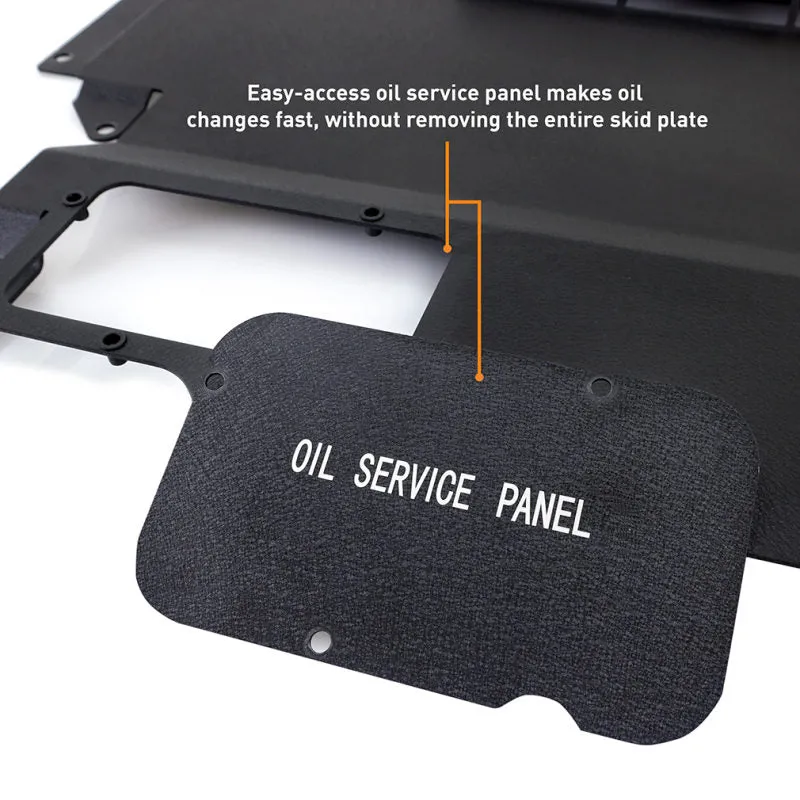

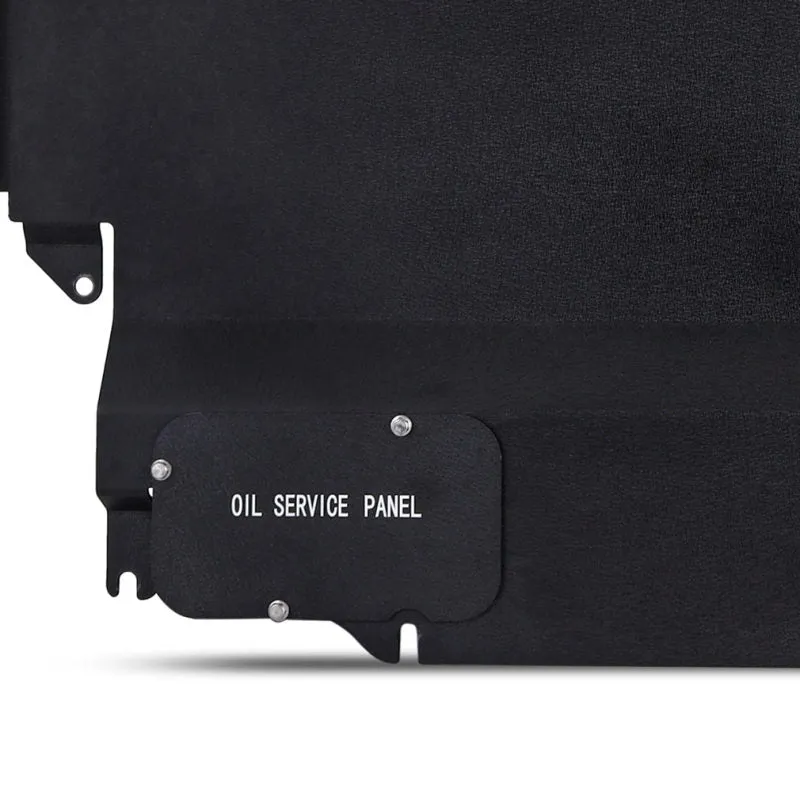

Easy-access service panel makes maintenance fast and mess-free
Large vent extracts engine bay heat and improves airflow through cooling stack
Material: Aluminum
Installation Notes: Torque oil service panel bolts to 50-60in-lbs
Applications: Nissan Z 3.0L V6 2023+
Note: Does not fit Nismo bumpers
Includes: (1) Aluminum Skid Plate, Mounting Hardware, Mishimoto Lifetime Warranty
Attachment Type: Bolt-On
Install Difficulty: 2
Color: Black
Configuration: One-Piece
Drilling Required: No
Finish: Powder Coated
Material Thickness: 3
Mounting Hardware Included: Yes
Universal Or Specific Fit: Specific

Specifications

  • Protects engine bay and plastic oil pan from impacts and debris
  • 3mm-thick powder-coated aluminum offers maximum durability
  • Large vent extracts engine bay heat and improves airflow through cooling stack

Compatibility

  • 2023 - 2025 Nissan Z, Performance
  • 2023 Nissan Z, Proto Spec
  • 2023 - 2025 Nissan Z, Sport
  • 2023 - 2024 Nissan Z, Touring

Mishimoto MMSD-Z-23WBK - 2023+ Nissan Z Skid Plate Engine - Wrinkle Black

Skid Plate, Black, fits Nissan Z 2023+

High-performance component engineered for durability, efficiency, and reliable operation under demanding conditions. Designed to support optimal system function across a wide range of automotive applications.

Your Z's factory splash shield is just that, a splash shield. It works to keep water and dirt out of the engine bay, but that's about all it does well. One well placed bump or unlucky rock and you can say goodbye to the stock splash shield, and if you're really unlucky, your engine. The Mishimoto skid plate for the 2023+ Nissan Z provides unmatched protection and performance. This skid plate is constructed from 3mm-thick powder-coated aluminum that's built to withstand impacts on the street or the track. Our skid plate attaches to the front fascia and extends all the way back to the subframe, covering and protecting your Z's plastic oil pan. A large vent with pre-installed foam shrouding creates a low-pressure zone under the car to help draw heat out of the engine bay and pull fresh air through the cooling stack. The one-piece construction and slotted rear mounting points make installation of the Mishimoto 2023+ Nissan Z skid plate is a breeze in about 30 minutes. Our skid plate reuses the factory mounting points, eliminating the need for any drilling, or cutting. Once installed, maintenance is made fast and mess-free thanks to the removable service panel. Our service panel is installed with just three bolts and threaded inserts, so there's no fumbling around with nuts or spacers for a simple oil change. Like all our 2023+ Nissan Z products, this skid plate is backed by our Mishimoto Lifetime Warranty for a lifetime of protection.

  • Protects engine bay and plastic oil pan from impacts and debris
  • 3mm-thick powder-coated aluminum offers maximum durability
  • Large vent extracts engine bay heat and improves airflow through cooling stack
Direct fit for 2023+ Nissan Z without cutting or drilling
Protects engine bay and plastic oil pan from impacts and debris
3mm-thick powder-coated aluminum offers maximum durability
Threaded inserts make service panel install easy
One-piece construction improves rigidity and durability
Reuses factory mounting hardware to keep installation simple
Mishimoto Lifetime Warranty
Slotted rear mounting points make installation a one-person job
Easy-access service panel makes maintenance fast and mess-free
Large vent extracts engine bay heat and improves airflow through cooling stack
Material: Aluminum
Installation Notes: Torque oil service panel bolts to 50-60in-lbs
Applications: Nissan Z 3.0L V6 2023+
Note: Does not fit Nismo bumpers
Includes: (1) Aluminum Skid Plate, Mounting Hardware, Mishimoto Lifetime Warranty
Attachment Type: Bolt-On
Install Difficulty: 2
Color: Black
Configuration: One-Piece
Drilling Required: No
Finish: Powder Coated
Material Thickness: 3
Mounting Hardware Included: Yes
Universal Or Specific Fit: Specific
  • Protects engine bay and plastic oil pan from impacts and debris
  • 3mm-thick powder-coated aluminum offers maximum durability
  • Large vent extracts engine bay heat and improves airflow through cooling stack
  • 2023 - 2025 Nissan Z, Performance
  • 2023 Nissan Z, Proto Spec
  • 2023 - 2025 Nissan Z, Sport
  • 2023 - 2024 Nissan Z, Touring
