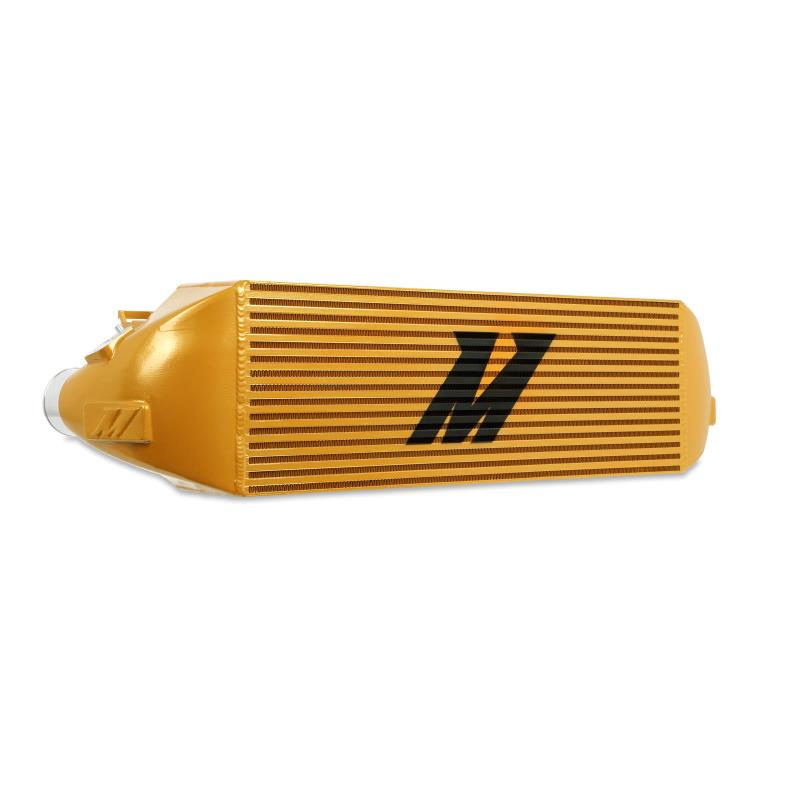

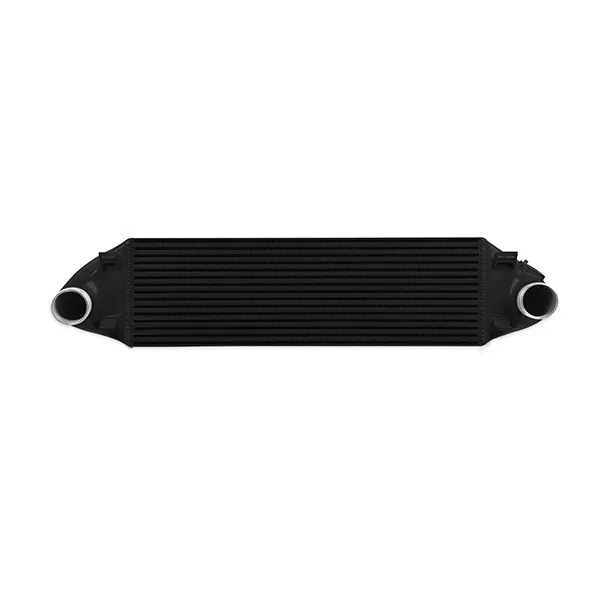

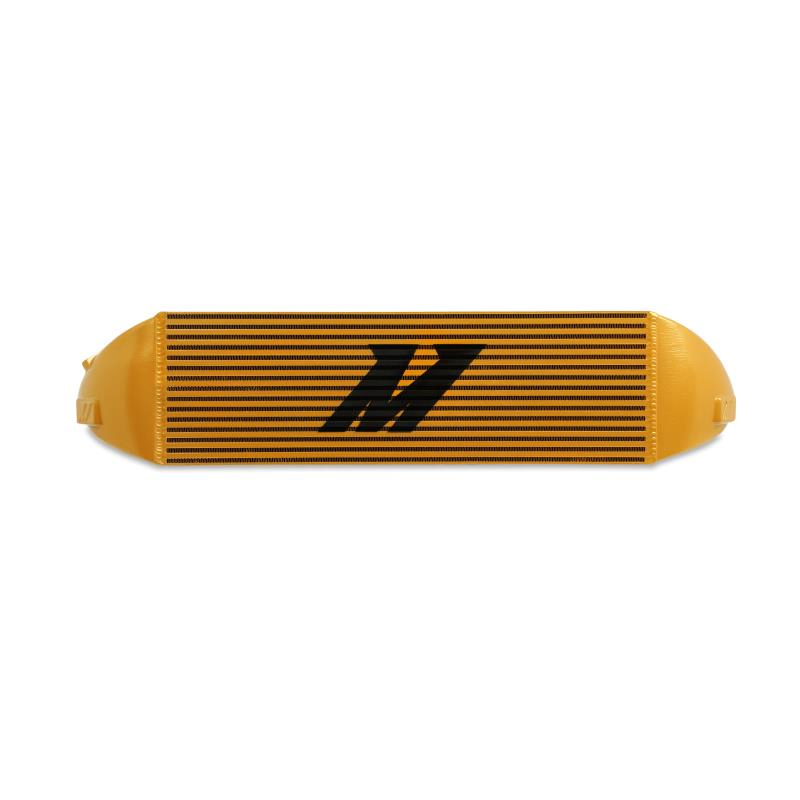

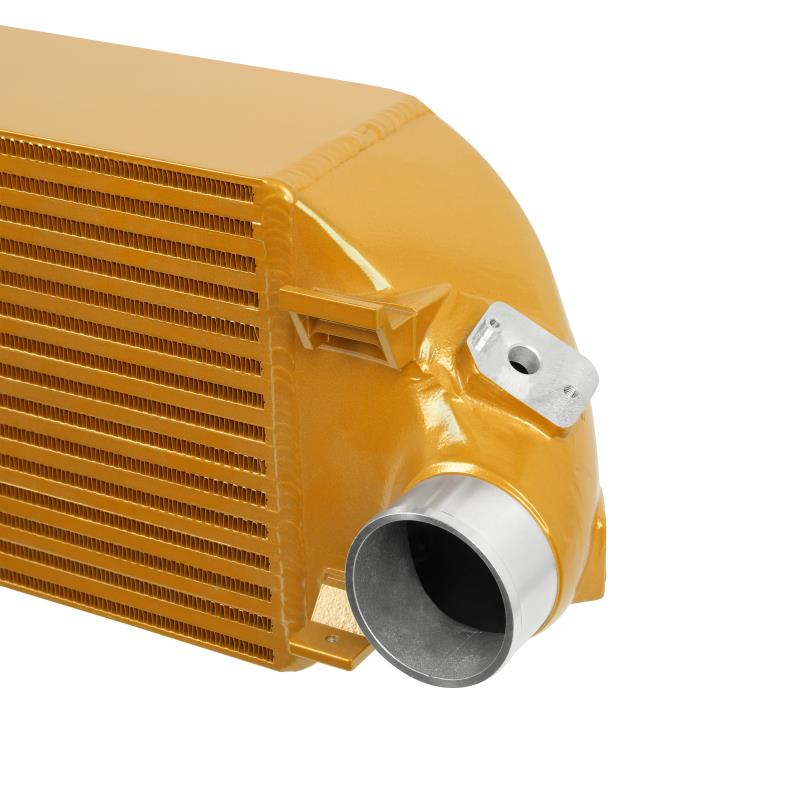

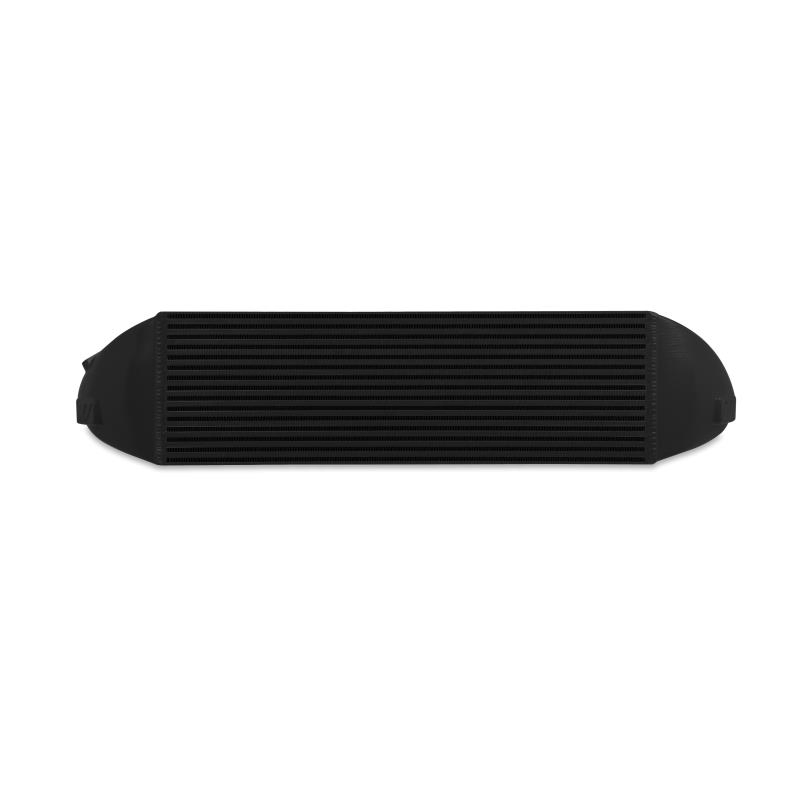

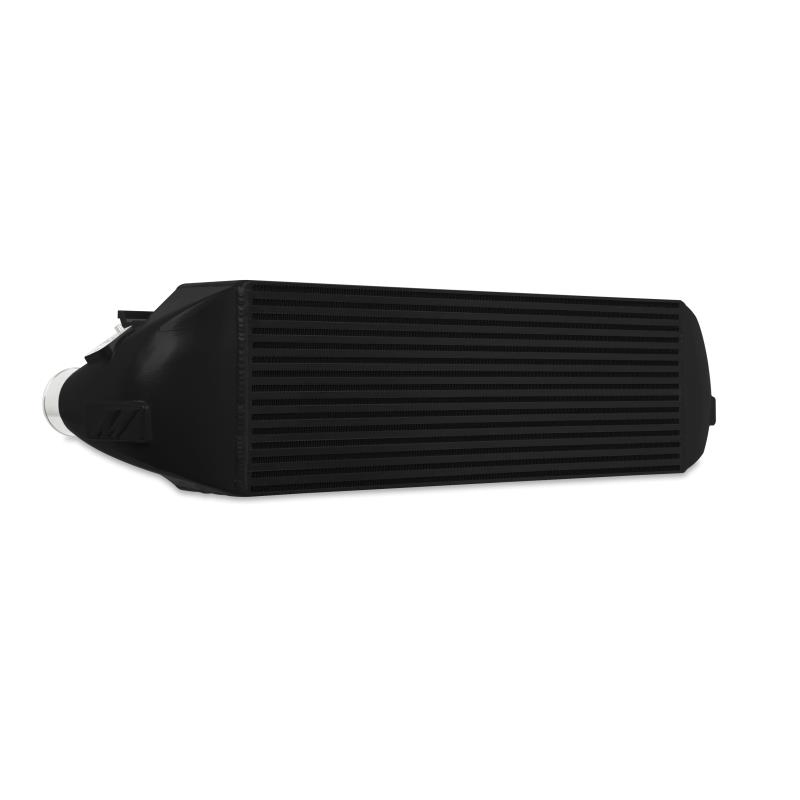

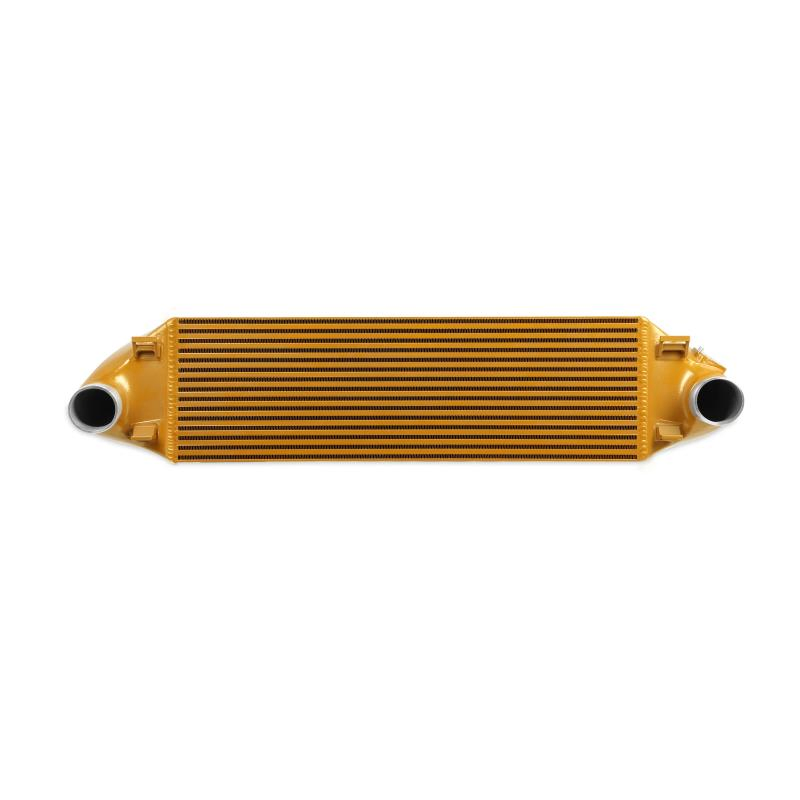

Description

It’s time to cool off your hot-hatch with the Mishimoto Performance Intercooler Kit for the 2013+ Ford Focus ST. Ford released their 2.0T EcoBoost-powered Focus boasting the perfect combination of performance and practicality, however, the intercooling system left something to be desired.

While the piping did feature sections of aluminium, the restrictive diameter and turbo muffler put a damper on the Focus ST’s performance potential. We’ve replaced the hot-side pipe with mandrel-bent aluminium, both ditching the muffler and opening up the diameter to allow a 26% better flow through the hot-side. All of the degradation-prone rubber has also been swapped for wire-reinforced silicone, ensuring a long-lasting connection on the hot-side and a smoother flow through the cold-side pipe. Together the Focus ST Intercooler Pipe Kit grants a 21% increase in flow to and from the intercooler.

The piping isn’t the only part of this kit that increases flow. The bar-and-plate construction opens air channels within the core, allowing for the charged air to pass through more freely than the stock intercooler core. This upgraded all-aluminium construction aids in heat dissipation, warding off the dreaded heat-soak under demanding driving conditions, and delivering properly cooled air through the ST’s intake manifold. The Focus ST Performance Intercooler Kit will also add 8 HP and 10 TQ to your power band and has a maximum horsepower rating of 550HP.

The Mishimoto Performance Intercooler Kit for your 2013+ is available in silver, black, or gold, with an option of wrinkle black or polished piping. As always, this intercooler kit is covered under the Mishimoto Lifetime Warranty.

Features:

  • Direct fit for the 2012+ Ford Focus ST
  • 109mm thick intercooler design optimized for maximum flow
  • 8 hp/ 10 tq gains when combined with other Mishimoto Focus ST parts
  • Optimal core design for maximum cooling efficiency with minimal pressure drop
  • Increases core size by 128% and fin surface area by 32%
  • 10% increase in volume and 40% increase in flow over stock cold-side pipe
  • 14% increase in volume and 26% greater flow than stock hot-side pipe
  • Cold-side pipe has elliptical shape to accommodate for larger Mishimoto radiator
  • Provision for both US and Euro MAP sensor
  • No modification to front bumper and retains stock fog lights
  • Pipes available in polished or wrinkle black powder-coating

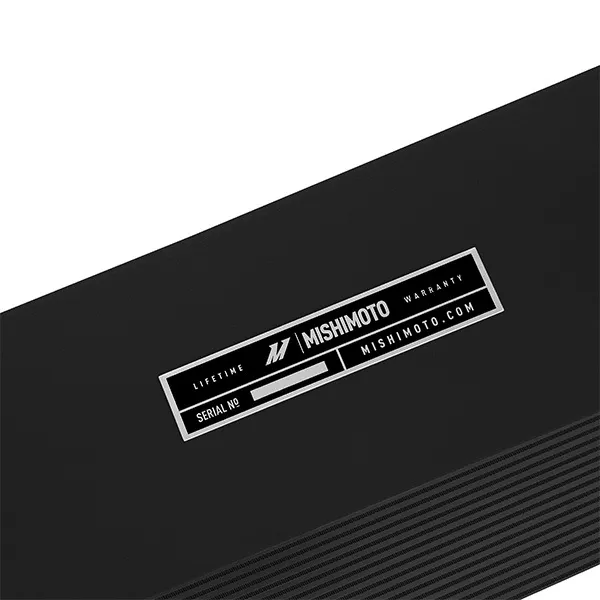

  • Mishimoto Lifetime Warranty

Installation Torque Specs:

  • 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

Tech Specs:

  • Coating: Powder Coated
  • Construction: Bar-and-plate



Specifications

  • Installation Torque Specs: 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
  • Cold-Side Intercooler Pipe Specs: 66 mm
  • Hot-Side Intercooler Pipe Specs: 49 mm-66 mm
  • Weight: 13.6
  • Coating: Powder Coated
  • Outlet: 63.5 mm
  • Inlet: 63.5 mm
  • Core Size: 663.5 mm x 109 mm x 209.5 mm
  • Overall Width: 184 mm

Compatibility

  • 2012+ Ford Focus ST

It’s time to cool off your hot-hatch with the Mishimoto Performance Intercooler Kit for the 2013+ Ford Focus ST. Ford released their 2.0T EcoBoost-powered Focus boasting the perfect combination of performance and practicality, however, the intercooling system left something to be desired.

While the piping did feature sections of aluminium, the restrictive diameter and turbo muffler put a damper on the Focus ST’s performance potential. We’ve replaced the hot-side pipe with mandrel-bent aluminium, both ditching the muffler and opening up the diameter to allow a 26% better flow through the hot-side. All of the degradation-prone rubber has also been swapped for wire-reinforced silicone, ensuring a long-lasting connection on the hot-side and a smoother flow through the cold-side pipe. Together the Focus ST Intercooler Pipe Kit grants a 21% increase in flow to and from the intercooler.

The piping isn’t the only part of this kit that increases flow. The bar-and-plate construction opens air channels within the core, allowing for the charged air to pass through more freely than the stock intercooler core. This upgraded all-aluminium construction aids in heat dissipation, warding off the dreaded heat-soak under demanding driving conditions, and delivering properly cooled air through the ST’s intake manifold. The Focus ST Performance Intercooler Kit will also add 8 HP and 10 TQ to your power band and has a maximum horsepower rating of 550HP.

The Mishimoto Performance Intercooler Kit for your 2013+ is available in silver, black, or gold, with an option of wrinkle black or polished piping. As always, this intercooler kit is covered under the Mishimoto Lifetime Warranty.

Features:

  • Direct fit for the 2012+ Ford Focus ST
  • 109mm thick intercooler design optimized for maximum flow
  • 8 hp/ 10 tq gains when combined with other Mishimoto Focus ST parts
  • Optimal core design for maximum cooling efficiency with minimal pressure drop
  • Increases core size by 128% and fin surface area by 32%
  • 10% increase in volume and 40% increase in flow over stock cold-side pipe
  • 14% increase in volume and 26% greater flow than stock hot-side pipe
  • Cold-side pipe has elliptical shape to accommodate for larger Mishimoto radiator
  • Provision for both US and Euro MAP sensor
  • No modification to front bumper and retains stock fog lights
  • Pipes available in polished or wrinkle black powder-coating
  • Mishimoto Lifetime Warranty

Installation Torque Specs:

  • 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

Tech Specs:

  • Coating: Powder Coated
  • Construction: Bar-and-plate



  • 2012+ Ford Focus ST
