Description

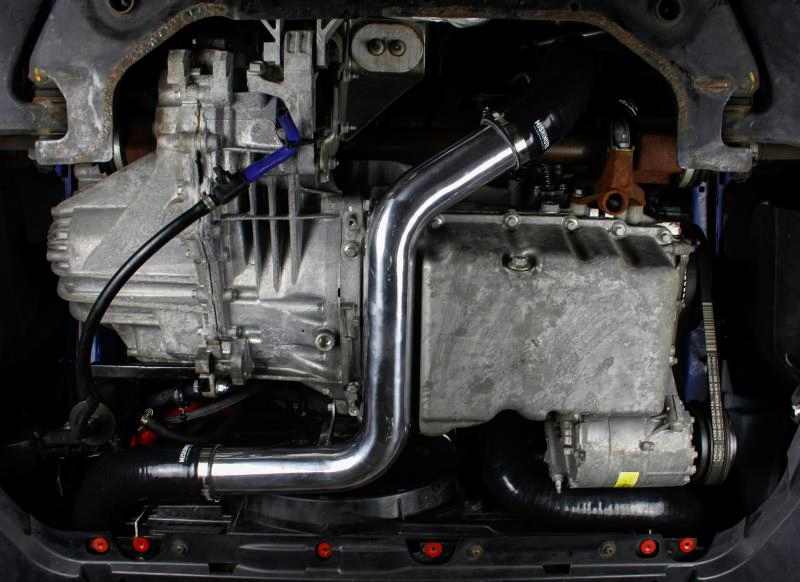

Open up the flow of the charged air in your 2013-2018 Ford Focus ST with the Mishimoto hot-side intercooler pipe.

The stock hot-side pipe in your Focus ST is plagued with bends, a restrictive inner diameter and muffling equipment which slows the airflow and causes turbulence on the way to the intercooler. Mishimoto's hot-side intercooler kit not only reduces the amount of bends, but also increased the diameter to 2.5" giving it a 14% increase in volume over the stock piping meaning better flow and the added bonus of 8hp and 10ft/lbs of torque. While a majority of the stock piping is constructed from aluminum already, the couplers are made from degradation-prone rubber.

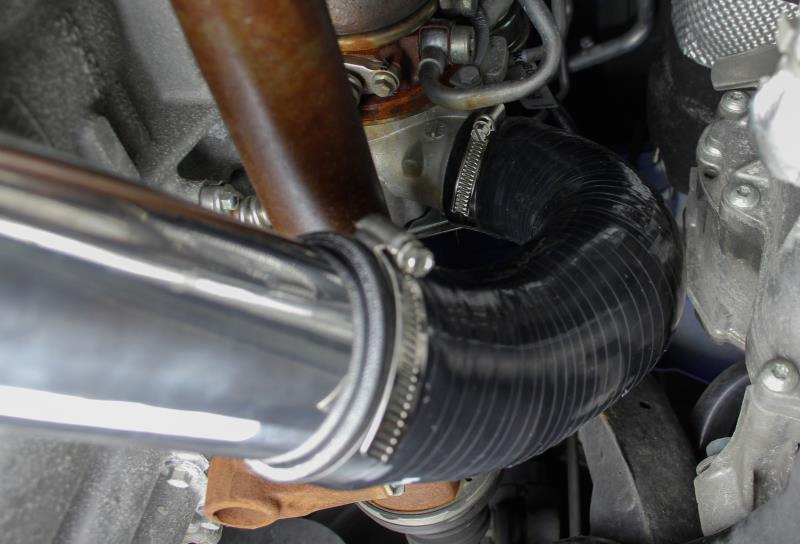

Our kit includes more durable silicone couplers featuring 5-layers of heat-resistant fibers and wire reinforcement to ensure that the Mishimoto hot-side intercooler pipe can stand up to the heat.

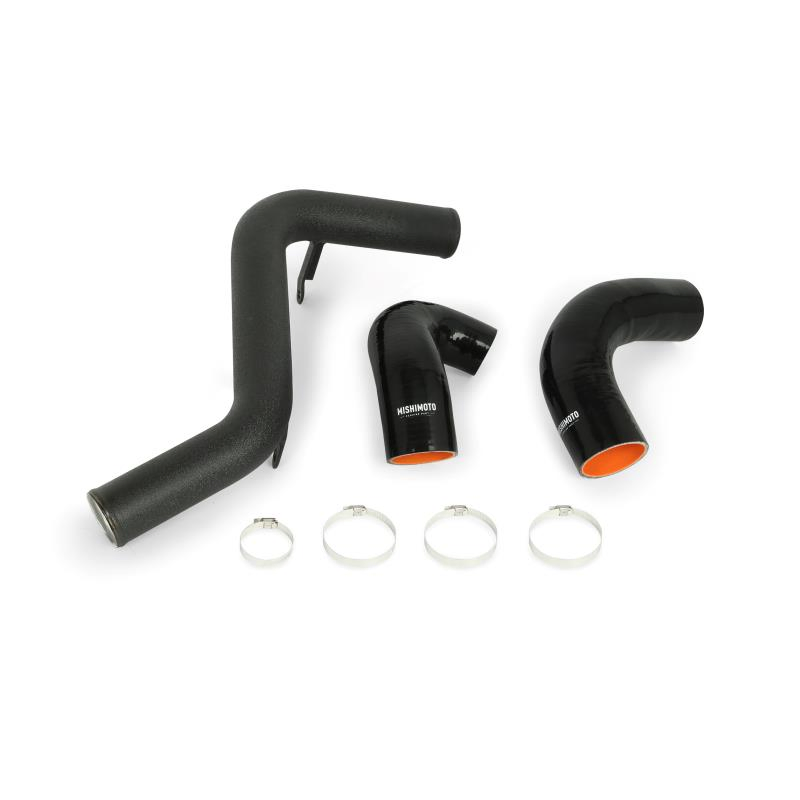

This kit is offered in a polished finish as well as a wrinkle black powder coat, and is covered under Mishimoto's Lifetime Warranty.

Product Features

  • Direct fit for the 2013-2018 Ford Focus ST

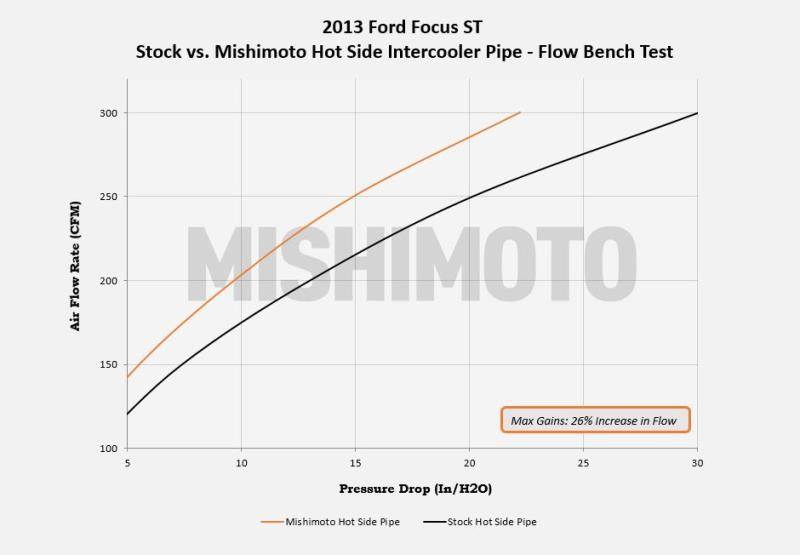

  • 26% greater flow than stock hot-side pipe

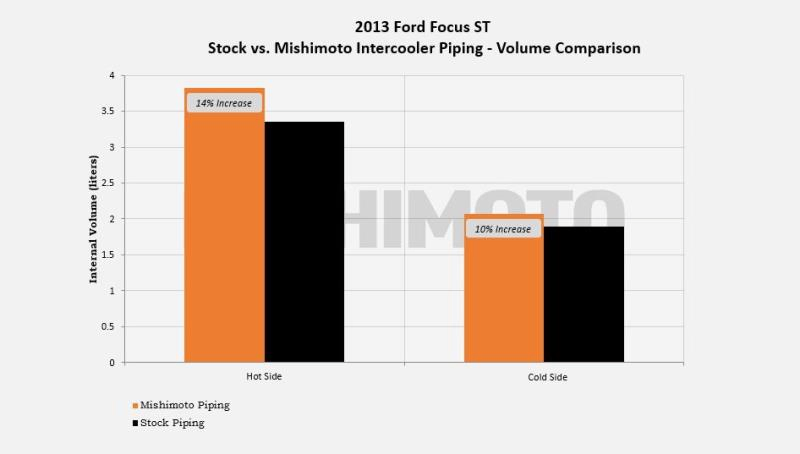

  • 14% increase in volume over stock hot-side pipe
  • 2.5" Mandrel-bent aluminum piping
  • Mishimoto Lifetime Warranty

Specifications

  • Installation Torque Specs: 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
  • Silicone Couplers: 2
  • Outlet: 66mm
  • Inlet: 49mm

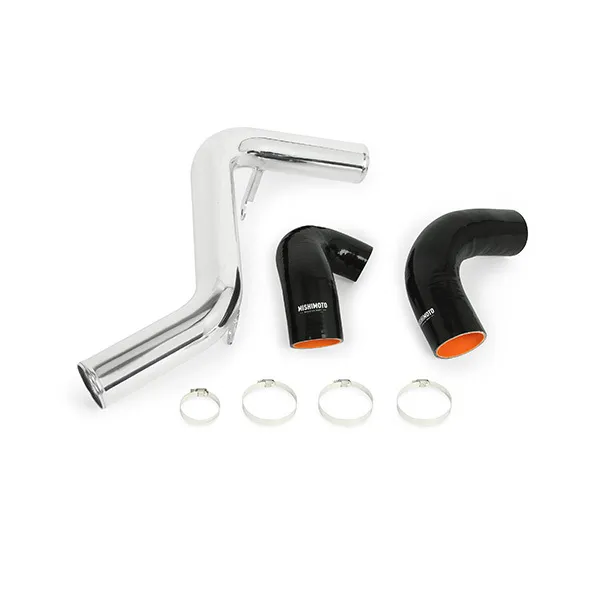

What's Included

  • (1) Aluminium Intercooler Pipe
  • (2) Silicone couplers
  • (4) High torque worm gear clamps
  • Mishimoto Lifetime Warranty

Compatibility

  • 2012+ Ford Focus ST

Open up the flow of the charged air in your 2013-2018 Ford Focus ST with the Mishimoto hot-side intercooler pipe.

The stock hot-side pipe in your Focus ST is plagued with bends, a restrictive inner diameter and muffling equipment which slows the airflow and causes turbulence on the way to the intercooler. Mishimoto's hot-side intercooler kit not only reduces the amount of bends, but also increased the diameter to 2.5" giving it a 14% increase in volume over the stock piping meaning better flow and the added bonus of 8hp and 10ft/lbs of torque. While a majority of the stock piping is constructed from aluminum already, the couplers are made from degradation-prone rubber.

Our kit includes more durable silicone couplers featuring 5-layers of heat-resistant fibers and wire reinforcement to ensure that the Mishimoto hot-side intercooler pipe can stand up to the heat.

This kit is offered in a polished finish as well as a wrinkle black powder coat, and is covered under Mishimoto's Lifetime Warranty.

Product Features

  • Direct fit for the 2013-2018 Ford Focus ST
  • 26% greater flow than stock hot-side pipe
  • 14% increase in volume over stock hot-side pipe
  • 2.5" Mandrel-bent aluminum piping
  • Mishimoto Lifetime Warranty
  • Installation Torque Specs: 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
  • Silicone Couplers: 2
  • Outlet: 66mm
  • Inlet: 49mm
  • (1) Aluminium Intercooler Pipe
  • (2) Silicone couplers
  • (4) High torque worm gear clamps
  • Mishimoto Lifetime Warranty
  • 2012+ Ford Focus ST
