Description

Mishimoto has developed an intercooler pipe and boot kit for the 2003-2007 Ford 6.0L Powerstroke. Factory piping has numerous restrictive bends that impede airflow and choke the power of your truck. The Mishimoto Powerstroke intercooler piping is engineered to eliminate unnecessary bends, which results in increased airflow and power. The Mishimoto intercooler pipe kit includes DuraCore™ boots and constant-tension T-bolt clamps. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts.

For greater improvements in charge-air cooling, pair this piping kit with the Mishimoto performance intercooler. The Mishimoto 6.0L Powerstroke intercooler pipe and boot kit, like all of our Powerstroke performance parts, comes protected by our signature Lifetime Warranty.

Features:

  • Direct fit for the 2003–2007 Ford 6.0L Powerstroke
  • Mandrel-bent, polished aluminum pipes eliminates restrictive bends
  • Improves airflow, power, and EGTs
  • DuraCore™ technology provides superior resistance to heat, pressure, fuel, and oil
  • Includes high-quality constant-tension T-bolt clamps
  • Mishimoto Lifetime Warranty

Note:

  • This kit will not fit vehicles equipped with dual alternators.

Installation Torque Specs:

  • 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

Pipe Diameter:

  • 3"

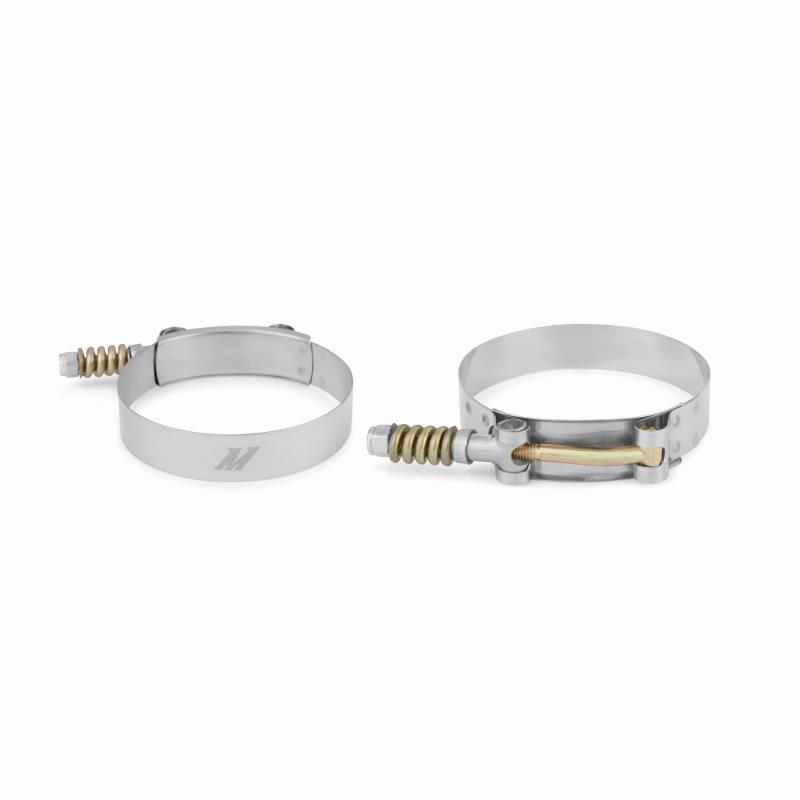

Constant Tension T-Bolt Clamps Specs:

  • (1) 2.75" Constant-Tension T-Bolt Clamp
  • (6) 3.25" Constant-Tension T-Bolt Clamps
  • (1) 3.5" Constant-Tension T-Bolt Clamp

Silicone Boots With DuraCore Specs:

  • Boot 1: 3.00"
  • Boot 2: 3.00"
  • Boot 3: 3.00", 3.23"
  • Boot 4: 2.83", 3.00"

Fits:

  • 2003-2007 Ford F250 w/ 6.0L Powerstroke
  • 2003-2007 Ford F350 w/ 6.0L Powerstroke
  • 2003-2007 Ford F450 w/ 6.0L Powerstroke
  • 2003-2007 Ford F550 w/ 6.0L Powerstroke
  • Make: Ford

This kit replaces intercooler inlet pipes with the following part numbers:

  • 2005-2007: C3Z-6K769-AA
  • 2003-2004: 6C3Z-6K769-B

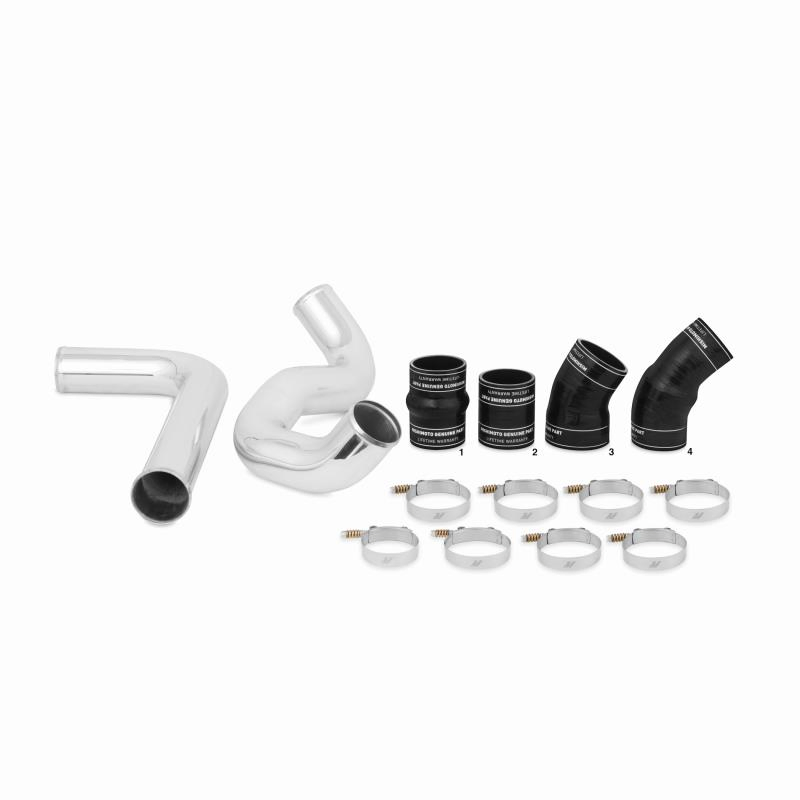

Purchase Includes:

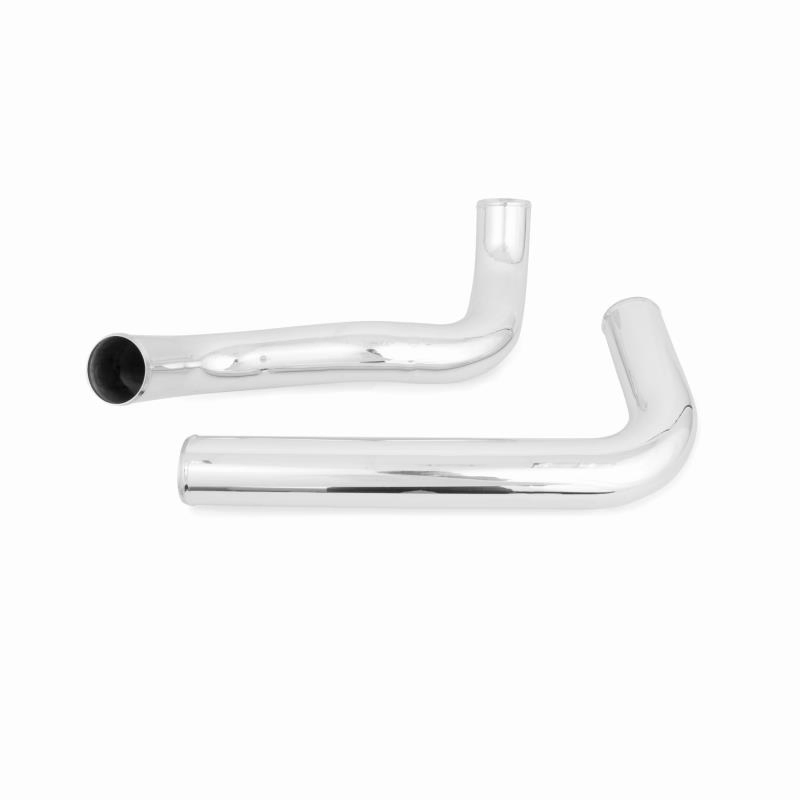

  • (2) Aluminum Intercooler Pipes

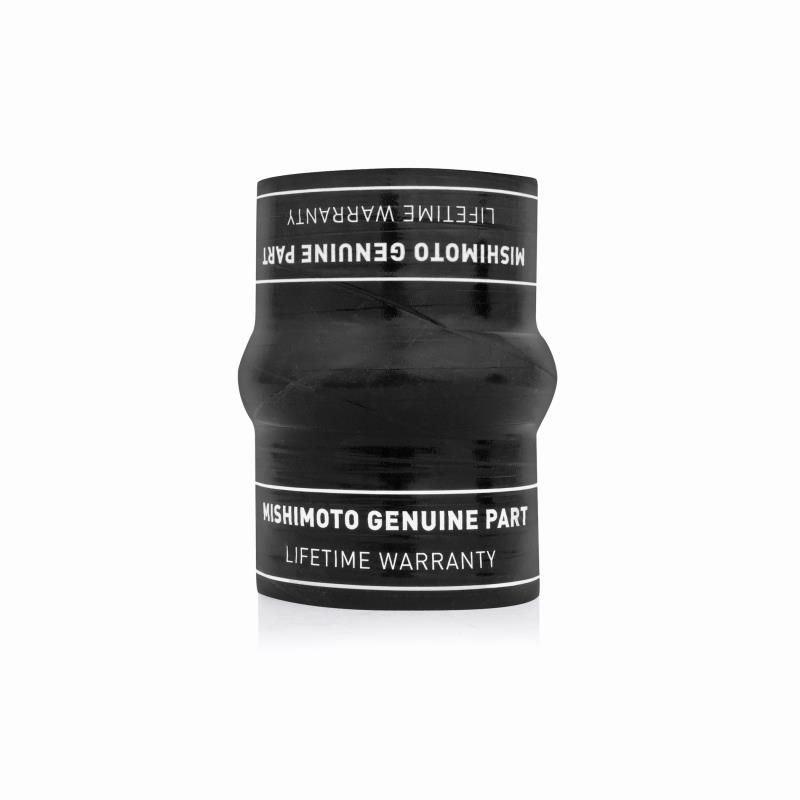

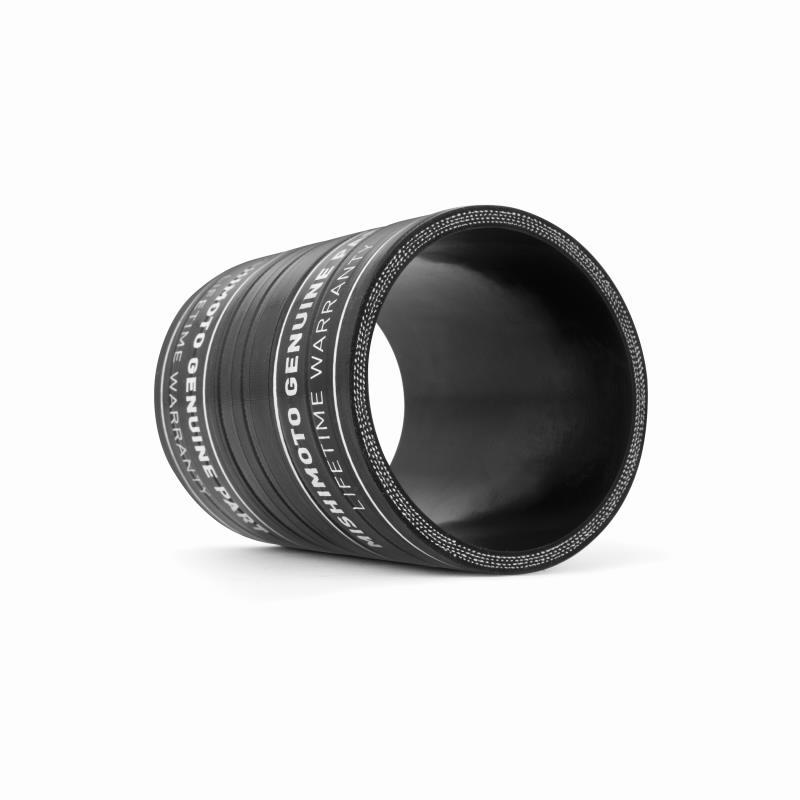

  • (4) Silicone Boots with DuraCore™ Technology
  • (8) Constant Tension T-Bolt Clamps
  • (2) Aluminum Mishimoto M Logo Badges
  • Mishimoto Lifetime Warranty

Specifications

Compatibility

  • 6.0L Ford Powerstroke 2003-2007
