Description

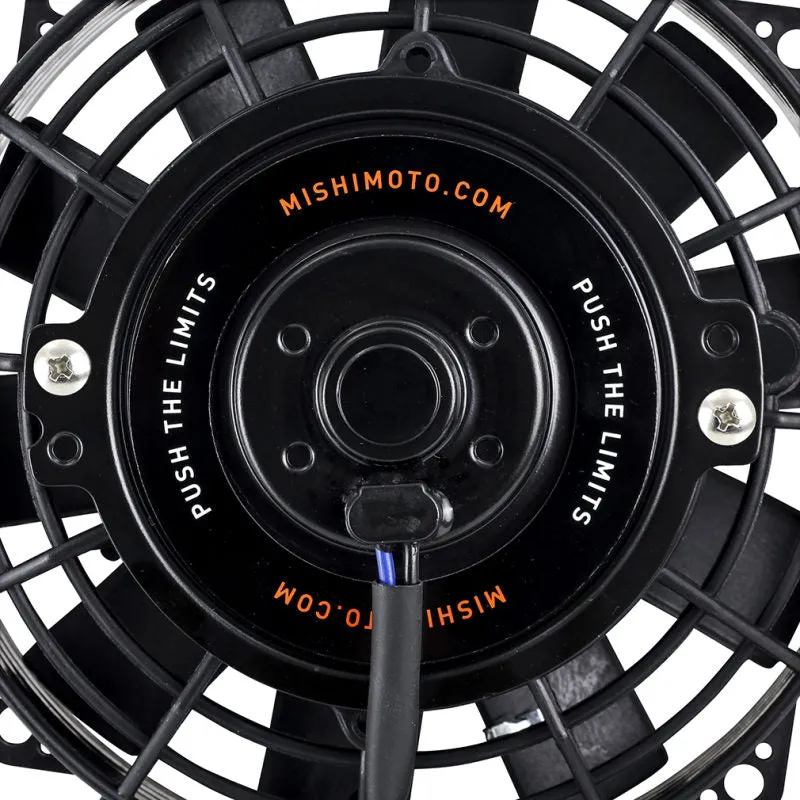

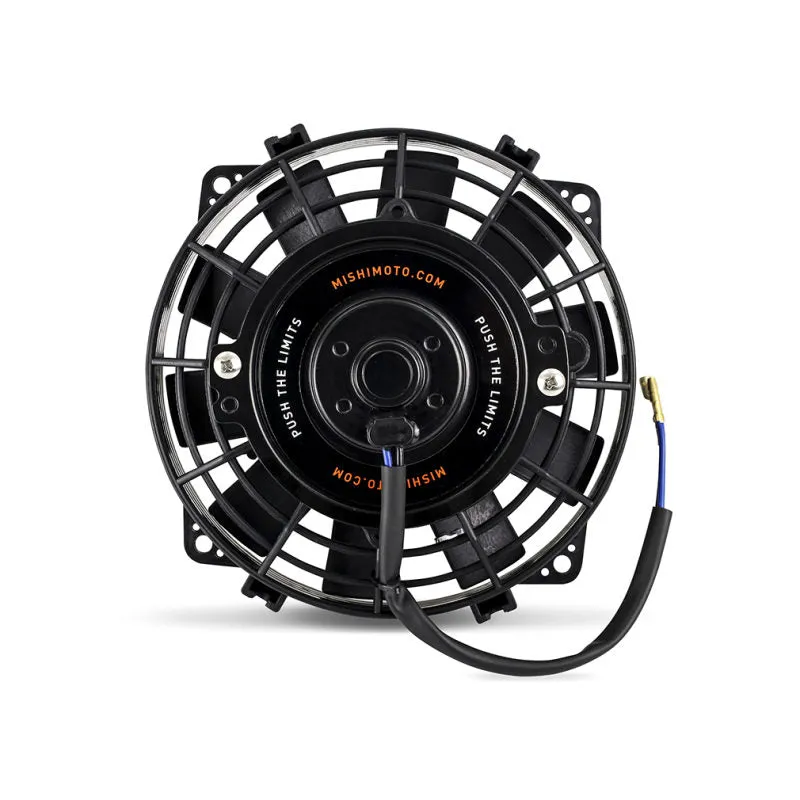

Mishimoto MMFAN-6 - Slim Electric Fan 6in

Electric Fan, Slim, Straight Blade, Black, 6 in

High-performance component designed to enhance thermal efficiency, durability, and reliability under demanding conditions. Engineered to support optimal temperature control and system performance across applications.

Small but mighty! The Mishimoto 6" Slim Electric Fan can be used as an upgrade to the OEM fan for more efficient cooling or it can be utilized to resolve fitment issues with aftermarket products. Measuring only 2.36" deep, it can easily be installed flush against a radiator and have room to spare. Included with the fan is a plug connector on the fan wiring and the accompanying connector pigtail for an easy installation. With 415 CFM of flow, it may be compact, but it moves air like that's its job. For universal installation, use our Mishimoto Universal Fan Mount Kit! And as with all our products, this is backed by our Mishimoto Lifetime Warranty.

  • High-flow fan provides 415 cfm of airflow
  • Universal fitment

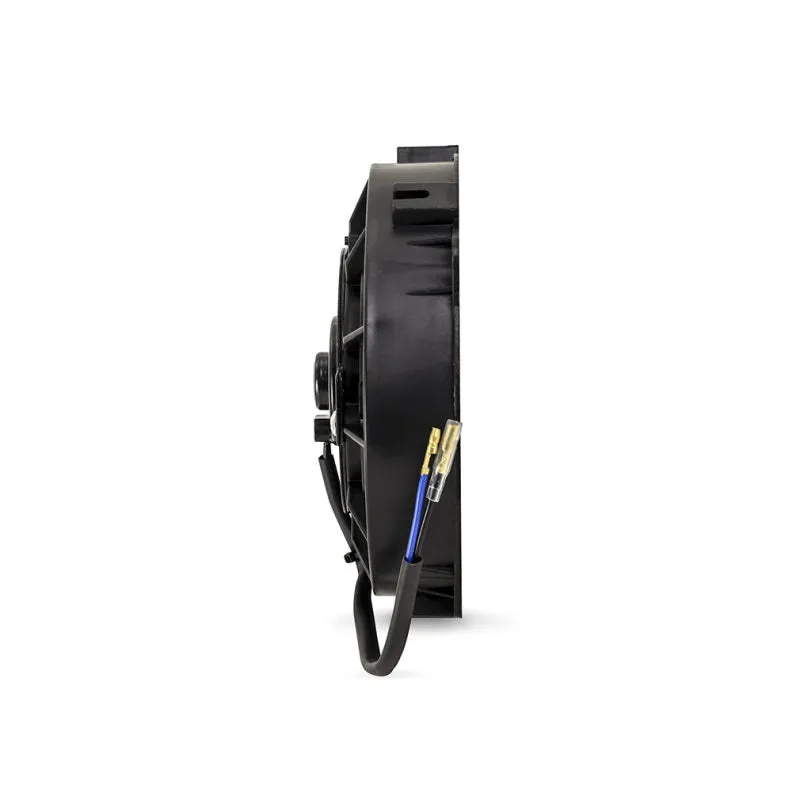

  • Compact design with a diameter of 6-in and an overall thickness of only 2.36-in provides increased engine bay space
Compact design with a diameter of 6-in and an overall thickness of only 2.36-in provides increased engine bay space
Easily reversible for use as a pusher or puller fan
Mishimoto Lifetime Warranty
Install Difficulty: 1
Amperage Rating: 8
Blade Color: Black
Blade Included: Yes
Blade Material: Plastic
Blade Quantity: 10
Blade Type: Straight
Control Module Included: No
Electrical Or Mechanical: Electrical
Fan Clutch Mounted: No
Grade Type: Performance
Hub Depth: 3.14
Maximum CFM: 600
Maximum RPM: 3000
Motor Included: Yes
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Outside Diameter: 7.28
Reversible: Yes
Shroud Included: Yes
Shroud Material: Acrylonitrile Butadiene Styrene (ABS)
Voltage: 12
Wiring Harness Included: No

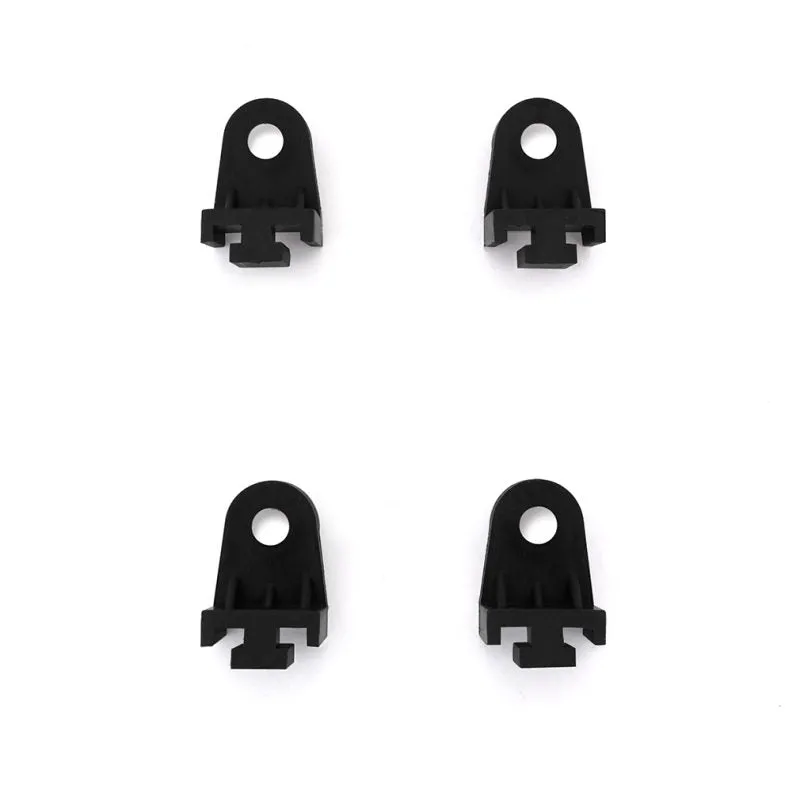

Includes: (1) Mishimoto Fan, (4) Mounting Tabs, Mishimoto Lifetime Warranty
Diameter (in): 7.28
RPM: 3000
Amp Draw (Start): 8.2
Blade Style: Straight
Airflow Direction: Pull
Reversible?: True
Amp Draw (Running): 2.82
Installation Notes: Mishimoto recommends the use of a fan shroud for optimal operation. Reversing polarity and physically flipping the fan blades can enable pusher functionality, but the original design optimization for puller configuration may limit performance.
Wiring Connection: Female Snap-Plug Terminal
High-flow fan provides 415 cfm of airflow
Universal fitment

Specifications

  • High-flow fan provides 415 cfm of airflow
  • Universal fitment
  • Compact design with a diameter of 6-in and an overall thickness of only 2.36-in provides increased engine bay space

Mishimoto MMFAN-6 - Slim Electric Fan 6in

Electric Fan, Slim, Straight Blade, Black, 6 in

High-performance component designed to enhance thermal efficiency, durability, and reliability under demanding conditions. Engineered to support optimal temperature control and system performance across applications.

Small but mighty! The Mishimoto 6" Slim Electric Fan can be used as an upgrade to the OEM fan for more efficient cooling or it can be utilized to resolve fitment issues with aftermarket products. Measuring only 2.36" deep, it can easily be installed flush against a radiator and have room to spare. Included with the fan is a plug connector on the fan wiring and the accompanying connector pigtail for an easy installation. With 415 CFM of flow, it may be compact, but it moves air like that's its job. For universal installation, use our Mishimoto Universal Fan Mount Kit! And as with all our products, this is backed by our Mishimoto Lifetime Warranty.

  • High-flow fan provides 415 cfm of airflow
  • Universal fitment
  • Compact design with a diameter of 6-in and an overall thickness of only 2.36-in provides increased engine bay space
Compact design with a diameter of 6-in and an overall thickness of only 2.36-in provides increased engine bay space
Easily reversible for use as a pusher or puller fan
Mishimoto Lifetime Warranty
Install Difficulty: 1
Amperage Rating: 8
Blade Color: Black
Blade Included: Yes
Blade Material: Plastic
Blade Quantity: 10
Blade Type: Straight
Control Module Included: No
Electrical Or Mechanical: Electrical
Fan Clutch Mounted: No
Grade Type: Performance
Hub Depth: 3.14
Maximum CFM: 600
Maximum RPM: 3000
Motor Included: Yes
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Outside Diameter: 7.28
Reversible: Yes
Shroud Included: Yes
Shroud Material: Acrylonitrile Butadiene Styrene (ABS)
Voltage: 12
Wiring Harness Included: No
Includes: (1) Mishimoto Fan, (4) Mounting Tabs, Mishimoto Lifetime Warranty
Diameter (in): 7.28
RPM: 3000
Amp Draw (Start): 8.2
Blade Style: Straight
Airflow Direction: Pull
Reversible?: True
Amp Draw (Running): 2.82
Installation Notes: Mishimoto recommends the use of a fan shroud for optimal operation. Reversing polarity and physically flipping the fan blades can enable pusher functionality, but the original design optimization for puller configuration may limit performance.
Wiring Connection: Female Snap-Plug Terminal
High-flow fan provides 415 cfm of airflow
Universal fitment
  • High-flow fan provides 415 cfm of airflow
  • Universal fitment
  • Compact design with a diameter of 6-in and an overall thickness of only 2.36-in provides increased engine bay space
