Description

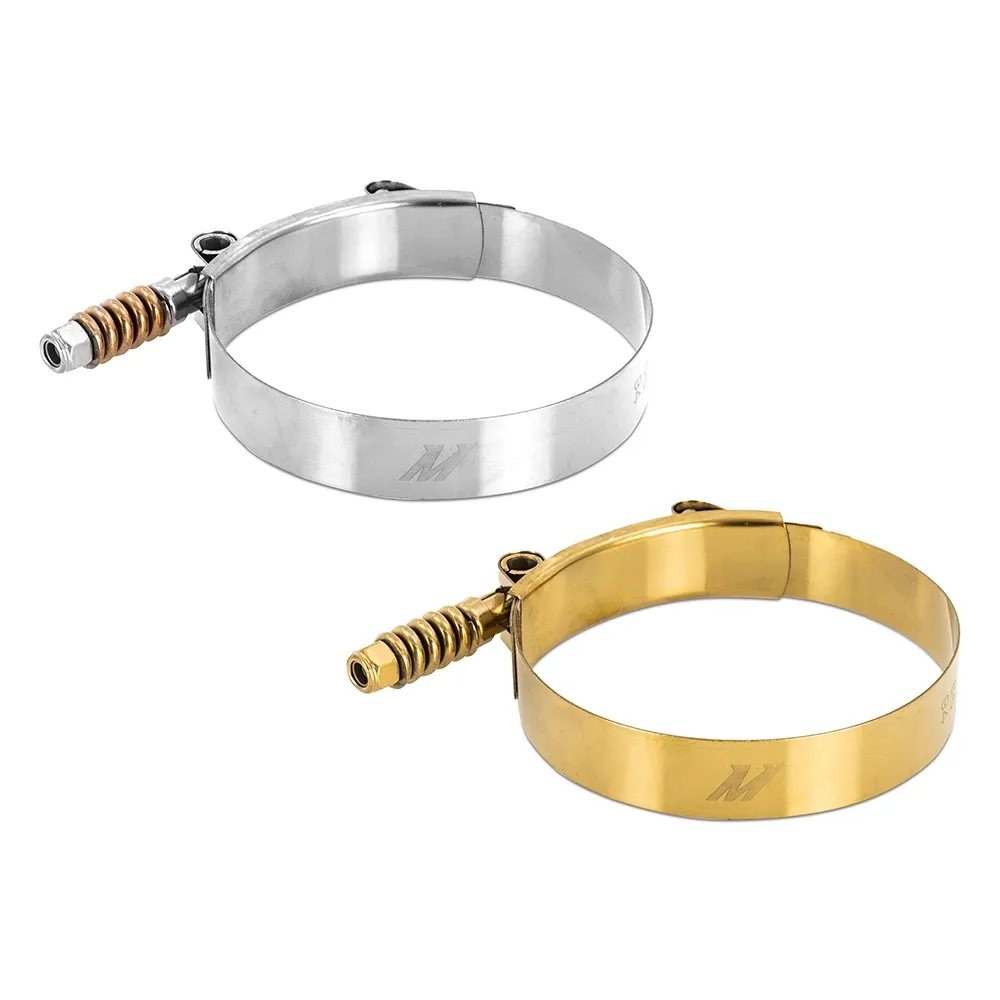

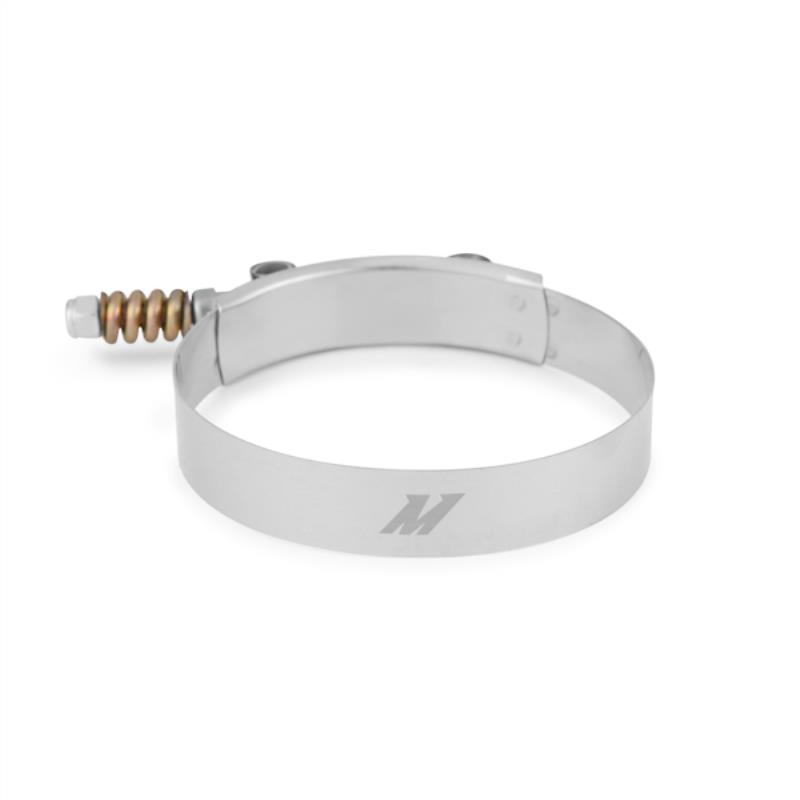

Mishimoto’s Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 4.09” – 4.41” (104mm – 112mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps, these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration.

Like all Mishimoto clamps, this 4.09” – 4.41” (104mm – 112mm) constant tension T-bolt clamp is backed by our Mishimoto Lifetime Warranty.

Product Features

  • Securely clamps pipes, couplers, and hoses with an outer diameter from 4.09" – 4.41" (104mm – 112mm)
  • Constant tension spring maintains clamping pressure through a wide range of temperatures
  • Included self-locking nut prevents loosening with movement and vibration
  • Stainless steel construction resists corrosion longer than zinc-plated clamps

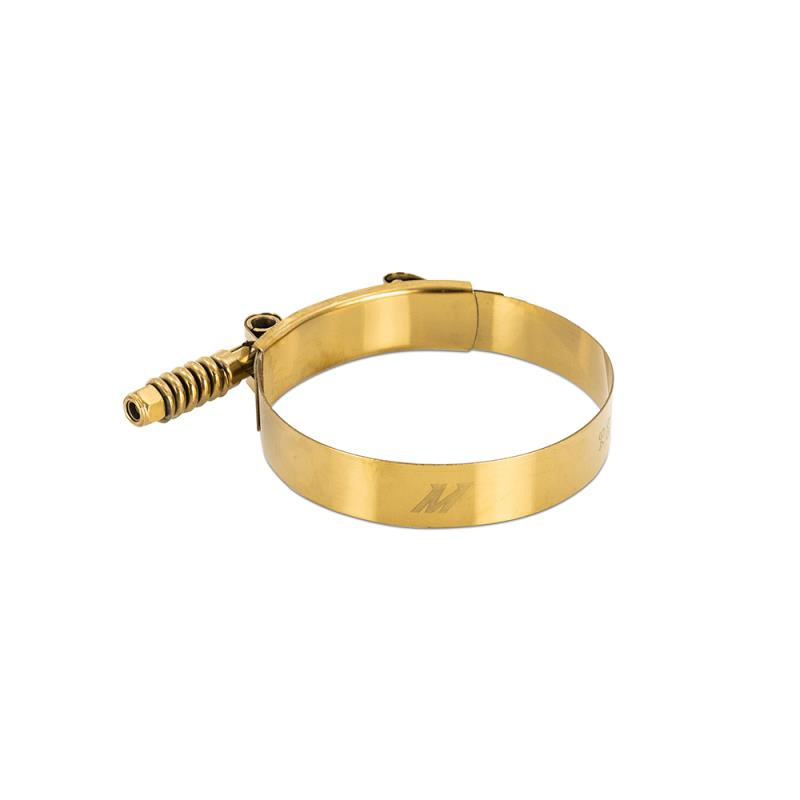

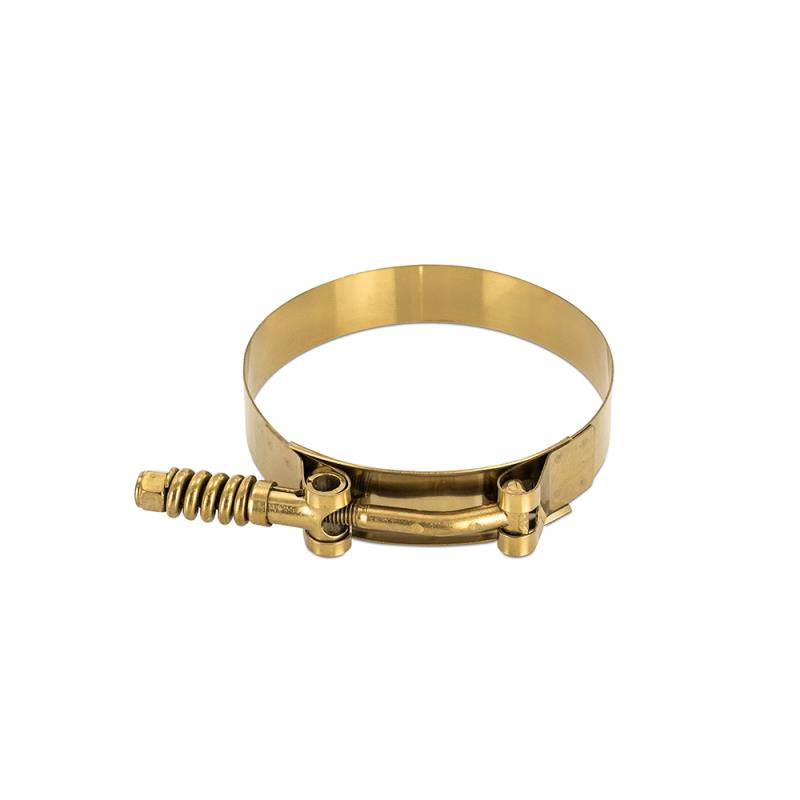

  • Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
  • Clamps sold individually
  • Mishimoto Lifetime Warranty

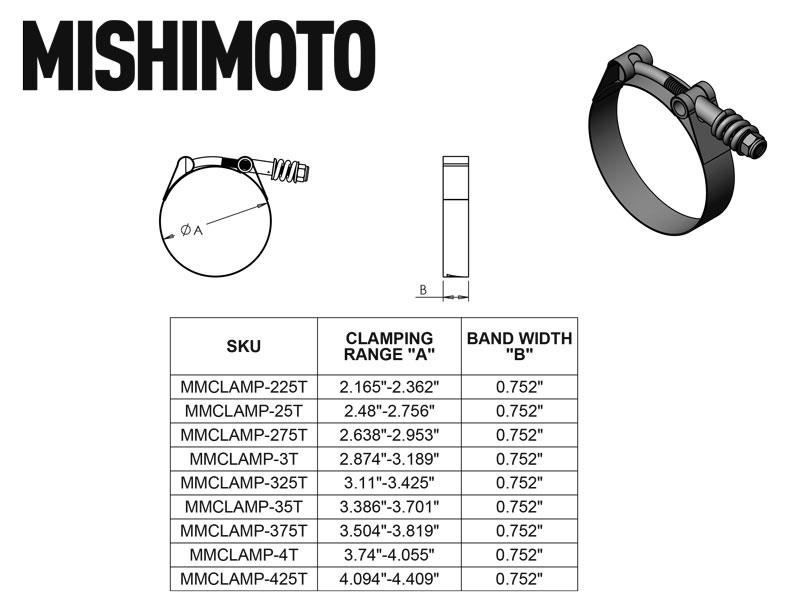

Specifications

  • MIN CLAMP DIAMETER (IN): 4.09
  • MAX CLAMP DIAMETER (IN): 4.41
  • MIN CLAMP DIAMETER (MM): 104
  • MAX CLAMP DIAMETER (MM): 112
  • CLAMP STYLE: Constant Tension T-Bolt Clamp
  • MATERIAL: Stainless Steel
  • BAND WIDTH: 19
  • SAE NUMBER: 102
  • RECOMMENDED TIGHTENING TORQUE: 27 in-lbs (3 N*M)

What's Included

  • (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp
  • Mishimoto Lifetime Warranty

Compatibility

  • Universal Part

Mishimoto’s Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 4.09” – 4.41” (104mm – 112mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps, these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration.

Like all Mishimoto clamps, this 4.09” – 4.41” (104mm – 112mm) constant tension T-bolt clamp is backed by our Mishimoto Lifetime Warranty.

Product Features

  • Securely clamps pipes, couplers, and hoses with an outer diameter from 4.09" – 4.41" (104mm – 112mm)
  • Constant tension spring maintains clamping pressure through a wide range of temperatures
  • Included self-locking nut prevents loosening with movement and vibration
  • Stainless steel construction resists corrosion longer than zinc-plated clamps
  • Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
  • Clamps sold individually
  • Mishimoto Lifetime Warranty



  • MIN CLAMP DIAMETER (IN): 4.09
  • MAX CLAMP DIAMETER (IN): 4.41
  • MIN CLAMP DIAMETER (MM): 104
  • MAX CLAMP DIAMETER (MM): 112
  • CLAMP STYLE: Constant Tension T-Bolt Clamp
  • MATERIAL: Stainless Steel
  • BAND WIDTH: 19
  • SAE NUMBER: 102
  • RECOMMENDED TIGHTENING TORQUE: 27 in-lbs (3 N*M)
  • (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp
  • Mishimoto Lifetime Warranty
  • Universal Part
