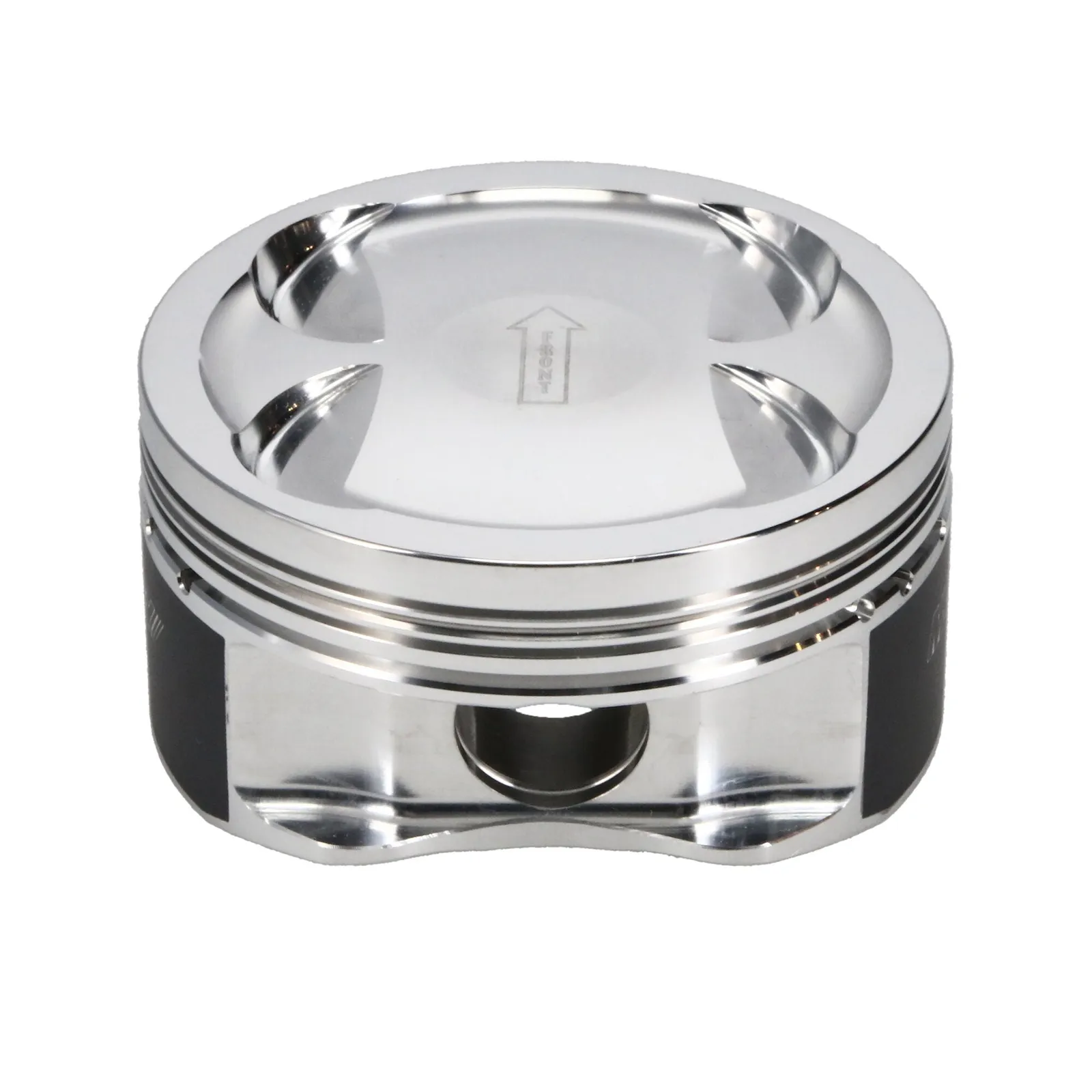

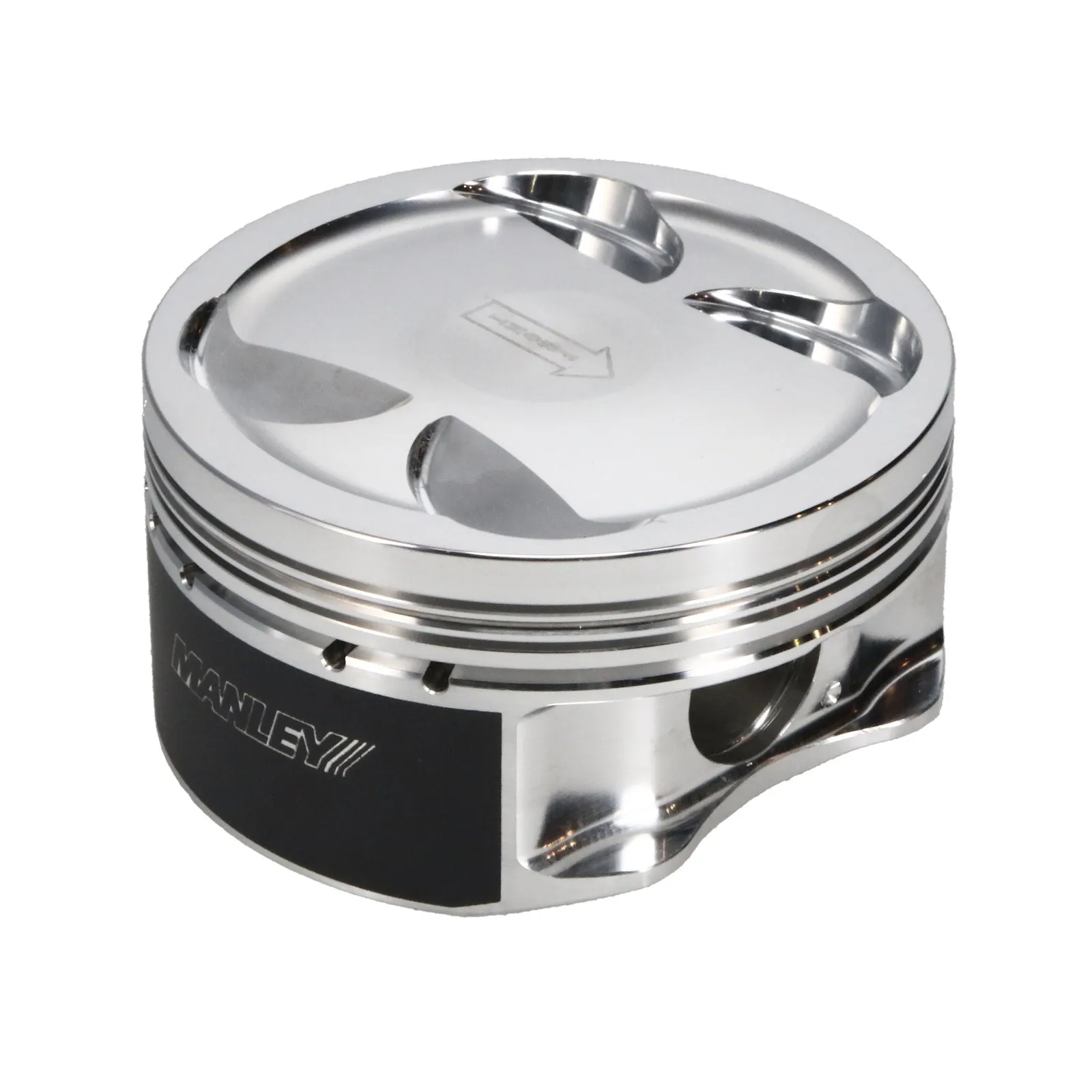

Manley 612100C-4 - 04+ Subaru WRX STi (EJ257) STD Stroke 99.5mm STD Bore 9.8:1 Dish Piston Set with Rings

Manley Piston Set, PIST-SUBARU 99.5mm/1.209 CD/DDISH

Manley Piston Set, SUBARU 99.5mm/1.209 CD/DDISH

Our signature "Platinum Series" pistons feature 2618 alloy forgings, proven cam and barrel skirt profiles, tool steel wrist pins, and moly skirt coatings on select part numbers. Join the ranks of professional engine builders and tuners who rely on Manley pistons for superior performance and durability.

2618 Alloy Forgings: We use domestic 2618 alloy forgings, ensuring superior strength and performance.
Chrome Moly Wrist Pins: Premium Chrome Moly wrist pins come standard with our Standard Series Pistons. For select SKUs, we offer wrist pin upgrades to 9310 and Turbo Tuff/DLC alloys, providing additional durability.
Exacting Ring Lands and Grooves: We adhere to strict standards for piston ring lands and grooves, resulting in enhanced ring seal and more power.
Cam and Barrel Profiles: Our pistons boast cam and barrel (skirt) profiles that generate substantial power while being gentle on cylinder walls.
Unique Fixturing: Manley's unique fixturing allows for skirt turning and ring groove machining in a single operation, ensuring ultimate ring groove to skirt squareness.

Bore Diameter: 99.50

Compression Height: 1.209

Piston Volume: -10.00

Weight: 419

Piston Series: Platinum Series

Product Type: Engine Piston Kit

Piston Quantity: 4

Engine Stroke: 79.00

Bore Oversize: Stock

Piston Head Type: Dish

Engine Stroke Type: Stock

Compression Ratio: 9.80:1

Engine Type: ICE

Make: Subaru

Engine: 2.5L EJ257 WRX STi

Specifications

Bore Diameter: 99.50
Compression Height: 1.209
Piston Volume: -10.00
Weight: 419
Piston Series: Platinum Series
Product Type: Engine Piston Kit
Piston Quantity: 4
Engine Stroke: 79.00
Bore Oversize: Stock
Piston Head Type: Dish
Engine Stroke Type: Stock
Compression Ratio: 9.80:1
Engine Type: ICE
Make: Subaru
Engine: 2.5L EJ257 WRX STi
