Description

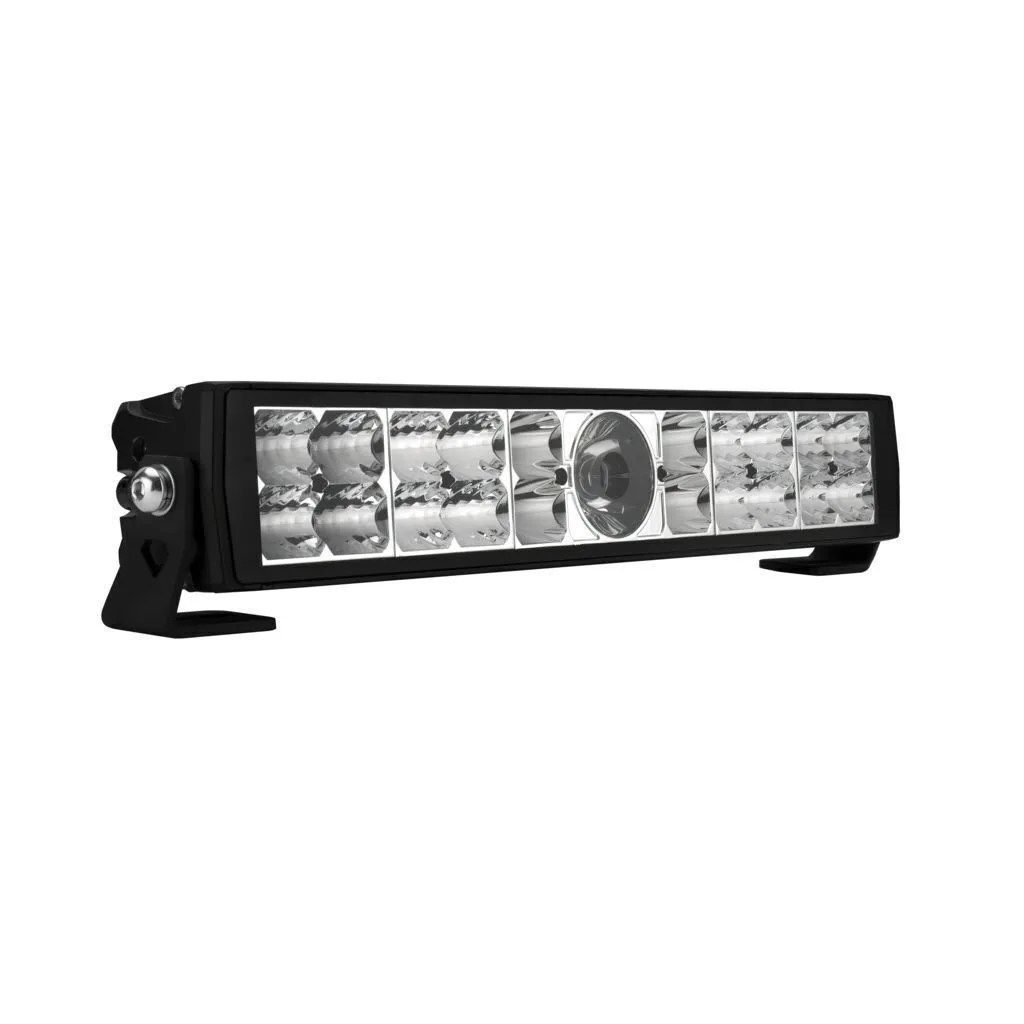

Ignite 15" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 95 Watt

Experience unmatched visibility and durability with the Ignite 15" Lightbar. Its advanced Polycarbonate Side Reflector Focusing Optic Drive Technology and Lexan Polycarbonate Lens ensure over 95% light transmittance, even in the darkest conditions.

The integrated Electronic Thermal Management (ETM) system keeps the lightbar cool during extended use. With its black anodised polyester powder-coated aluminum housing, it's UV, water, and shock-resistant, withstanding extreme conditions.

Combining Laser and LED technology, it provides a Combo Beam pattern with 8,700 raw lumens and 7,400 effective lumens, delivering 6,000K white light. It's ECE R112, R10, and CE approved, and IP68 and IP69K rated.

Install it easily with the included 500mm lead and 2 Pin Deutsch Plug. It offers over/under voltage and reverse polarity protection. Backed by a 5-year warranty, it's your reliable driving companion.

Illuminate your adventures with the ILLB2004 Ignite Lightbar!

Includes:

  • 1 x 15" Dual Row Laser LED Driving Lamp Lightbar


Spare Parts:

  • INPB001Licence Plate Mounting Bracket
• 8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
• Polycarbonate Side Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
• Integrated Electronic Thermal Management (ETM)
• Black Anodised Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent

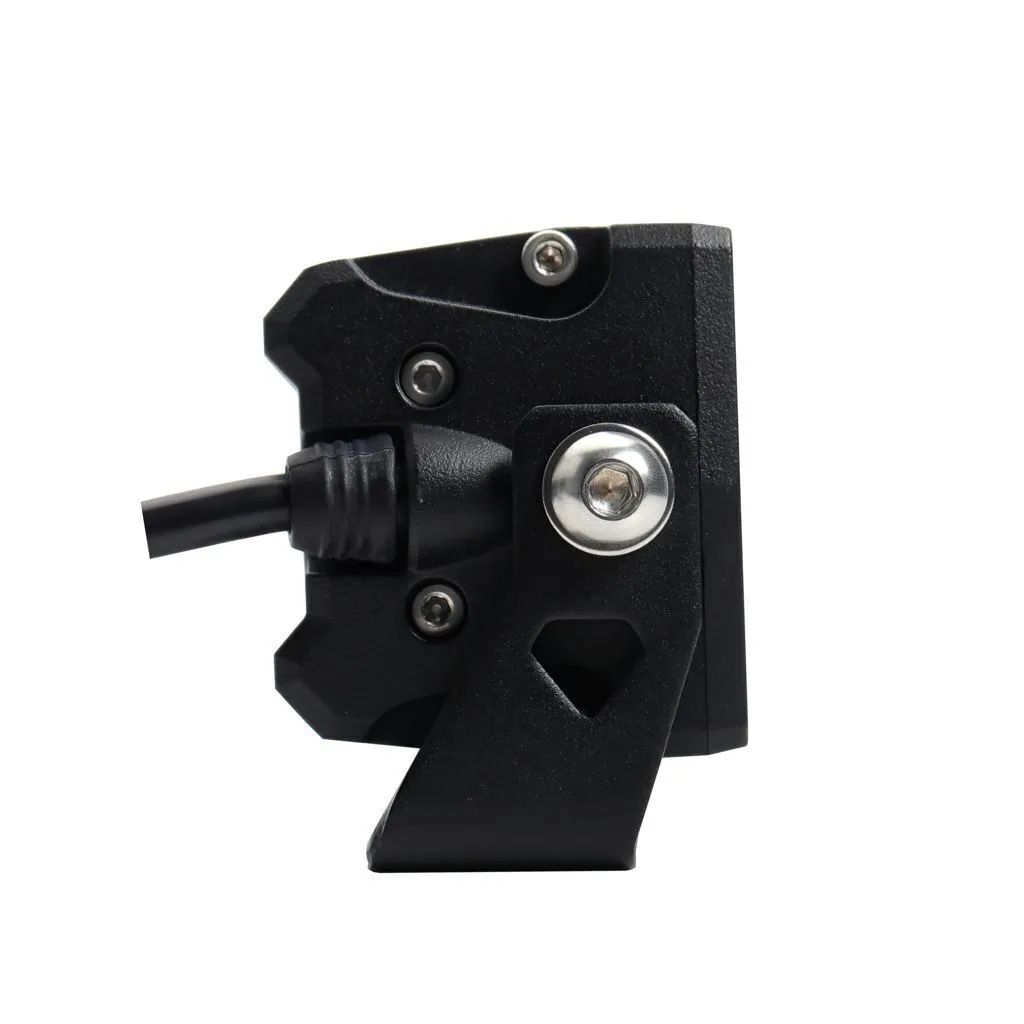

• Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
• Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
• 500mm Lead with 2 Pin Deutsch Plug
• Over and Under Voltage Protection
• Reverse Polarity Protection
• Combined Laser LED and LED Illumination Technology
• UV, Water and Shock resistance to 15G
• Anti Rust, corrosion, and freezing resistance
• 50,000 Hours LED Lifespan
• ECE R112, R10 and CE Approved
• Environment Temperature: -40°C ~ +60°C
• 5 Year Warranty

Specifications

Type LED
Beam Type Combined
Mount Bottom and Side Brackets
IP Rating IP68 and IP69K Rated
Voltage Multivolt (9 - 36V)
Power 95 Watt
No. of LED's 20 x 4 Watt High Intensity LP LED's and 1 x 20 Watt High Intensity Osram Laser LED
Effective Lumens 7,400
Raw Lumens 8,700
Colour Temp 6,000K
Current Draw 6.5A @ 12V, 3.3A @ 24V

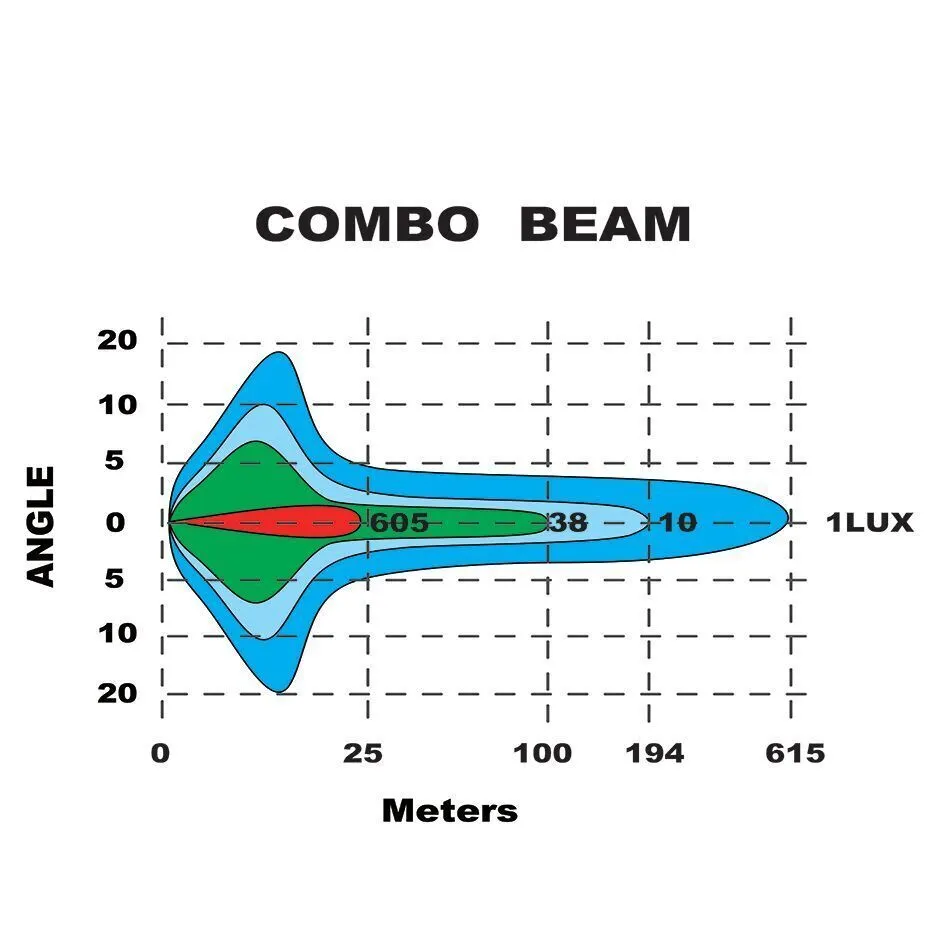

Max Visibility 1 Lux @ 615m
Peak Beam Intensity 378,000cd

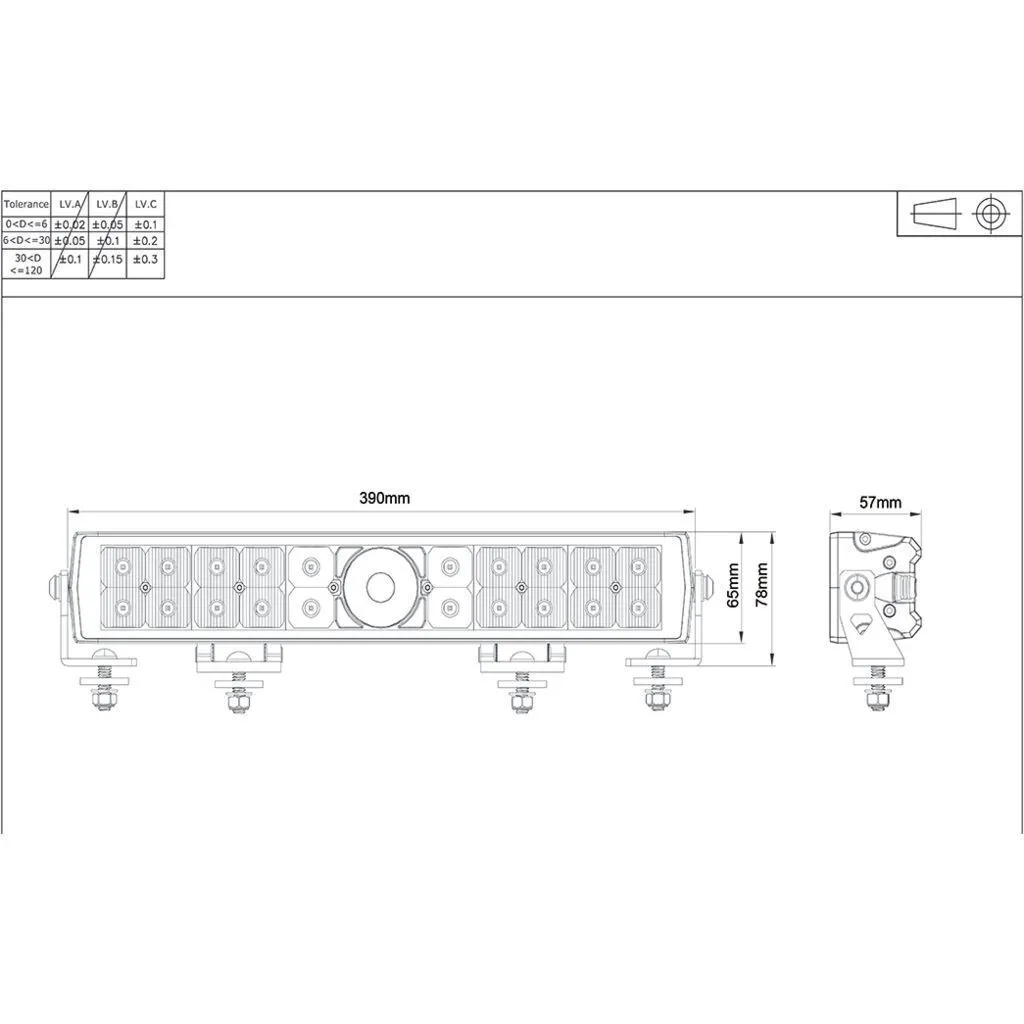

Height 65mm
Width 390mm
Depth 57mm
SKU ILLB2004
Barcode # 9323327947027
Brand Ignite

Compatibility

  • Universal Part

Ignite 15" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 95 Watt

Experience unmatched visibility and durability with the Ignite 15" Lightbar. Its advanced Polycarbonate Side Reflector Focusing Optic Drive Technology and Lexan Polycarbonate Lens ensure over 95% light transmittance, even in the darkest conditions.

The integrated Electronic Thermal Management (ETM) system keeps the lightbar cool during extended use. With its black anodised polyester powder-coated aluminum housing, it's UV, water, and shock-resistant, withstanding extreme conditions.

Combining Laser and LED technology, it provides a Combo Beam pattern with 8,700 raw lumens and 7,400 effective lumens, delivering 6,000K white light. It's ECE R112, R10, and CE approved, and IP68 and IP69K rated.

Install it easily with the included 500mm lead and 2 Pin Deutsch Plug. It offers over/under voltage and reverse polarity protection. Backed by a 5-year warranty, it's your reliable driving companion.

Illuminate your adventures with the ILLB2004 Ignite Lightbar!

Includes:

  • 1 x 15" Dual Row Laser LED Driving Lamp Lightbar


Spare Parts:

  • INPB001Licence Plate Mounting Bracket
• 8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
• Polycarbonate Side Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
• Integrated Electronic Thermal Management (ETM)
• Black Anodised Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
• Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
• Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
• 500mm Lead with 2 Pin Deutsch Plug
• Over and Under Voltage Protection
• Reverse Polarity Protection
• Combined Laser LED and LED Illumination Technology
• UV, Water and Shock resistance to 15G
• Anti Rust, corrosion, and freezing resistance
• 50,000 Hours LED Lifespan
• ECE R112, R10 and CE Approved
• Environment Temperature: -40°C ~ +60°C
• 5 Year Warranty
Type LED
Beam Type Combined
Mount Bottom and Side Brackets
IP Rating IP68 and IP69K Rated
Voltage Multivolt (9 - 36V)
Power 95 Watt
No. of LED's 20 x 4 Watt High Intensity LP LED's and 1 x 20 Watt High Intensity Osram Laser LED
Effective Lumens 7,400
Raw Lumens 8,700
Colour Temp 6,000K
Current Draw 6.5A @ 12V, 3.3A @ 24V
Max Visibility 1 Lux @ 615m
Peak Beam Intensity 378,000cd
Height 65mm
Width 390mm
Depth 57mm
SKU ILLB2004
Barcode # 9323327947027
Brand Ignite
  • Universal Part
