01-10 GM HD 0-2" FRONT 2.0 VS IR

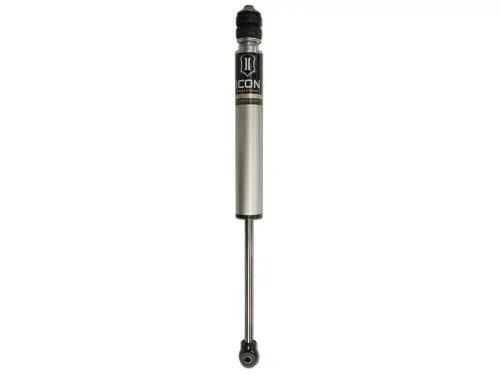

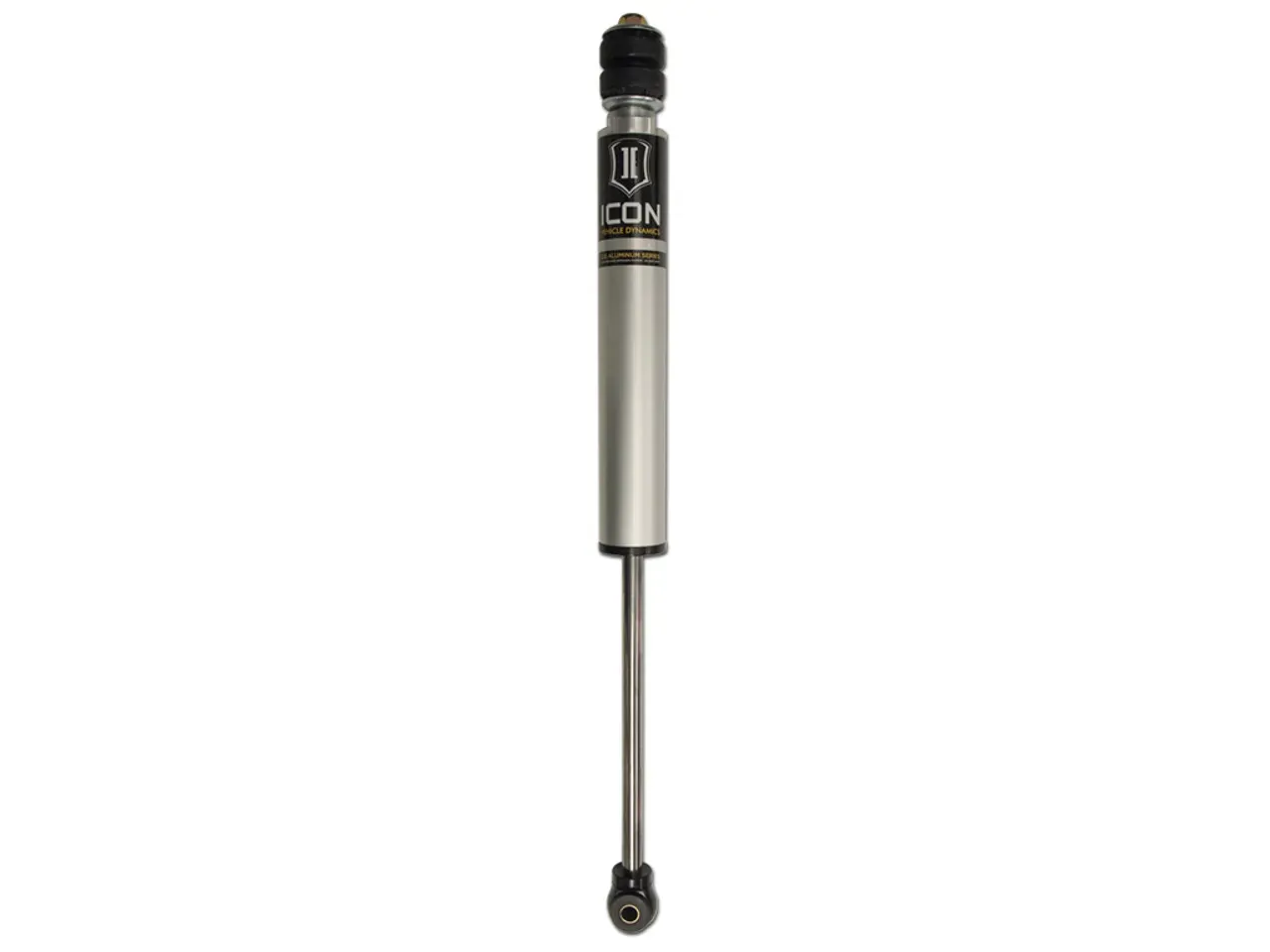

2001-2010 GM HD 0-2" LIFT FRONT 2.0 VS INTERNAL RESERVOIR SHOCK

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with internal reservoir3
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 5/8” chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Nitrile rubber top out bumper for noise free operation
• 100% rebuildable
• 100% revalveable

Active or Passive Suspension: Passive

Adjustable Compression: No

Adjustable Damping: No

Adjustable Rebound: No

Adjustable Ride Height: No

Body Color: Gray

Body Diameter: 2

Body Material: Aluminum

Boot Included: NO

Bore Diameter: 1.75

Bushing Color: Black

Bushing Included: yes

Bushing Material: Polyurethane

Coil Over Springs Included: NO

Coil Spring Insulator(s) Included: No

Color: Gray

Color: Black

Color: Silver

Configuration: Performance

Cylinder Color: Gray

Cylinder Finish: Anodized

Cylinder Material: Aluminum

Cylinder Outside Diameter: 2

Damping Type: Oil

Dust Boot Included: No

Dust Shield: NO

Dust Shield Included: No

External Reservoir: No

Finish: Anodized

Gas Charged: Yes

Grade Type: Performance

Hydraulic Lockout: No

Includes Bump Stop: No

Internal Construction Type: Single Tube

Internal Rebound Bumper: Yes

Internal Rebound Spring: No

Lower Mount Type: EYELET

Material: Steel

Material: Aluminum

Maximum Ride Height Raising Distance: 2

Mounting Hardware Included: Yes

Quantity: 1

Remote Reservoir: NO

Rod Diameter: .625

Self-Leveling: No

Shaft Diameter: 0.625

Shaft Material: Chrome

Shock Absorber Body End Measuring Point: Shoulder of Stem

Shock Absorber Bore Size: 1.75

Shock Absorber Rod End Measuring Point: CENTER OF EYELET

Suspension Type: Spring

Upper Mount Type: Stem

Valving Type: Digressive

Valving Type: Linear
