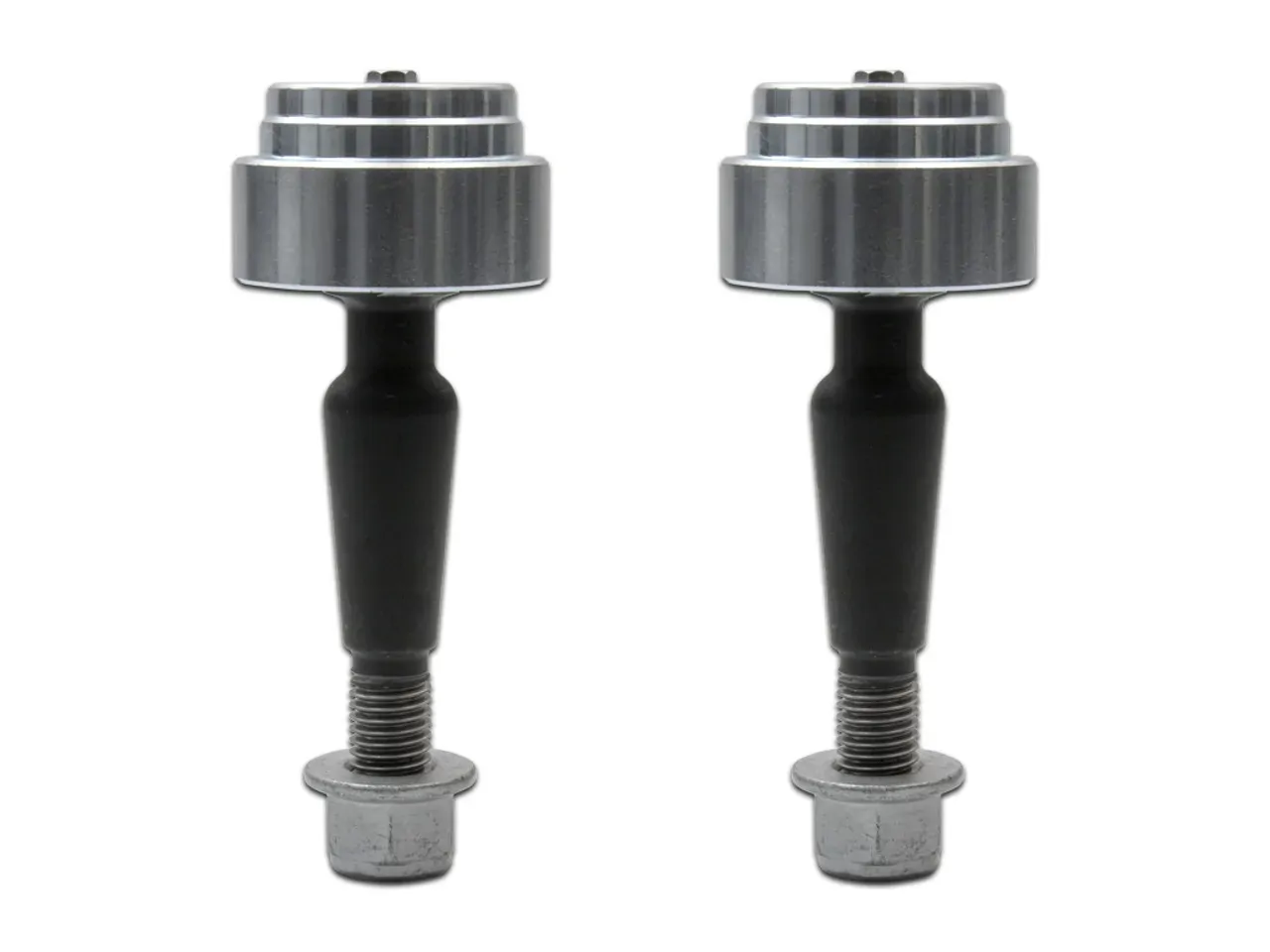

04-20 F150/09-UP RAM 1500 DELTA JOINT KIT

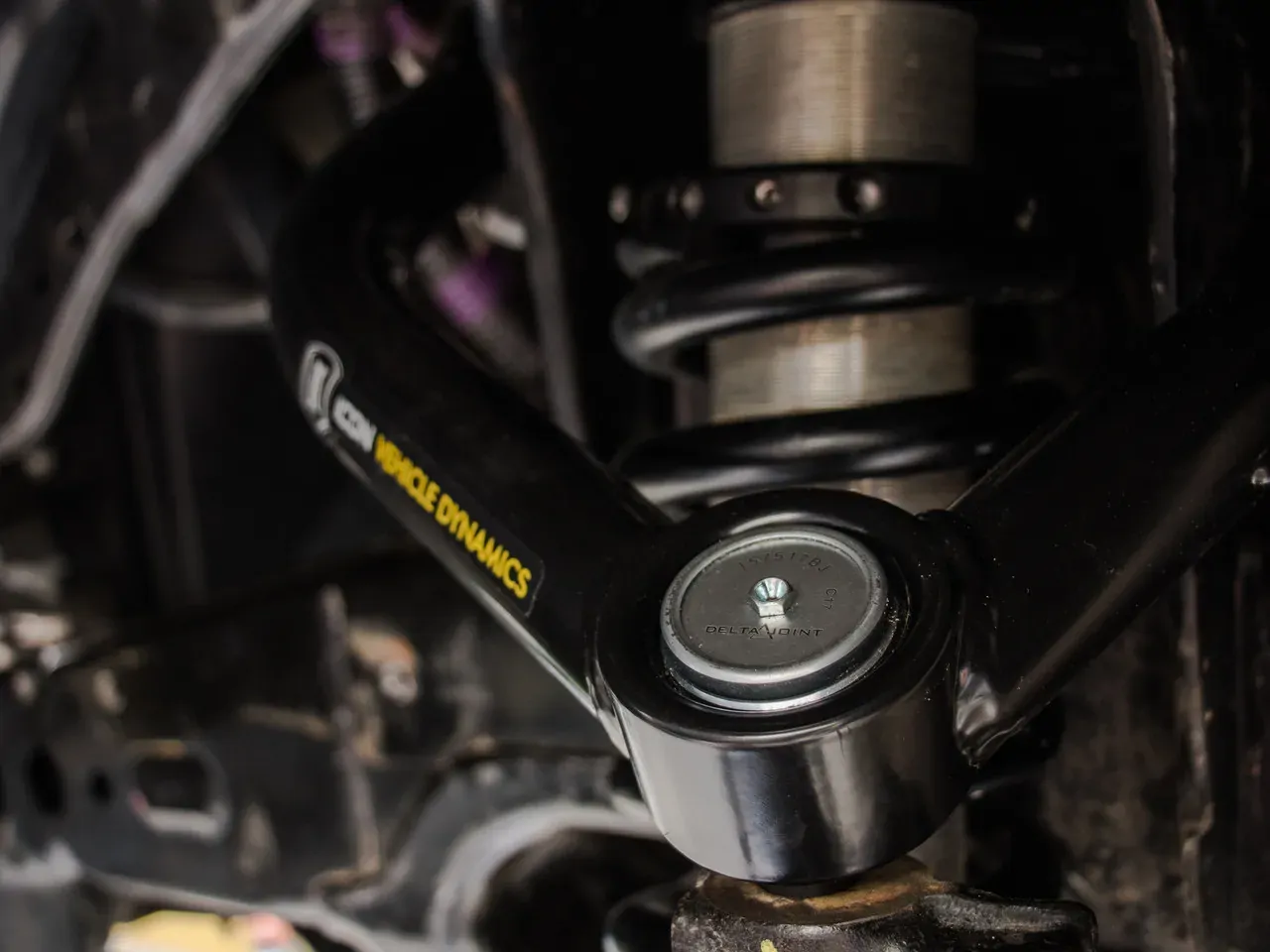

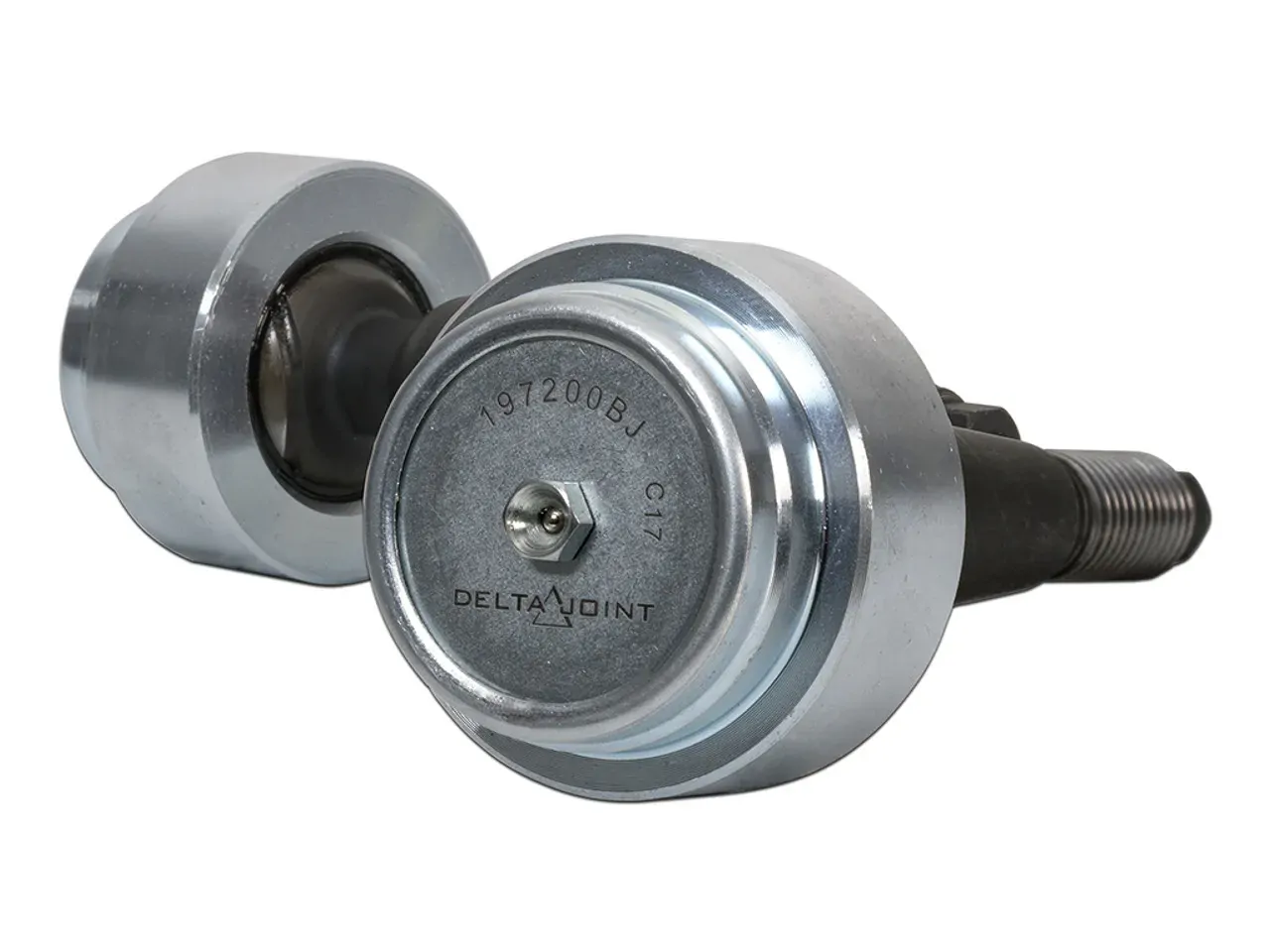

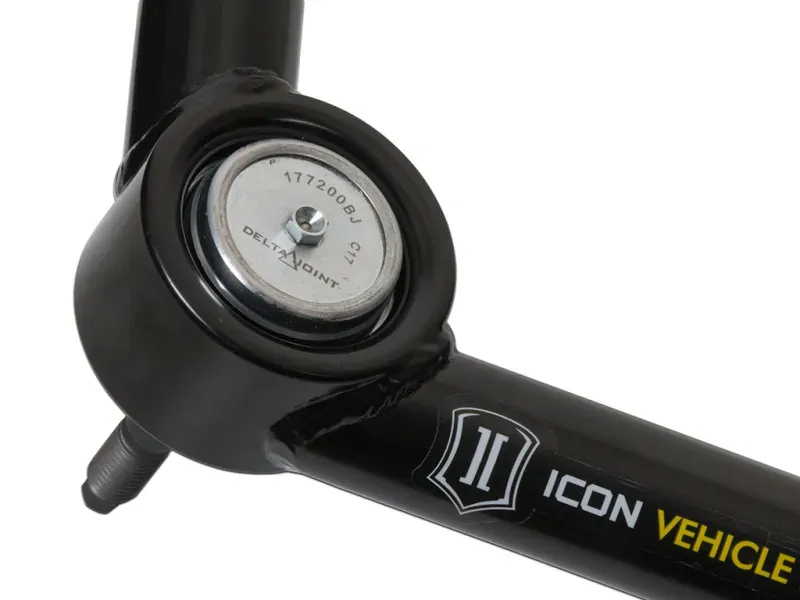

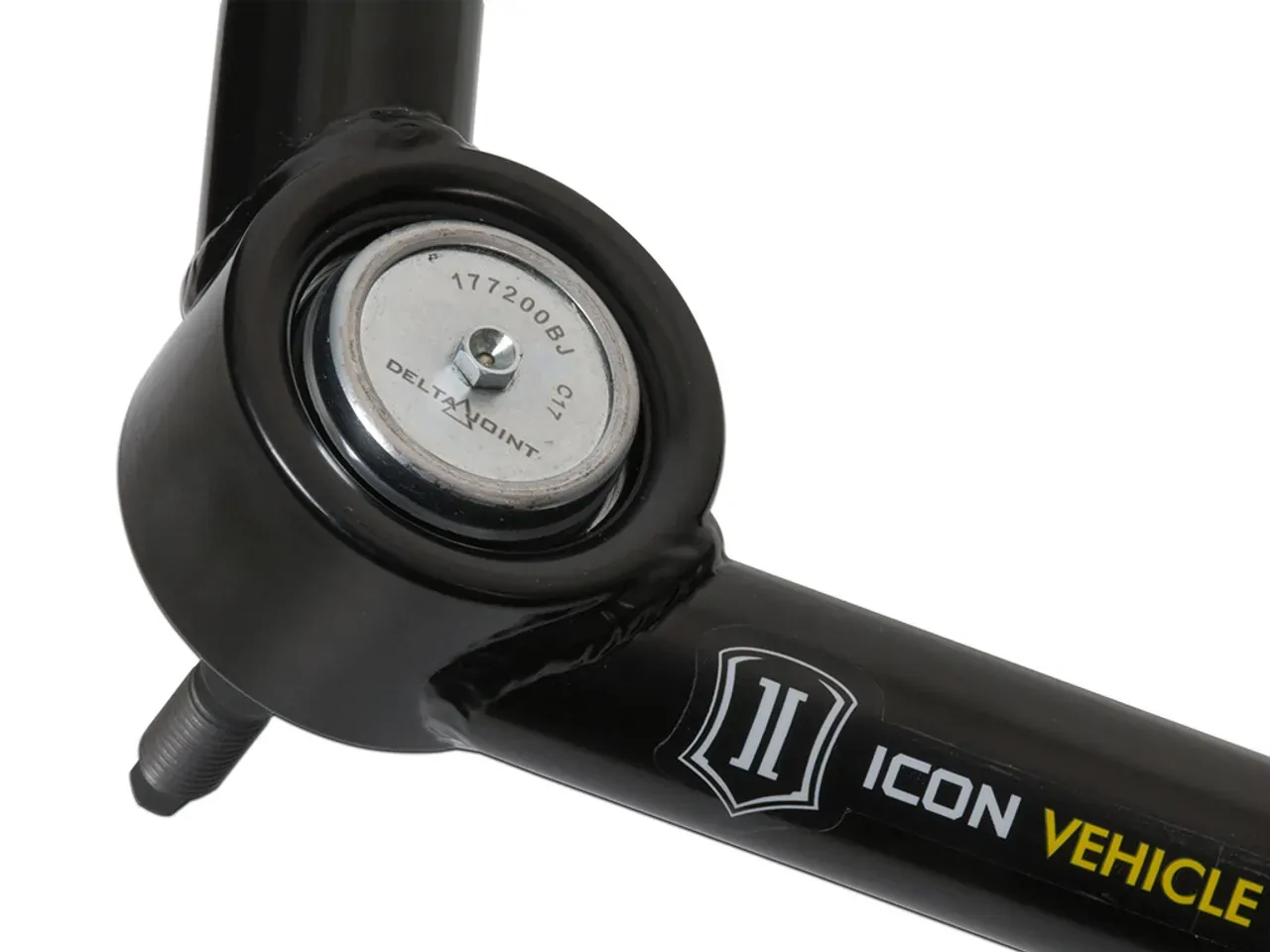

ICON’s Delta Joint is a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint’s zinc plated housing provides the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while also allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and capable of greater angularity than a typical ball joint.

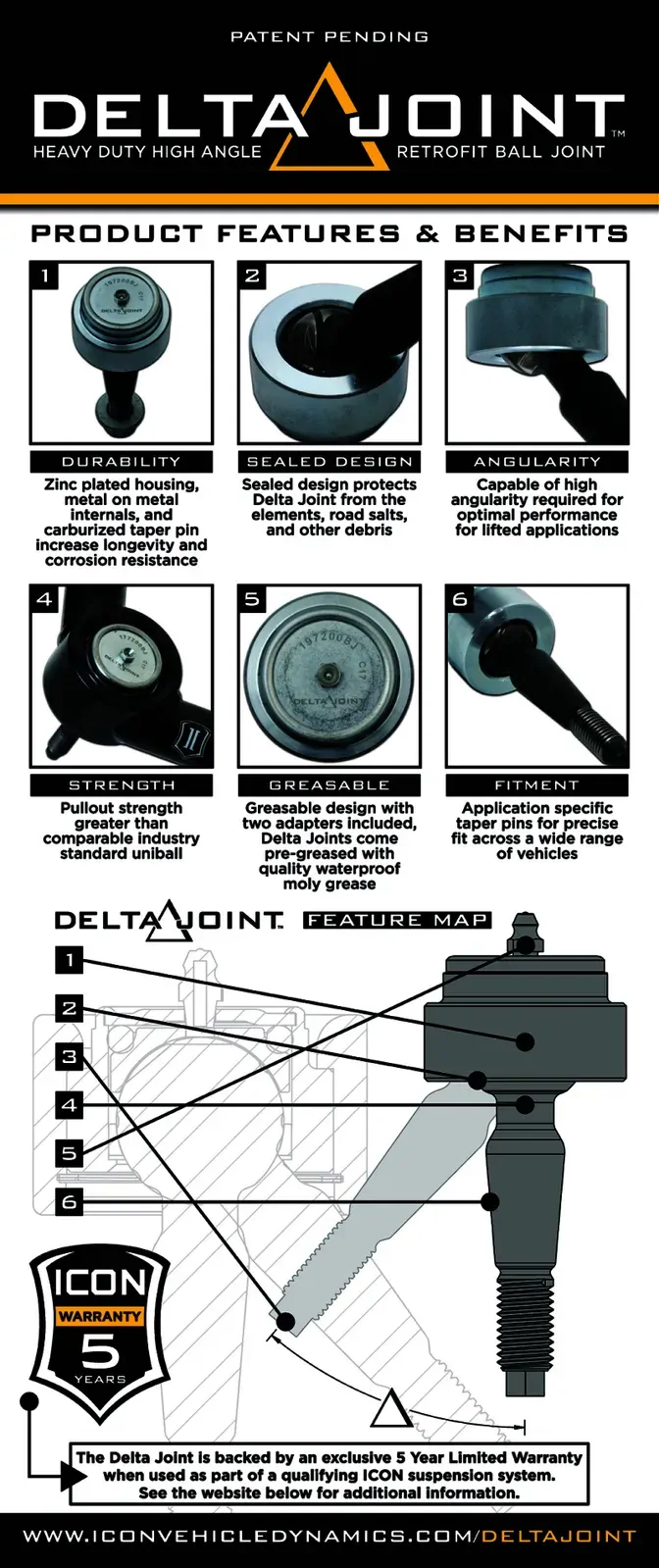

• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability of a ball joint with the performance characteristics of a traditional uniball
• Sealed design and zinc plated housing protects Delta Joint from the elements, road salts, and other debris
• Metal on metal internals and a greasable design for maximum longevity and noise-free operation
• Capable of high angularity required for lifted applications
• Carburized taper pin provides increased corrosion resistance, decreased internal friction, and less chance of thread galling on assembly
• Pullout strength greater than comparable industry standard uniball
• Application specific taper pins for precise fit across a wide range of vehicles
• 5 Year ICON Limited Warranty (When used with ICON Vehicle Dynamics suspension components)

Adjustable: No

Ball Joint Assembly: yes

Grease Fitting Included: yes

Greaseable: Yes

Material: Steel

Mounting Hardware Included: Yes

Mounting Type: Press In

Nuts Included: yes

Quantity: Pair

Suspension Grade Type: Performance

Tapered Stud: yes
