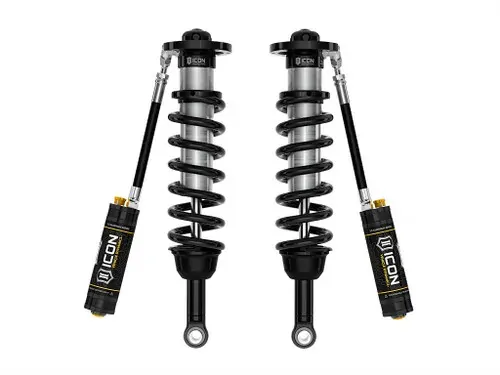

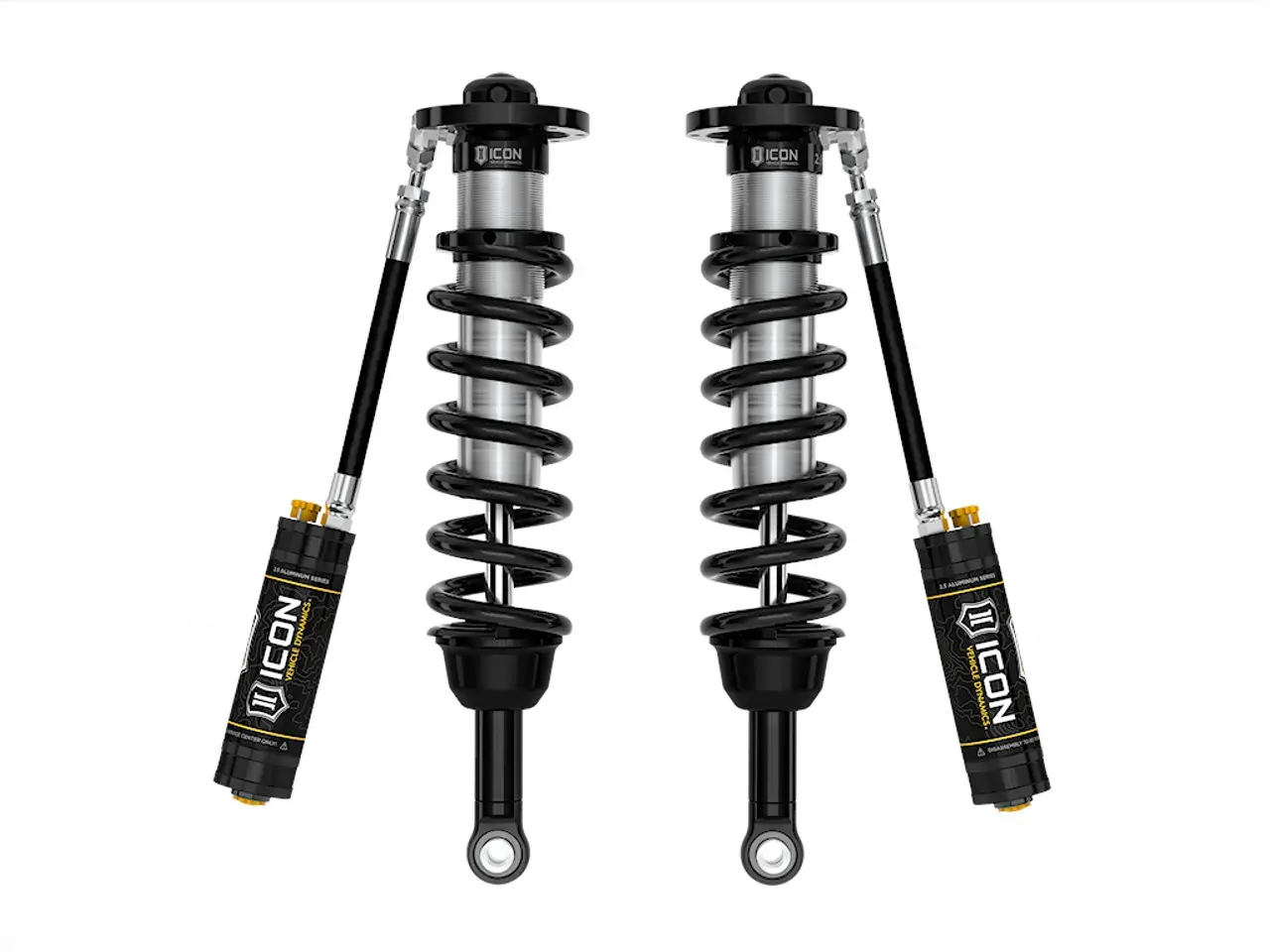

22-26 TUNDRA/23-26 SEQUOIA 2.5 VS RR CDCV COILOVER KIT

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2026 Toyota Tundra or 2023-2026 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3.5-4.5" of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable up to 1.25-3.5" of front lift height over stock on Tundra or 3-4.5" of front lift on Sequoia
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Active or Passive Suspension: Passive

Adjustable Compression: Yes

Adjustable Damping: Yes

Adjustable Rebound: No

Adjustable Ride Height: Yes

Assembled: Yes

Body Diameter: 2.5

Travel Length: 5.36

Upper Mount Type: Mounting Plate

Valving Type: Digressive

Coil Over Springs Included: Yes

Compressed Length: 16.73

Cylinder Color: Silver

Cylinder Finish: Cadmium Plated

Cylinder Material: Steel

Damping Adjustment Type: Manual

Damping Type: Oil

Dust Shield Included: No

Extended Length: 22.08

Front Spring Rate: 700

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: No

Internal Construction Type: Single Tube

Lower Mount Type: Eyelet

Material: Steel

Material: Aluminum

Maximum Lift: 3.5

Maximum Ride Height Raising Distance: 3.5

Minimum Lift: 1.25

OEM Wheels & Tires Fitment: Yes

Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)

Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset

Remote Reservoir: Yes

Reservoir Style: Remote

Self-Leveling: No

Shaft Diameter: 0.875

Shock Absorber Body End Measuring Point: Top of Upper Mount Plate

Shock Absorber Rod End Measuring Point: Center of Eylet

Spring Color: Black

Spring Material: Steel

Spring Rate Type: Linear
