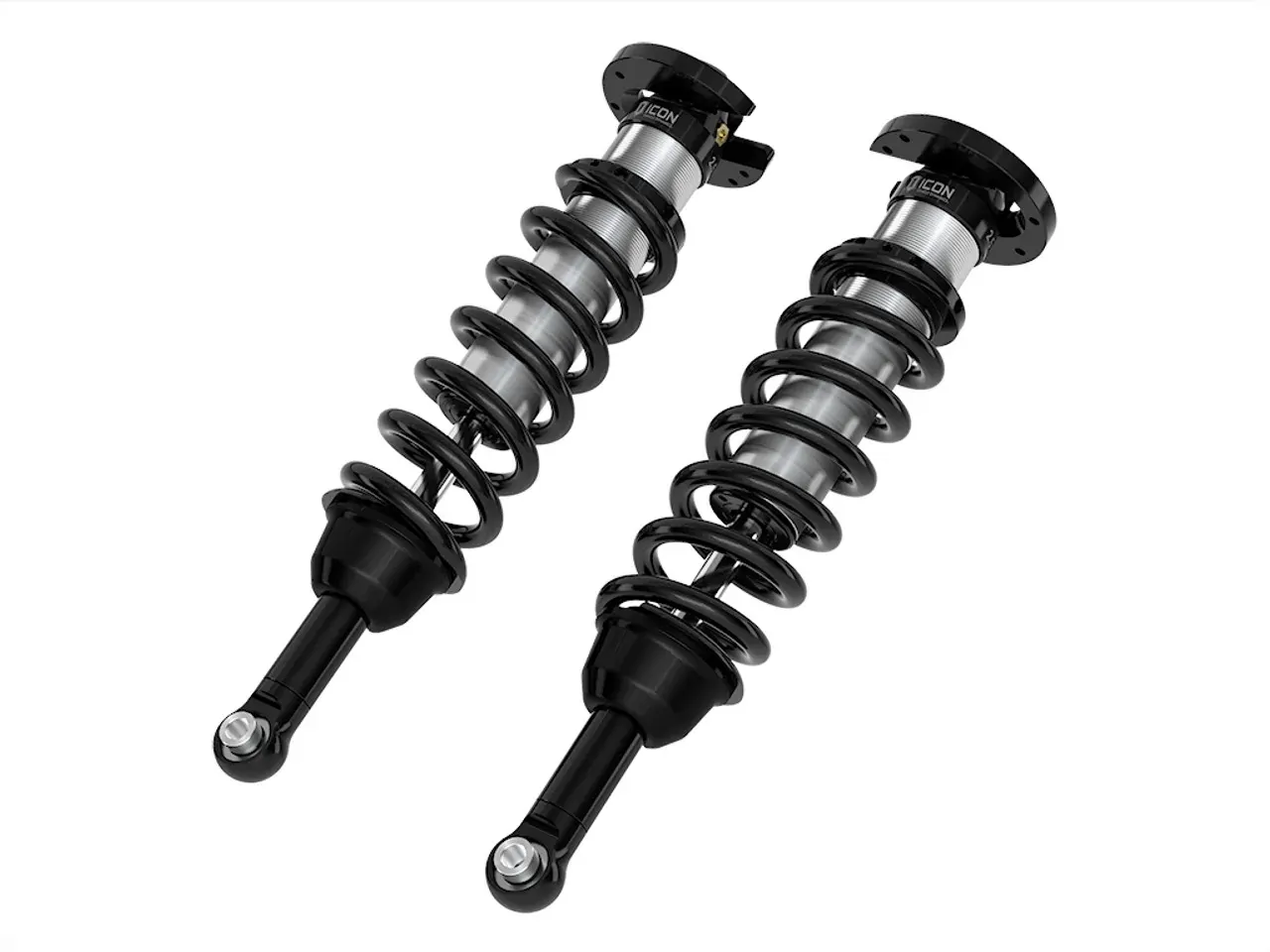

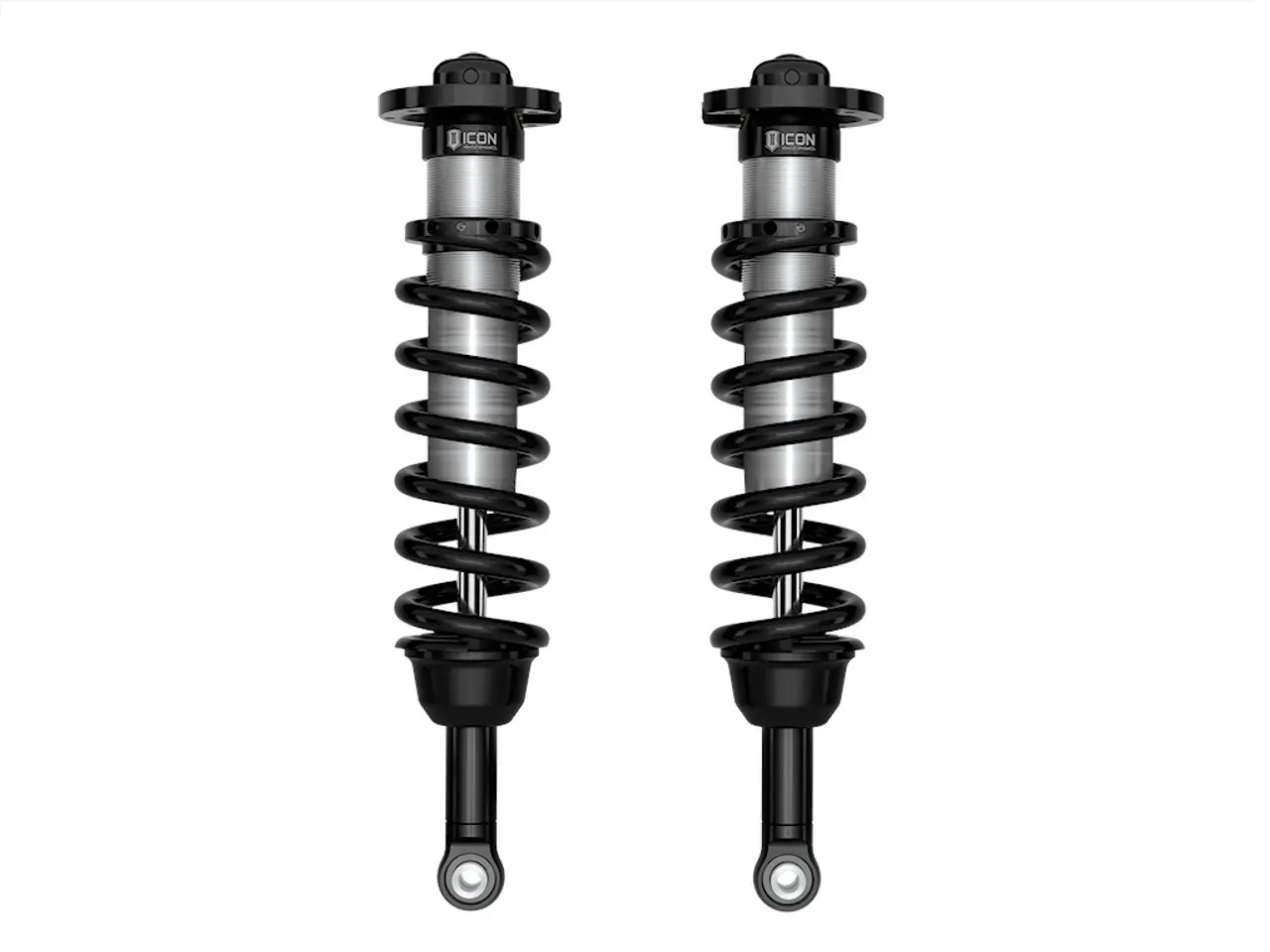

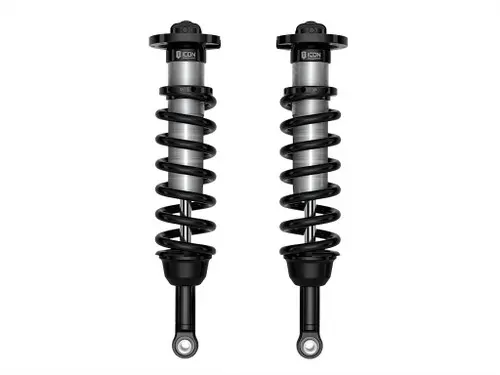

22-26 TUNDRA/23-26 SEQUOIA 2.5 VS IR COILOVER KIT

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2025 Toyota Tundra and 2023-2026 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on a Tundra or 3-4.5" of lift height adjustability on a Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable ride height offers 1.25-3.5" of front lift over stock on Tundra or 3-4.5" of front lift over stock on Sequoia
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Active or Passive Suspension: Passive

Adjustable Compression: No

Adjustable Damping: NO

Adjustable Rebound: No

Adjustable Ride Height: Yes

Assembled: Yes

Body Diameter: 2.5

Coil Over Springs Included: Yes

Compressed Length: 16.73

Cylinder Color: Silver

Cylinder Finish: Cadmium Plated

Cylinder Material: Steel

Damping Type: Oil

Dust Shield Included: No

Extended Length: 22.08

Front Spring Rate: 700

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: No

Internal Construction Type: Single Tube

Lower Mount Type: Eyelet

Material: Aluminum

Material: Steel

Maximum Lift: 3.5

Maximum Ride Height Raising Distance: 3.5

Minimum Lift: 1

OEM Wheels & Tires Fitment: Yes

Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)

Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset

Remote Reservoir: NO

Reservoir Style: Internal

Self-Leveling: No

Shaft Diameter: 0.875

Shock Absorber Body End Measuring Point: Top of Upper Mount Plate

Shock Absorber Rod End Measuring Point: Center of Eylet

Spring Color: Black

Spring Material: Steel

Spring Rate Type: Linear

Travel Length: 5.36

Upper Mount Type: Mounting Plate

Valving Type: Digressive
