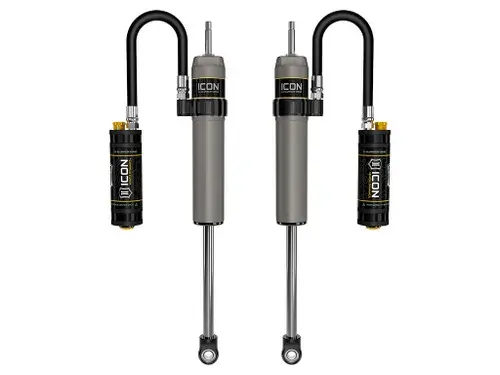

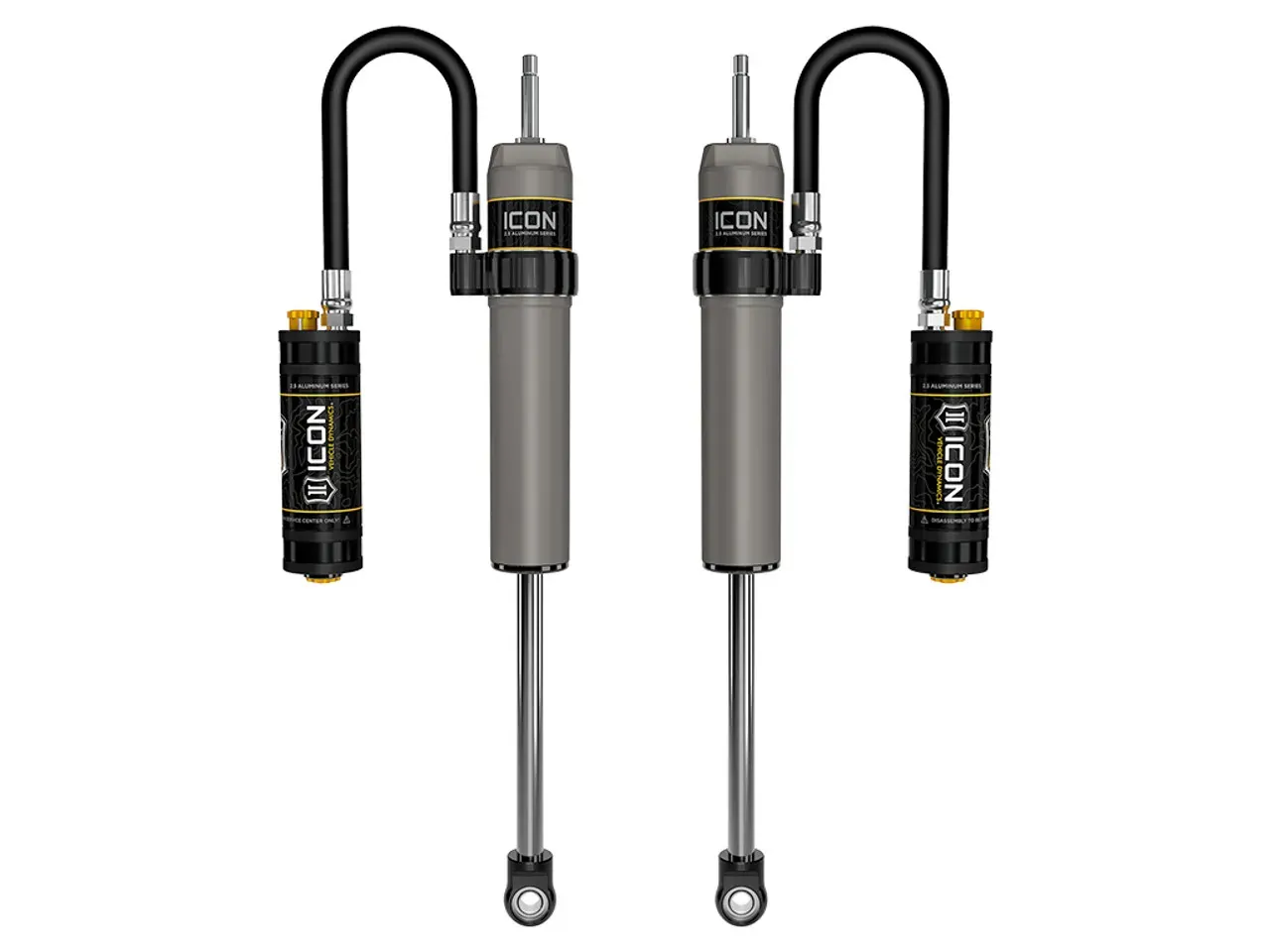

22-26 TUNDRA 0-1.5"/23-26 SEQUOIA 0-4" REAR 2.5 VS CDCV RR PAIR

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

Compressed Length: 17.08

Cylinder Color: Grey

Cylinder Diameter: 2.5

Cylinder Material: Aluminum

Damping Adjustment Type: Manual

Damping Type: Oil

Extended Length: 25.53

External Reservoir: Yes

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: No

Lower Mount Type: Eyelet

Mounting Hardware Included: Yes

Reservoir Type: Remote

Shaft Diameter: 0.875

Shaft Material: Chrome

Shock Absorber Body End Measuring Point: Shoulder of Stem

Shock Absorber Rod End Measuring Point: Center of Eylet

Stroke Length Rear: 8.46

Tube Outside Diameter: 2.5

Upper Mount Type: Stem

Valving Type: Digressive

Active or Passive Suspension: Passive

Adjustable: Yes

Adjustable Compression: Yes

Adjustable Damping: Yes

Adjustable Rebound: No

Boot Included: NO

Bore Diameter: 2.25
