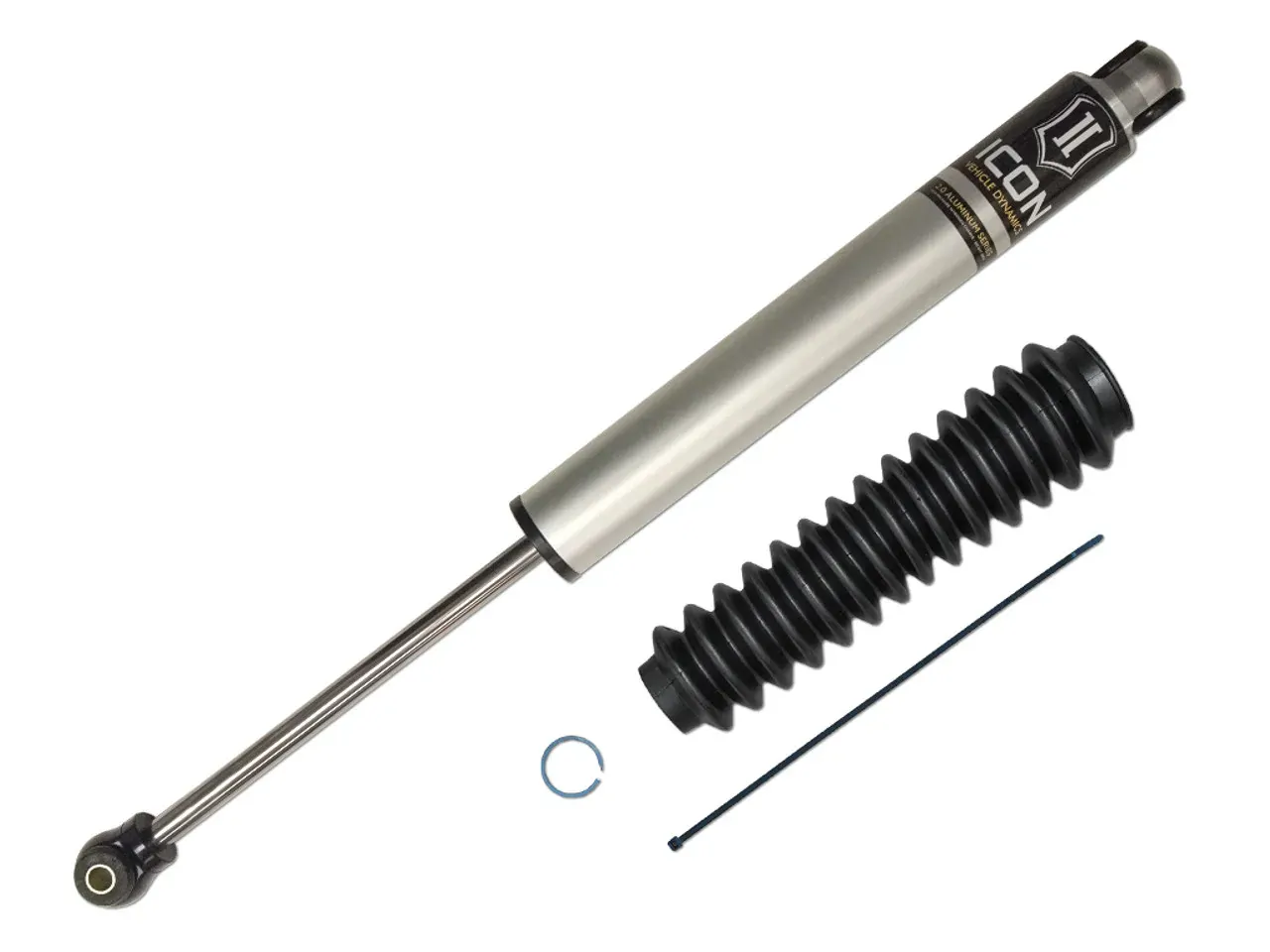

09-26 RAM HD STEERING STABILIZER

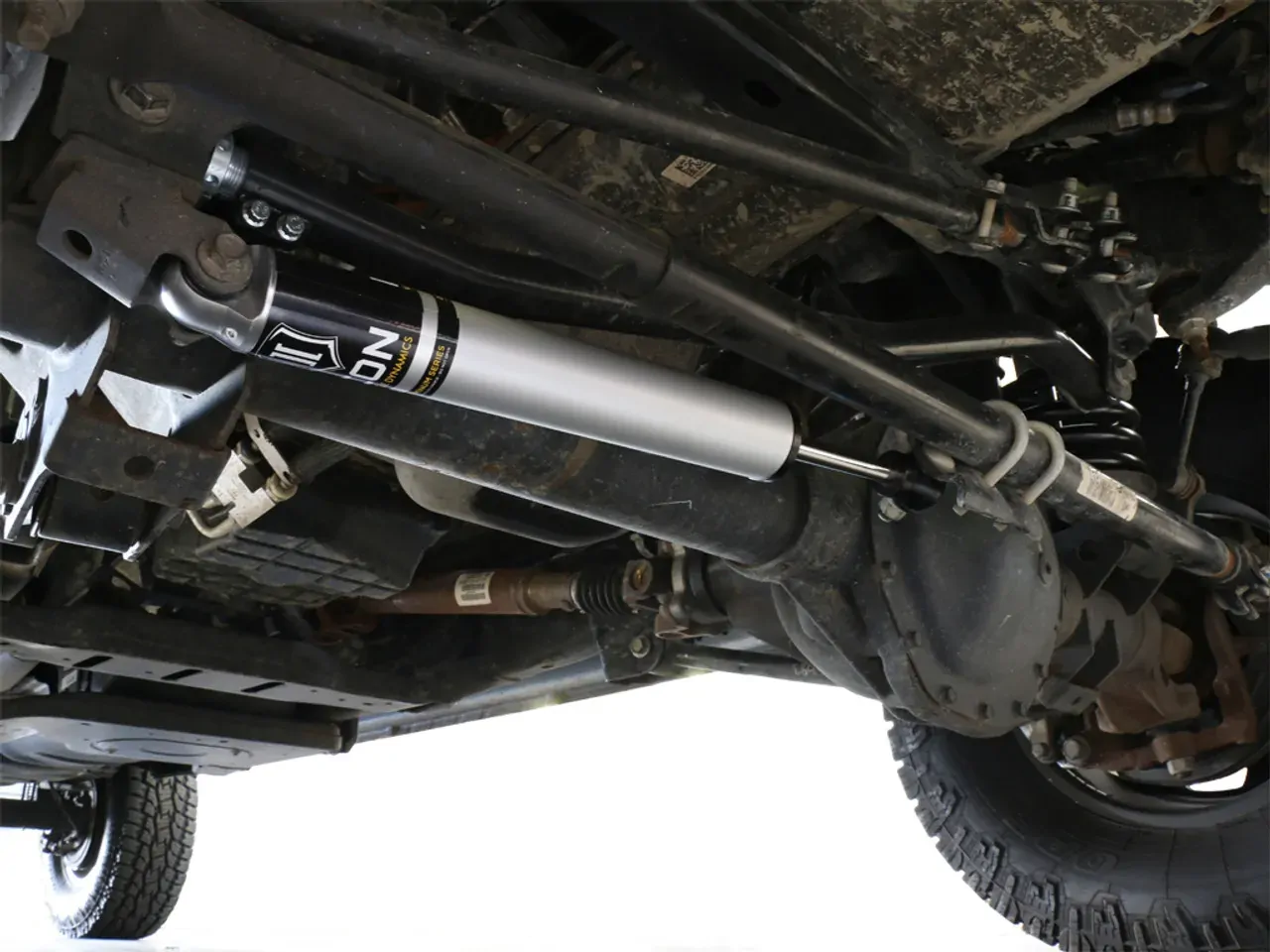

This stabilizer is based on the ICON 2.0 Aluminum Series shock absorber line, and has been specifically tuned to compensate for the additional weight of larger wheels and tires on the RAM 3/4-ton trucks. The ICON 2.0 stabilizer is a direct fit replacement, meaning install is as simple as removing the original unit, and bolting up the ICON part in its place. Ease of installation combined with Increased damping ability over stock, a corrosion-resistant shock body, and a fully rebuildable design make the ICON steering stabilizer the best choice for replacing or upgrading worn out 2009-2026 RAM 2500/3500 components.

• Premium Grade 5WT Shock Oil for consistent damping characteristics
• Nitrogen charged monotube design with internal reservoir
• Internal floating piston design eliminates dead zone typical in emulsion shocks
• 6063 Anodized aluminum body for superb heat dissipation, excellent corrosion resistance
• 6061 aluminum rod end and internals insure strength and durability
• Polyurethane bushings and zinc plated sleeves for OE factory type fitment
• 5/8” Chrome Plated, Hardened Steel Shaft resists corrosion and pits
• 100% Rebuildable
• 100% Revalveable

Steering Stabilizer Configuration: Single

Upper Mount Type: Eyelet

Adjustable Damping: No

Color: Light Grey

Compressed Length: 14.93

Cylinder Diameter: 2

Cylinder Material: Aluminum

Damping Type: Oil

Extended Length: 24.12

Grade Type: Performance

Lower Mount Type: Eyelet

Mounting Bracket Included: No

Shaft Diameter: 0.625

Shaft Material: Chrome

Shock Travel Length: 9.2
