Description

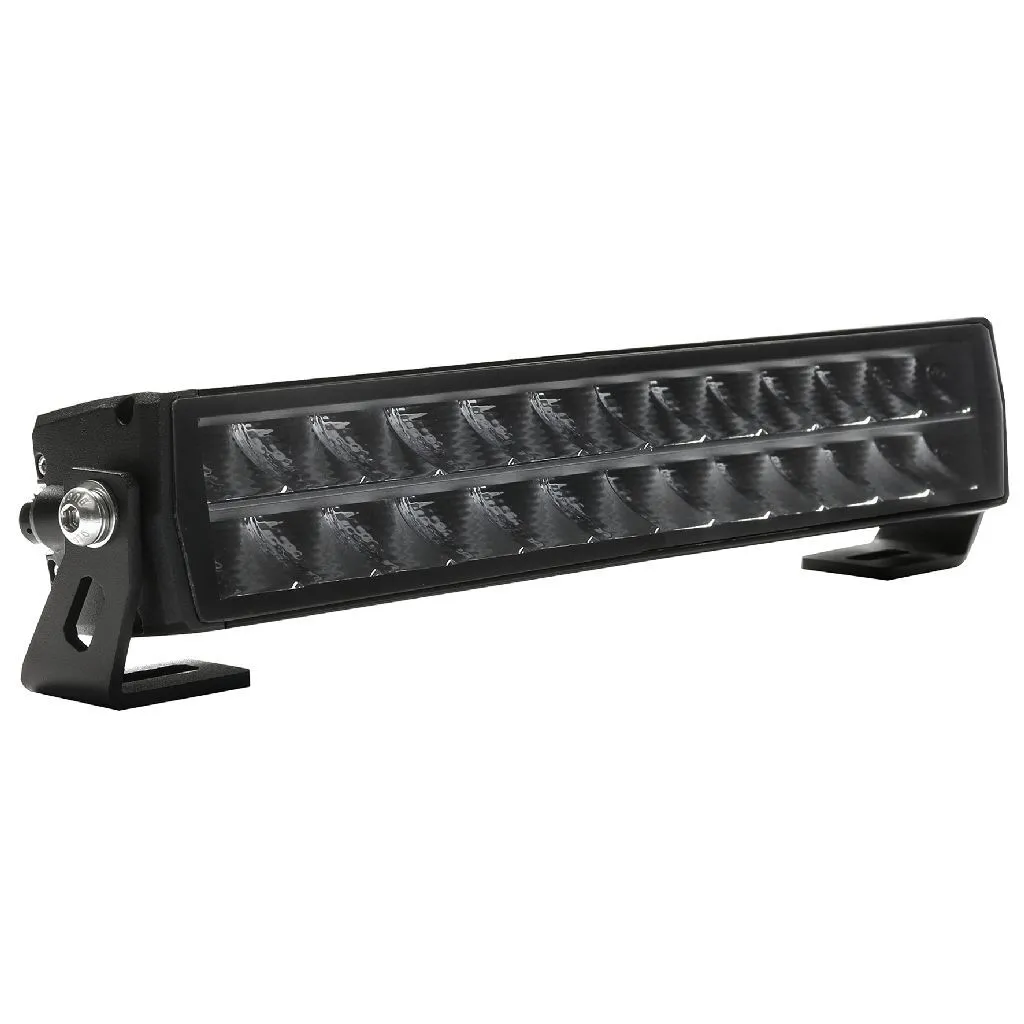

24 LED Dual Row Driving Lamp Lightbar Drvng Beam 9-36V 120W

Specifications

  • Ultra Slim - 52.5mm depth for both Single Row & Dual Row Lightbars
  • Flush Front Fascia With no Exposed Screws - Easy To clean & no chance of screws corroding
  • Black anodised polyester powder coated extruded 6063 Aluminium housing With integrated heat-sink & pressure equalising vent
  • Polycarbonate reflector focusing optic drive technology With Lexan polycarbonate lens
  • Cross slider bracket assembly Allows the bottom brackets To be positioned anywhere along bar’s length
  • 500mm lead With 2 Pin deutsch plug
  • Driving beam
  • 120W, 24 x 5W high intensity LP LED’s
  • 10,800 Raw & 8,600 Effective Lumens & 6,000K
  • 1 Lux @ 502m & 252,000cd peak beam intensity
  • 9 – 36V Multi voltage
  • Low Current Draw: 6.5A @ 12V & 3.2A @ 24V
  • 360mm length
  • Weight: 1.53kg
  • ECE R112 approved

What's Included

  1. Bottom Mount Bracket - 6063 Aluminium
  2. Side Mount Bracket - SUS201 Stainless Steel

Compatibility

  • Universal Part

24 LED Dual Row Driving Lamp Lightbar Drvng Beam 9-36V 120W

  • Ultra Slim - 52.5mm depth for both Single Row & Dual Row Lightbars
  • Flush Front Fascia With no Exposed Screws - Easy To clean & no chance of screws corroding
  • Black anodised polyester powder coated extruded 6063 Aluminium housing With integrated heat-sink & pressure equalising vent
  • Polycarbonate reflector focusing optic drive technology With Lexan polycarbonate lens
  • Cross slider bracket assembly Allows the bottom brackets To be positioned anywhere along bar’s length
  • 500mm lead With 2 Pin deutsch plug
  • Driving beam
  • 120W, 24 x 5W high intensity LP LED’s
  • 10,800 Raw & 8,600 Effective Lumens & 6,000K
  • 1 Lux @ 502m & 252,000cd peak beam intensity
  • 9 – 36V Multi voltage
  • Low Current Draw: 6.5A @ 12V & 3.2A @ 24V
  • 360mm length
  • Weight: 1.53kg
  • ECE R112 approved
  1. Bottom Mount Bracket - 6063 Aluminium
  2. Side Mount Bracket - SUS201 Stainless Steel
  • Universal Part
