Holley EFI 300-308BK 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top-Black

Parts Experts
Fast Shipping
Aussie Owned
Best Prices

Choose Your Car

Your Car

Find Your Part Clear Vehicle

Filter Search Results

Filter by Categories

Filter by Brand

Filter by Price

Description

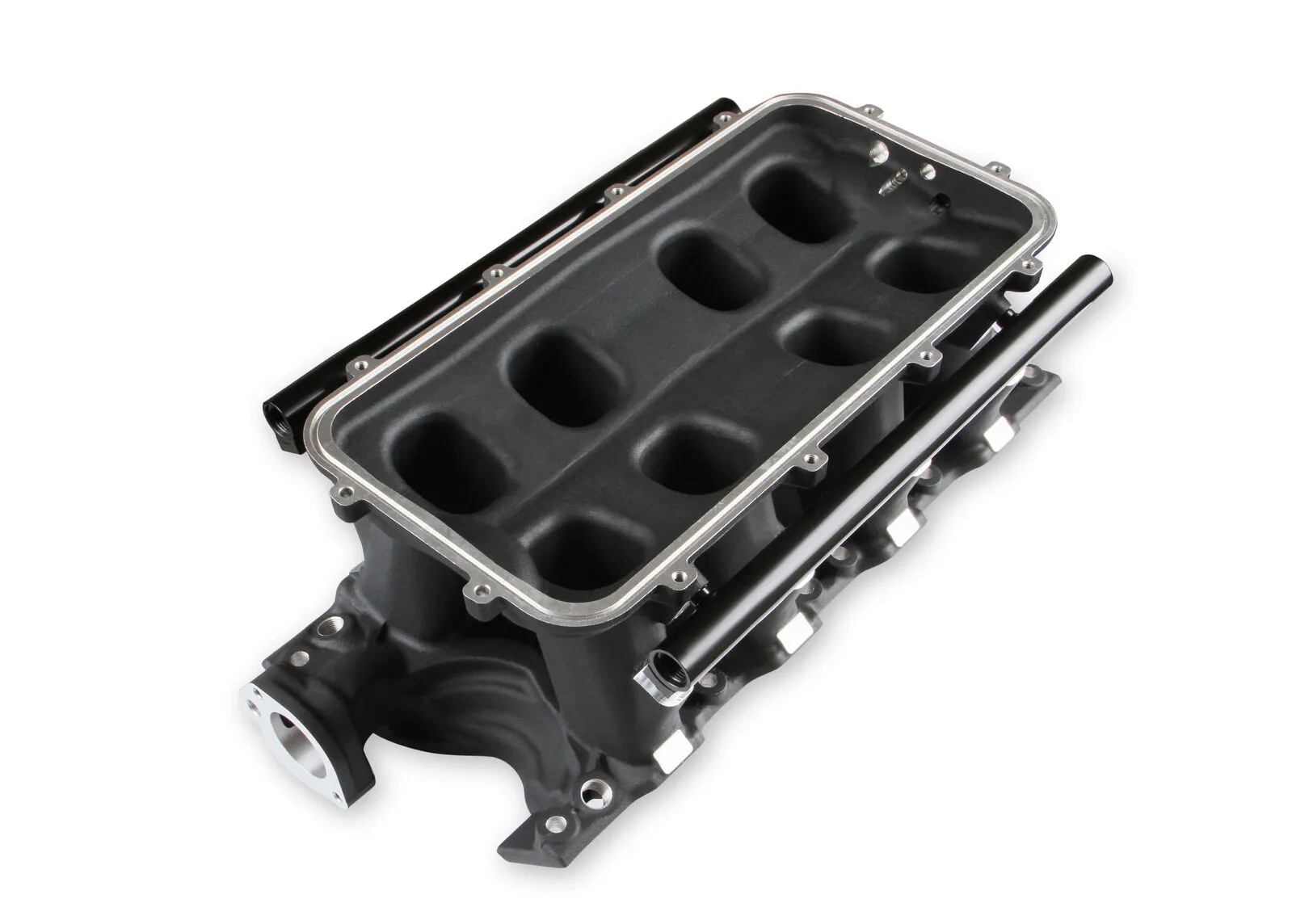

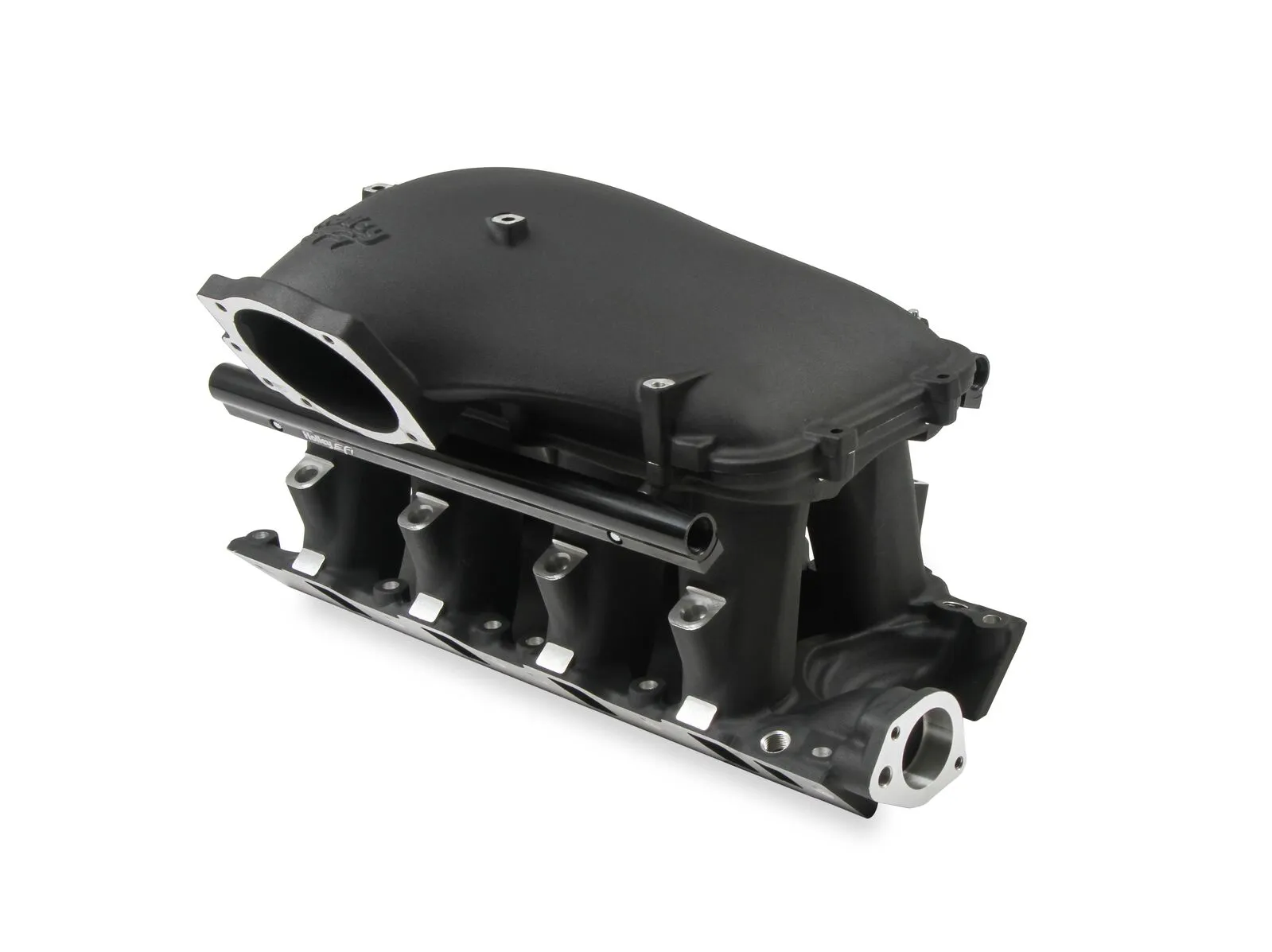

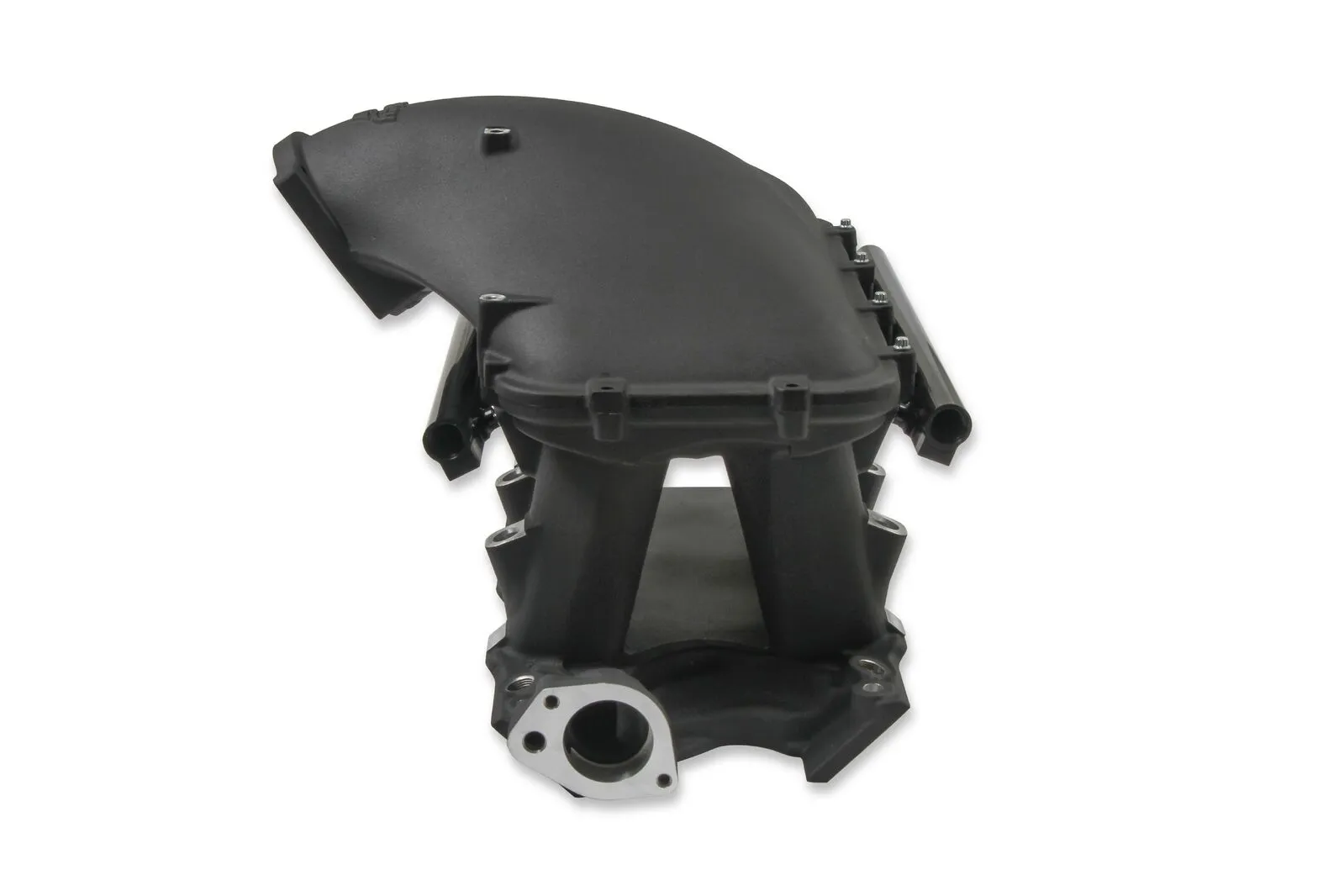

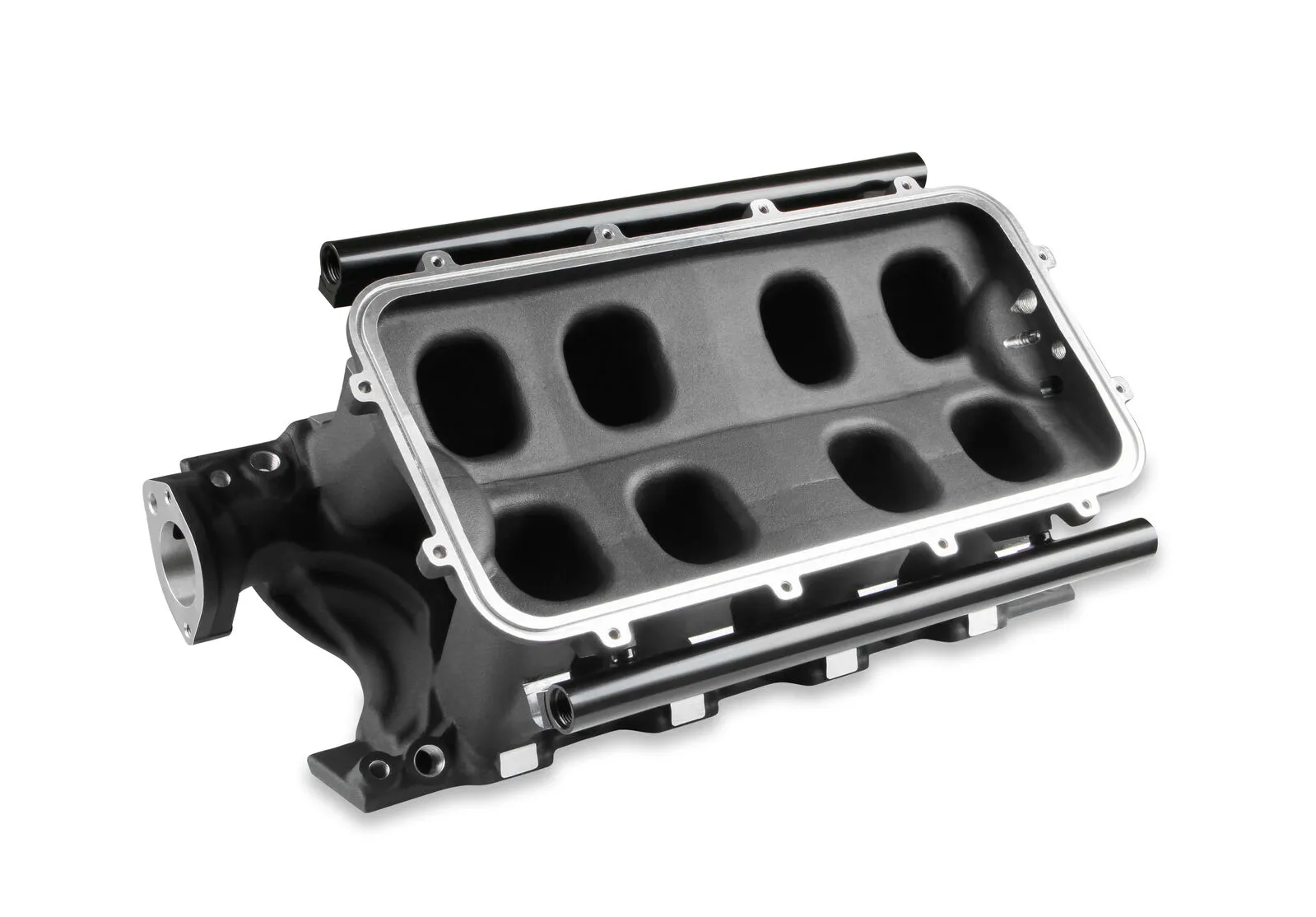

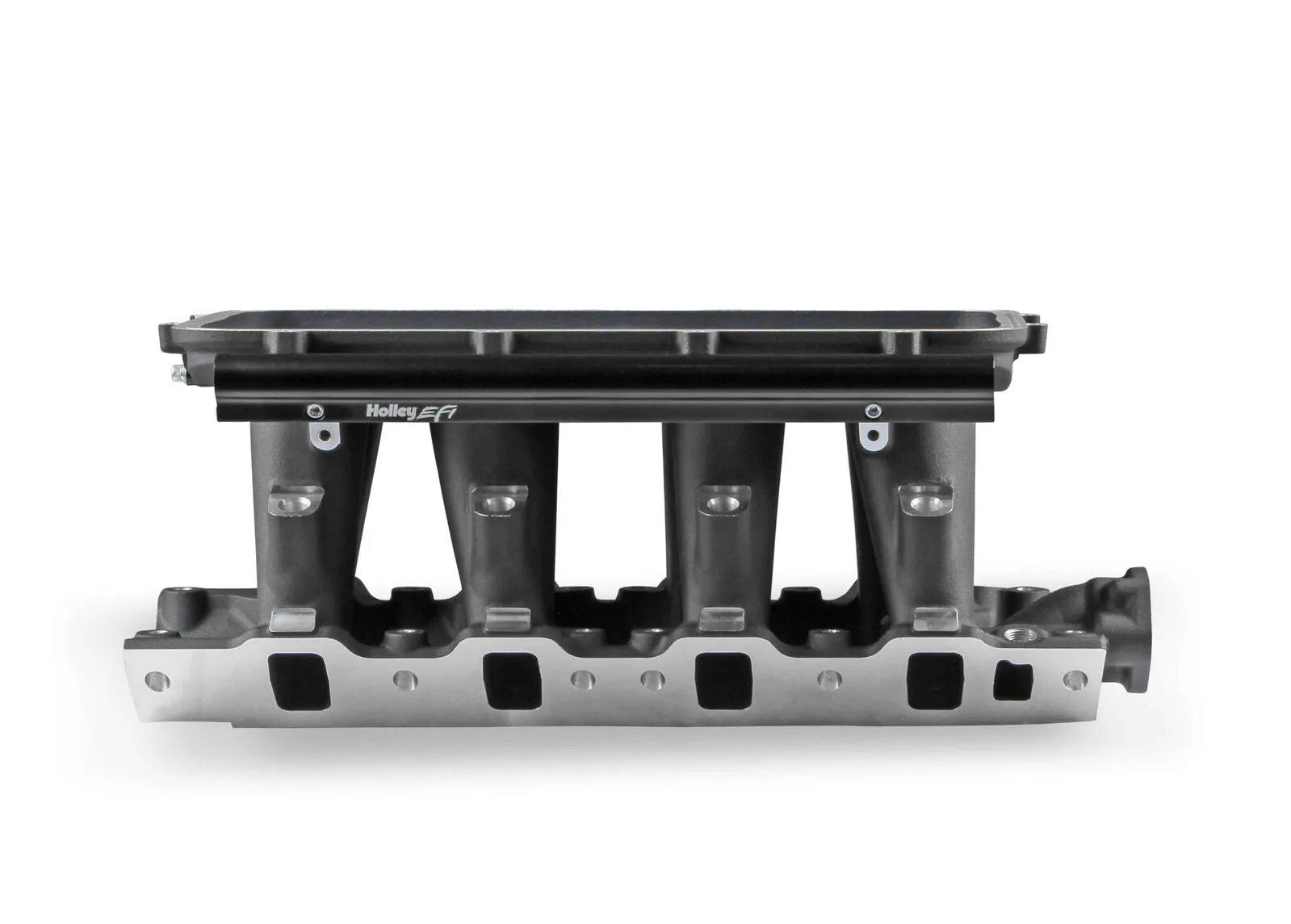

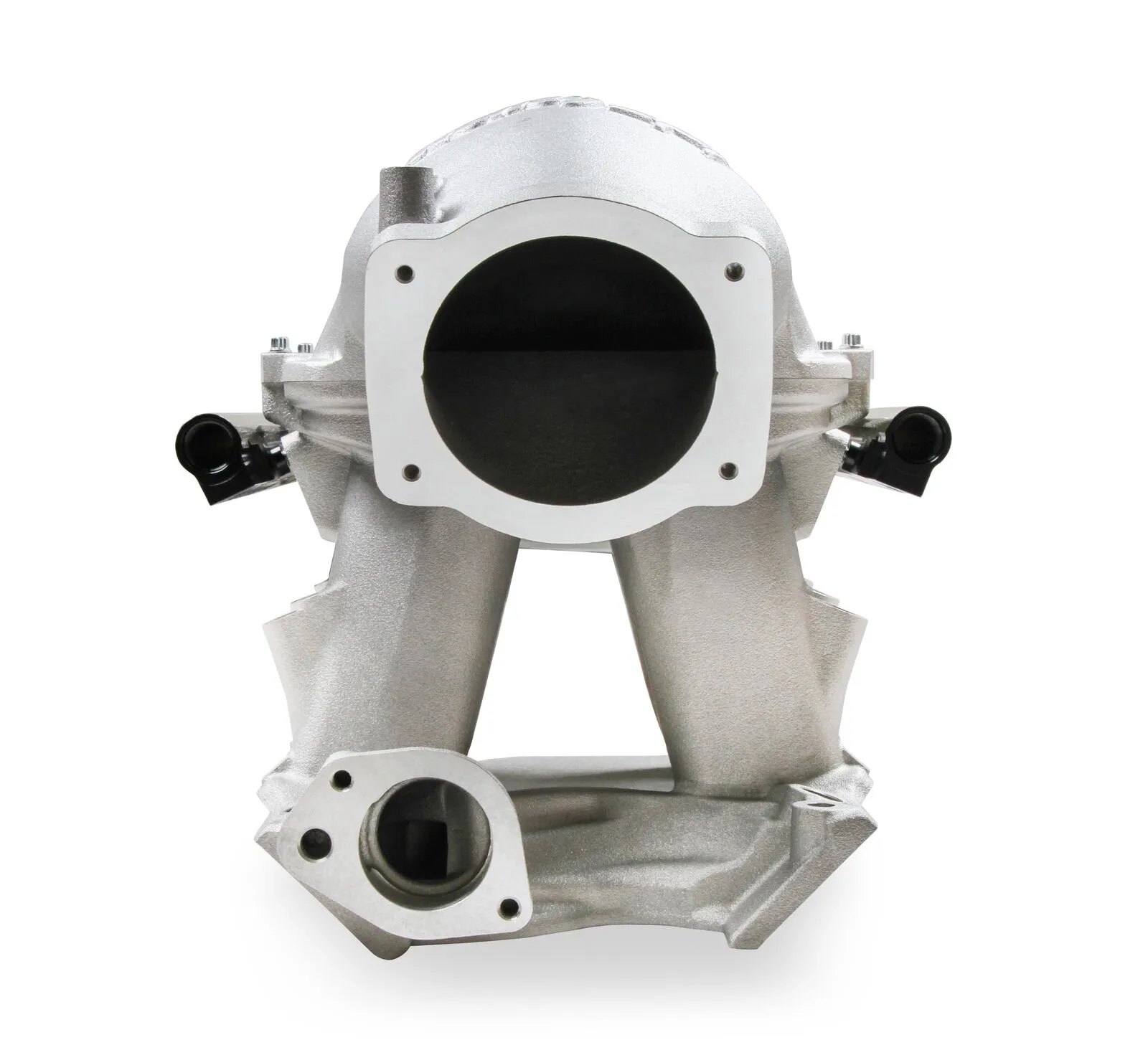

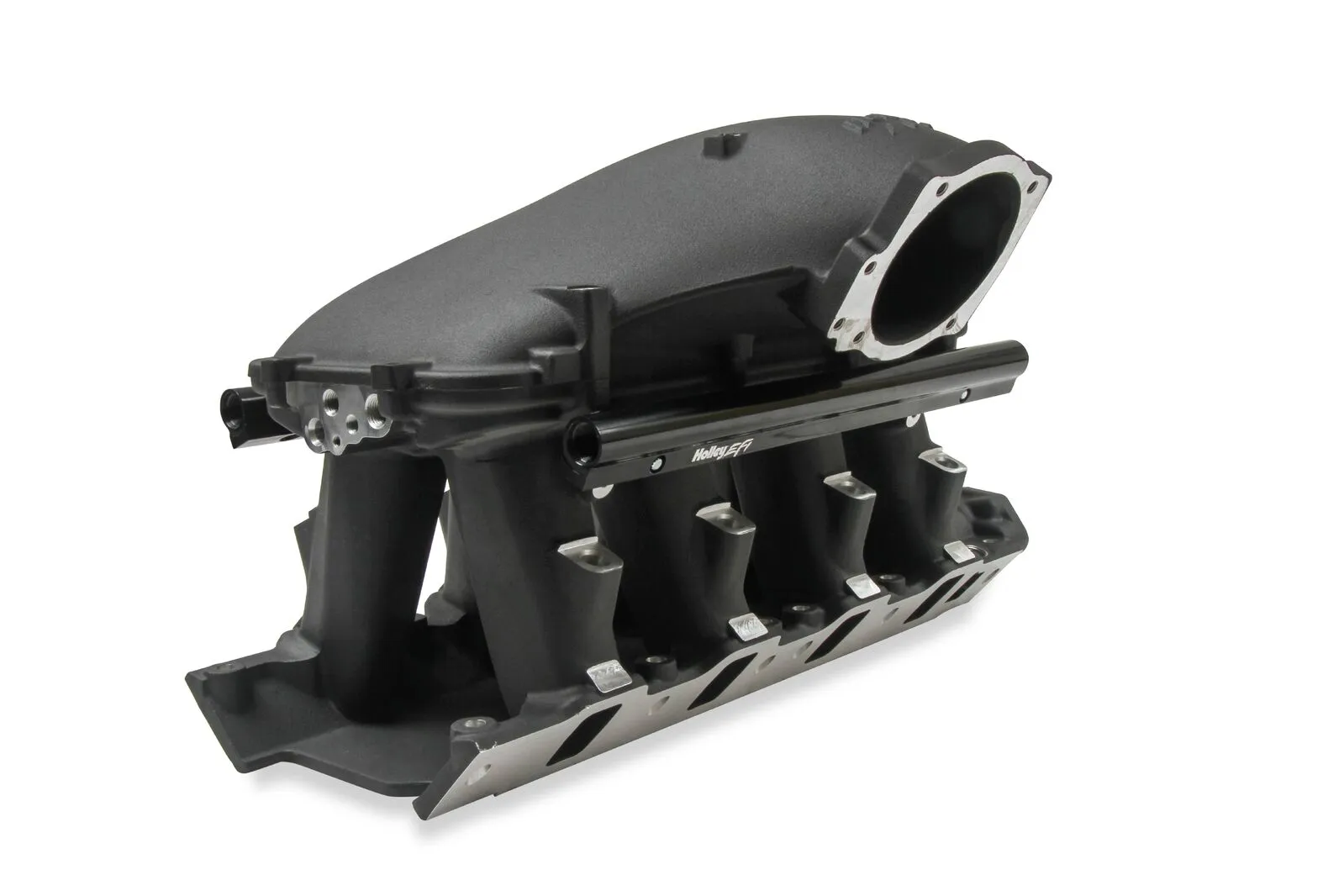

The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 105MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

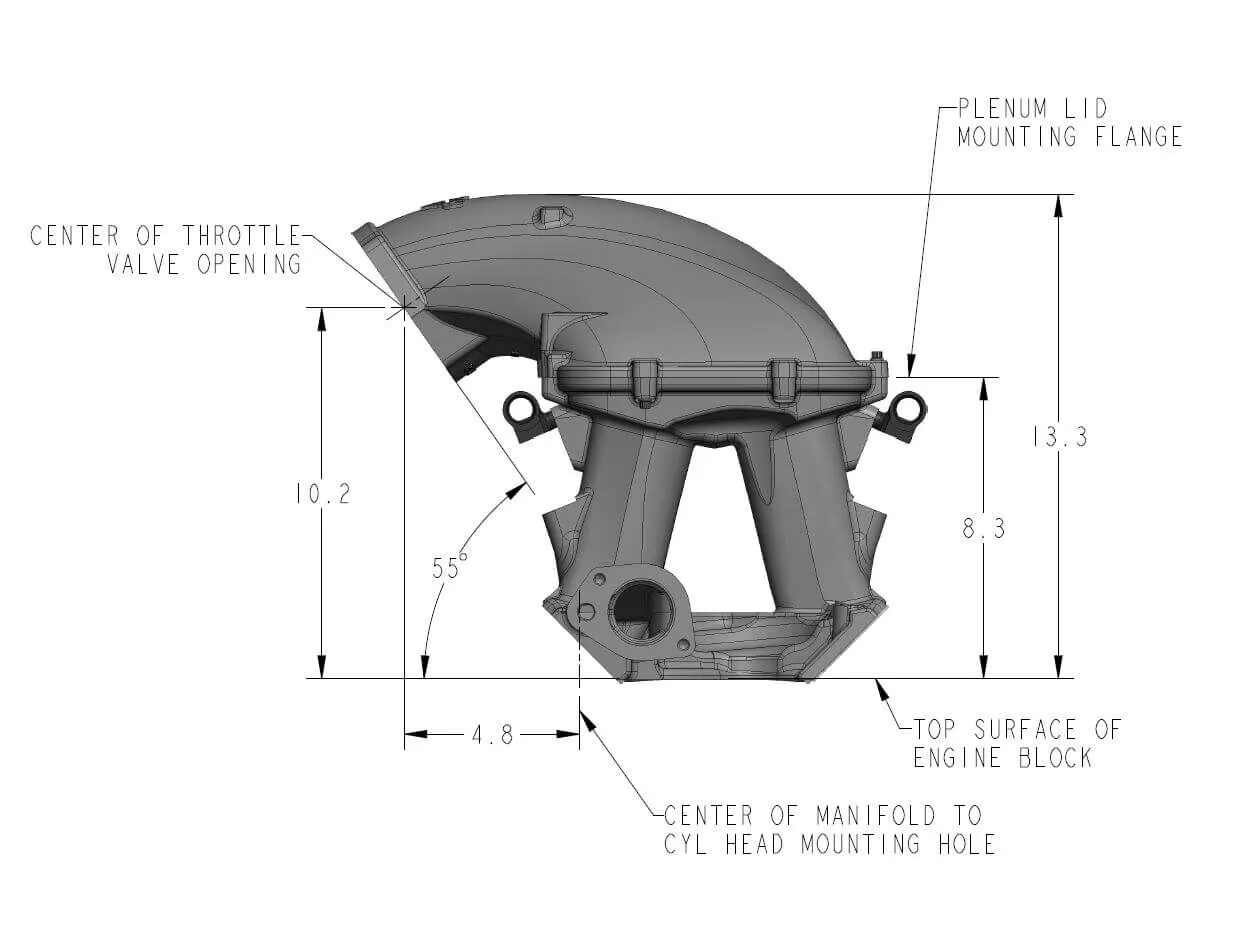

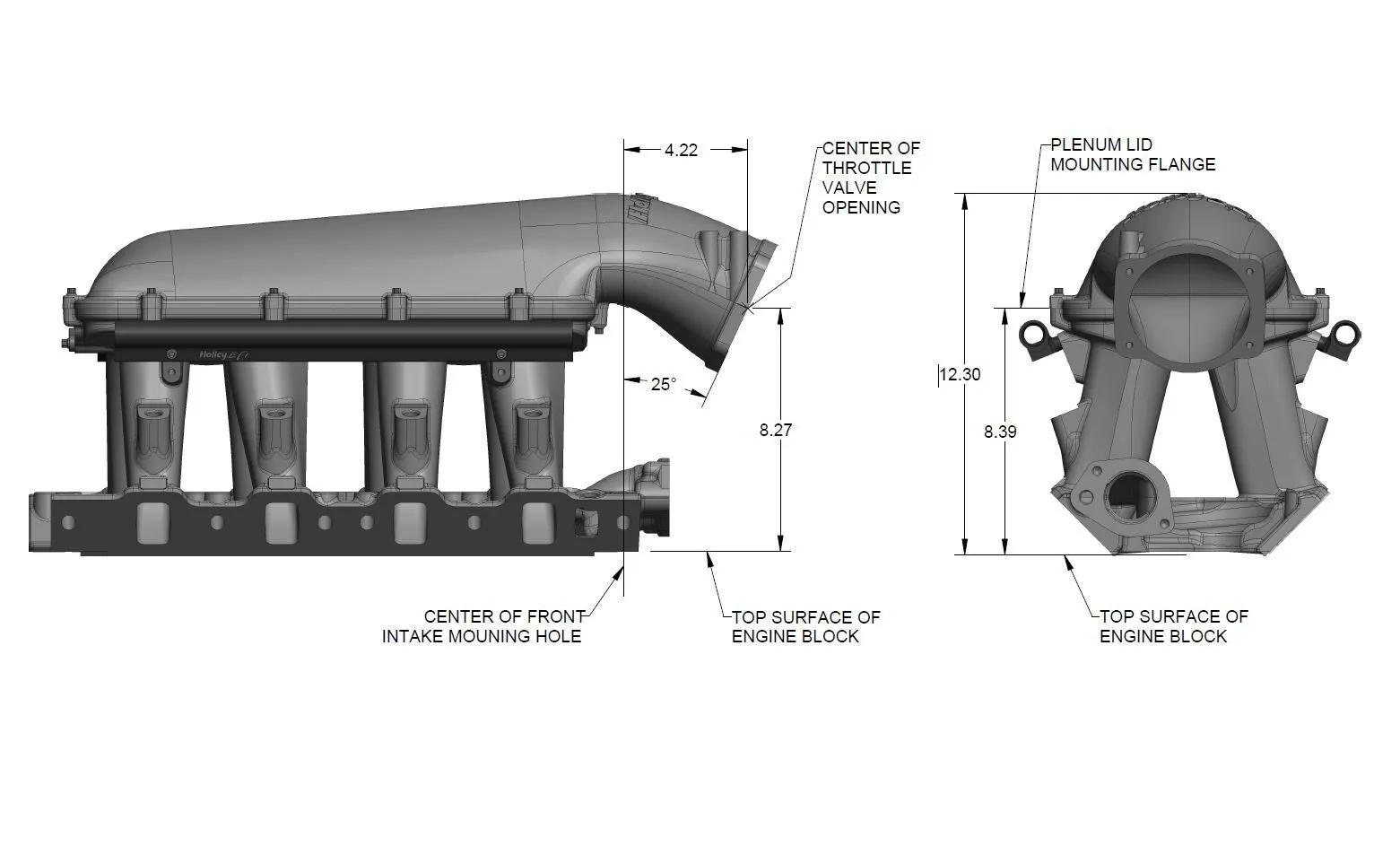

Manifold is designed for a 8.2" deck height.

Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

Cast aluminum construction. Black finish.

*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.

Features

EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

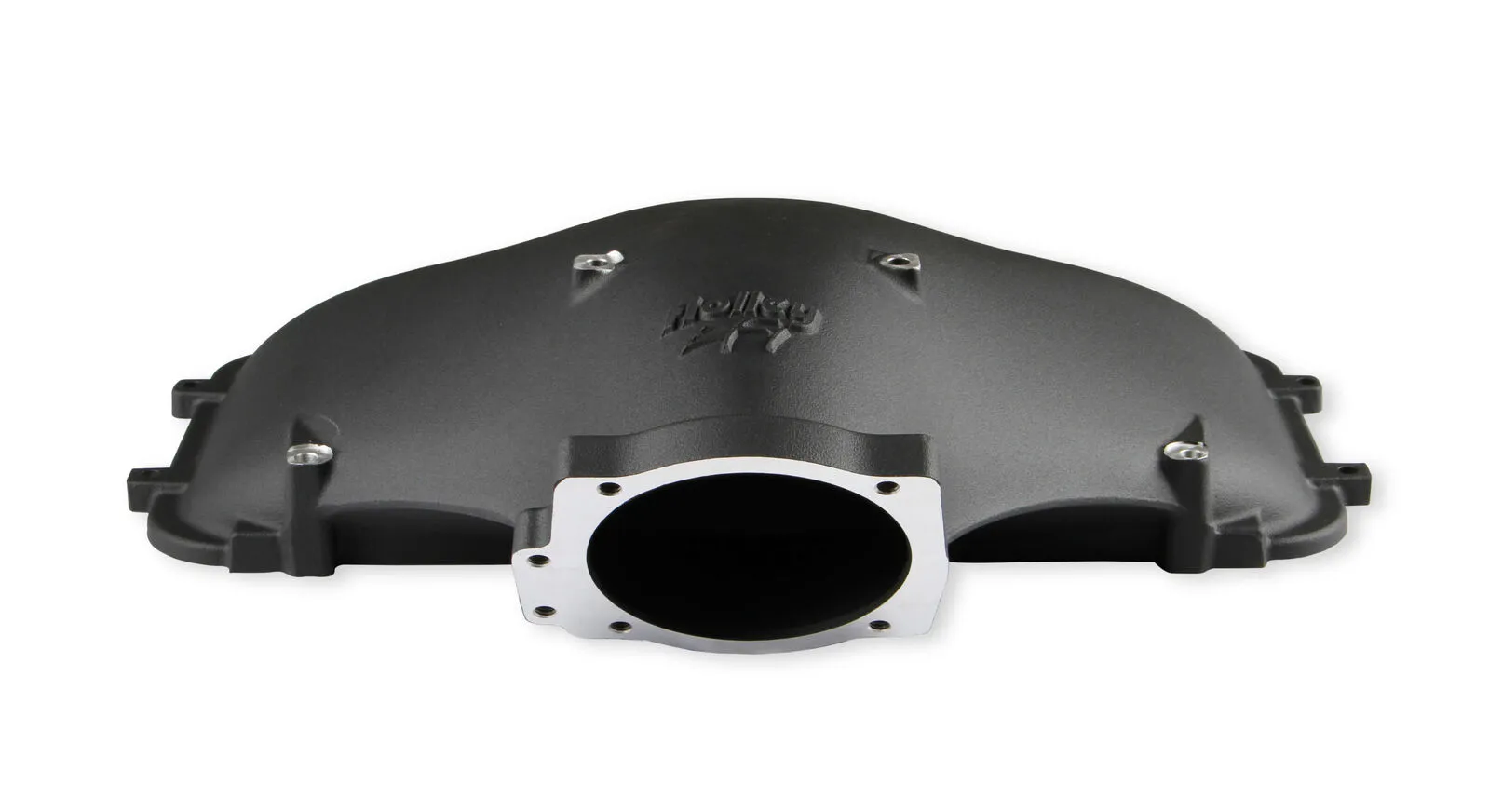

Plenum Top Gasket Type 3/32 Round O-ring Cord
Manifold is designed for a 8.2" SBF deck height.
The 8.2 SBF manifold is available to work with 105MM throttle bodies
Ford 5.0 throttle body fitment

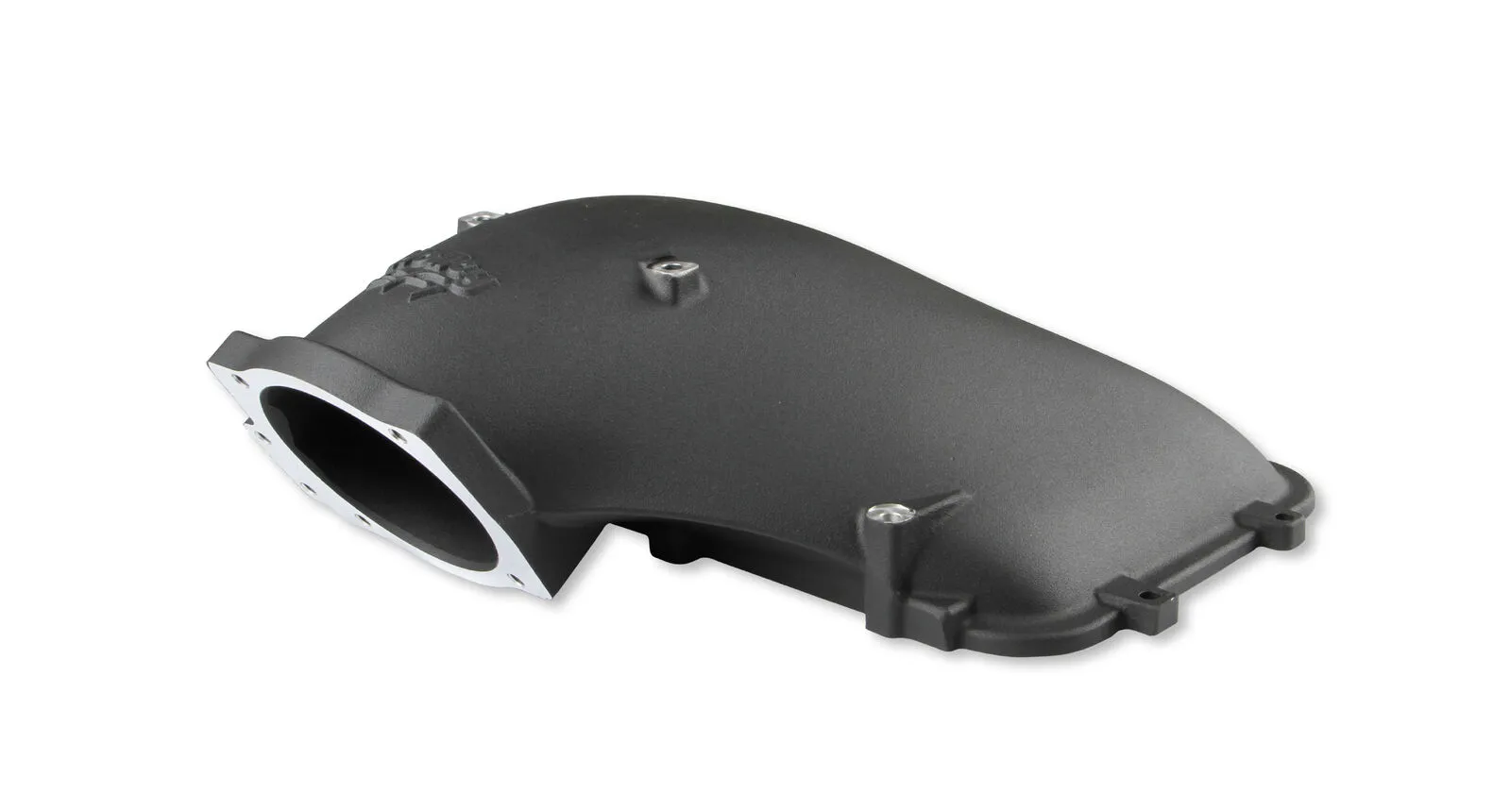

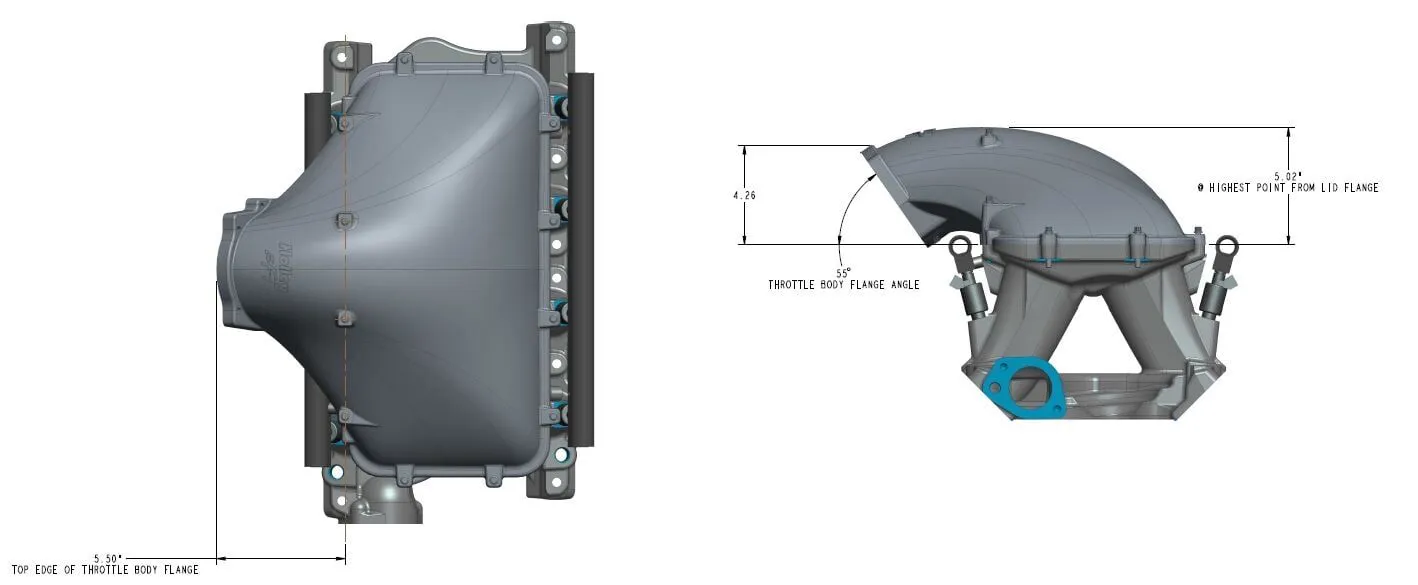

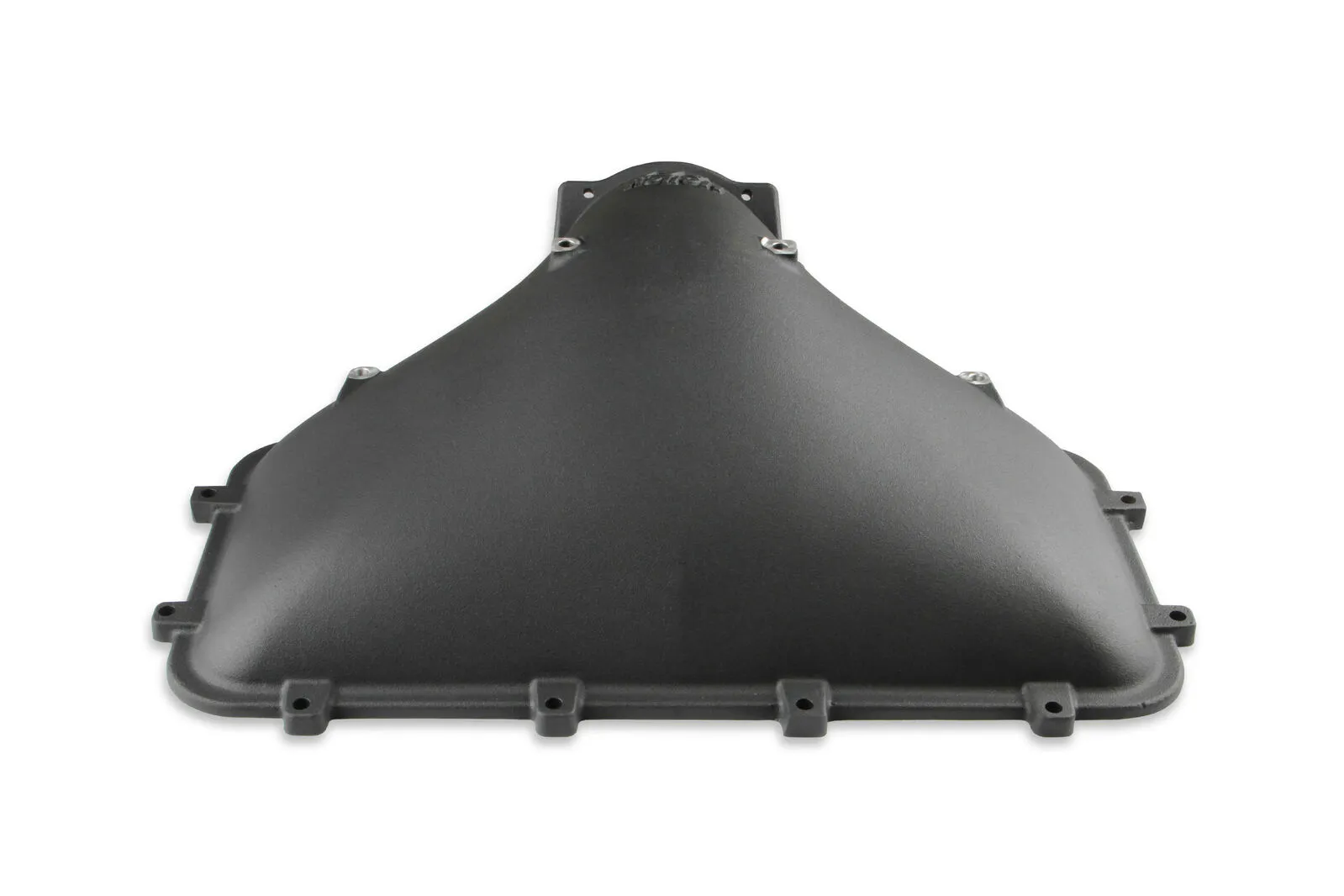

Lid has been verified to fit under Cervinis 2.5 cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations.
Designed for side mounted throttle bodies
Allows room for designing boosted applications

Specifications

Basic Operating RPM Range	1500-7000 RPM
Brand	Holley EFI
Category Filter	Intake Manifolds
Clearance Category	Intake Manifolds
Colour	Black
Construction	Cast
EGR Port	No
Emission Code	3
Engine	Ford Small Block
Finish	Black
Flange Style	EFI
Fuel System Type	EFI
Grade Type	Performance
Intake Port Gasket(s) Included	No
Manifold Type	Hi-Ram
Material	Aluminum
Nitrous Bung(s) Included	No
Plenum Finish	Black

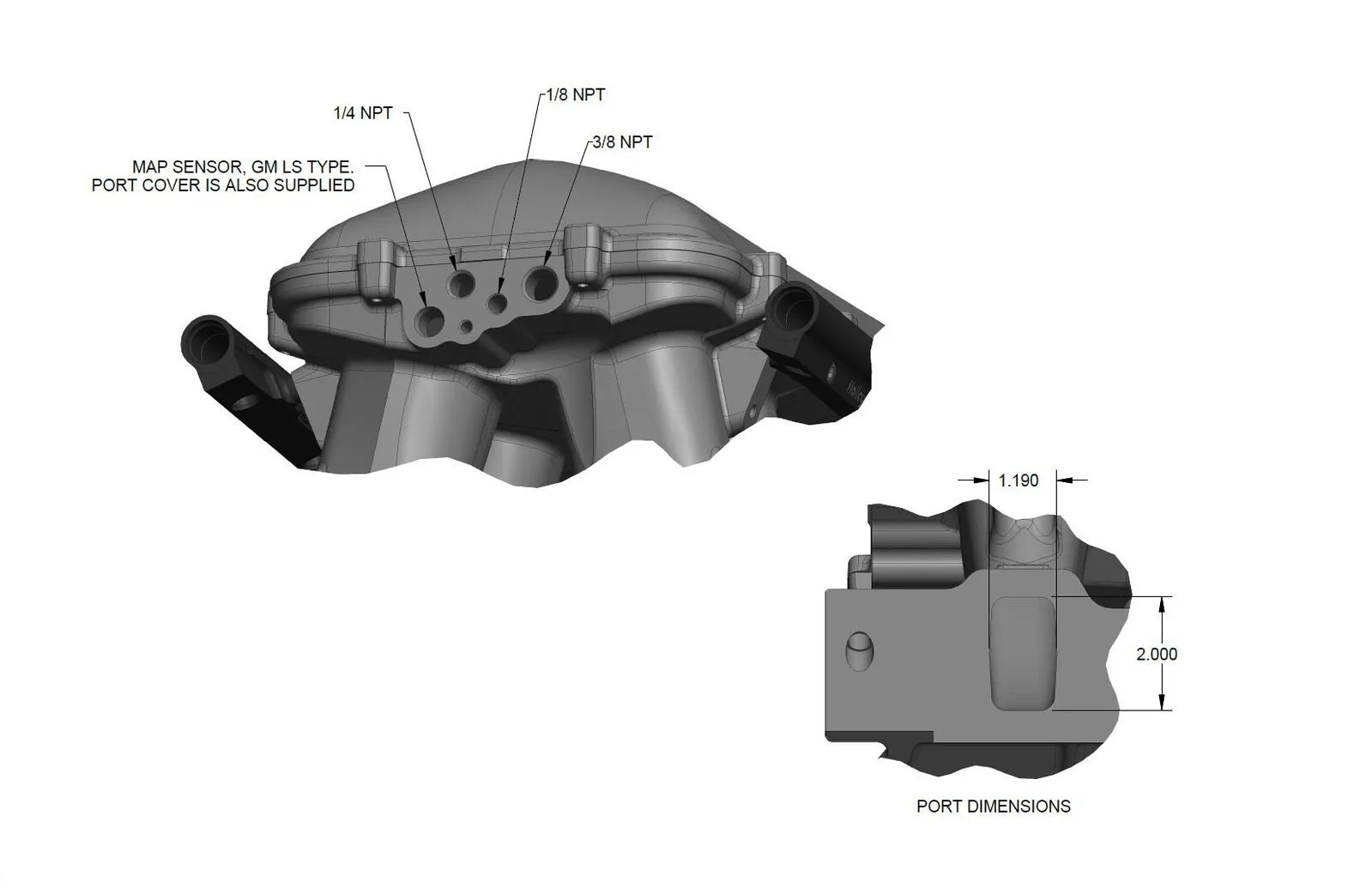

Port Size	2.00" x 1.190"
Product Type	Intake Manifold
Removable Runners	No
RPM Power Band	1500-7000
RPM Power Band	1500-7000 RPM
Sale Category	Air and Fuel Delivery
Single Or Dual Plane Type	Single Plane
Throttle Body Bore Diameter	105 MM
Throttle Body Included	No
Throttle Bore	105mm
Warranty	Limited 90 Day
