Description

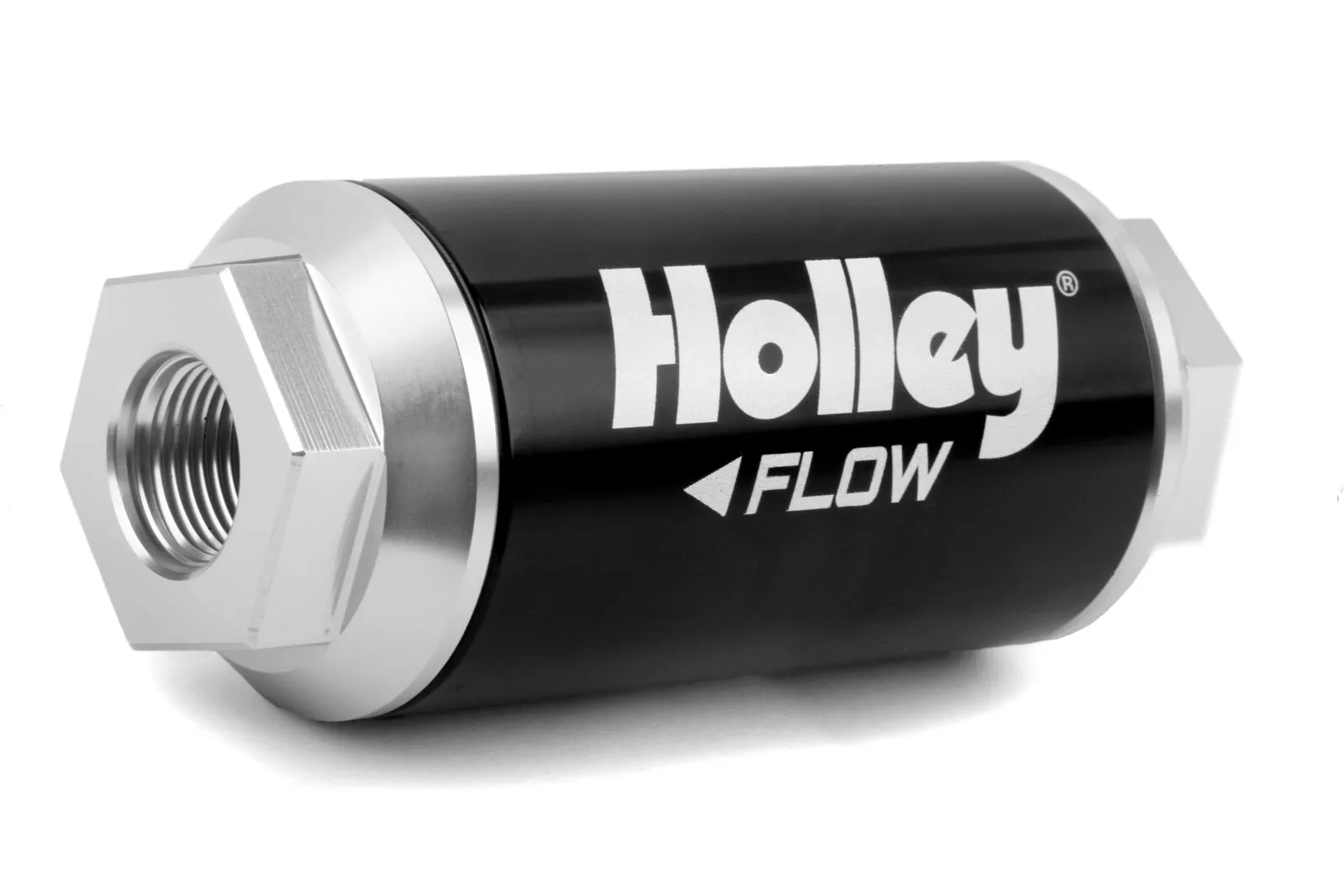

Holley's new HP Billet Fuel Filters are part of the complete HP Fuel Systems product line. HP Billet fuel filters are precision CNC machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and clear bright dip anodized ends for superior corrosion resistance and good looks. The Holley 162-554 fuel filter features - 8 AN inlet and outlet ports. Replacement elements are also available.

Features

  • Black anodized body and clear anodized end caps for corrosion resistance and good looks
  • Female 8AN O-ring inlet and outlet
  • 10 micron depth media element
  • Measures 5” long and 2” diameter
  • Recommended as a post filter (after the pump) in EFI applications

Specifications

BrandHolley
ColourBlack Anodized
Diameter2 inch
Element MaterialDepth Media
Emission Code5
End 1 GenderFemale
End 2 GenderFemale
Filter TypePost Filter
Flow Rate175
Fuel TypeGasoline
Fuel TypeE85
Gasket Or Seal IncludedNo
Grade TypePerformance
Housing MaterialAluminum
Inlet Size8 AN O-Ring
Inlet Type8 AN ORB
Length5 inch
MaterialAluminum
Micron10 Micron
Micron Rating10
Mounting TypeInline
Outlet Size8 AN O-Ring
Outlet Type8 AN ORB
Product TypeFuel Filter
QuantitySold individually.
Sale CategoryAir and Fuel Delivery
ShapeRound
Universal Or Specific FitUniversal
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Holley's new HP Billet Fuel Filters are part of the complete HP Fuel Systems product line. HP Billet fuel filters are precision CNC machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and clear bright dip anodized ends for superior corrosion resistance and good looks. The Holley 162-554 fuel filter features - 8 AN inlet and outlet ports. Replacement elements are also available.

Features

  • Black anodized body and clear anodized end caps for corrosion resistance and good looks
  • Female 8AN O-ring inlet and outlet
  • 10 micron depth media element
  • Measures 5” long and 2” diameter
  • Recommended as a post filter (after the pump) in EFI applications
BrandHolley
ColourBlack Anodized
Diameter2 inch
Element MaterialDepth Media
Emission Code5
End 1 GenderFemale
End 2 GenderFemale
Filter TypePost Filter
Flow Rate175
Fuel TypeGasoline
Fuel TypeE85
Gasket Or Seal IncludedNo
Grade TypePerformance
Housing MaterialAluminum
Inlet Size8 AN O-Ring
Inlet Type8 AN ORB
Length5 inch
MaterialAluminum
Micron10 Micron
Micron Rating10
Mounting TypeInline
Outlet Size8 AN O-Ring
Outlet Type8 AN ORB
Product TypeFuel Filter
QuantitySold individually.
Sale CategoryAir and Fuel Delivery
ShapeRound
Universal Or Specific FitUniversal
WarrantyLimited 90 Day
  • Universal Part
