Description

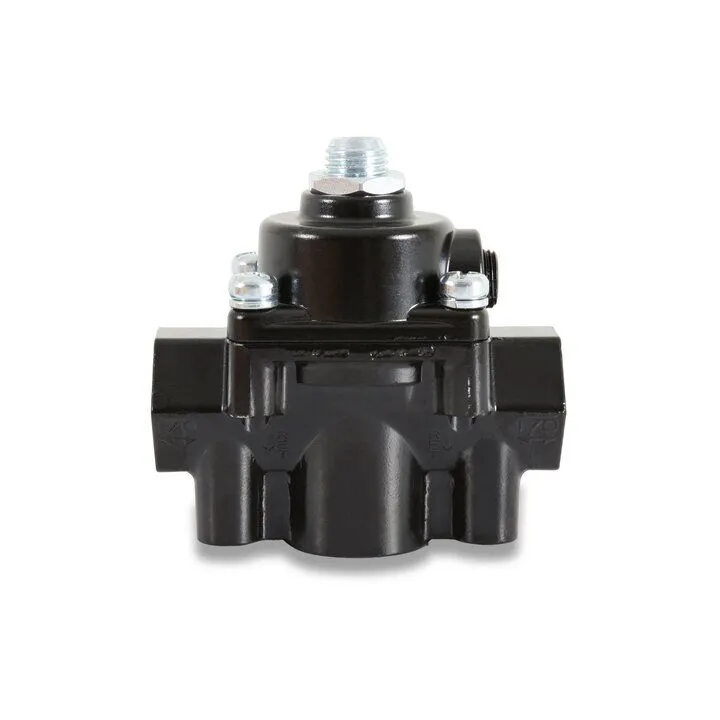

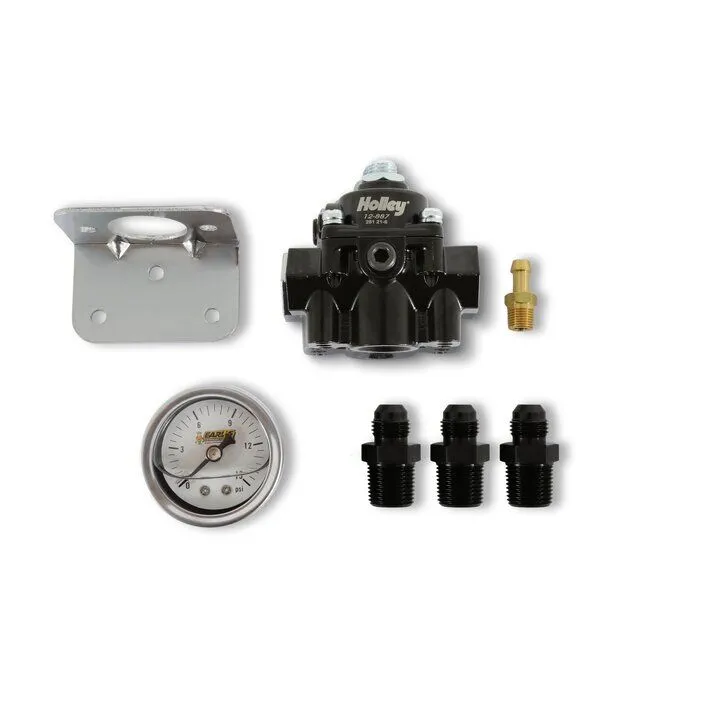

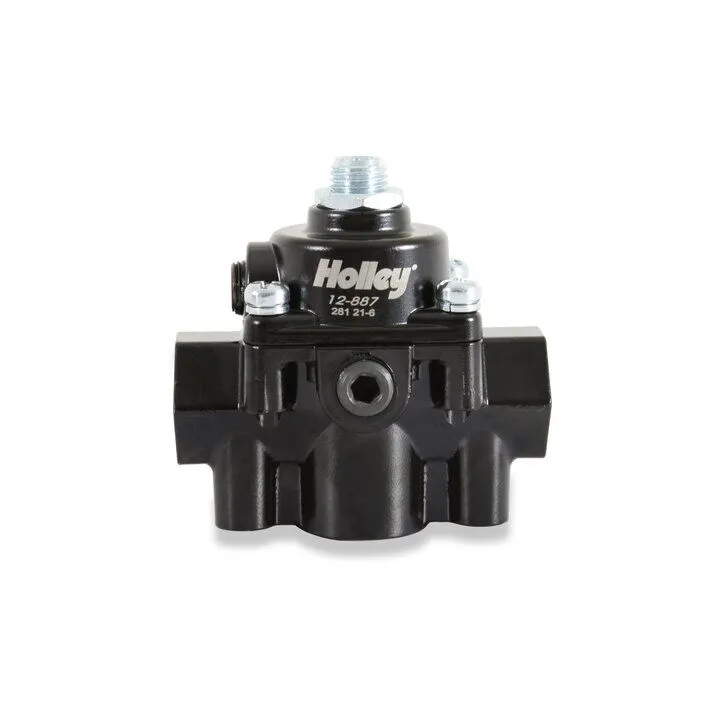

Holley Die Cast EFI Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-887 regulator features a die cast aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 3/8" NPT in/out ports, a 3/8" NPT return port, a 1/8" NPT gauge port. In addition, 3- 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.

Features

  • Die Cast Aluminum Construction
  • Adjustable from 4.5-9 psi for precise fuel pressure adjustments
  • Used in return style systems with a line back to the fuel tank
  • 3/8” NPT Inlet, Outlet, and Return Ports

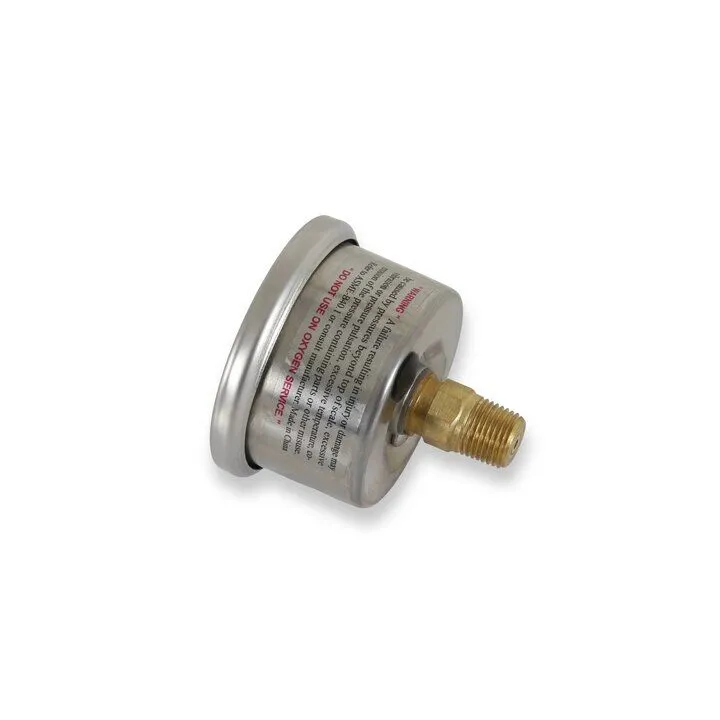

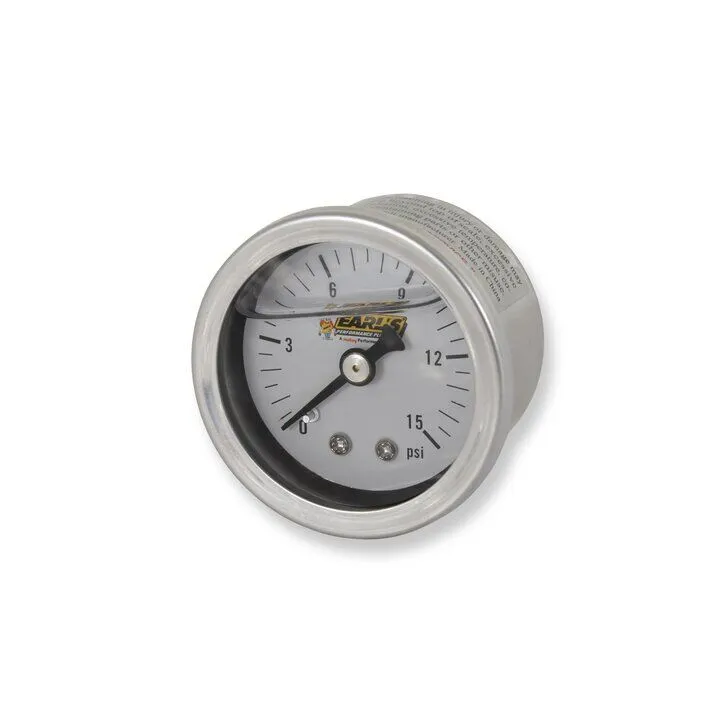

  • 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)

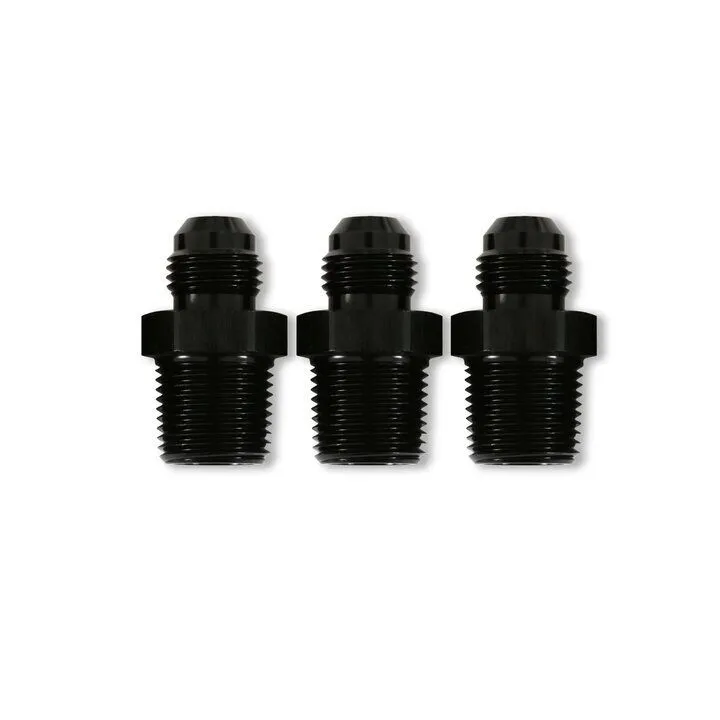

  • 3/8” NPT to -6 AN fittings (481666-BL x3)

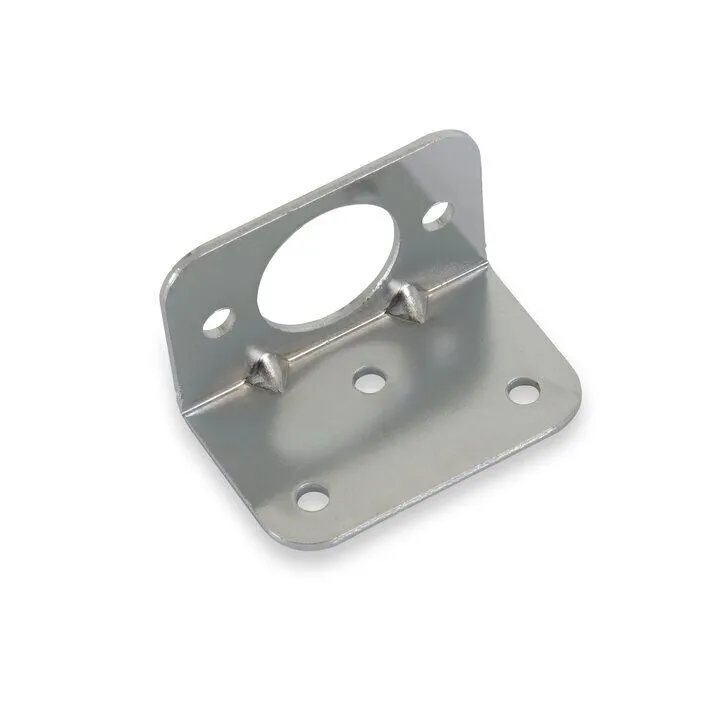

  • Mounting Bracket Included

Specifications

Adjustable Yes
Brand Holley
Colour Black
Emission Code 5
Fuel System Carbureted
Fuel Type Gasoline
Gauge Port Yes
Grade Type Performance
Inlet Port Diameter 3/8
Inlet Quantity 1
Inlet Size 3/8 inch NPT
Inlet Type NPT
Material Aluminium
Maximum Pressure Reading 15
Mounting Hardware Included Yes
Mounting Type Inline
Outlet Port Diameter 3/8
Outlet Quantity 1
Outlet Size 3/8 inch NPT
Outlet Type NPT
Port Quantity 3
Pressure Range 4.5-9 PSI
Product Type Fuel Pressure Regulator
Return Size 3/8 inch NPT
Sale Category Air and Fuel Delivery
Style Bypass
Warranty Limited 90 Day Warranty

Compatibility

  • Universal Part

Holley Die Cast EFI Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-887 regulator features a die cast aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 3/8" NPT in/out ports, a 3/8" NPT return port, a 1/8" NPT gauge port. In addition, 3- 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.

Features

  • Die Cast Aluminum Construction
  • Adjustable from 4.5-9 psi for precise fuel pressure adjustments
  • Used in return style systems with a line back to the fuel tank
  • 3/8” NPT Inlet, Outlet, and Return Ports
  • 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
  • 3/8” NPT to -6 AN fittings (481666-BL x3)
  • Mounting Bracket Included
Adjustable Yes
Brand Holley
Colour Black
Emission Code 5
Fuel System Carbureted
Fuel Type Gasoline
Gauge Port Yes
Grade Type Performance
Inlet Port Diameter 3/8
Inlet Quantity 1
Inlet Size 3/8 inch NPT
Inlet Type NPT
Material Aluminium
Maximum Pressure Reading 15
Mounting Hardware Included Yes
Mounting Type Inline
Outlet Port Diameter 3/8
Outlet Quantity 1
Outlet Size 3/8 inch NPT
Outlet Type NPT
Port Quantity 3
Pressure Range 4.5-9 PSI
Product Type Fuel Pressure Regulator
Return Size 3/8 inch NPT
Sale Category Air and Fuel Delivery
Style Bypass
Warranty Limited 90 Day Warranty
  • Universal Part
