Description

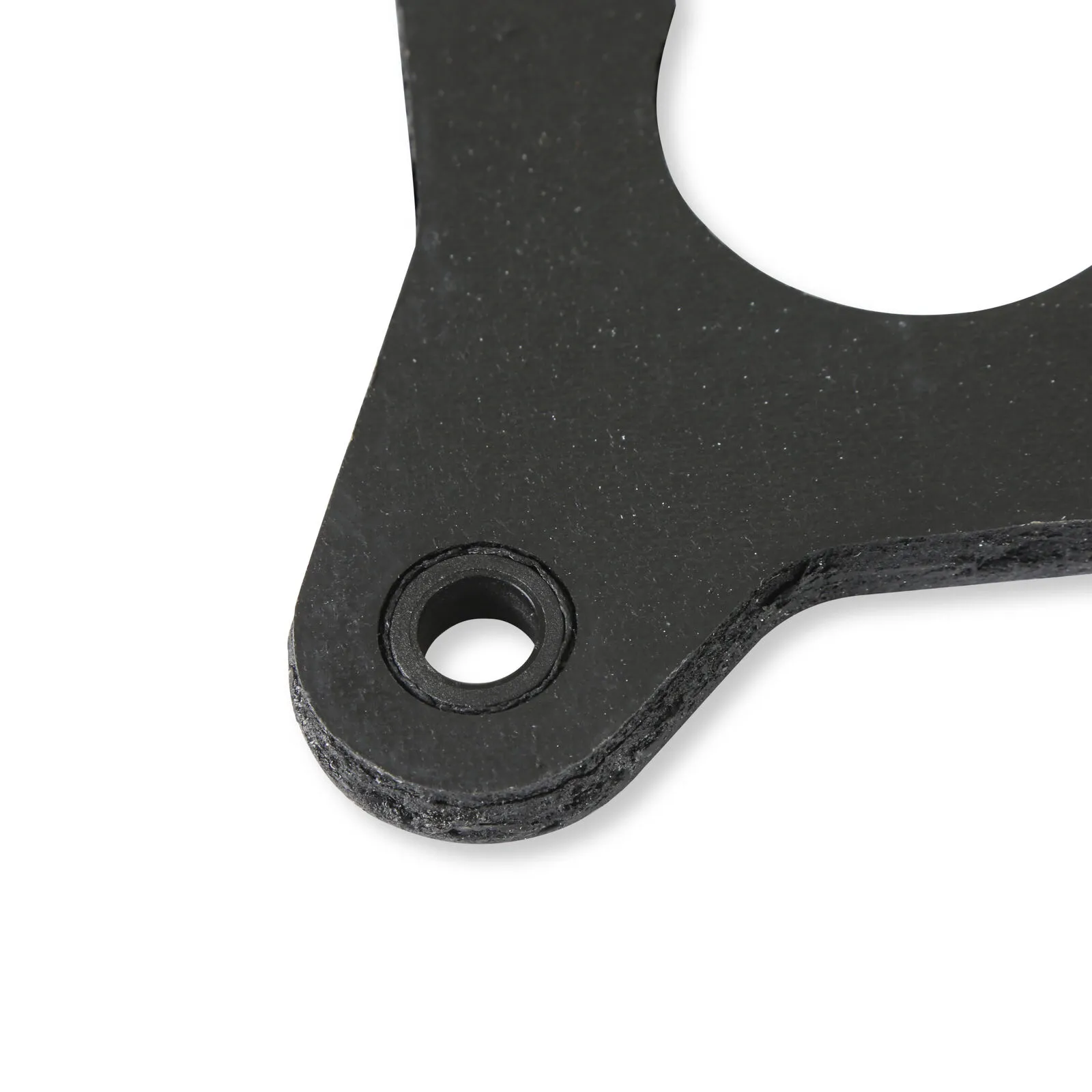

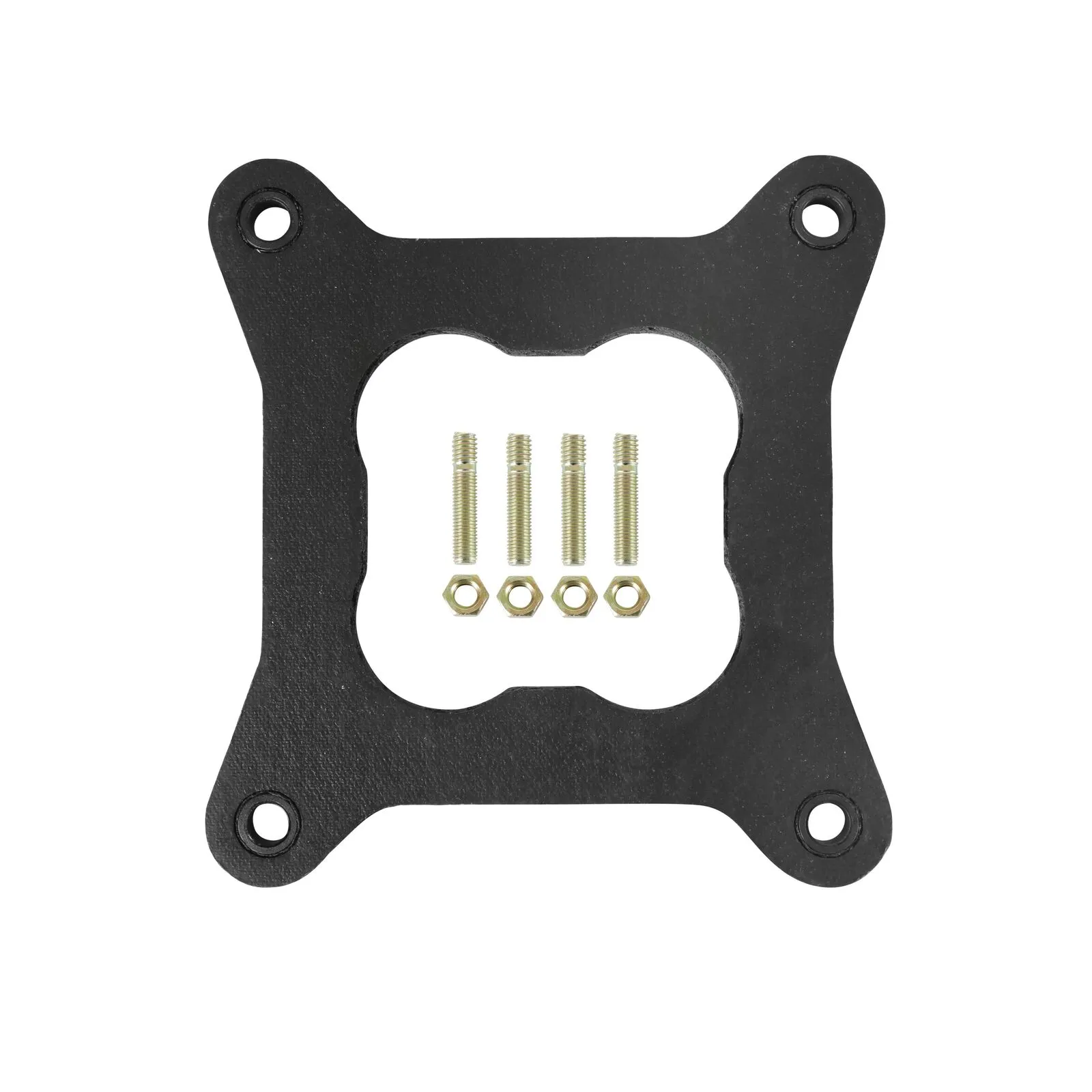

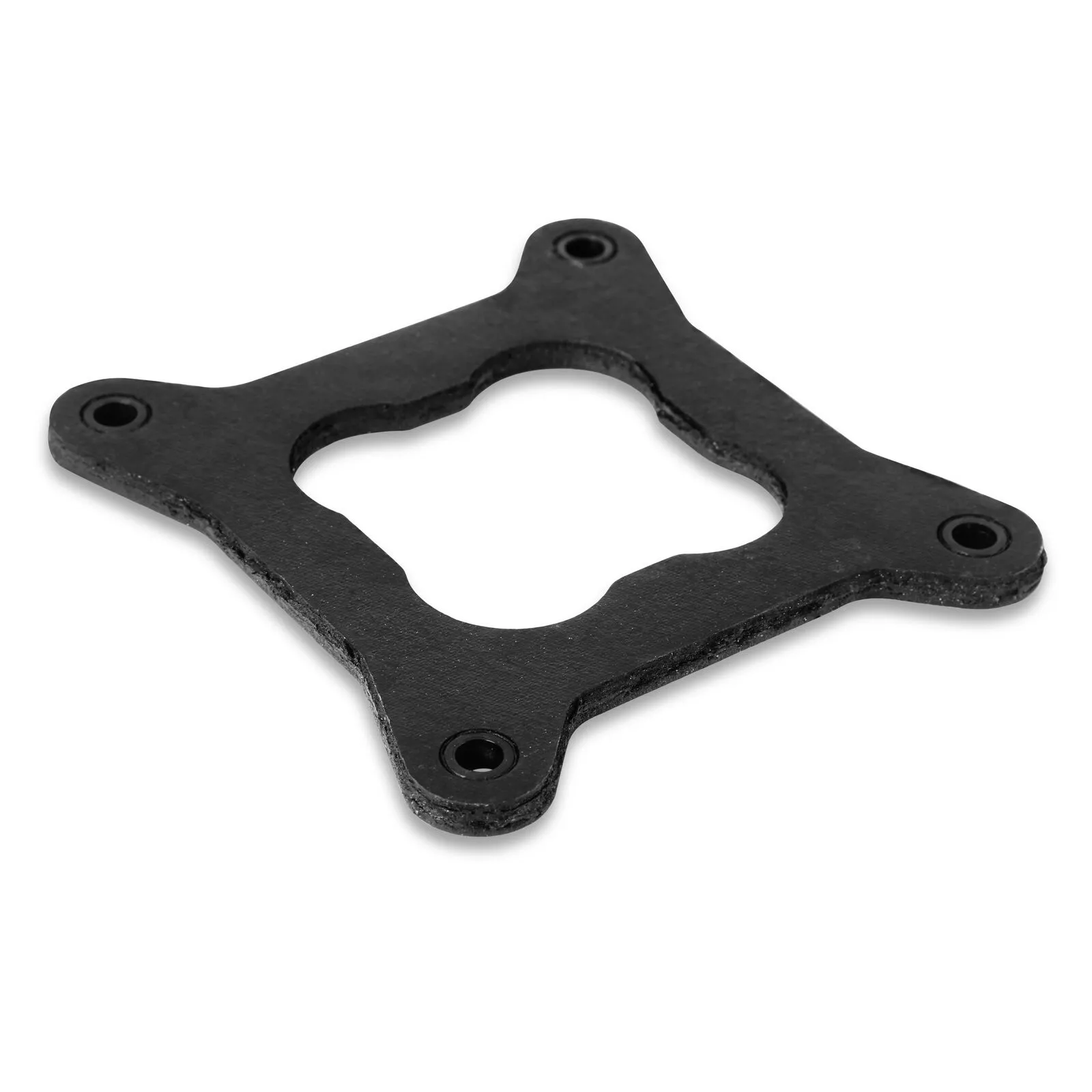

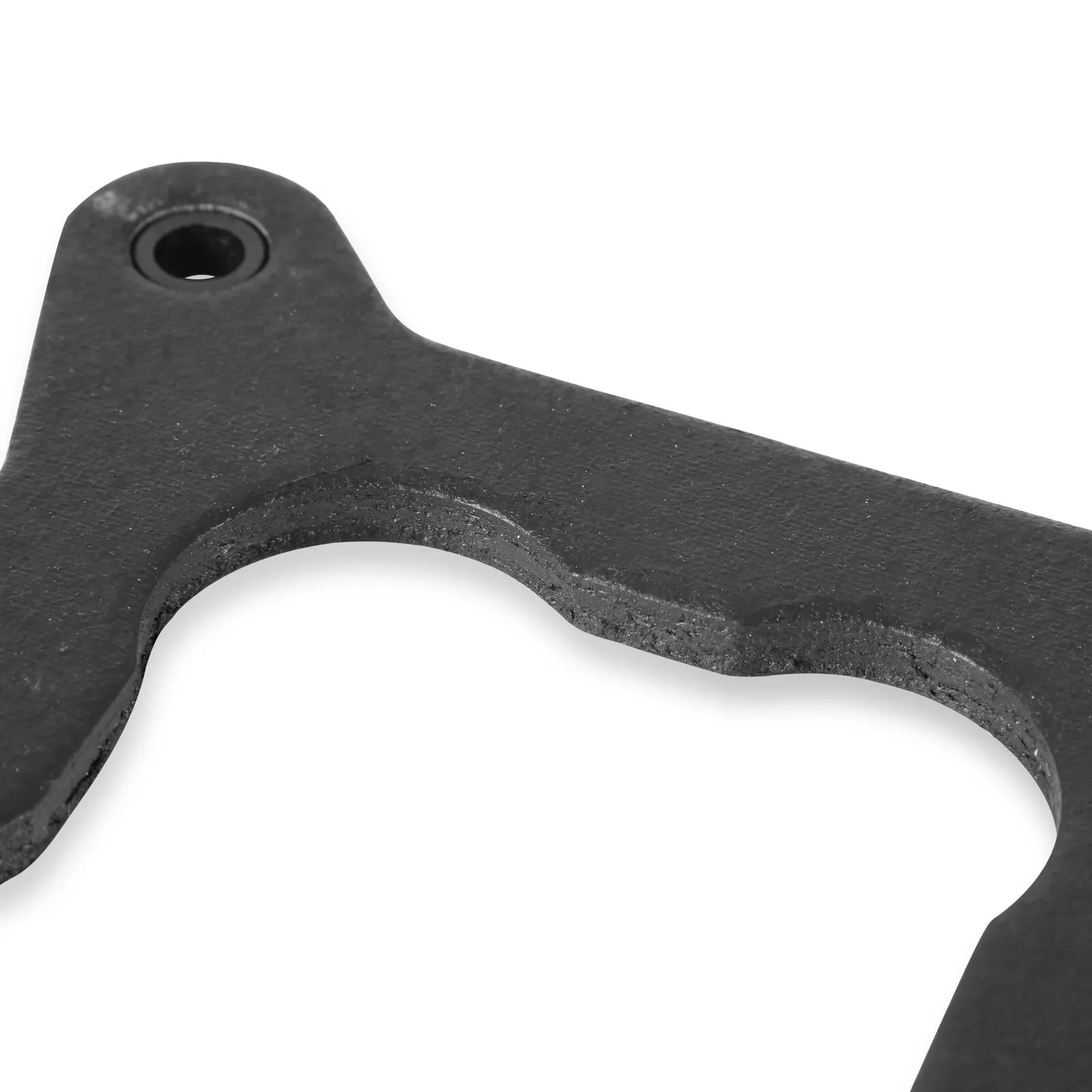

.3125" thick open center base gasket for Holley square flange 4150 / 4160 carburetor and square flange Holley EFI throttle body applications. Hardware included. Compression support grommets in mounting corners.

Features

  • Base Gasket
  • Mounting Hardware Included

Specifications

Bolt Hole Quantity4
BrandHolley
ColourBlack
Emission Code5
Gasket BoreOpen Center
Grade TypePerformance
Intake Port Quantity1
MaterialFiber
Nut1/2" x 5/16"-24
Product TypeBase Gasket
Sale CategoryCarburetors and Components
Stud Length1.62"
Thickness.337" +/- .015"
Thread5/16-18 & 5/16-24
Throttle Bore1.75" maximum

Compatibility

  • Universal Part

.3125" thick open center base gasket for Holley square flange 4150 / 4160 carburetor and square flange Holley EFI throttle body applications. Hardware included. Compression support grommets in mounting corners.

Features

  • Base Gasket
  • Mounting Hardware Included
Bolt Hole Quantity4
BrandHolley
ColourBlack
Emission Code5
Gasket BoreOpen Center
Grade TypePerformance
Intake Port Quantity1
MaterialFiber
Nut1/2" x 5/16"-24
Product TypeBase Gasket
Sale CategoryCarburetors and Components
Stud Length1.62"
Thickness.337" +/- .015"
Thread5/16-18 & 5/16-24
Throttle Bore1.75" maximum
  • Universal Part
