Description

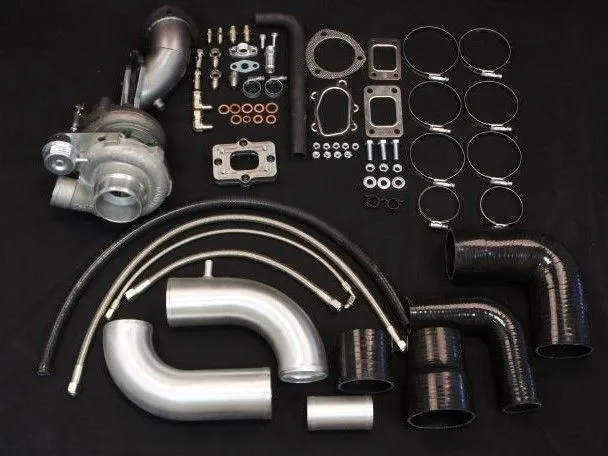

HPD Turbo upgrade kits are an excellent way to gain safe and reliable power and torque for your naturally aspirated vehicle.

We use a Garrett turbocharger combined with braided oil and water lines, HPD CNC machined adaptor flanges, HPD custom manufactured 3" air intakes AND custom HPD dump pipes for high flow and OEM reliability.

EXHAUST:

When we designed and built this turbo kit we designed and manufactured a CNC cut, mild steel T3 - T28 adaptor base plate design allowing us to run garret GT28 turbochargers for performance and reliability.

This setup is complimented with a custom HPD 3” dump pipe with an EGT sensor provision for those who choose to run a Exhaust Gas Temperature probe for keeping an eye on exhaust temps. The benefit to this dump pipe is that it allows the owner to run most turbo GU aftermarket exhaust systems as a direct bolt on or even run the standard OEM

INTERCOOLING:

Intercooling your turbo kit is important if you are looking to run more that 8-10psi of boost, however which intercooler to choose depends on a couple of things.

If you intend on towing a large load, live in a hot arid climate or decide to run a larger turbo option, then we suggest you should run our series 1 450 wide front mount intercooler, our series 2 top mount intercooler or extreme top mount intercooler as they are bigger and capable of a larger volume of air with a higher thermal efficiency operating at these more aggressive conditions.

Should you be looking to go from non-intercooled to intercooled and upgrading to a Garrett turbo and not looking to push your vehicle past 110-120kw mark and are running our standard turbo option, then a series 1 intercooler should be a good setup. Below is a link to the 5 intercoolers offered in this kit so you can make an informed decision on which combination is right for you.

SERIES 1 TOP MOUNT INTERCOOLER (CORE ONLY UPGRADE) - IK-GU42-T

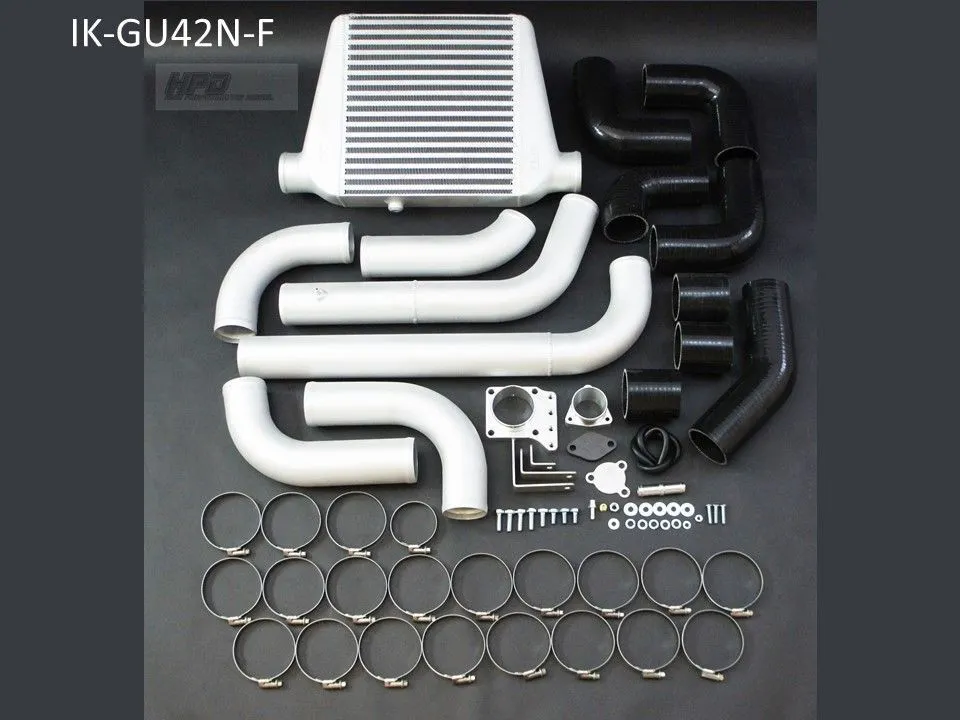

SERIES 1 FRONT MOUNT INTERCOOLER(280mm CORE) - IK-GU42N-F

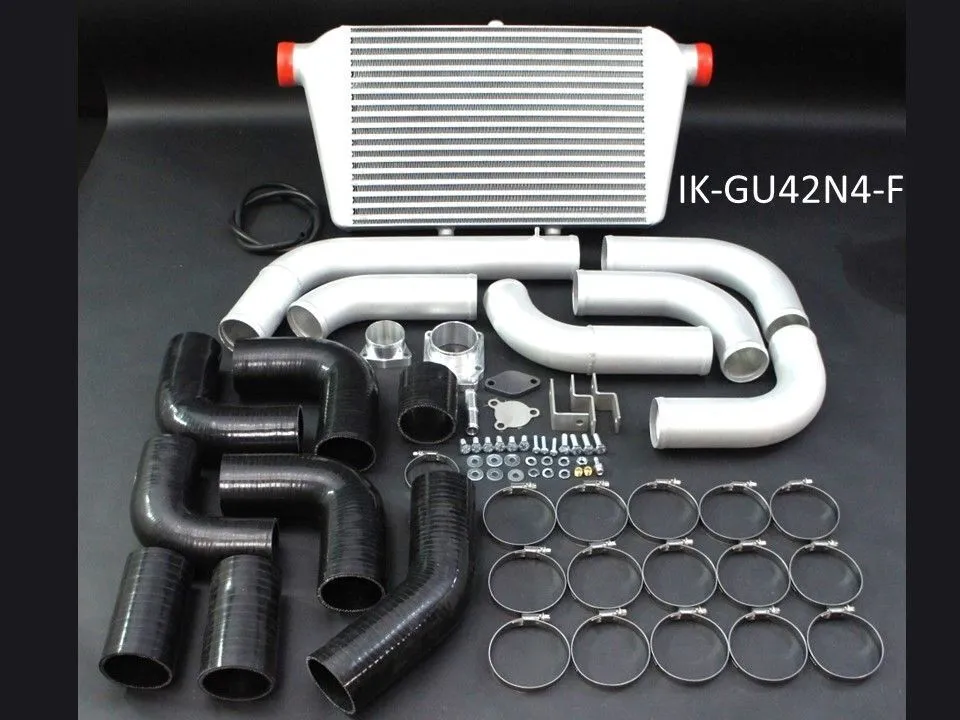

SERIES 1 FRONT MOUNT INTERCOOLER(450mm CORE) - IK-GU42N4-F

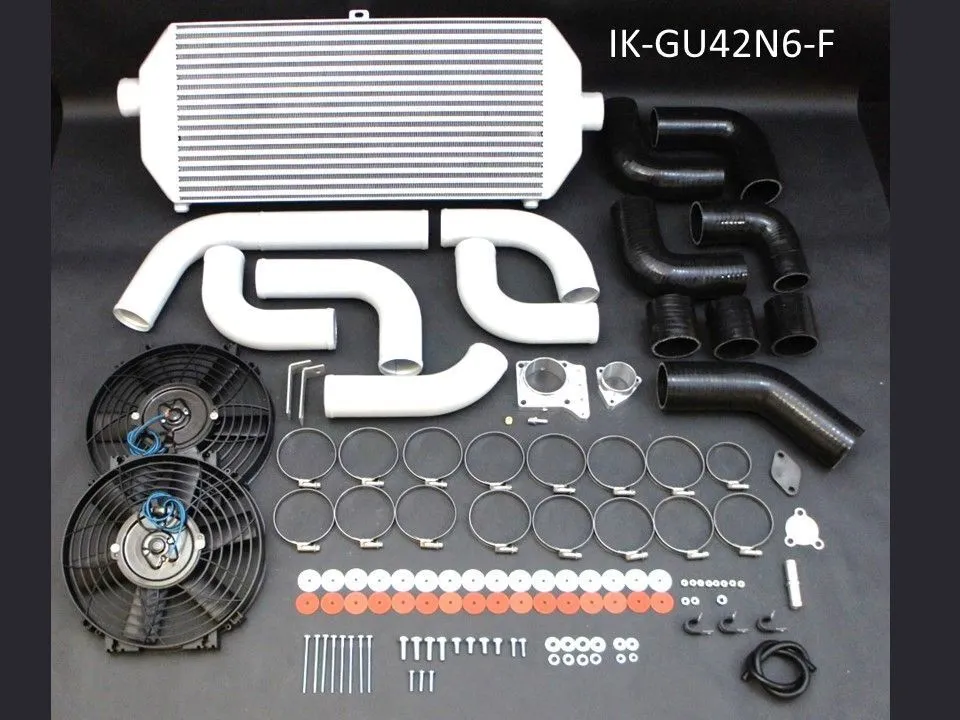

SERIES 1 FRONT MOUNT INTERCOOLER(600mm CORE) - IK-GU42N6-F

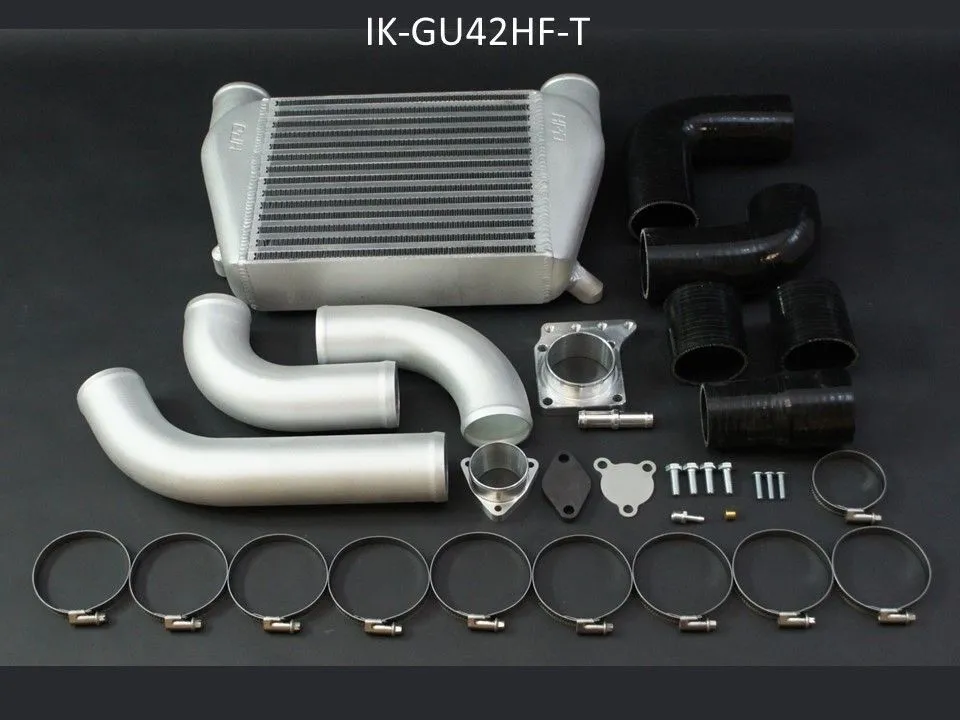

TOP MOUNT INTERCOOLER HIGH FLOW SERIES - IK-GU42HF-T

SERIES 2 TOP MOUNT INTERCOOLER (PRO) - IK-GU42PN-T

TURBOS:

The turbocharger that is supplied as the base option for the GQ TD42 turbo kit is the GT2860r by Garrett.

We have found that this turbocharger compliments the characteristics of the 4.2ltr TD42 motor very well. Combining a fast spool rate with reliable power and substantial torque we feel like this option will satisfy 90% of customers looking for better towing capability, highway speeds and general 4wd application.

Should you be looking for a little more power, torque and performance the next step up from Garretts GT series is the new GTX Gen ii series. These turbos move some serious air speed and are capable of running from 20-30psi all day. Not only are they capable of higher boost application but they also spool up faster, hold boost longer and have a billet compressor wheel hidden inside. Another new feature is the added provision for a compressor wheel speed sensor and anti-surge slots meaning Better performance across the board.

PLEASE NOTE: SHOULD YOU DECIDE TO RUN A LARGER GTX TURBOCHARGER YOU WILL REQUIRE THE CORRECT SUPPORTING MODIFICATIONS TO SUPPORT THE ADDED DIESEL, LOAD AND POWER.

GT2860R (base option turbo)TD42 - This turbo option with 3" exhaust and series one intercooler you can expect between 90-110rwkw on standard tyres.

GTX2860 GEN iiTD42 - This turbo option with series 2 intercooler and 3" exhaust system you can expect between 120-140kw (with supporting mods) on standard tyres.

GTX2867 GEN iiTD42 - This turbo option with series 2 intercooler and 3" exhaust system you can expect between 150rwkw+ UP TO 200kw (with supporting mods) on standard tyres. Typical supporting mods are reco injectors, 11mm boost compensated pump and boost controllers. All of this can be supplied through request from HPD.

NOTE: Results may vary from vehicle to vehicle. Information provided here is meant as a guide only as there are many factors that may affect overall power output.

Please note the options below as building custom turbo kits to your needs will be more accurate with the more information provided.



***Please note what air box is fitted to the car when checking out***

Specifications

  • Garrett GT2860R Base Turbo charger (with upgrades available)
  • Braided oil & water lines
  • Custom CNC Machined flanges
  • Aluminium mandrel bent intake piping
  • Custom HPD dump pipe
  • Optional Upgrades below (intercooler, turbo, exhaust)

Compatibility

  • 2003 - On Nissan Patrol GU TD42

HPD Turbo upgrade kits are an excellent way to gain safe and reliable power and torque for your naturally aspirated vehicle.

We use a Garrett turbocharger combined with braided oil and water lines, HPD CNC machined adaptor flanges, HPD custom manufactured 3" air intakes AND custom HPD dump pipes for high flow and OEM reliability.

EXHAUST:

When we designed and built this turbo kit we designed and manufactured a CNC cut, mild steel T3 - T28 adaptor base plate design allowing us to run garret GT28 turbochargers for performance and reliability.

This setup is complimented with a custom HPD 3” dump pipe with an EGT sensor provision for those who choose to run a Exhaust Gas Temperature probe for keeping an eye on exhaust temps. The benefit to this dump pipe is that it allows the owner to run most turbo GU aftermarket exhaust systems as a direct bolt on or even run the standard OEM

INTERCOOLING:

Intercooling your turbo kit is important if you are looking to run more that 8-10psi of boost, however which intercooler to choose depends on a couple of things.

If you intend on towing a large load, live in a hot arid climate or decide to run a larger turbo option, then we suggest you should run our series 1 450 wide front mount intercooler, our series 2 top mount intercooler or extreme top mount intercooler as they are bigger and capable of a larger volume of air with a higher thermal efficiency operating at these more aggressive conditions.

Should you be looking to go from non-intercooled to intercooled and upgrading to a Garrett turbo and not looking to push your vehicle past 110-120kw mark and are running our standard turbo option, then a series 1 intercooler should be a good setup. Below is a link to the 5 intercoolers offered in this kit so you can make an informed decision on which combination is right for you.

SERIES 1 TOP MOUNT INTERCOOLER (CORE ONLY UPGRADE) - IK-GU42-T

SERIES 1 FRONT MOUNT INTERCOOLER(280mm CORE) - IK-GU42N-F

SERIES 1 FRONT MOUNT INTERCOOLER(450mm CORE) - IK-GU42N4-F

SERIES 1 FRONT MOUNT INTERCOOLER(600mm CORE) - IK-GU42N6-F

TOP MOUNT INTERCOOLER HIGH FLOW SERIES - IK-GU42HF-T

SERIES 2 TOP MOUNT INTERCOOLER (PRO) - IK-GU42PN-T

TURBOS:

The turbocharger that is supplied as the base option for the GQ TD42 turbo kit is the GT2860r by Garrett.

We have found that this turbocharger compliments the characteristics of the 4.2ltr TD42 motor very well. Combining a fast spool rate with reliable power and substantial torque we feel like this option will satisfy 90% of customers looking for better towing capability, highway speeds and general 4wd application.

Should you be looking for a little more power, torque and performance the next step up from Garretts GT series is the new GTX Gen ii series. These turbos move some serious air speed and are capable of running from 20-30psi all day. Not only are they capable of higher boost application but they also spool up faster, hold boost longer and have a billet compressor wheel hidden inside. Another new feature is the added provision for a compressor wheel speed sensor and anti-surge slots meaning Better performance across the board.

PLEASE NOTE: SHOULD YOU DECIDE TO RUN A LARGER GTX TURBOCHARGER YOU WILL REQUIRE THE CORRECT SUPPORTING MODIFICATIONS TO SUPPORT THE ADDED DIESEL, LOAD AND POWER.

GT2860R (base option turbo)TD42 - This turbo option with 3" exhaust and series one intercooler you can expect between 90-110rwkw on standard tyres.

GTX2860 GEN iiTD42 - This turbo option with series 2 intercooler and 3" exhaust system you can expect between 120-140kw (with supporting mods) on standard tyres.

GTX2867 GEN iiTD42 - This turbo option with series 2 intercooler and 3" exhaust system you can expect between 150rwkw+ UP TO 200kw (with supporting mods) on standard tyres. Typical supporting mods are reco injectors, 11mm boost compensated pump and boost controllers. All of this can be supplied through request from HPD.

NOTE: Results may vary from vehicle to vehicle. Information provided here is meant as a guide only as there are many factors that may affect overall power output.

Please note the options below as building custom turbo kits to your needs will be more accurate with the more information provided.



***Please note what air box is fitted to the car when checking out***

  • Garrett GT2860R Base Turbo charger (with upgrades available)
  • Braided oil & water lines
  • Custom CNC Machined flanges
  • Aluminium mandrel bent intake piping
  • Custom HPD dump pipe
  • Optional Upgrades below (intercooler, turbo, exhaust)
  • 2003 - On Nissan Patrol GU TD42
