Description

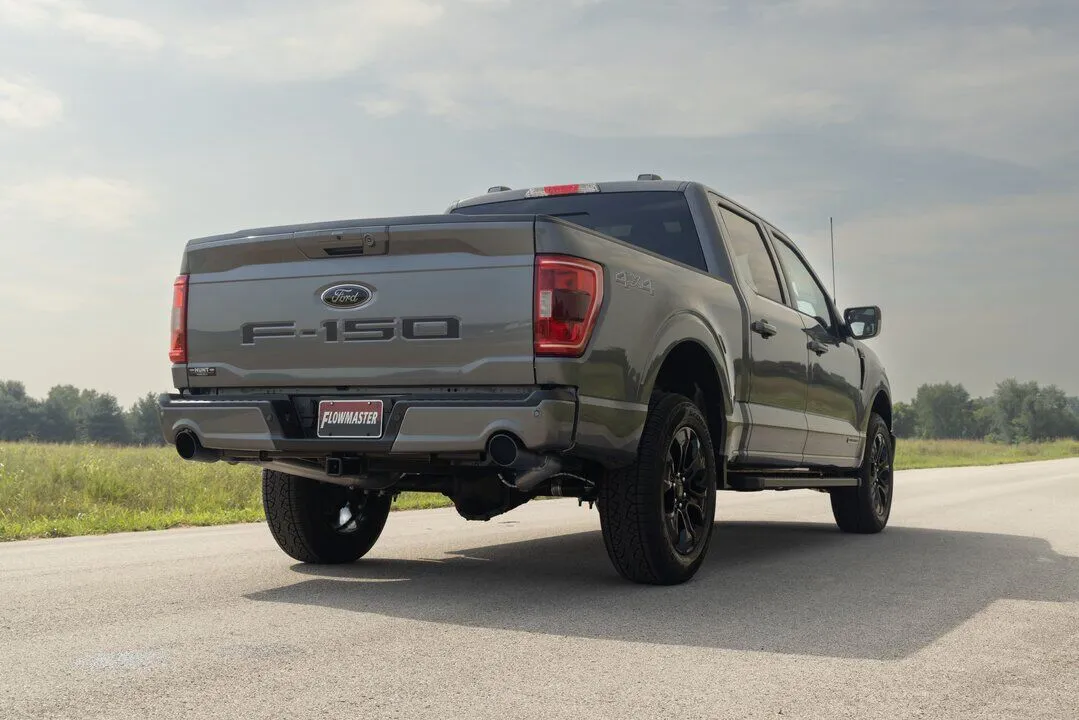

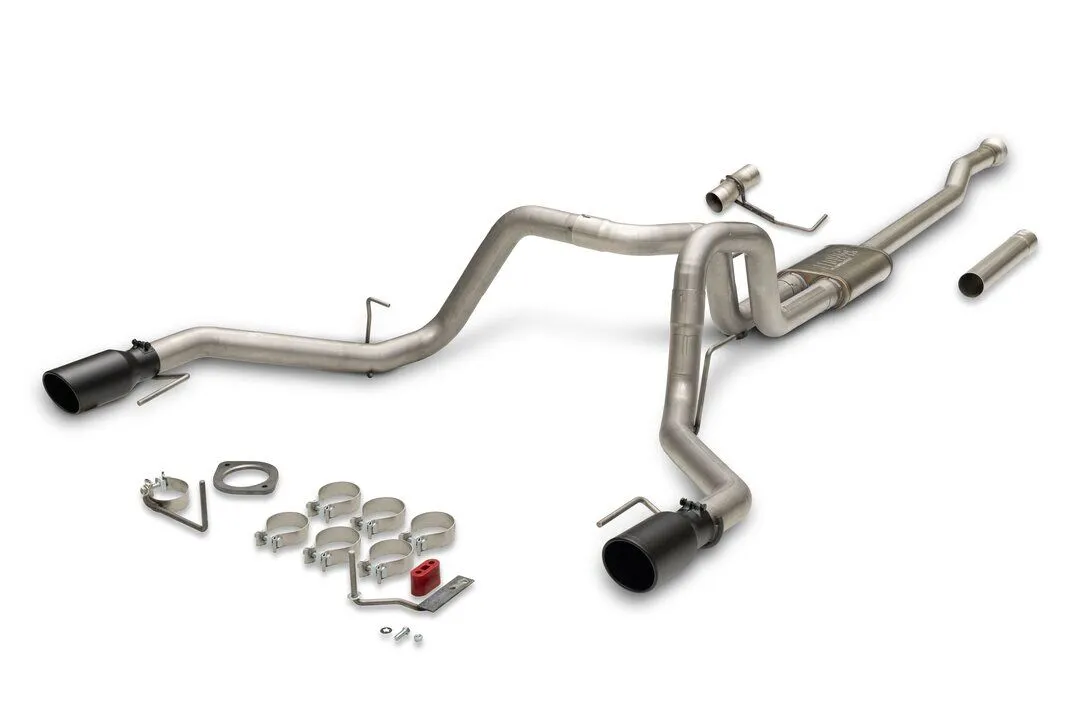

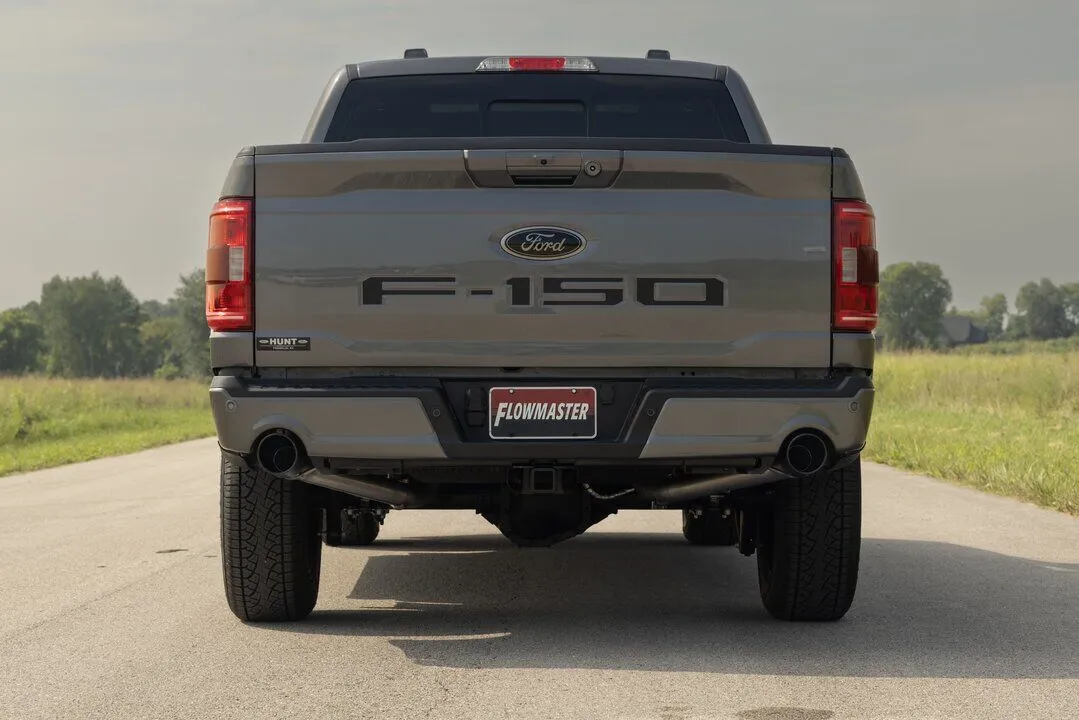

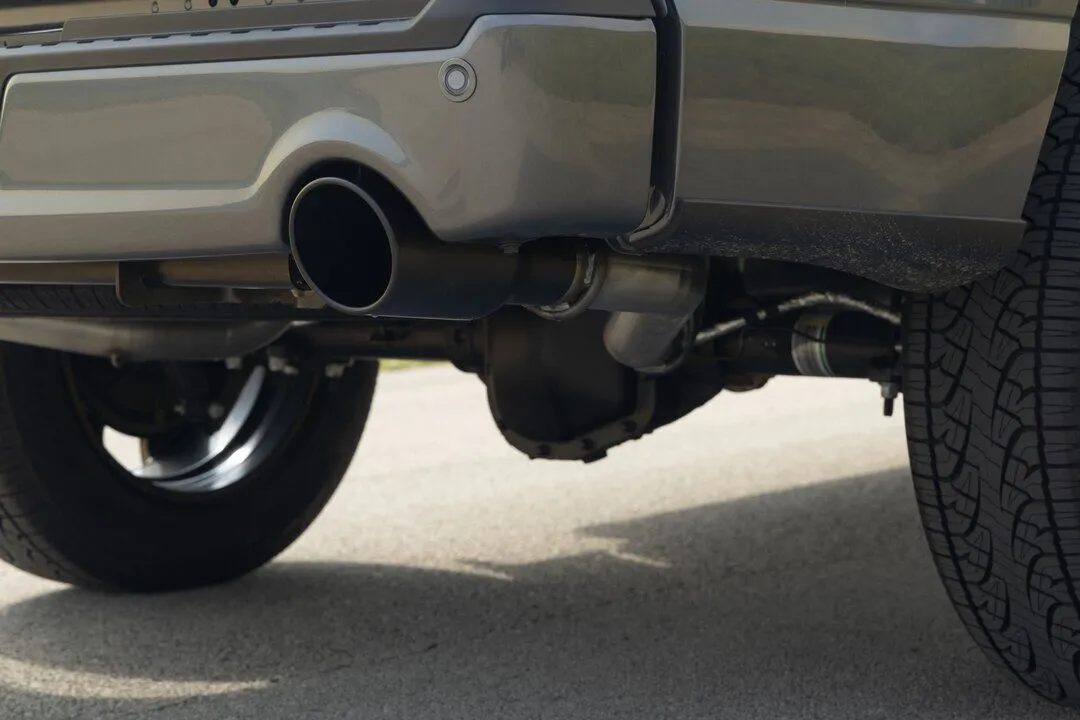

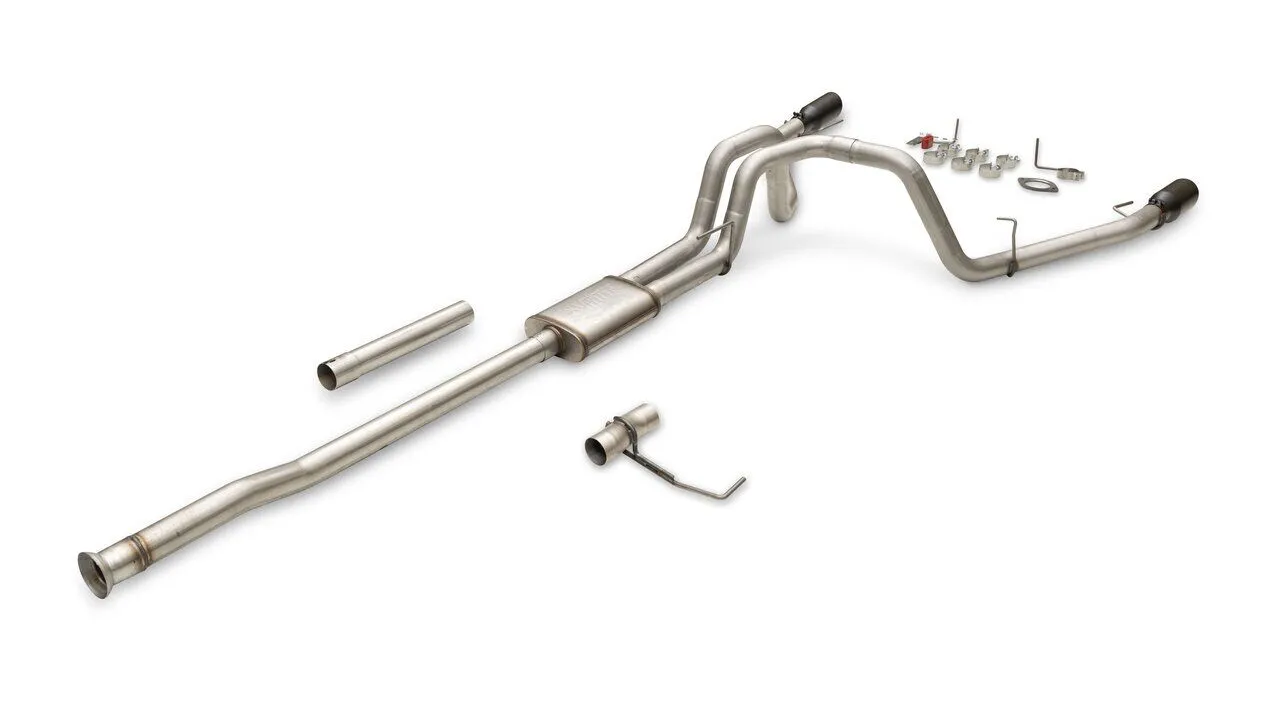

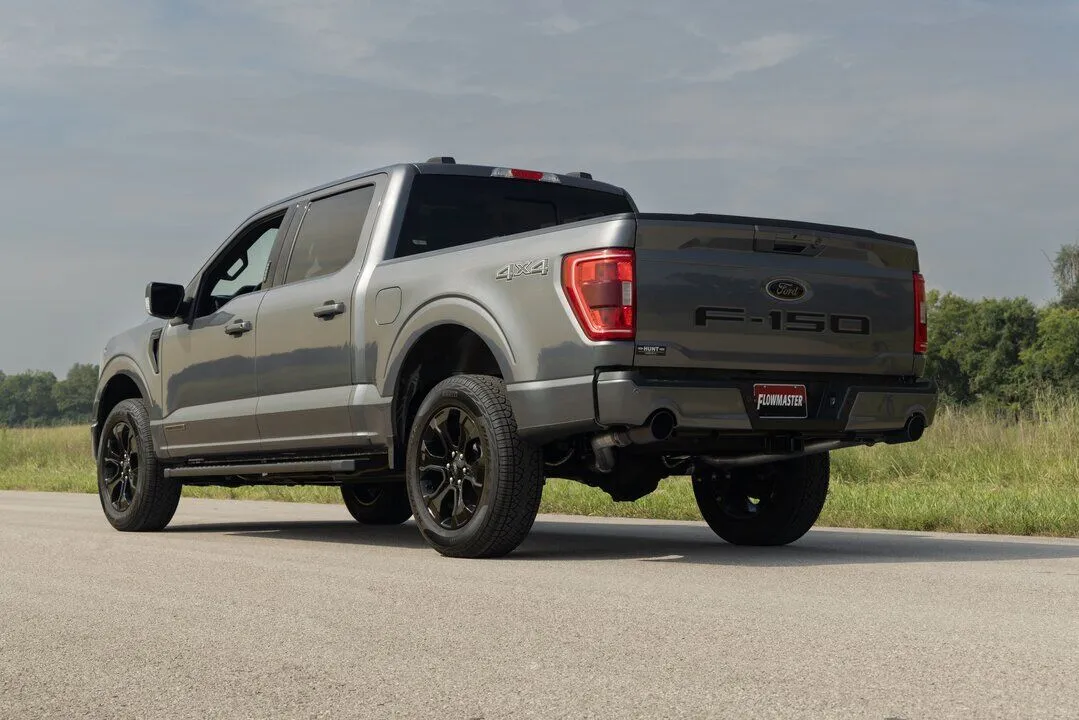

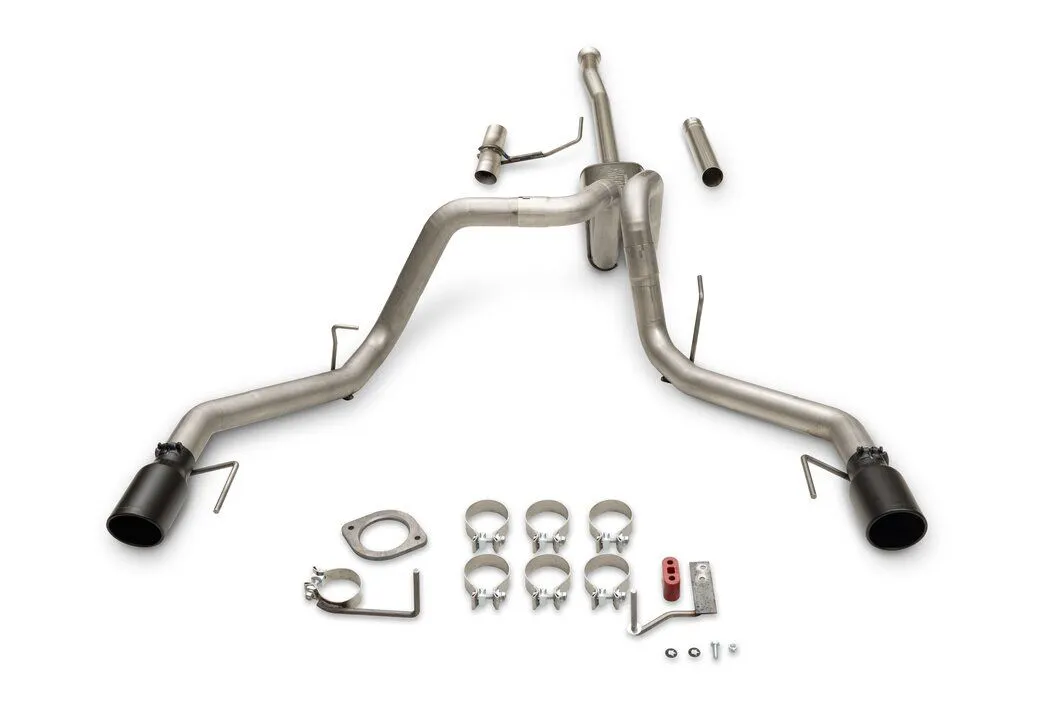

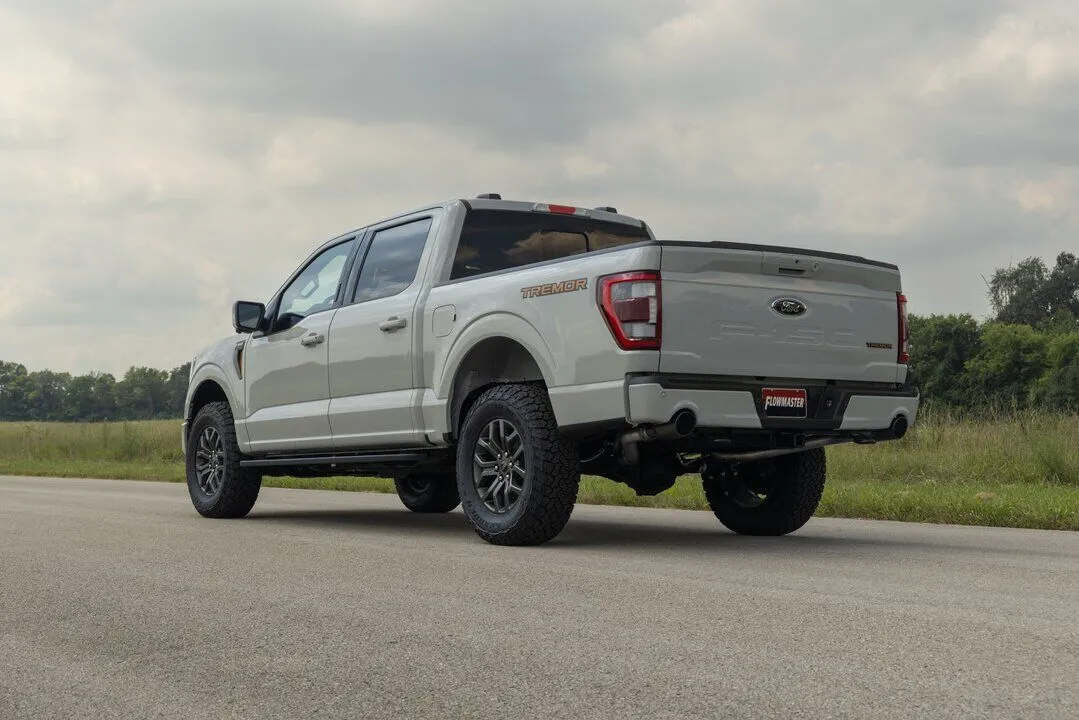

This FlowFX cat-back exhaust system is for the 2021-2024 Ford F-150 trucks with the standard 2.7, 3.5, and 5.0-liter and PowerBoost 3.5L engines that are equipped with the optional dual exhaust out the rear bumper. This exhaust offers a deep throaty exhaust note with aggressive to moderate sound levels both inside and outside of the truck, with all the performance benefits that you would expect from Flowmaster. This bolt-on emissions-legal system features all mandrel-bent 409 stainless steel 3.00-inch tubing that flows into a FFX straight through muffler and exiting into large 3.00-inch dual tailpipes for maximum sound and performance. The system exits the OEM rear bumper cut outs and uses all the factory hanger locations. The tailpipes are finished off with a pair of large 4.50-inch black ceramic-coated stainless-steel tips for a more aggressive look than the factory tip. This exhaust system is covered by our Lifetime Limited Warranty. Designed for an easy fit, this system includes all necessary parts and hardware for installation.

Features

  • Large 3.0-inch Mandrel bent pipes for superior flow and power
  • Flowmaster FlowFX series muffler offers increased performance
  • Powerful exhaust note with an aggressive to moderate sound level that’s a perfect balance of sound and power
  • Max power gains of 18 hp and 20 lb-ft at the rear wheels
  • 409 stainless steel constuction for extra durability
  • Connects directly to the factory dual tailpipes for a simple installation
  • Clears the factory spare tire with no restictive flattening like the factory tailpipe
  • Lifetime limited Warranty

Specifications

BrandFlowmaster
California Proposition 65 Chemical NameChromium (hexavalent compounds)
California Proposition 65 Chemical NameNickel (Metallic)
California Proposition 65 RequiredYes
Emission Code5
Exhaust SeriesFlowFX
Exhaust Tip Quantity2
Exit PositionDOR
Exit StyleDual Out Rear
FinishNatural
Main Piping Diameter3.00
Material409 Stainless Steel
Mount TypeUses factory hangers
Muffler Body Length14
Muffler ColourNatural
Muffler FinishBrushed
Muffler Inlet Diameter3
Muffler Inlet Locationcentered
Muffler Material409S Stainless Steel
Muffler Outlet Diameter3
Muffler Outlet Locationdual outlet
Muffler Overall Length20
Muffler Part NumberKit Only
Muffler Quantity1
Muffler SeriesFlowFX
Muffler ShapeOval
Muffler TypeAbsorption
Product TypeExhaust System
Sale CategoryExhaust
Single DualDual
Sound LevelAggressive / Moderate
System TypeCat-back
Tip CutAngle
Tip Diameter4.5
Tip Edge StyleRolled
Tip FinishBlack Ceramic
Tip Length11
Tip LogoEmbossed
Tip Material304 Stainless
Tip Quantity2
Tip ShapeRound
Tip StyleSingle wall
Tubing Diameter3
Tubing Material409S Stainless Steel
TypeCat-Back

Compatibility

  • 2021 - 2024 Ford F-150 King Ranch 3.5
  • 2021 - 2024 Ford F-150 King Ranch 3.5
  • 2021 - 2024 Ford F-150 Lariat 3.5
  • 2021 - 2024 Ford F-150 Lariat 3.5
  • 2021 - 2024 Ford F-150 Lariat 5.0
  • 2021 - 2024 Ford F-150 Lariat 5.0
  • 2021 - 2024 Ford F-150 Platinum 3.5
  • 2021 - 2024 Ford F-150 Platinum 3.5
  • 2021 - 2024 Ford F-150 Police Responder 3.5
  • 2021 - 2024 Ford F-150 Police Responder 3.5
  • 2021 - 2024 Ford F-150 SSV 3.5
  • 2021 - 2024 Ford F-150 SSV 3.5
  • 2021 - 2024 Ford F-150 SSV 5.0
  • 2021 - 2024 Ford F-150 SSV 5.0
  • 2021 - 2024 Ford F-150 Tremor 3.5
  • 2021 - 2024 Ford F-150 Tremor 3.5
  • 2021 - 2024 Ford F-150 XL 2.7
  • 2021 - 2024 Ford F-150 XL 2.7
  • 2021 - 2024 Ford F-150 XL 3.5
  • 2021 - 2024 Ford F-150 XL 3.5
  • 2021 - 2024 Ford F-150 XL 5.0
  • 2021 - 2024 Ford F-150 XL 5.0
  • 2021 - 2024 Ford F-150 XLT 2.7
  • 2021 - 2024 Ford F-150 XLT 2.7
  • 2021 - 2024 Ford F-150 XLT 3.5
  • 2021 - 2024 Ford F-150 XLT 3.5
  • 2021 - 2024 Ford F-150 XLT 5.0
  • 2021 - 2024 Ford F-150 XLT 5.0
  • 2021 - 2023 Ford F-150 King Ranch 5.0
  • 2021 - 2023 Ford F-150 King Ranch 5.0
  • 2021 - 2023 Ford F-150 Lariat 2.7
  • 2021 - 2023 Ford F-150 Lariat 2.7
  • 2021 - 2023 Ford F-150 Limited 3.5
  • 2021 - 2023 Ford F-150 Limited 3.5
  • 2021 - 2023 Ford F-150 Platinum 5.0
  • 2021 - 2023 Ford F-150 Platinum 5.0
  • 2023 - 2024 Ford F-150 Tremor 5.0
  • 2023 - 2024 Ford F-150 Tremor 5.0
  • 2024 - 2024 Ford F-150 STX 2.7
  • 2024 - 2024 Ford F-150 STX 2.7
  • 2024 - 2024 Ford F-150 STX 3.5
  • 2024 - 2024 Ford F-150 STX 5.0
  • 2024 - 2024 Ford F-150 STX 5.0
