Description

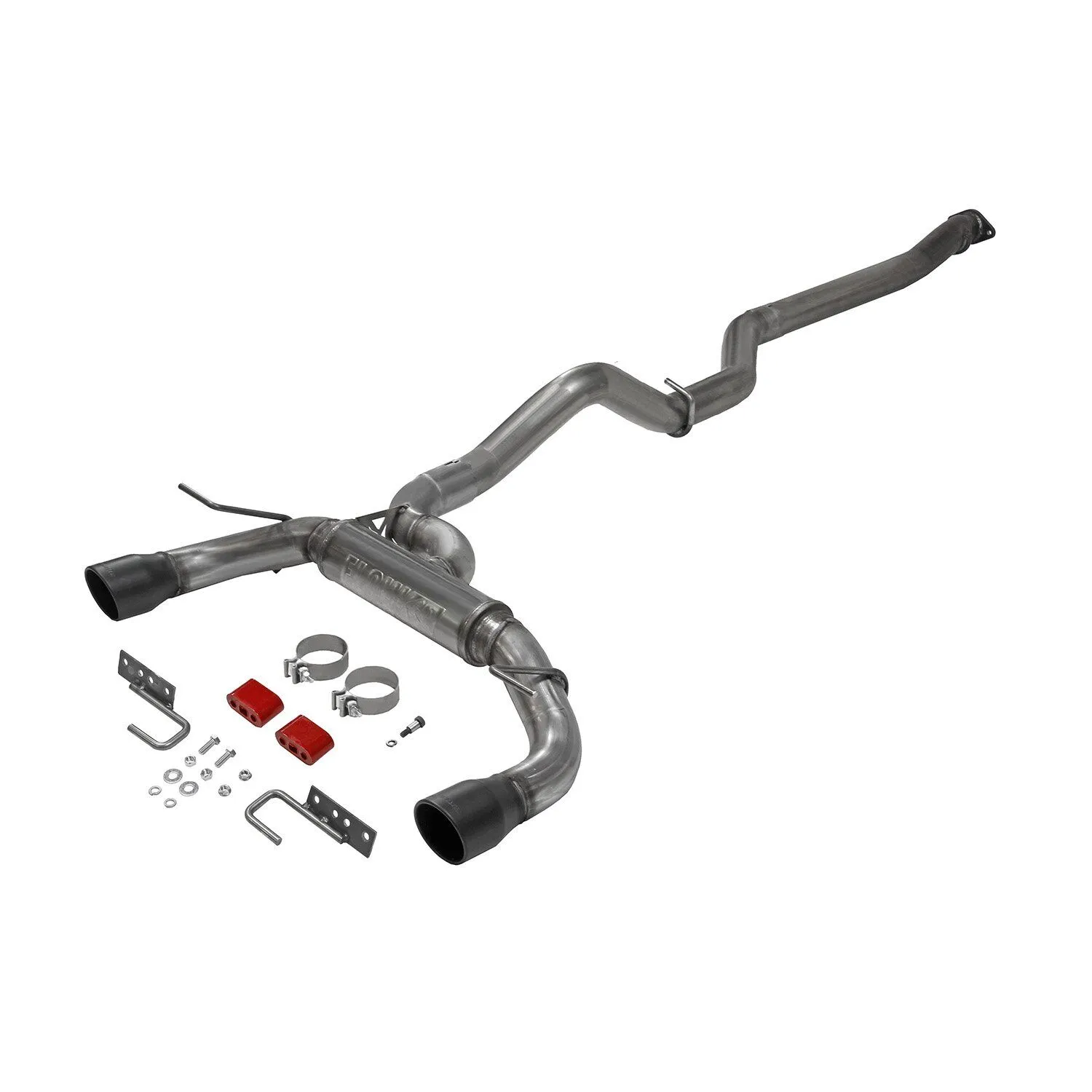

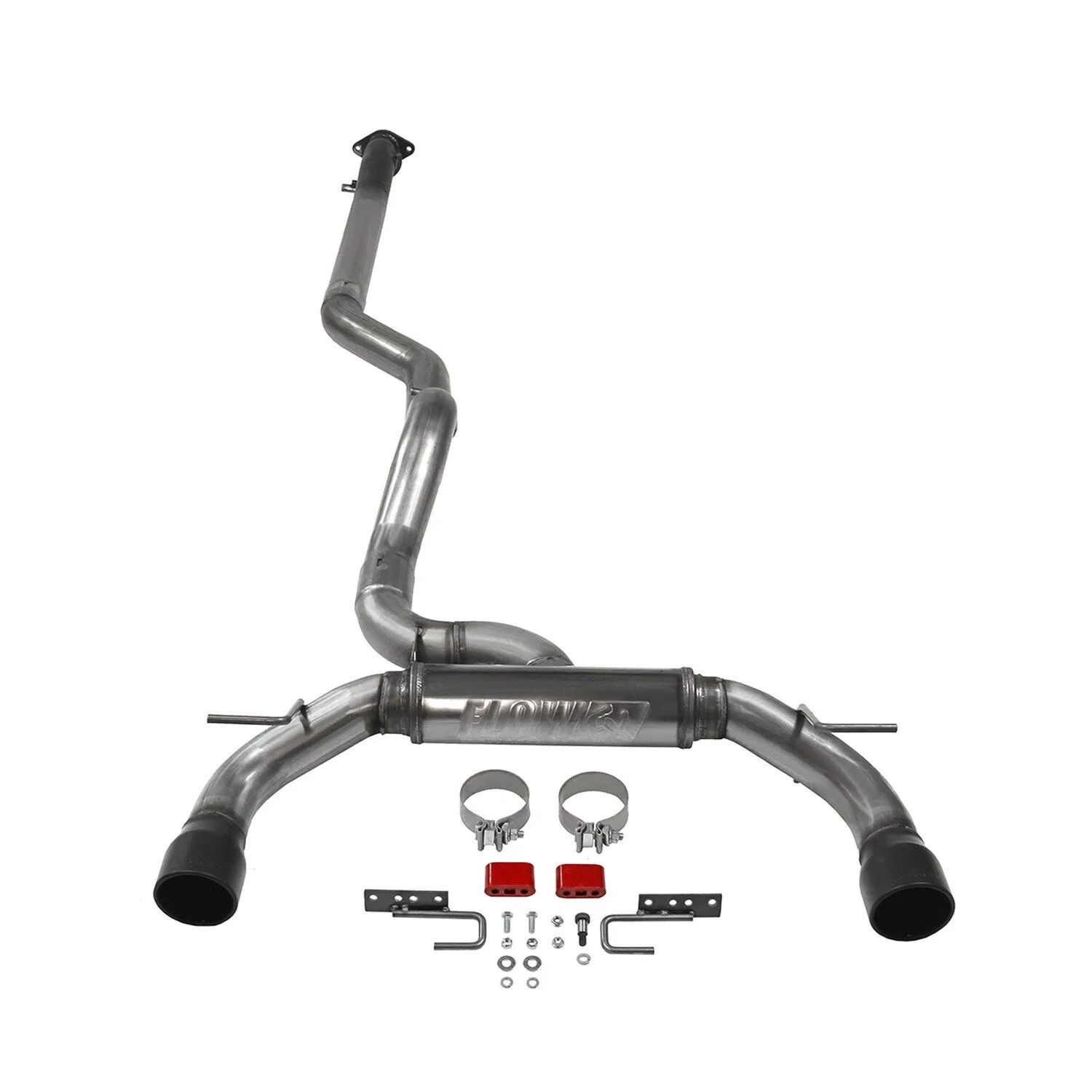

Flowmaster introduces our Flow FX cat-back exhaust system for the 2021-2024 Ford Bronco with the 2.3 or 2.7-liter engine and 4 doors. This system uses a Flow FX style muffler for a deep exhaust tone with an aggressive to moderate sound level and increased performance. Maximum dyno gains of 12 hp and 13 lb-ft were measured at the rear wheels. 3.00-inch mandrel bent 409 stainless steel tubing is used from the factory mid-pipe flange back to maximize exhaust flow and durability. This step up from the factory pipe size will help maximize gains from additional engine upgrades. The over-axle section is also routed to help gain an additional 2.0-inches of clearance from the axle when used on applications with modified suspensions. This allows for better suspension travel when used in extreme off-road situations. Dual 4.00-inch black ceramic coated tips are used to add a custom look to this iconic vehicle. All of the necessary hardware is included and factory mounting locations are used for an easy installation. Backed by Flowmaster's Lifetime Limited Warranty.

Features

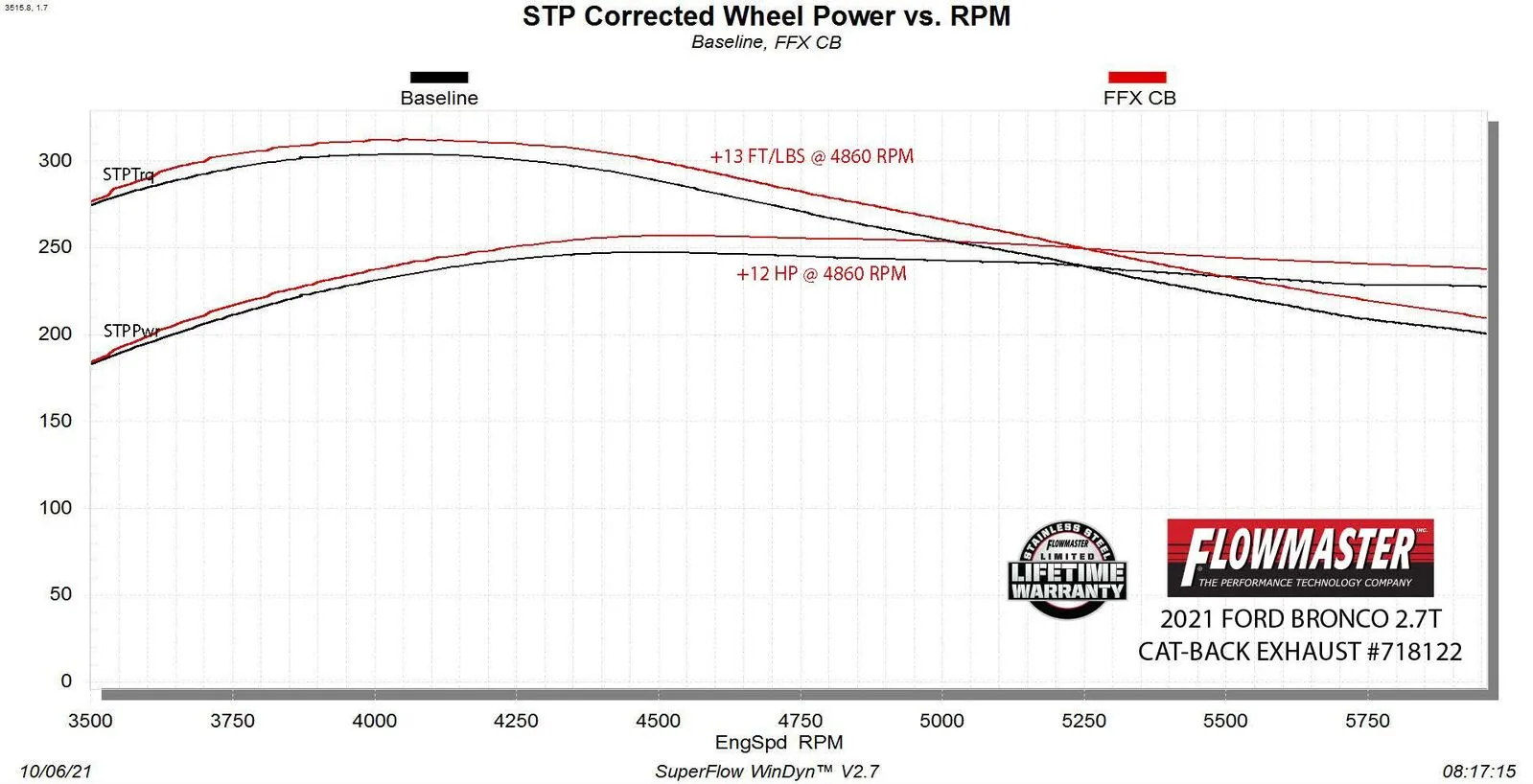

  • Max increases of up to 12 hp and 13 lb-ft over the stock exhaust at the rear wheels

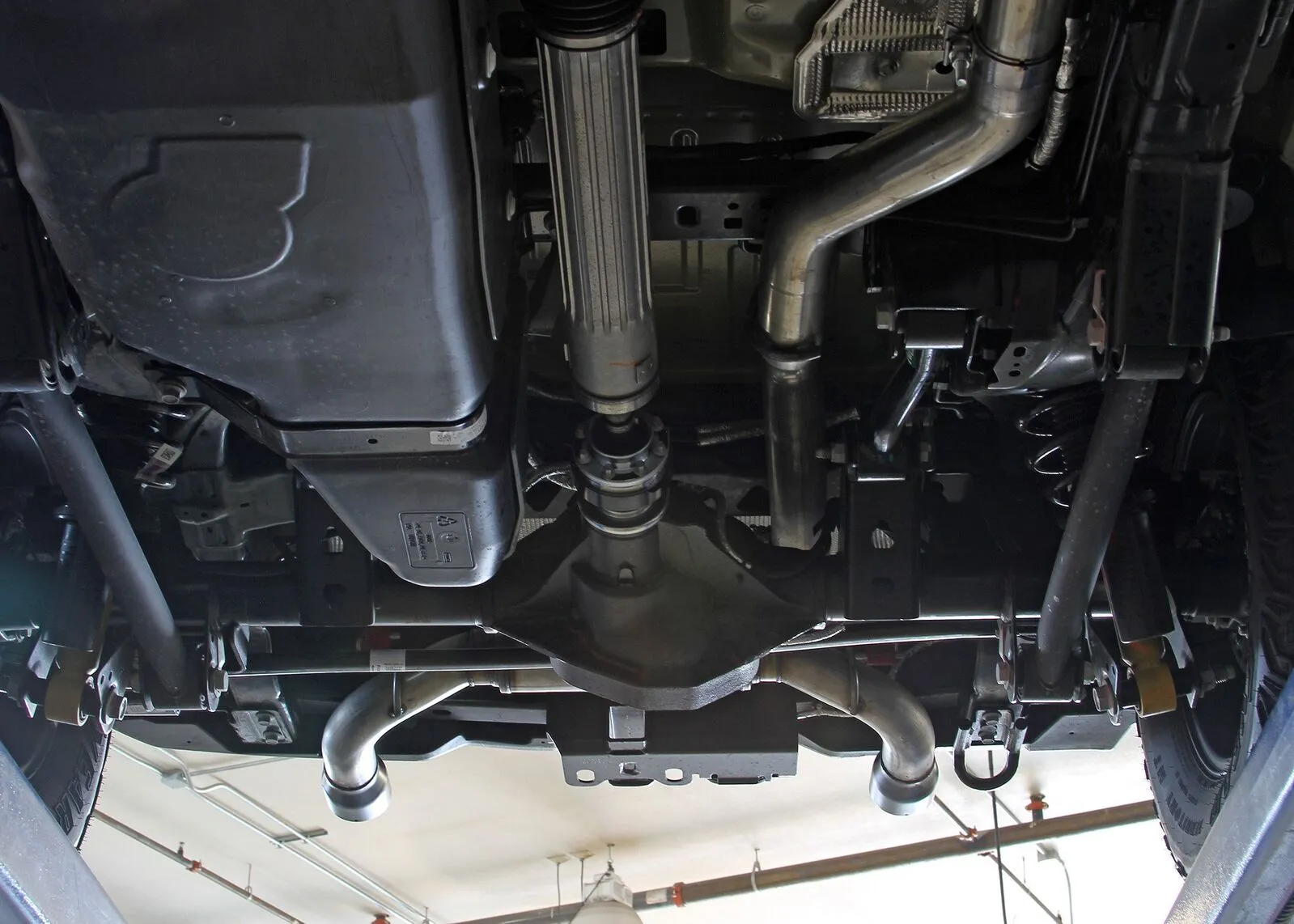

  • Over-axle pipe is routed to allow for an extra 2.0-inches of travel from modified suspensions
  • FlowFX series performance muffler offers a deep powerful sound and increased performance
  • 409 stainless steel construction delivers extra durability and improved long-term corrosion resistance
  • Uses factory hanger locations for easy installation
  • 3.0-inch 16-gauge mandrel bent stainless steel tubing helps maintain maximum exhaust flow for better power

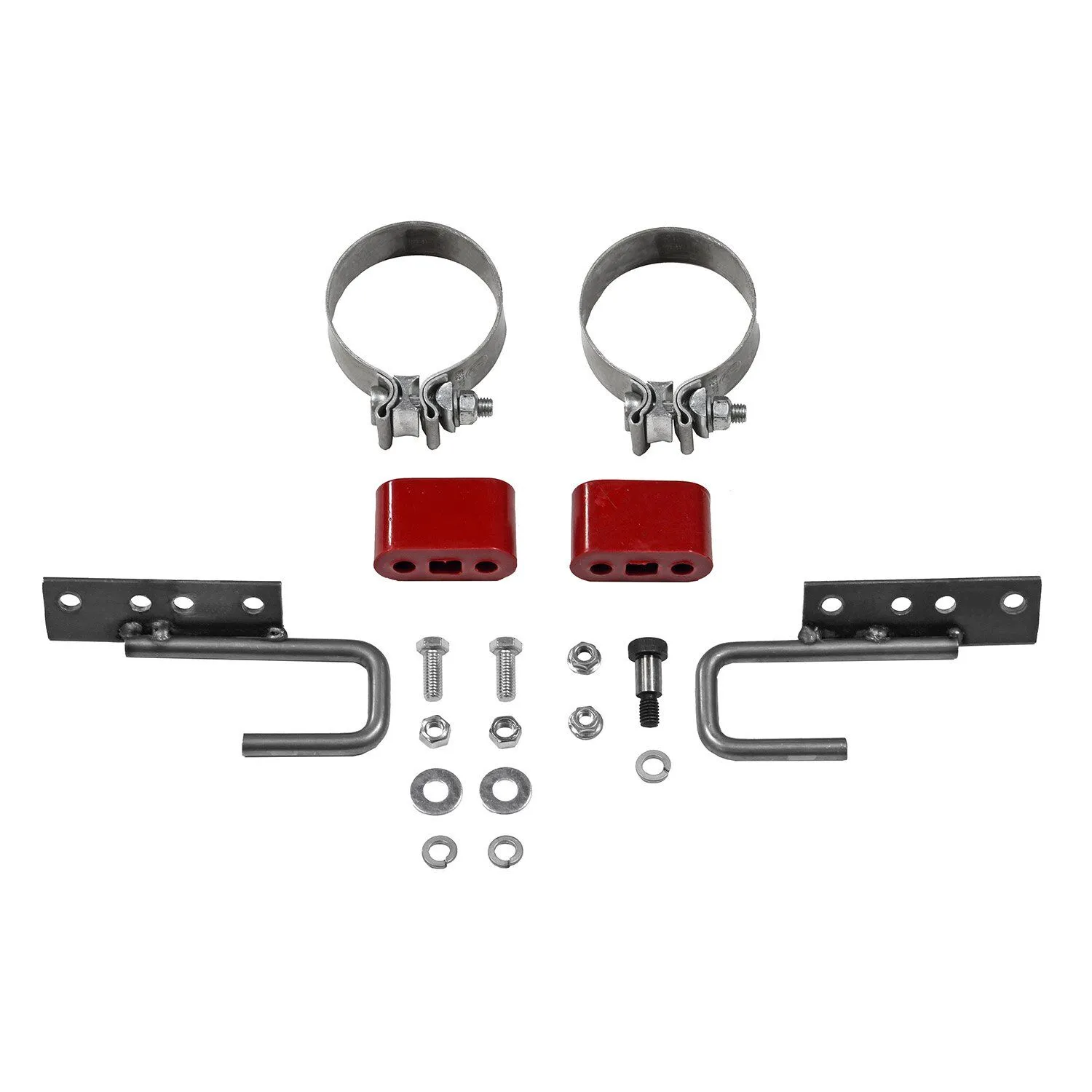

  • Includes all necessary hardware for an at home installation

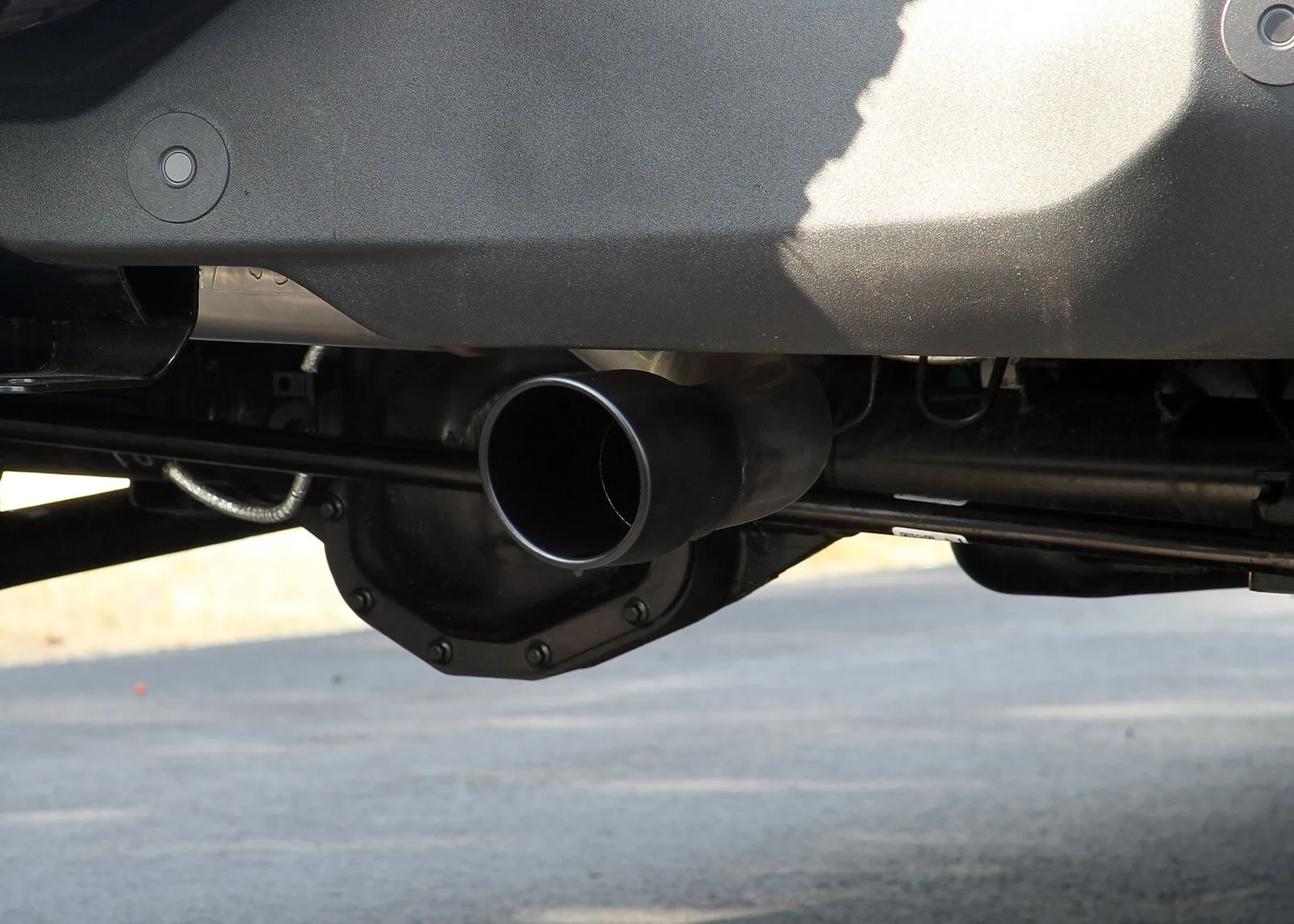

  • Dual 4.00-inch black ceramic coated tips adds a custom look
  • Lifetime Limited Warranty

Specifications

BrandFlowmaster
California Proposition 65 Chemical NameChromium (hexavalent compounds), Nickel (Metallic)
California Proposition 65 RequiredYes
Emission Code5
Exhaust SeriesFlowFX
Exhaust Tip Quantity2.00
Exit PositionDOR
Exit StyleDual Out Rear
FinishNatural
Main Piping Diameter3.00
Material409 Stainless Steel
Mount TypeUses New Hangers (Included)
Muffler Body Length14
Muffler ColourNatural
Muffler FinishBrushed
Muffler Inlet Diameter3.00
Muffler Inlet LocationBody Side
Muffler Material409S Stainless Steel
Muffler Outlet Diameter3.00
Muffler Outlet LocationDual Outlet
Muffler Overall Length25
Muffler Part NumberKit Only
Muffler Quantity1
Muffler SeriesFlowFX
Muffler ShapeRound
Muffler TypeAbsorption
Product TypeExhaust System
Sale CategoryExhaust
Single DualDual
Sound LevelAggressive / Moderate
System TypeCat-back
Tip CutAngle
Tip Diameter4.00
Tip Edge StyleRolled
Tip FinishBlack Ceramic
Tip Length5.25
Tip LogoEmbossed
Tip Material304 Stainless
Tip Quantity2.00
Tip ShapeRound
Tip StyleSingle Wall
Tubing Diameter3.00
Tubing Material409S Stainless Steel
TypeCat-Back

Compatibility

  • 2021 - 2024 Ford Bronco Badlands 2.3
  • 2021 - 2024 Ford Bronco Badlands 2.7
  • 2021 - 2024 Ford Bronco Big Bend 2.3
  • 2021 - 2024 Ford Bronco Big Bend 2.7
  • 2021 - 2024 Ford Bronco Black Diamond 2.3
  • 2021 - 2024 Ford Bronco Black Diamond 2.7
  • 2021 - 2024 Ford Bronco Outer Banks 2.3
  • 2021 - 2024 Ford Bronco Outer Banks 2.7
  • 2021 - 2024 Ford Bronco Wildtrak 2.7
  • 2021 - 2023 Ford Bronco Base 2.3
  • 2021 - 2023 Ford Bronco Base 2.7
  • 2021 - 2021 Ford Bronco First Edition 2.7
  • 2022 - 2024 Ford Bronco Everglades 2.3
  • 2023 - 2024 Ford Bronco Heritage Edition 2.3
  • 2023 - 2024 Ford Bronco Heritage Limited Edition 2.7

Flowmaster introduces our Flow FX cat-back exhaust system for the 2021-2024 Ford Bronco with the 2.3 or 2.7-liter engine and 4 doors. This system uses a Flow FX style muffler for a deep exhaust tone with an aggressive to moderate sound level and increased performance. Maximum dyno gains of 12 hp and 13 lb-ft were measured at the rear wheels. 3.00-inch mandrel bent 409 stainless steel tubing is used from the factory mid-pipe flange back to maximize exhaust flow and durability. This step up from the factory pipe size will help maximize gains from additional engine upgrades. The over-axle section is also routed to help gain an additional 2.0-inches of clearance from the axle when used on applications with modified suspensions. This allows for better suspension travel when used in extreme off-road situations. Dual 4.00-inch black ceramic coated tips are used to add a custom look to this iconic vehicle. All of the necessary hardware is included and factory mounting locations are used for an easy installation. Backed by Flowmaster's Lifetime Limited Warranty.

Features

  • Max increases of up to 12 hp and 13 lb-ft over the stock exhaust at the rear wheels
  • Over-axle pipe is routed to allow for an extra 2.0-inches of travel from modified suspensions
  • FlowFX series performance muffler offers a deep powerful sound and increased performance
  • 409 stainless steel construction delivers extra durability and improved long-term corrosion resistance
  • Uses factory hanger locations for easy installation
  • 3.0-inch 16-gauge mandrel bent stainless steel tubing helps maintain maximum exhaust flow for better power
  • Includes all necessary hardware for an at home installation
  • Dual 4.00-inch black ceramic coated tips adds a custom look
  • Lifetime Limited Warranty
BrandFlowmaster
California Proposition 65 Chemical NameChromium (hexavalent compounds), Nickel (Metallic)
California Proposition 65 RequiredYes
Emission Code5
Exhaust SeriesFlowFX
Exhaust Tip Quantity2.00
Exit PositionDOR
Exit StyleDual Out Rear
FinishNatural
Main Piping Diameter3.00
Material409 Stainless Steel
Mount TypeUses New Hangers (Included)
Muffler Body Length14
Muffler ColourNatural
Muffler FinishBrushed
Muffler Inlet Diameter3.00
Muffler Inlet LocationBody Side
Muffler Material409S Stainless Steel
Muffler Outlet Diameter3.00
Muffler Outlet LocationDual Outlet
Muffler Overall Length25
Muffler Part NumberKit Only
Muffler Quantity1
Muffler SeriesFlowFX
Muffler ShapeRound
Muffler TypeAbsorption
Product TypeExhaust System
Sale CategoryExhaust
Single DualDual
Sound LevelAggressive / Moderate
System TypeCat-back
Tip CutAngle
Tip Diameter4.00
Tip Edge StyleRolled
Tip FinishBlack Ceramic
Tip Length5.25
Tip LogoEmbossed
Tip Material304 Stainless
Tip Quantity2.00
Tip ShapeRound
Tip StyleSingle Wall
Tubing Diameter3.00
Tubing Material409S Stainless Steel
TypeCat-Back
  • 2021 - 2024 Ford Bronco Badlands 2.3
  • 2021 - 2024 Ford Bronco Badlands 2.7
  • 2021 - 2024 Ford Bronco Big Bend 2.3
  • 2021 - 2024 Ford Bronco Big Bend 2.7
  • 2021 - 2024 Ford Bronco Black Diamond 2.3
  • 2021 - 2024 Ford Bronco Black Diamond 2.7
  • 2021 - 2024 Ford Bronco Outer Banks 2.3
  • 2021 - 2024 Ford Bronco Outer Banks 2.7
  • 2021 - 2024 Ford Bronco Wildtrak 2.7
  • 2021 - 2023 Ford Bronco Base 2.3
  • 2021 - 2023 Ford Bronco Base 2.7
  • 2021 - 2021 Ford Bronco First Edition 2.7
  • 2022 - 2024 Ford Bronco Everglades 2.3
  • 2023 - 2024 Ford Bronco Heritage Edition 2.3
  • 2023 - 2024 Ford Bronco Heritage Limited Edition 2.7
