Description

Flowmaster introduces our Flow FX Extreme stainless steel cat-back exhaust system for the 2004-2015 Nissan Titan with the 5.6-liter engine. This system uses a Flow FX series muffler for an aggressive to moderate sound level and increased performance. 3.00-inch mandrel bent 409 stainless steel tubing allows for maximum exhaust flow and durability. Dyno tests resulted in an extra 16 hp and 23 lb-ft of torque at the rear wheels over stock. The system has a turndown style, dump exit right after the muffler to eliminate the over-axle tailpipe. This elimination of the tailpipe helps improve ground clearance and departure angle when you are driving in more extreme off-road situations. All of the necessary hardware is included, and factory-mounting locations are used for an easy installation. Backed by Flowmaster's Lifetime Limited Warranty.

Features

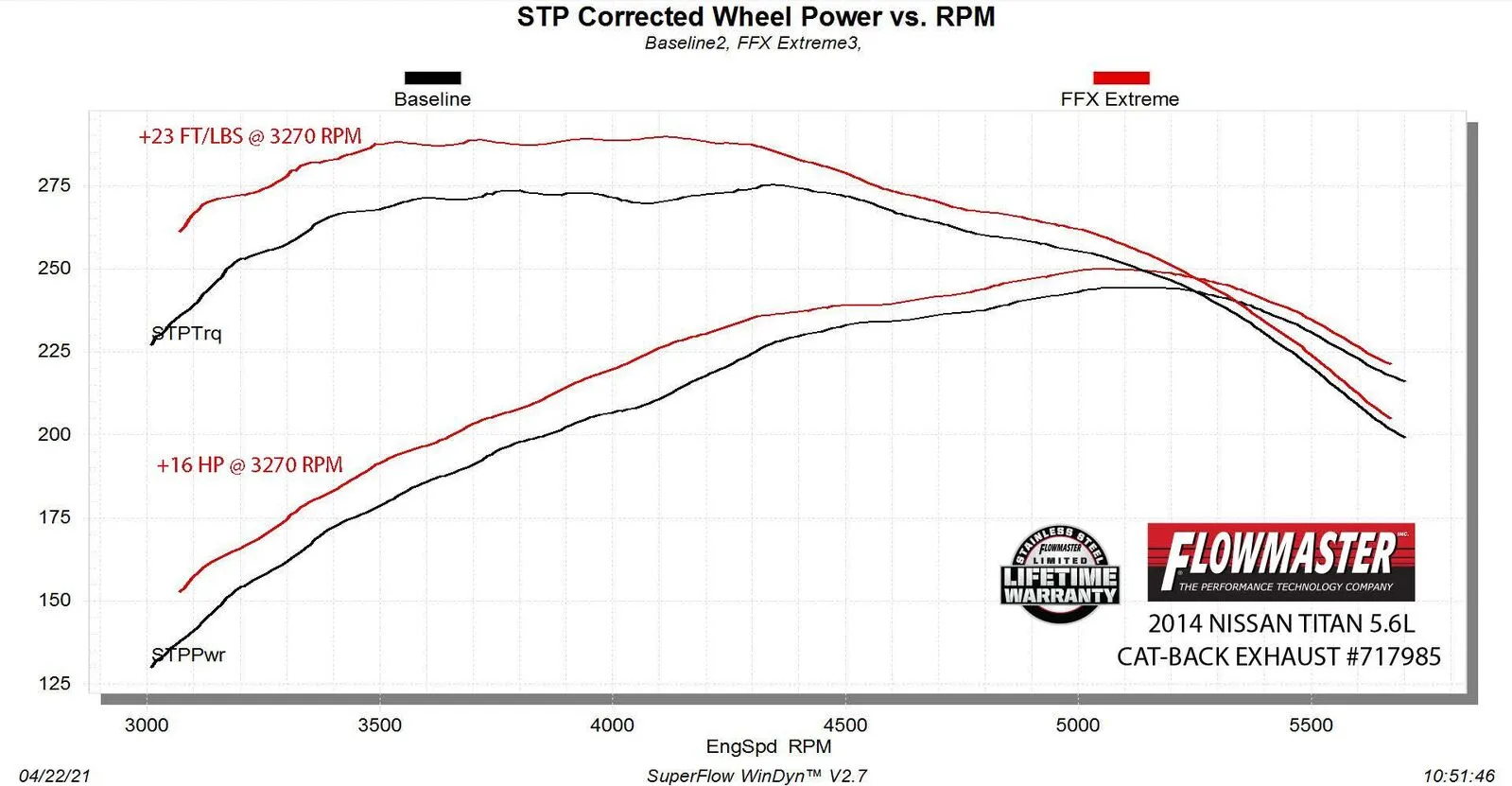

  • Up to 16 hp and 23 lb-ft of torque over stock at the rear wheels
  • 3.00-inch mandrel bent 16-gauge stainless steel tubing maximizes exhaust flow for better power
  • 409 Stainless steel construction delivers durability and improved long-term corrosion resistance

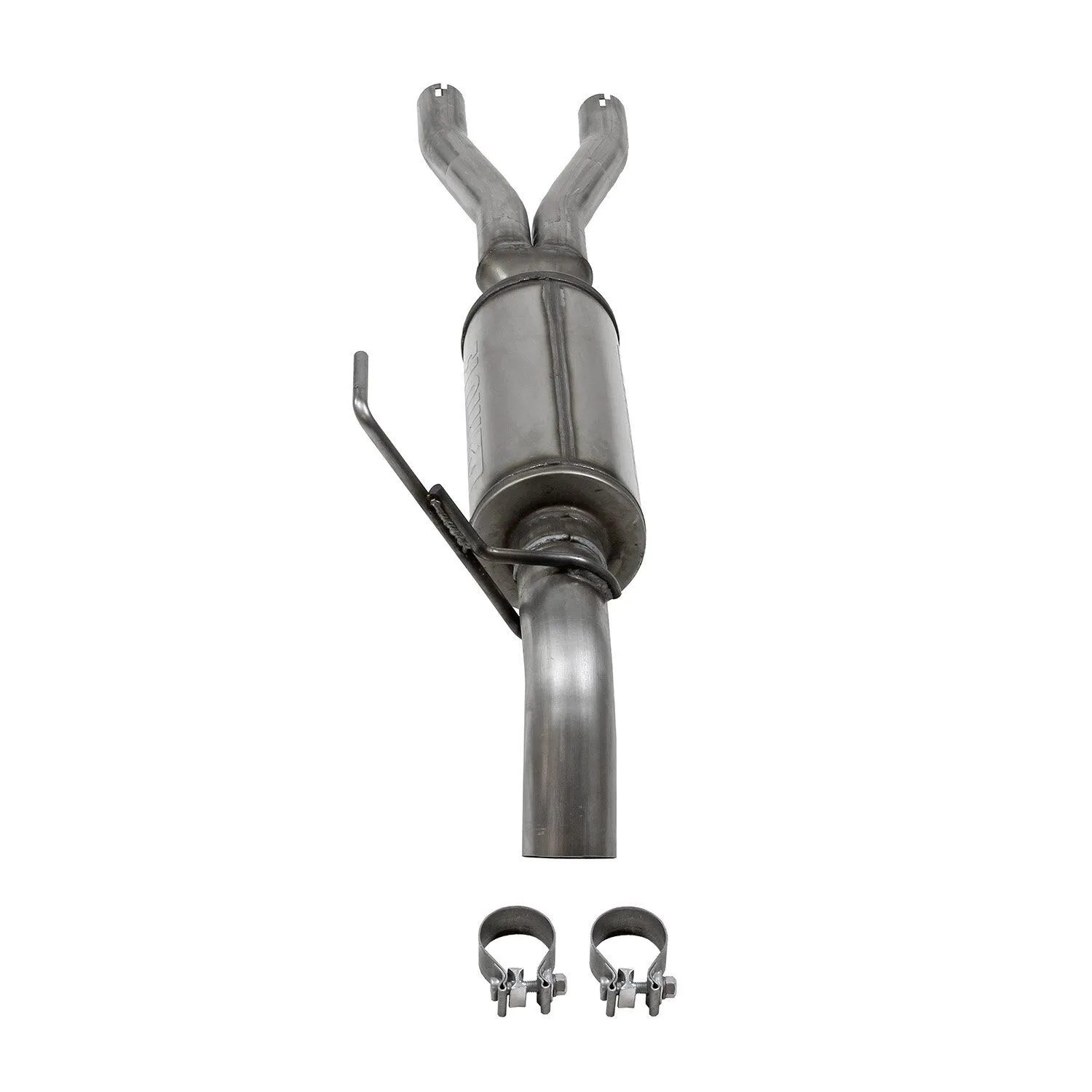

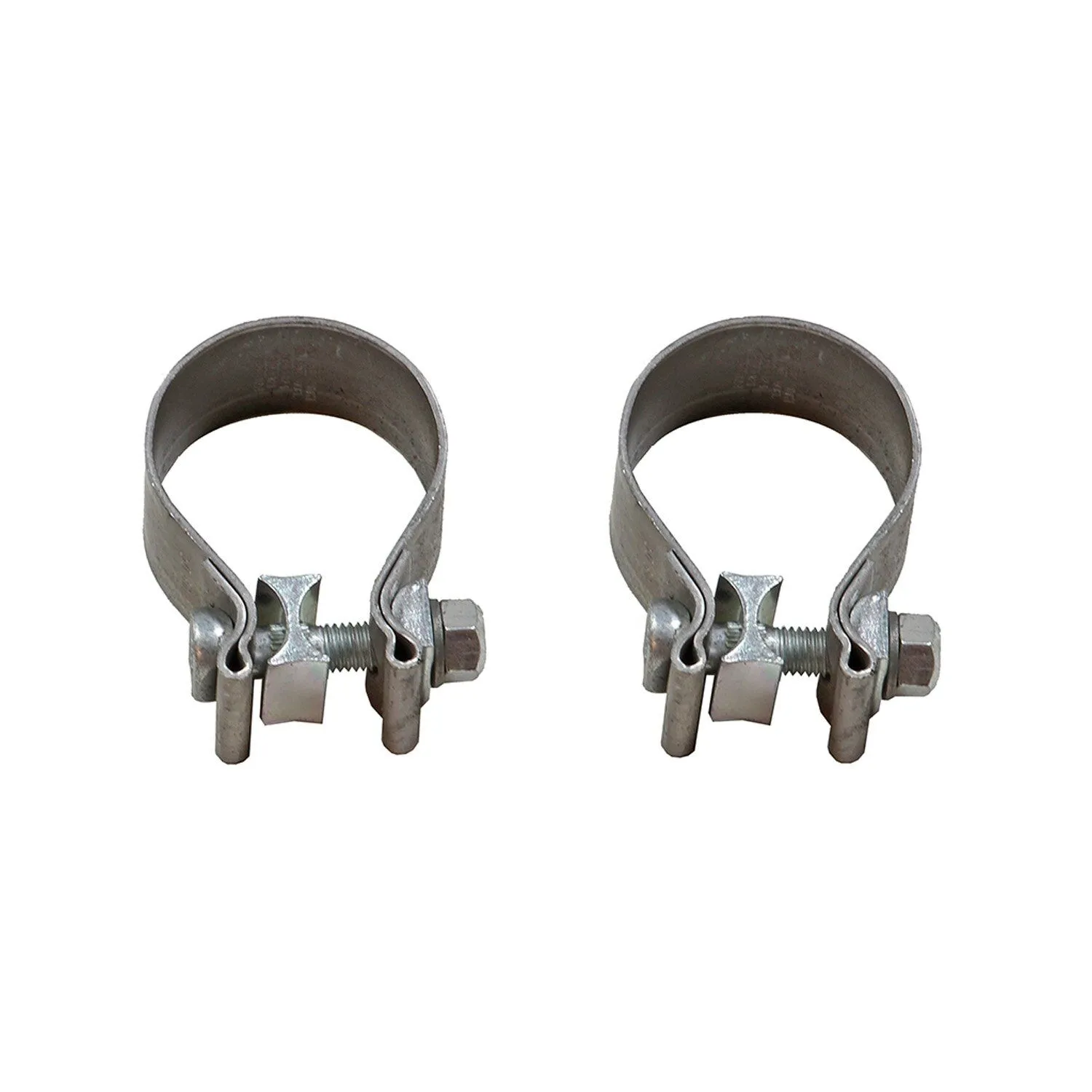

  • Includes complete hardware and factory styled hangers in the stock locations for an easy installation
  • FlowFX Series performance muffler offers an aggressive to moderate sound level with increased performance
  • Dump style exit allows for better ground clearance when in extreme off-road conditions
  • Backed by Flowmaster’s Lifetime Limited Warranty

Specifications

BrandFlowmaster
California Proposition 65 Chemical NameChromium (hexavalent compounds), Nickel (Metallic)
California Proposition 65 RequiredYes
Emission Code5
Exhaust SeriesFlowFX
Exit PositionSOD (Single Out Dump)
Exit StyleSingle Out Dump
FinishNatural
Main Piping Diameter3.00
Material409 Stainless Steel
Mount TypeUses Factory Hangers
Muffler Body Length14
Muffler ColourNatural
Muffler FinishBrushed
Muffler Inlet Diameter3.00
Muffler Inlet LocationCentered
Muffler Material409S Stainless Steel
Muffler Outlet Diameter3.00
Muffler Outlet LocationCentered
Muffler Overall Length48.78
Muffler Part NumberKit Only
Muffler Quantity1
Muffler SeriesFlowFX
Muffler ShapeRound
Muffler TypeAbsorption
Product TypeExhaust System
Sale CategoryExhaust
Single DualSingle
Sound LevelAggressive / Moderate
System TypeCat-back
Tip CutTurndown
Tip Diameter3.00
Tip Edge StyleCut
Tip StyleNot Included
Tubing Diameter3.00
Tubing Material409S Stainless Steel
TypeCat-Back

Compatibility

  • 2004 - 2010 Nissan TITAN LE 5.6
  • 2004 - 2010 Nissan TITAN SE 5.6
  • 2004 - 2010 Nissan TITAN XE 5.6
  • 2008 - 2015 Nissan TITAN PRO-4X 5.6
  • 2011 - 2015 Nissan TITAN S 5.6
  • 2011 - 2015 Nissan TITAN SL 5.6
  • 2011 - 2015 Nissan TITAN SV 5.6
  • 2012 - 2012 Nissan TITAN Base 5.6
  • 2014 - 2015 Nissan TITAN Base 5.6

Flowmaster introduces our Flow FX Extreme stainless steel cat-back exhaust system for the 2004-2015 Nissan Titan with the 5.6-liter engine. This system uses a Flow FX series muffler for an aggressive to moderate sound level and increased performance. 3.00-inch mandrel bent 409 stainless steel tubing allows for maximum exhaust flow and durability. Dyno tests resulted in an extra 16 hp and 23 lb-ft of torque at the rear wheels over stock. The system has a turndown style, dump exit right after the muffler to eliminate the over-axle tailpipe. This elimination of the tailpipe helps improve ground clearance and departure angle when you are driving in more extreme off-road situations. All of the necessary hardware is included, and factory-mounting locations are used for an easy installation. Backed by Flowmaster's Lifetime Limited Warranty.

Features

  • Up to 16 hp and 23 lb-ft of torque over stock at the rear wheels
  • 3.00-inch mandrel bent 16-gauge stainless steel tubing maximizes exhaust flow for better power
  • 409 Stainless steel construction delivers durability and improved long-term corrosion resistance
  • Includes complete hardware and factory styled hangers in the stock locations for an easy installation
  • FlowFX Series performance muffler offers an aggressive to moderate sound level with increased performance
  • Dump style exit allows for better ground clearance when in extreme off-road conditions
  • Backed by Flowmaster’s Lifetime Limited Warranty
BrandFlowmaster
California Proposition 65 Chemical NameChromium (hexavalent compounds), Nickel (Metallic)
California Proposition 65 RequiredYes
Emission Code5
Exhaust SeriesFlowFX
Exit PositionSOD (Single Out Dump)
Exit StyleSingle Out Dump
FinishNatural
Main Piping Diameter3.00
Material409 Stainless Steel
Mount TypeUses Factory Hangers
Muffler Body Length14
Muffler ColourNatural
Muffler FinishBrushed
Muffler Inlet Diameter3.00
Muffler Inlet LocationCentered
Muffler Material409S Stainless Steel
Muffler Outlet Diameter3.00
Muffler Outlet LocationCentered
Muffler Overall Length48.78
Muffler Part NumberKit Only
Muffler Quantity1
Muffler SeriesFlowFX
Muffler ShapeRound
Muffler TypeAbsorption
Product TypeExhaust System
Sale CategoryExhaust
Single DualSingle
Sound LevelAggressive / Moderate
System TypeCat-back
Tip CutTurndown
Tip Diameter3.00
Tip Edge StyleCut
Tip StyleNot Included
Tubing Diameter3.00
Tubing Material409S Stainless Steel
TypeCat-Back
  • 2004 - 2010 Nissan TITAN LE 5.6
  • 2004 - 2010 Nissan TITAN SE 5.6
  • 2004 - 2010 Nissan TITAN XE 5.6
  • 2008 - 2015 Nissan TITAN PRO-4X 5.6
  • 2011 - 2015 Nissan TITAN S 5.6
  • 2011 - 2015 Nissan TITAN SL 5.6
  • 2011 - 2015 Nissan TITAN SV 5.6
  • 2012 - 2012 Nissan TITAN Base 5.6
  • 2014 - 2015 Nissan TITAN Base 5.6
