Description

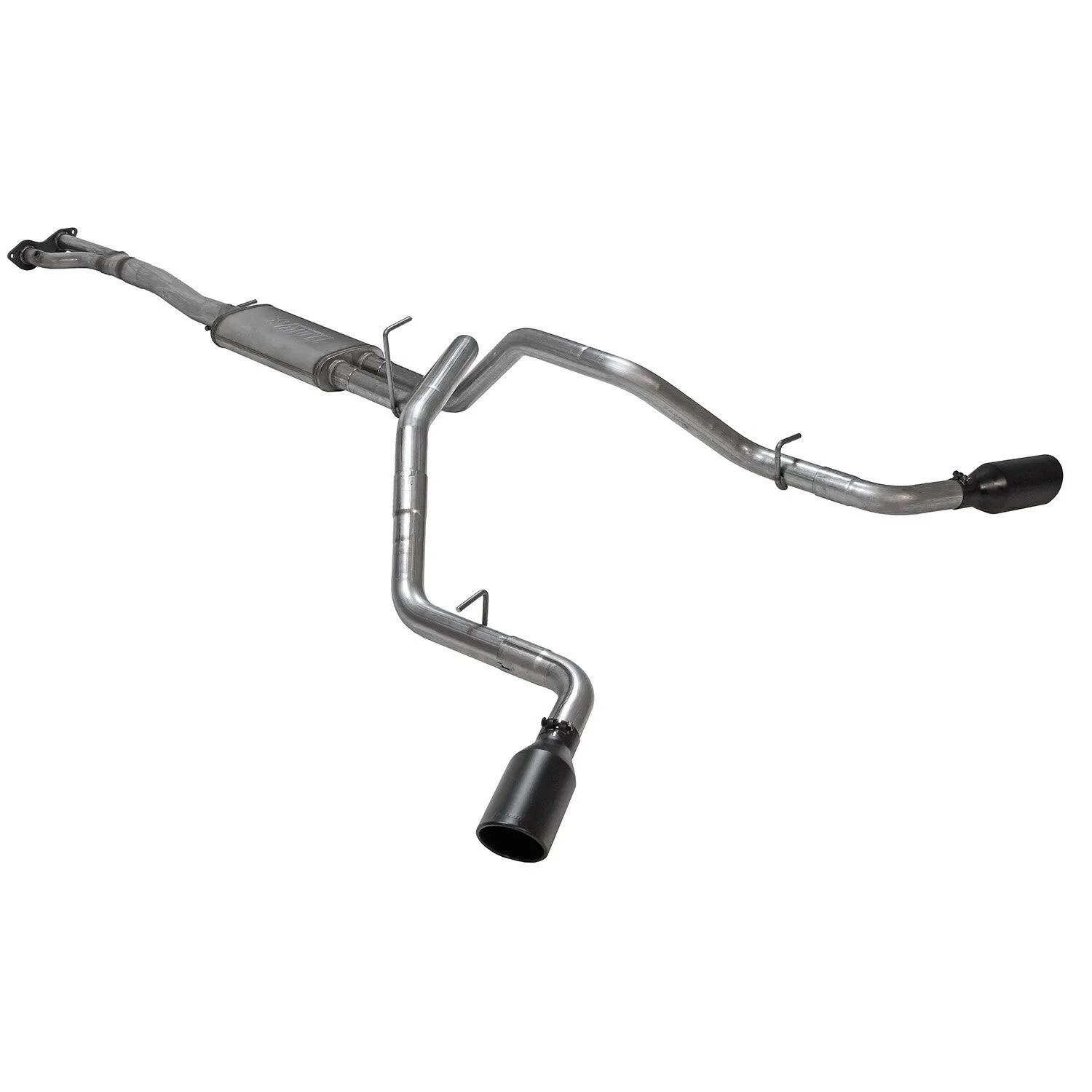

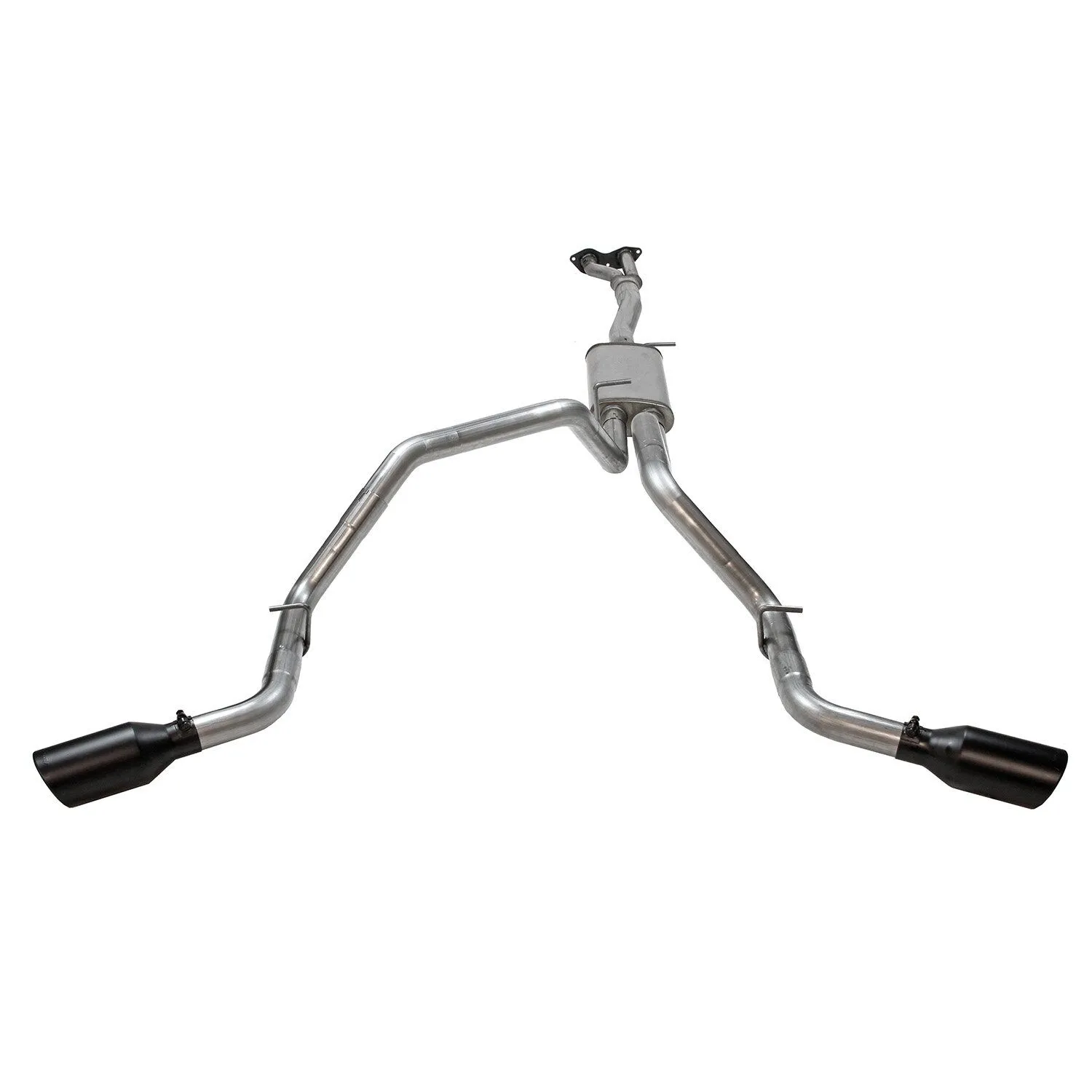

This Flow FX cat-back exhaust system is designed for the 1996-1999 Chevrolet/GMC 1500 Extended Cab/Short Bed trucks with the 5.7L engine and dual catalytic converters. Features include 409 stainless steel construction for added durability and 16-gauge 3.0-inch to 2.5-inch mandrel-bent tubing for free unrestricted flow. The compact oval "straight-through" Flow FX performance muffler delivers a moderate yet deep and powerful sound while the interior sound is kept very mild. The system uses the factory hanger locations and is finished off with two 4.50-inch black ceramic-coated 304 stainless steel tips embossed with the Flowmaster name exiting on each side of the truck. The kit includes detailed instructions and all hardware necessary for a quick and easy installation you can do at home. Backed by Flowmaster's Lifetime Limited Warranty.

Features

  • This system produces a moderate rumble with minimal interior resonance

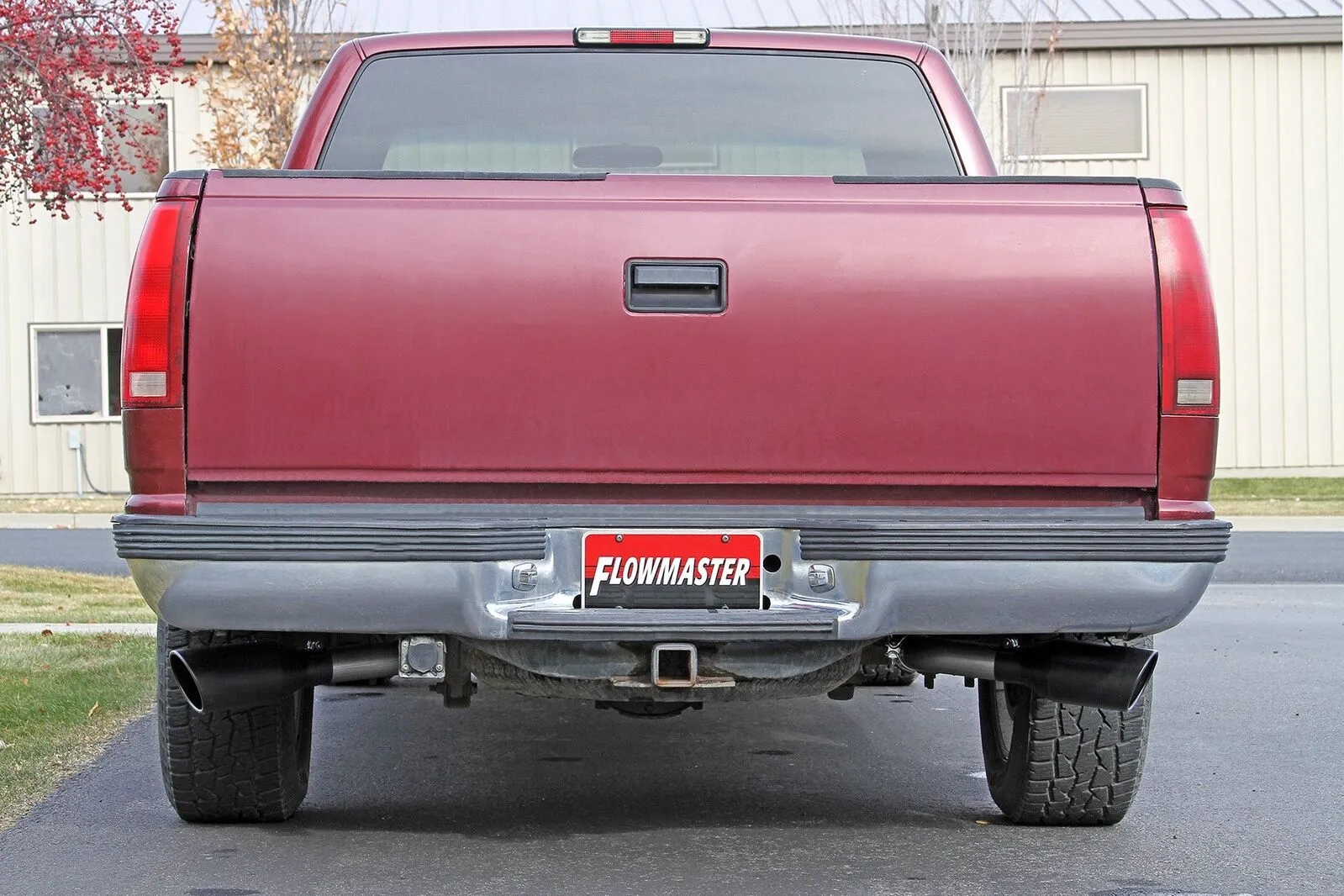

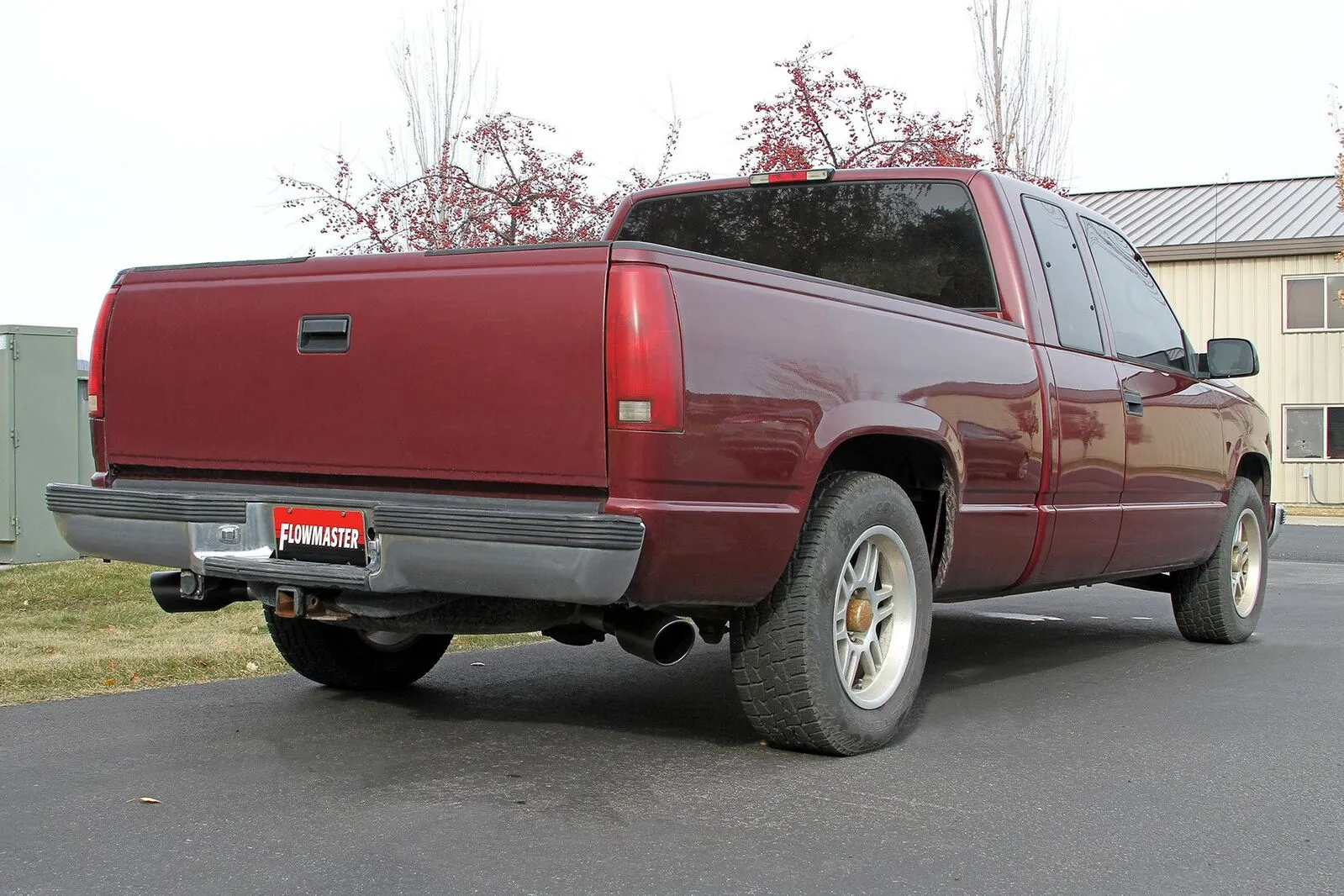

  • Includes two large 4.5-inch black ceramic coated tips exiting out each side of the truck for an aggressive look
  • FlowFX “straight through” performance muffler delivers a deep performance tone and improves exhaust flow
  • Increases of up to 11 HP and 11 FT/LB over the stock exhaust

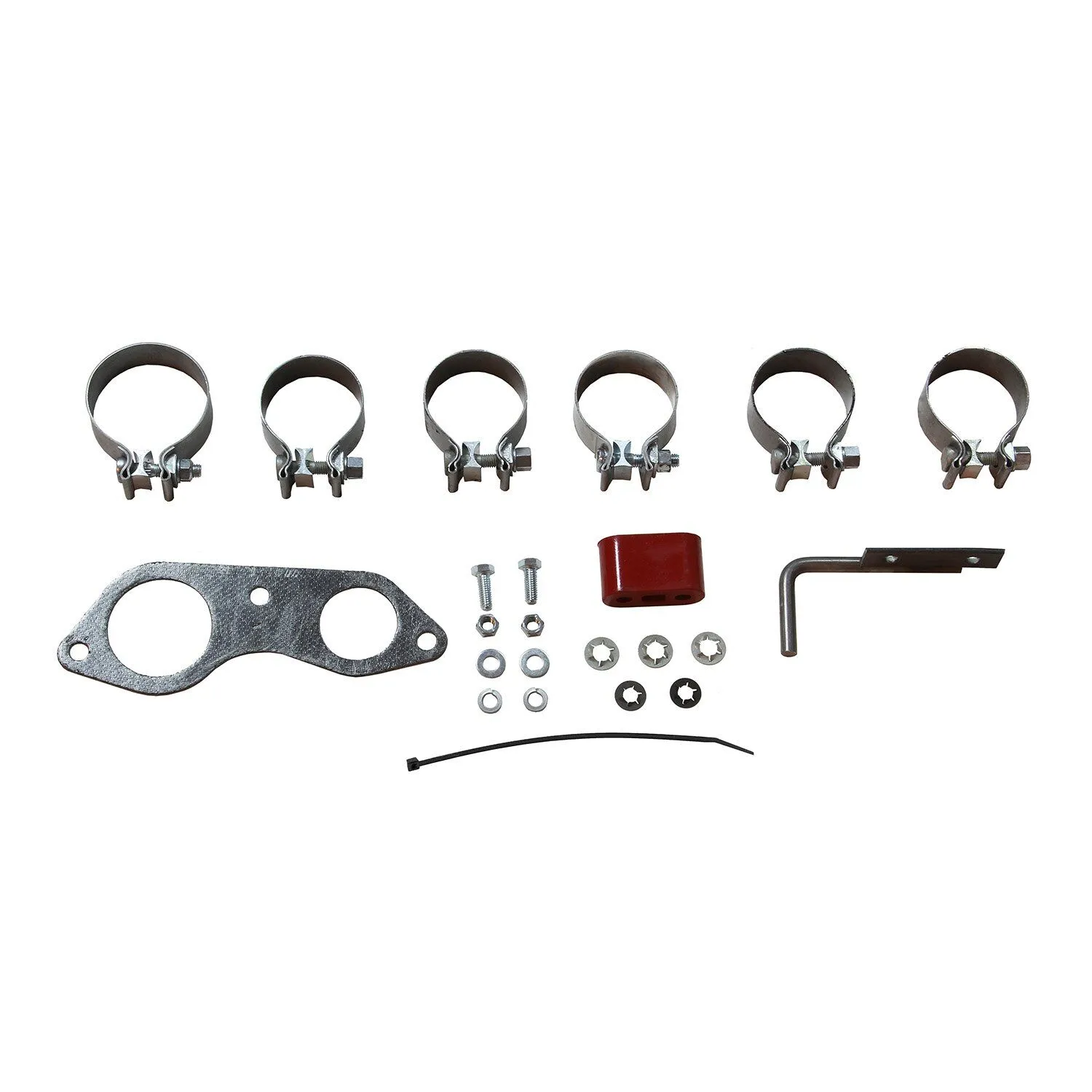

  • Includes complete hardware and factory styled hangers in the stock locations for an easy installation
  • 2.5-inch Mandrel bent 16 gauge 409 stainless steel tubing maximizes exhaust flow and improved durability
  • Lifetime Limited Warranty

Specifications

BrandFlowmaster
California Proposition 65 Chemical NameChromium (hexavalent compounds), Nickel (Metallic)
California Proposition 65 RequiredYes
Emission Code5
Exhaust SeriesFlowFX
Exhaust Tip Quantity2
Exit PositionDual Out Side
Exit StyleDual Out Side
FinishNatural
Main Piping Diameter2.50
Main Piping Diameter2-1/2
Material409 Stainless Steel
Mount TypeUses Factory Hangers
Muffler Body Length18
Muffler ColourNatural
Muffler FinishBrushed
Muffler Inlet Diameter3
Muffler Inlet LocationCentered
Muffler Material409S Stainless Steel
Muffler Outlet Diameter2.5
Muffler Overall Length24
Muffler Part NumberKit Only
Muffler Quantity1
Muffler SeriesFlowFX
Muffler ShapeOval
Muffler TypeAbsorption
Product TypeExhaust System
Sale CategoryExhaust
Single DualDual
Sound LevelModerate
System TypeCat-back
Tip CutAngle
Tip Diameter4.5
Tip Edge StyleRolled
Tip FinishBlack Ceramic
Tip Length11
Tip LogoEmbossed
Tip Material304 Stainless
Tip Quantity2
Tip ShapeRound
Tip StyleSingle Wall
Tubing Diameter2.5
Tubing Material409S Stainless Steel
TypeCat-Back

Compatibility

  • 1996 - 1998 Chevrolet C1500 WT 5.7
  • 1996 - 1998 Chevrolet C1500 Cheyenne 5.7
  • 1996 - 1998 Chevrolet C1500 Silverado 5.7
  • 1996 - 1997 Chevrolet C1500 Base 5.7
  • 1999 - 1999 Chevrolet C1500 LS 5.7
  • 1996 - 1998 Chevrolet K1500 Silverado 5.7
  • 1996 - 1998 Chevrolet K1500 WT 5.7
  • 1996 - 1998 Chevrolet K1500 Cheyenne 5.7
  • 1996 - 1997 Chevrolet K1500 Base 5.7
  • 1999 - 1999 Chevrolet K1500 LS 5.7
  • 1996 - 1999 GMC C1500 Sierra SL 5.7
  • 1996 - 1999 GMC C1500 Sierra SLE 5.7
  • 1996 - 1999 GMC C1500 Sierra SLT 5.7
  • 1996 - 1998 GMC C1500 Sierra Special 5.7
  • 1997 - 1997 GMC C1500 Sierra GT 5.7
  • 1996 - 1999 GMC K1500 Sierra SLE 5.7
  • 1996 - 1999 GMC K1500 Sierra SL 5.7
  • 1996 - 1999 GMC K1500 Sierra SLT 5.7
  • 1996 - 1998 GMC K1500 Sierra Special 5.7
