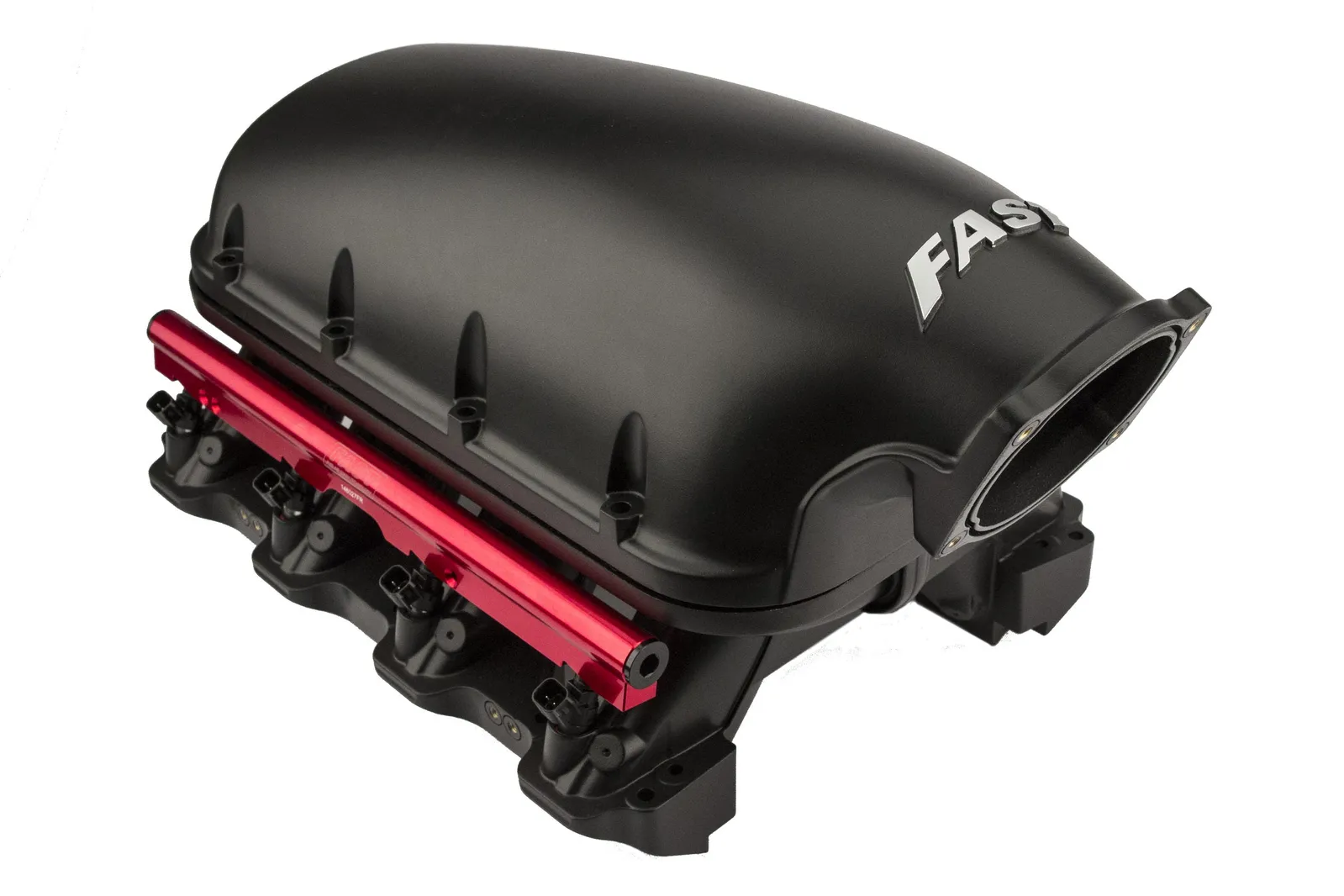

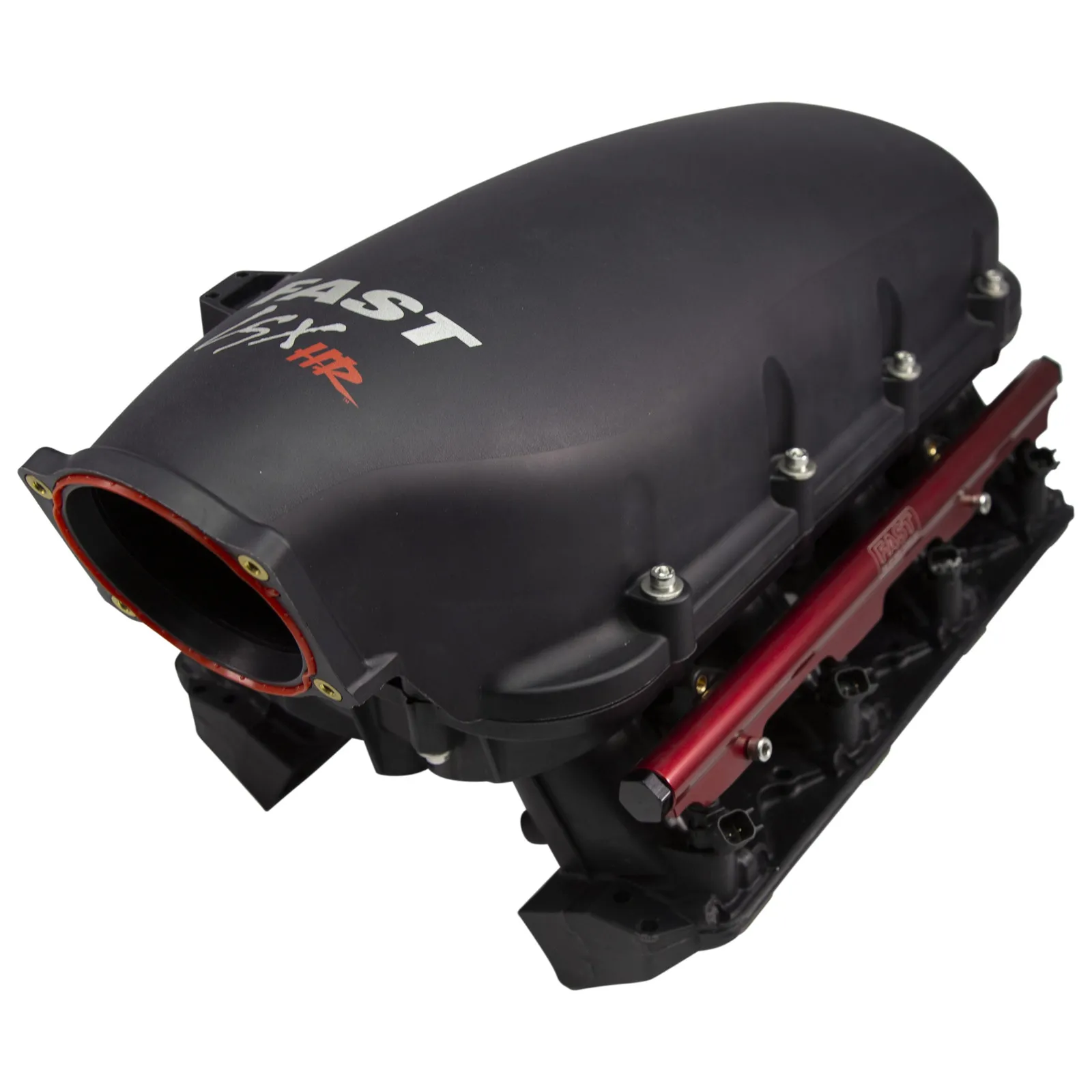

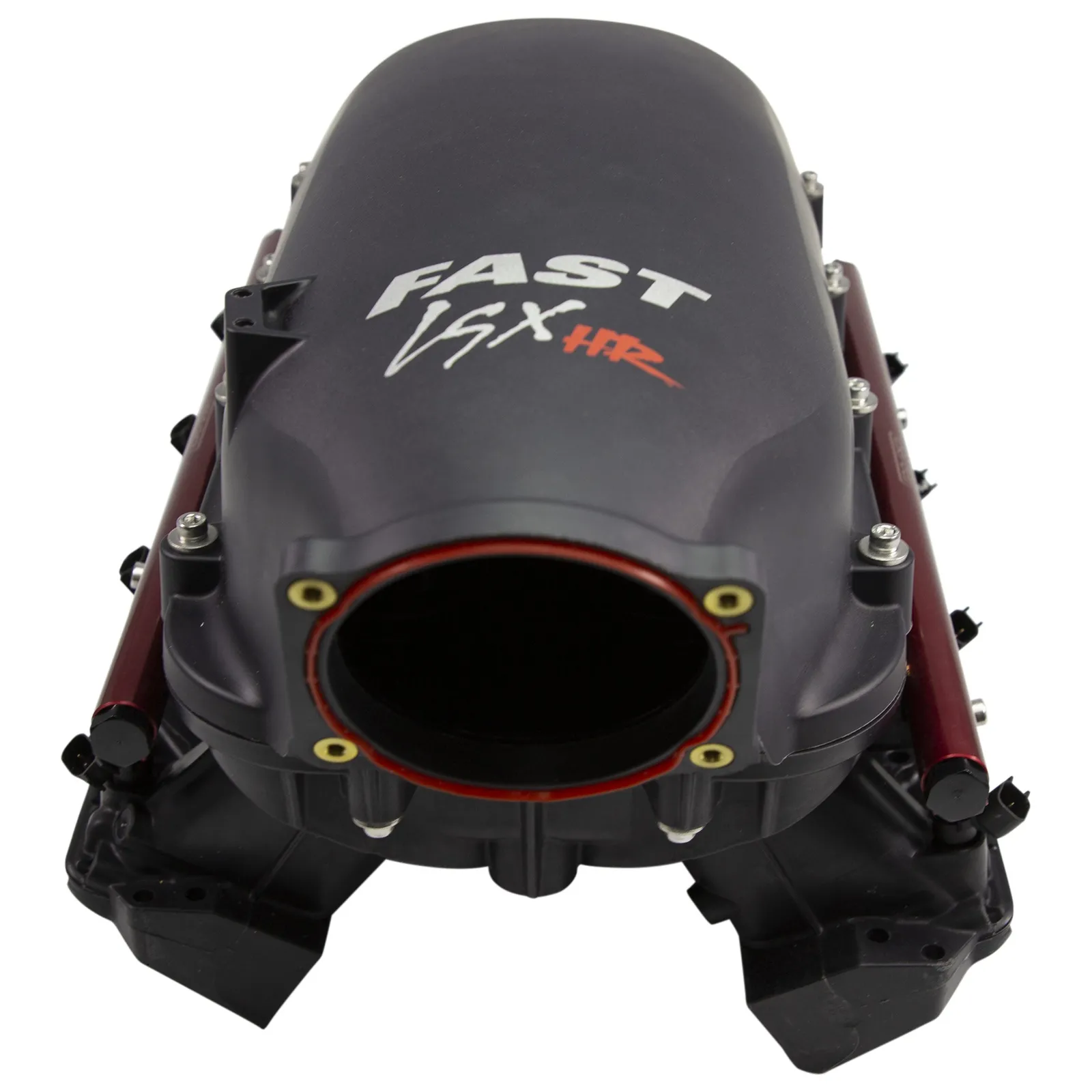

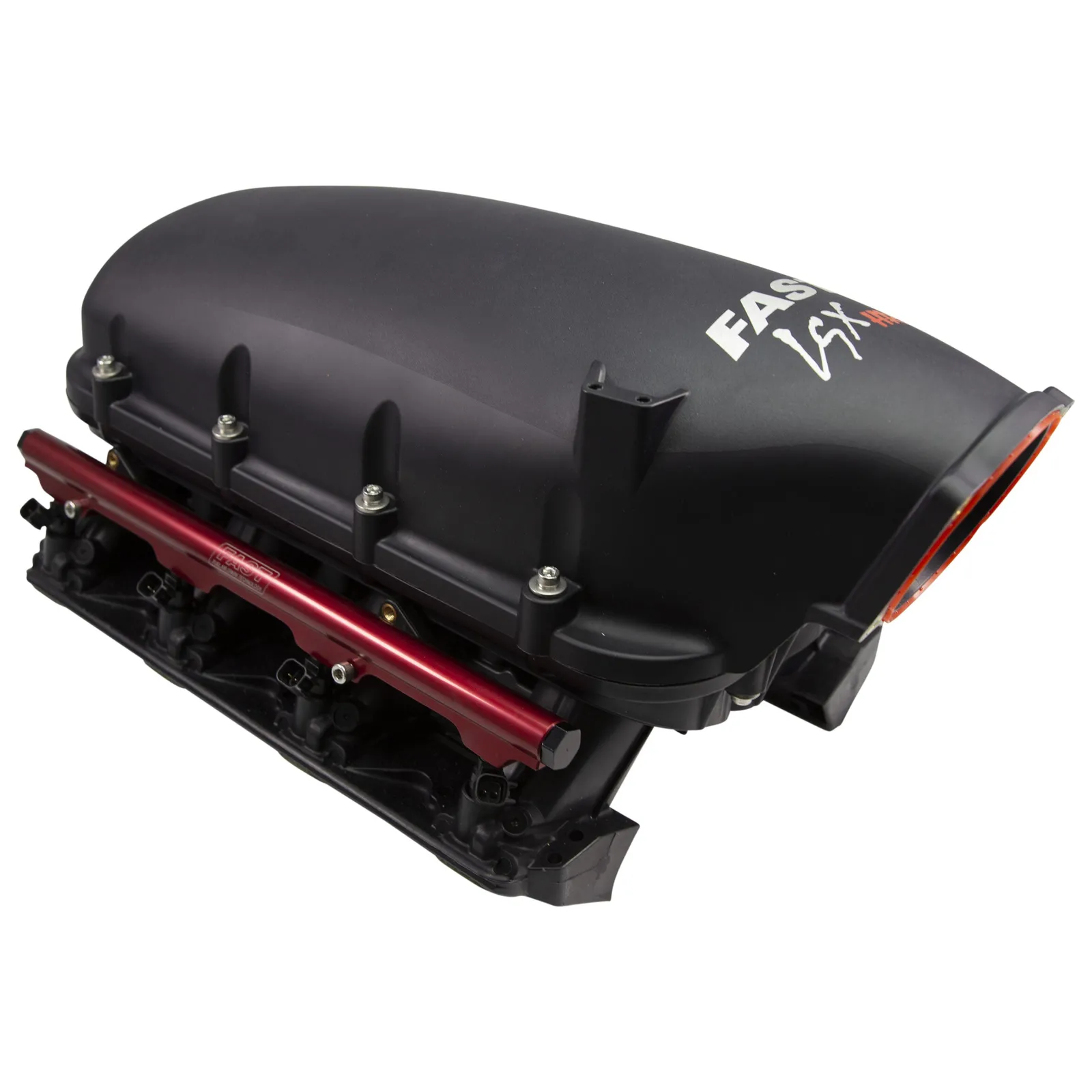

FAST 146106 - LSX Manifold 103MM Gen III LS Rect Port - Black

Intake Manifold - LSXHR - 103 mm Throttle Body Flange - Tunnel Ram - Rectangle Port - Fuel Rails Included - Plastic - Black - LS3 - GM LS-Series - Kit

Designed for boosted and N/A LS3 engines, the LSXHR 103mm intake is not only rated for 45 PSI of pressure, but also eliminates heat soak thanks to its advanced polymer construction. Gains 30 HP on average over competitors' aluminum intakes.

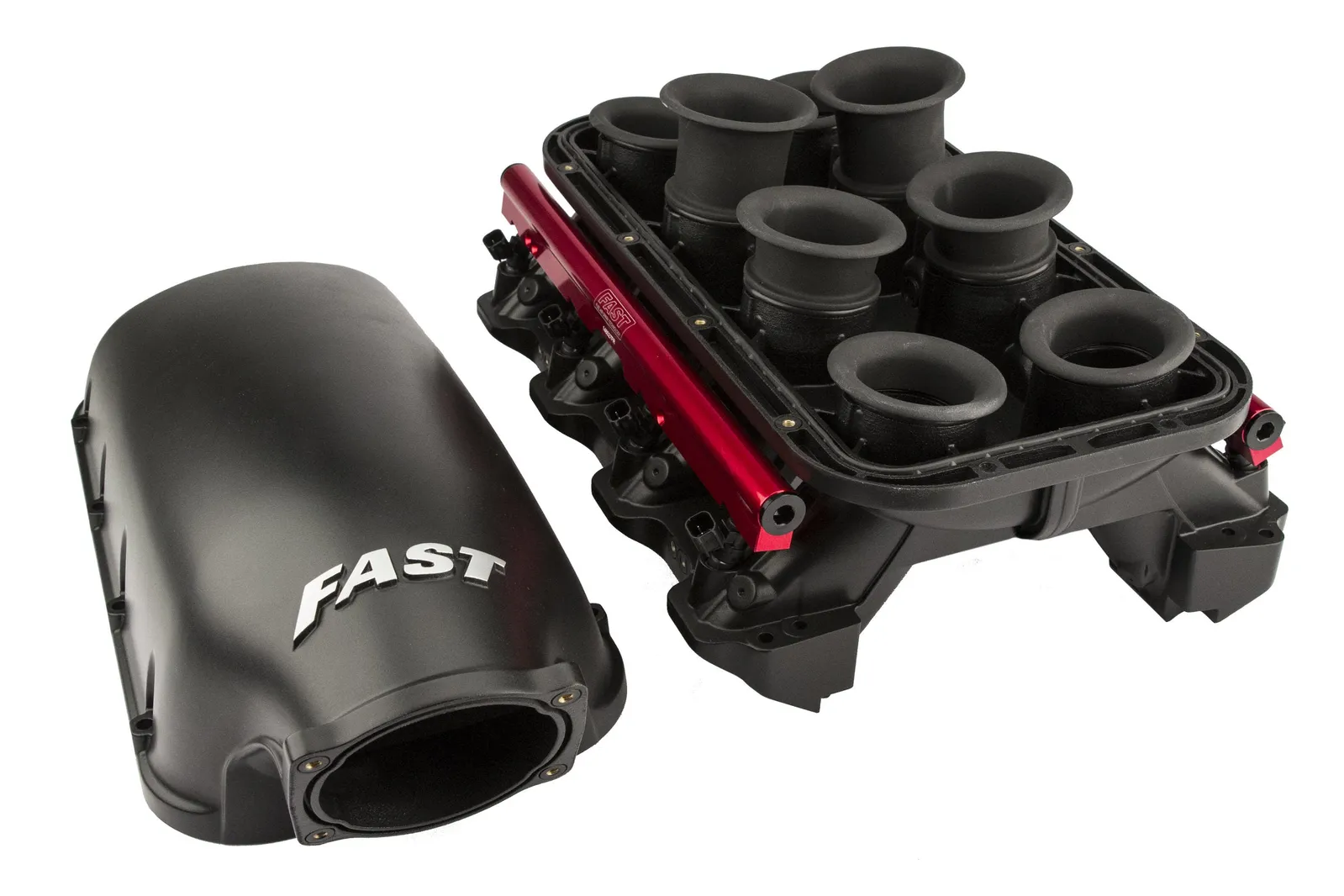

FAST has developed the industry’s first polymer tunnel ram-style intake manifold, ideal for generating maximum power in boosted and naturally aspirated engines. Available for rectangular port LS3 and raised rectangular port LS7 engines, the FAST LSXHR FAST-RAM Intake Manifold features removable stacks of various lengths, so racers can experiment with finding which combination makes the most power in their application. Its polymer construction is not only lightweight and high strength, but also virtually eliminates power-robbing heat soak that occurs with commonly available aluminum intake manifolds. Testing has shown an average 30-horsepower gain between 5,000 and 7,500 RPM over competitor tunnel ram intake manifolds. The FAST LSXHR FAST-RAM Intake Manifold is designed specifically with boosted applications in mind and is rated for up to 45psi of continuous pressure. Compound fuel injector angle aims the spray pattern for ideal atomization, resulting in maximum power production and superior drivability. A reversible top allows for forward- or firewall-facing throttle body installations. The intake manifold also features two nitrous nozzle bosses per runner for clean and easy direct port system installations. Its 103mm throttle body opening can be port matched to 105mm.

• Lightweight and strong polymer construction
• Virtually eliminates heat soak
• Average 30 HP gain over competitor tunnel ram manifolds
• Rated for up to 45psi of boost pressure
• Forward- or firewall-facing throttle body installation
• Available for rectangular LS3 and raised port LS7 engines
