Camburg CAM-310184-GRY - Toyota Tacoma 05-23 / 4-Runner 03-23 / FJ 07-14 KINETIK V2 Billet Uniball Upper Arms

KINETIK V2 Performance Billet Uniball Upper Arms - Grey

Camburg Toyota Tacoma '05-23 | 4-Runner '03-23 | FJ '07-14 KINETIK V2 Performance Billet Uniball Upper Arms

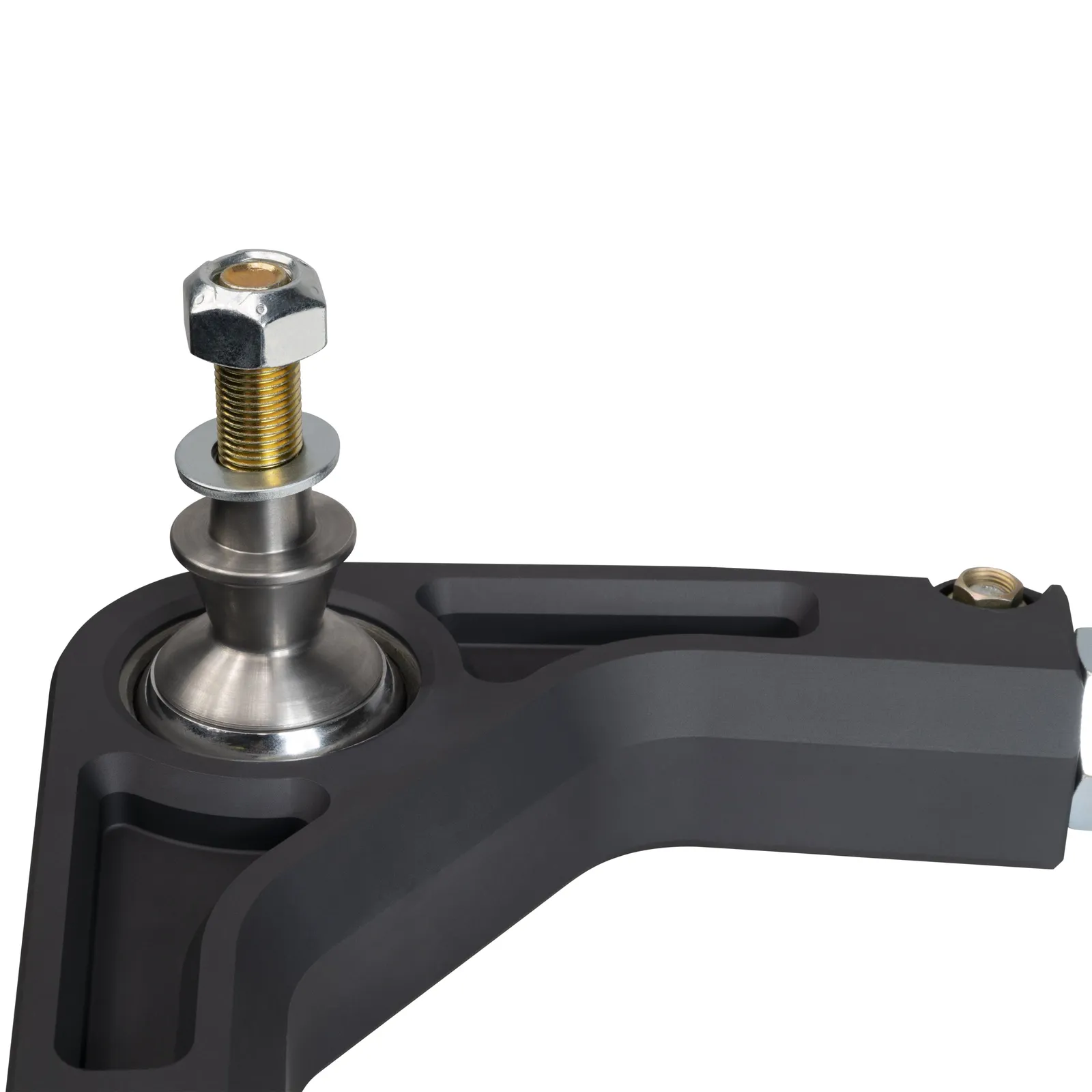

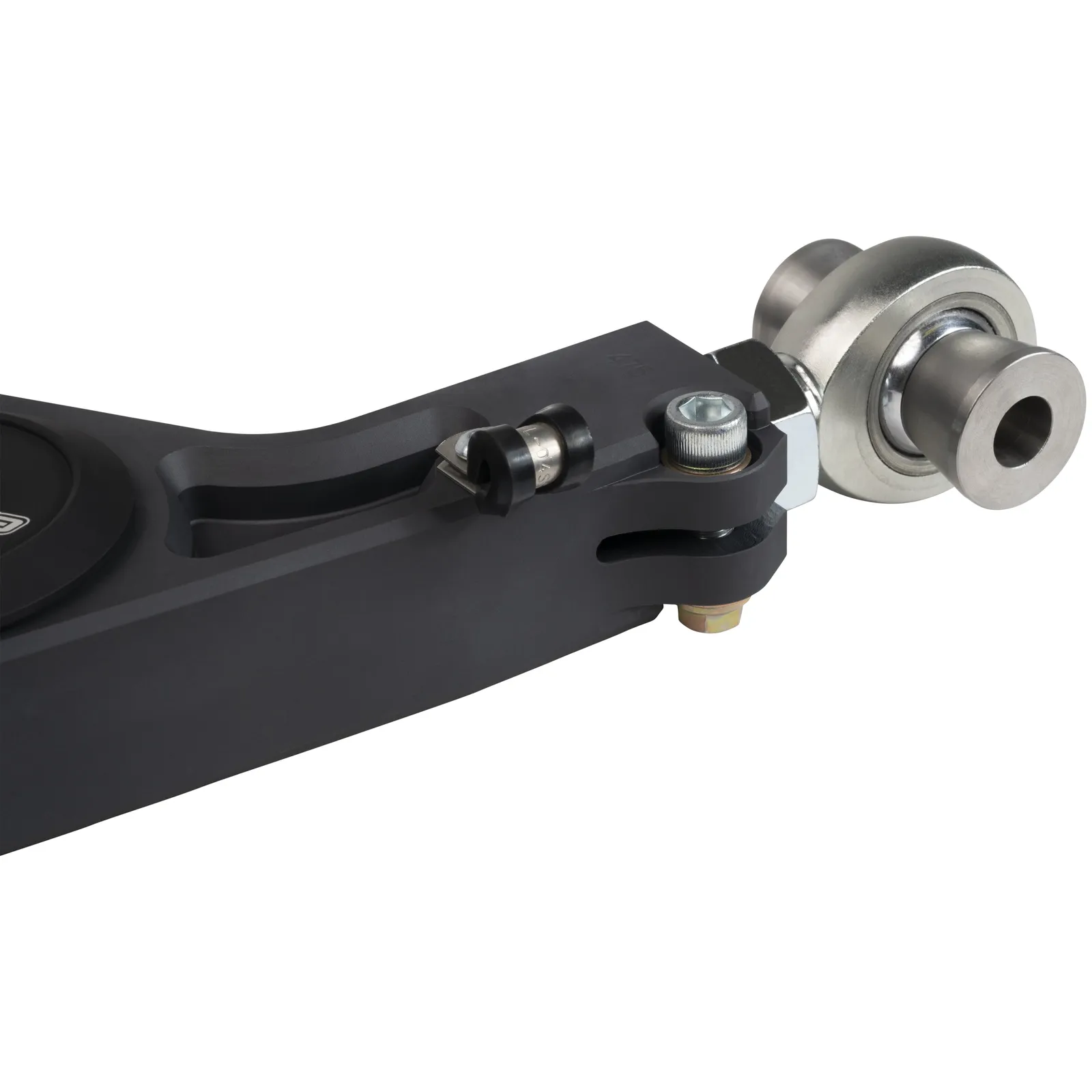

These arms are meticulously designed and crafted using CAD and CNC machining. They are made from aerospace quality 6061 billet aluminum and undergo bead blasting, Type II anodizing, and laser etching for a sleek gun metal gray finish. The arms feature a larger FK 1.25" uniball with a PTFE liner for increased strength and misalignment, allowing for maximum wheel travel. They are made in the USA and are superior to cheaper imports. The uniball is adapted to the spindle/knuckle using model-specific spacers made from heat-treated stainless steel. No drilling or modifications are required. The arms also utilize larger and stronger FK 7/8" chromoly heim joints for additional camber and caster adjustment. These heim joints eliminate flexing/deflection and provide zero binding under hard use and braking. The arms come with AN/Mil-spec hardware, including a single pinch bolt and secondary jam nut for secure attachment. The V2 design of these arms increases usable wheel travel, corrects camber and caster, and eliminates weak factory ball-joints. They are designed for 1-3" of lift and come with all necessary hardware for installation.

  • Eliminates weak factory ball-joints
  • Increases usable wheel travel
  • Corrects camber and caster
Adjustable: Yes
Attachments Included: No
Ball Joint Cover Included: Yes
Ball Joint Included: Yes
Ball Joint Type: Uniball
Bushing Material: 4130 Chromoly
Bushings Included: Yes
Control Arm Color: Gray
Control Arm Construction: CNC Machined
Control Arm Material: 6061-T6 Billet Aluminum
Grade Type: Performance
Grease Fitting Included: No
Hardware Included: Yes
Mounting Hardware Included: Yes
Pre-Assembled: Yes
Pre-Greased: No
Reinforced: No
Set: Yes
Suspension Grade Type: Performance
Suspension Type: Performance

Specifications

Compatibility

  • 2010 - 2022 Lexus GX460
  • 2003, 2005 - 2009 Lexus GX470
  • 2003 - 2024 Toyota 4Runner
  • 2007 - 2014 Toyota FJ Cruiser
  • 2005 - 2021 Toyota Hilux
  • 2006 - 2023 Toyota Tacoma
  • 2006 Toyota Tacoma, Base Prerunner
  • 2005 - 2015 Toyota Tacoma, Pre Runner
  • 2006 - 2009 Toyota Tacoma, SR5 Prerunner
  • 2006 - 2009 Toyota Tacoma, TRD Sport Prerunner
