Description

Ready to tune for more power? This Power Tune Pack will get your car ready for more boost and more horsepower. Including an upgraded Kinugawa TD05-18G turbo, ID1050 injectors and Process West intercooler capable of much bigger power. This package will be best suited to cars already fitted with basic modifications such as turbo-back exhaust, larger fuel pump and 3-Port boost solenoid (see our "First Tune Kit").

Package includes:

*Note: These modifications can produce power exceeding the safe limits of the standard engine and gearbox. Please consider these risks before purchasing*

Specifications

Turbo:

  • Bearing Type Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger.
  • Cooling System Water cooled
  • Compressor Wheel 50.5 mm / 68 mm (Inducer / Exducer)
  • Turbine Wheel 49.1 / 56mm mm (Inducer / Exducer)
  • Actuator Pressure 1 Bar / 14.7 PSI
  • Turbo Boost Limit 2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Injectors:

  • Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure - 10.0 Bar (145.0 psi)
  • Fuel Compatibility: Compatible With All Known Fuels
  • Electrical Connector: USCAR

Intercooler:

  • End Tank Material: Aluminum
  • Core Colour: Black
  •
  • Core Type: Bar and Plate
  • Core Depth: 3.54in
  • Core Height: 7.6in
  • Core Width: 19.44in
  • Includes New Clamps: YesInstallation Hardware Included: Yes
  •
  • Intercooler Piping Included: Yes
  • Intercooler Piping Material: Silicone

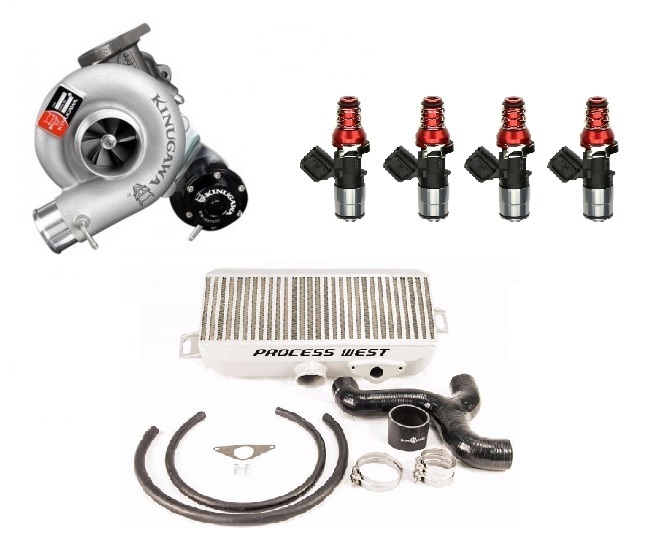

What's Included

  • Kinugawa TD05-18G with Billet compressor wheel and 9-blade turbine wheel
  • Injector Dynnamics ID1050X Injectors
  • Process West Top-Mount Intercooler kit

Compatibility

  • 2008-2020 Subaru Impeza WRX STi

Ready to tune for more power? This Power Tune Pack will get your car ready for more boost and more horsepower. Including an upgraded Kinugawa TD05-18G turbo, ID1050 injectors and Process West intercooler capable of much bigger power. This package will be best suited to cars already fitted with basic modifications such as turbo-back exhaust, larger fuel pump and 3-Port boost solenoid (see our "First Tune Kit").

Package includes:

*Note: These modifications can produce power exceeding the safe limits of the standard engine and gearbox. Please consider these risks before purchasing*

Turbo:

  • Bearing Type Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger.
  • Cooling System Water cooled
  • Compressor Wheel 50.5 mm / 68 mm (Inducer / Exducer)
  • Turbine Wheel 49.1 / 56mm mm (Inducer / Exducer)
  • Actuator Pressure 1 Bar / 14.7 PSI
  • Turbo Boost Limit 2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Injectors:

  • Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure - 10.0 Bar (145.0 psi)
  • Fuel Compatibility: Compatible With All Known Fuels
  • Electrical Connector: USCAR

Intercooler:

  • End Tank Material: Aluminum
  • Core Colour: Black
  •
  • Core Type: Bar and Plate
  • Core Depth: 3.54in
  • Core Height: 7.6in
  • Core Width: 19.44in
  • Includes New Clamps: YesInstallation Hardware Included: Yes
  •
  • Intercooler Piping Included: Yes
  • Intercooler Piping Material: Silicone
  • Kinugawa TD05-18G with Billet compressor wheel and 9-blade turbine wheel
  • Injector Dynnamics ID1050X Injectors
  • Process West Top-Mount Intercooler kit
  • 2008-2020 Subaru Impeza WRX STi
