Description

Ready to tune for more power? This Power Tune Pack will get your car ready for more boost and more horsepower. Including an upgraded Kinugawa TD05-18G turbo, ID1050 injectors and Process West intercooler capable of much bigger power. This package will be best suited to cars already fitted with basic modifications such as turbo-back exhaust, larger fuel pump and 3-Port boost solenoid (see our "First Tune Kit").

Package includes:



*Note: These modifications can produce power exceeding the safe limits of the standard engine and gearbox. Please consider these risks before purchasing*

Specifications

Turbo:

  • Bearing Type Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger.
  • Cooling System Water cooled
  • Compressor Wheel 50.5 mm / 68 mm (Inducer / Exducer)
  • Turbine Wheel 49.1 / 56mm mm (Inducer / Exducer)
  • Actuator Pressure 1 Bar / 14.7 PSI
  • Turbo Boost Limit 2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Injectors:

  • Nominal Flow Rate - 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure - 10.0 Bar (145.0 psi)
  • Fuel Compatibility - Compatible With All Known Fuels
  • Electrical Connector - USCAR

Intercooler:

  • Color: Black Core
  • End Tank Material: Aluminum
  • Core Type: Bar and Plate
  • Core Depth: 3.54in
  • Core Height: 7.6in
  • Core Width: 19.44in
  • Includes New Clamps: Yes
  • Installation Hardware Included: Yes
  • Intercooler Piping Included: Yes
  • Intercooler Piping Material: Silicone

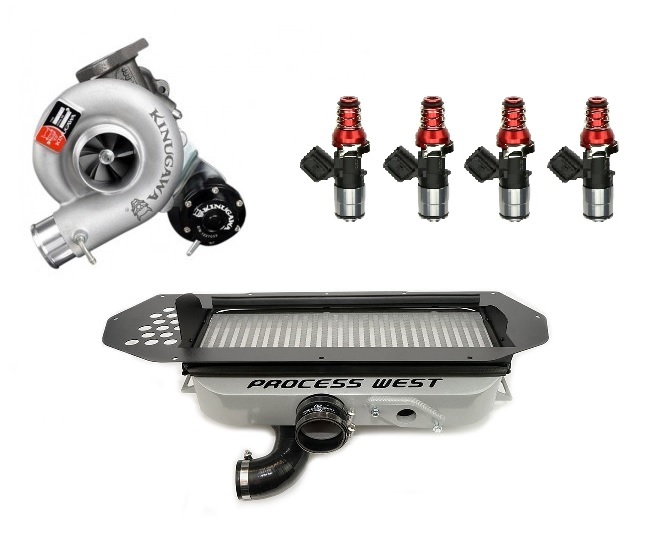

What's Included

  • Kinugawa TD05-18G with Billet compressor wheel and 9-blade turbine wheel
  • Injector Dynnamics ID1050X Injectors
  • Process West Top-Mount Intercooler kit

Compatibility

  • 2003-2007 Subaru WRX

  • 2006-2007 Subaru WRX STi

Ready to tune for more power? This Power Tune Pack will get your car ready for more boost and more horsepower. Including an upgraded Kinugawa TD05-18G turbo, ID1050 injectors and Process West intercooler capable of much bigger power. This package will be best suited to cars already fitted with basic modifications such as turbo-back exhaust, larger fuel pump and 3-Port boost solenoid (see our "First Tune Kit").

Package includes:



*Note: These modifications can produce power exceeding the safe limits of the standard engine and gearbox. Please consider these risks before purchasing*

Turbo:

  • Bearing Type Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger.
  • Cooling System Water cooled
  • Compressor Wheel 50.5 mm / 68 mm (Inducer / Exducer)
  • Turbine Wheel 49.1 / 56mm mm (Inducer / Exducer)
  • Actuator Pressure 1 Bar / 14.7 PSI
  • Turbo Boost Limit 2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Injectors:

  • Nominal Flow Rate - 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure - 10.0 Bar (145.0 psi)
  • Fuel Compatibility - Compatible With All Known Fuels
  • Electrical Connector - USCAR

Intercooler:

  • Color: Black Core
  • End Tank Material: Aluminum
  • Core Type: Bar and Plate
  • Core Depth: 3.54in
  • Core Height: 7.6in
  • Core Width: 19.44in
  • Includes New Clamps: Yes
  • Installation Hardware Included: Yes
  • Intercooler Piping Included: Yes
  • Intercooler Piping Material: Silicone
  • Kinugawa TD05-18G with Billet compressor wheel and 9-blade turbine wheel
  • Injector Dynnamics ID1050X Injectors
  • Process West Top-Mount Intercooler kit
  • 2003-2007 Subaru WRX

  • 2006-2007 Subaru WRX STi
