Description

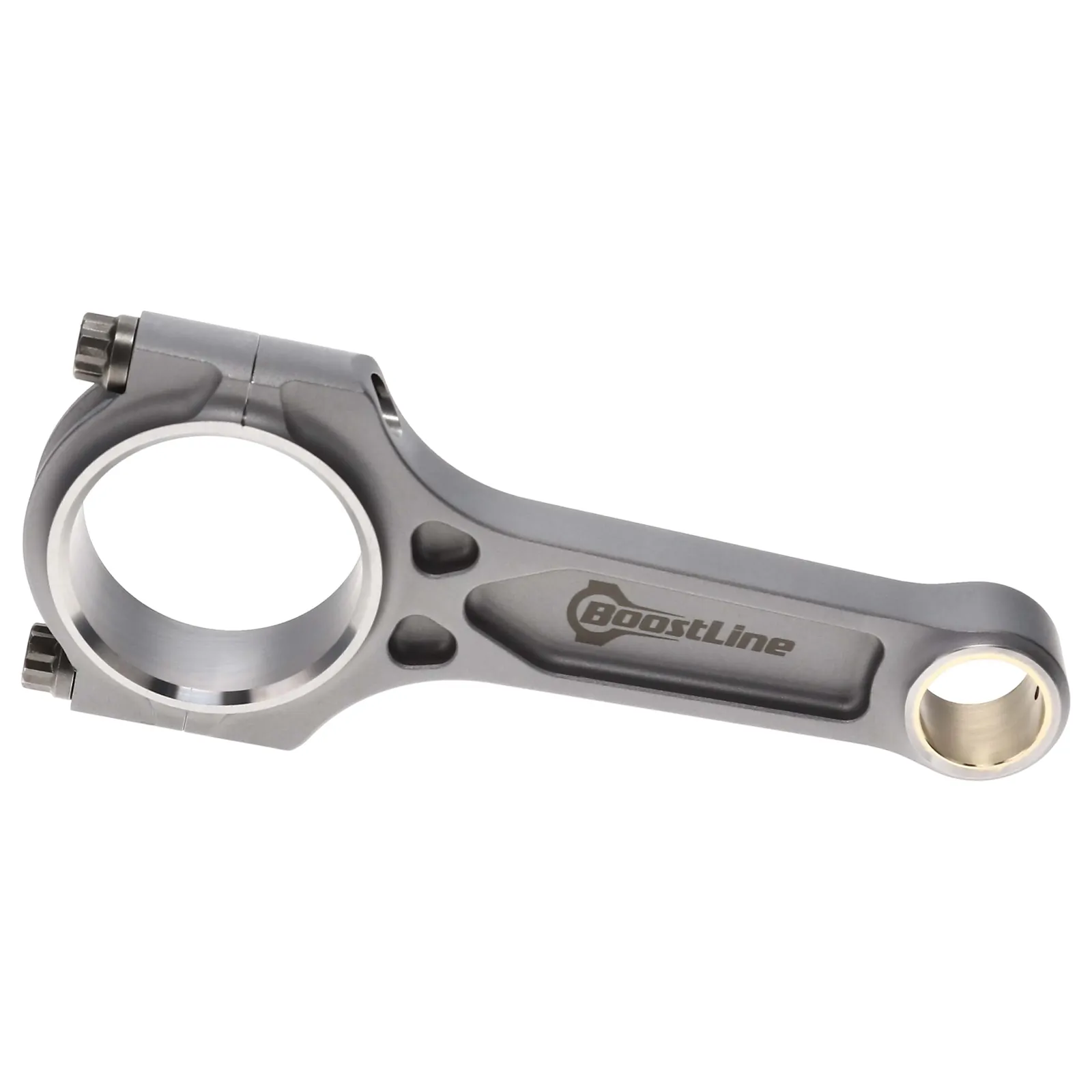

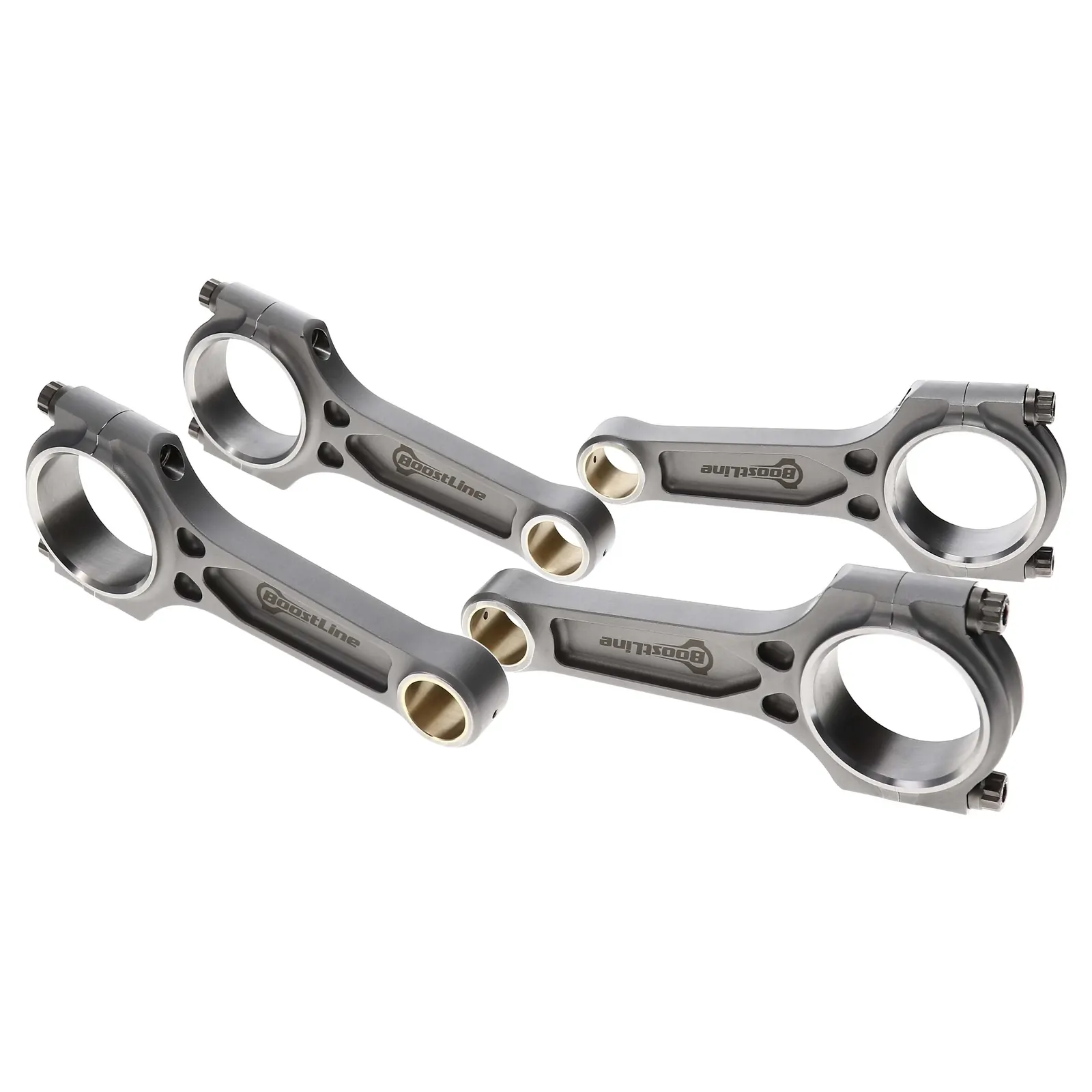

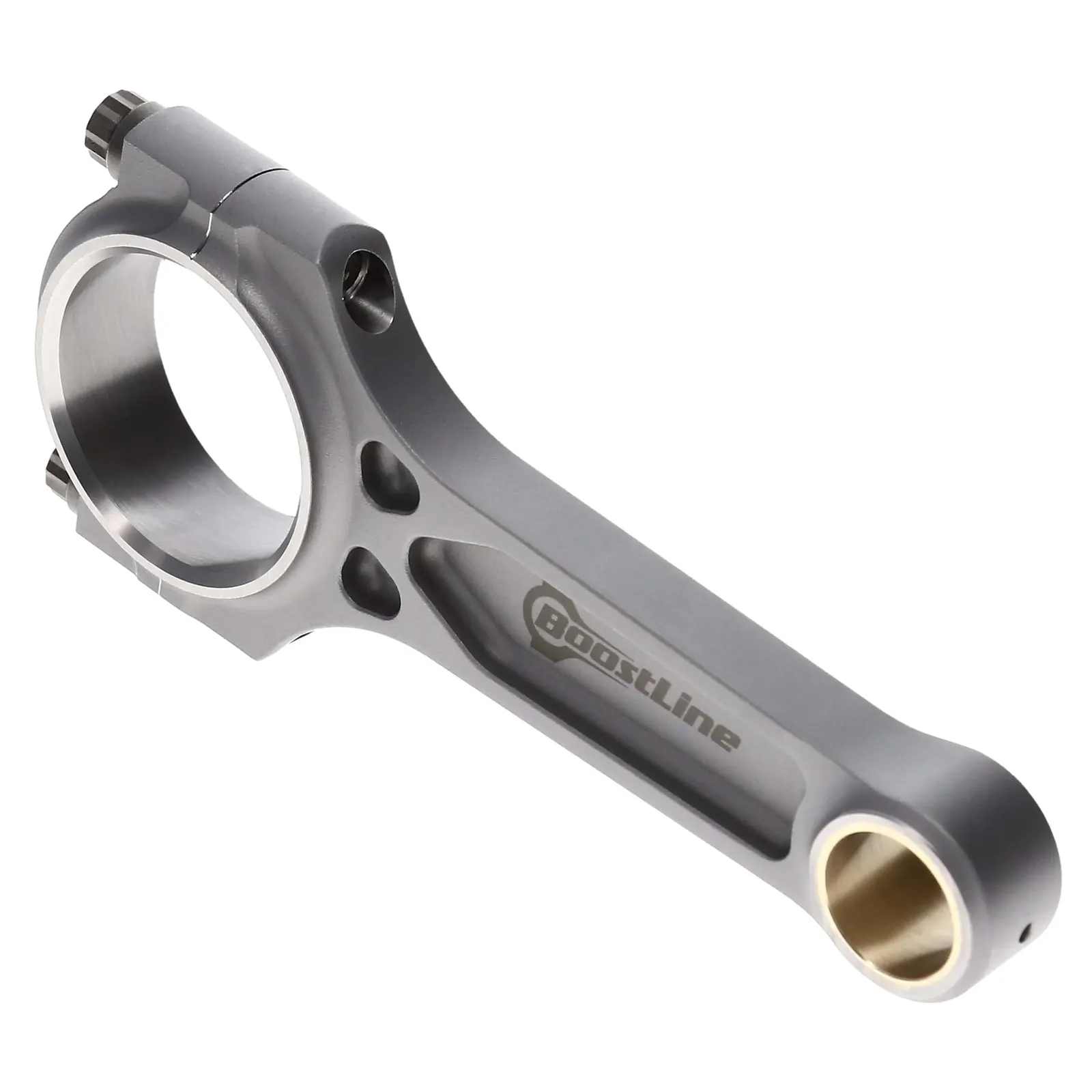

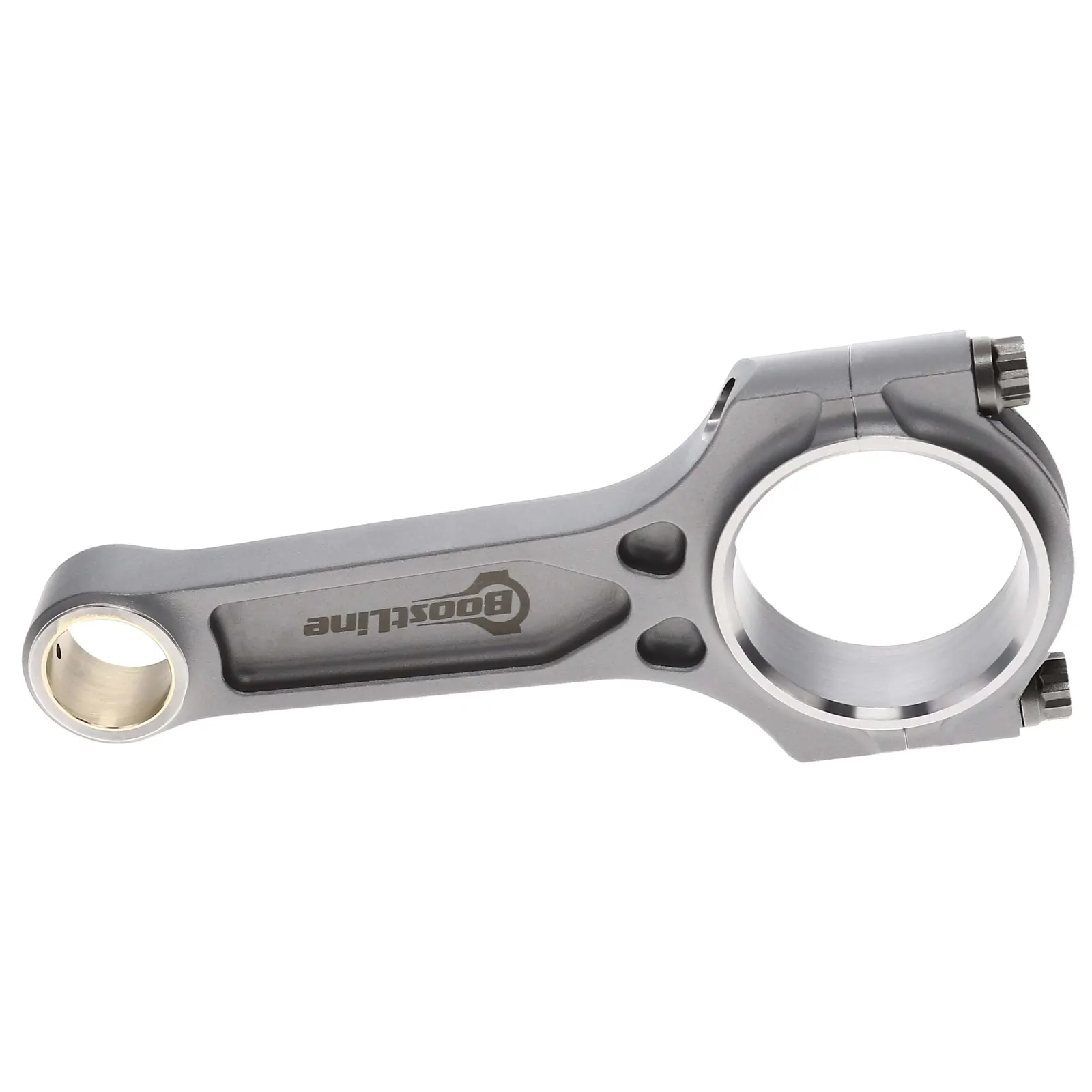

Boostline Ford Barra 4.0L XR6 Connecting Rod Set, 6.057 in. Length, .866 in. Pin, 2.242 in. Journal, 3/8 in. ARP 2000 Bolts, 4340 Steel, Patented Three-Pocket Design, Set of 6

BoostLine connecting rods are designed from the ground up for high-power forced induction and nitrous applications. A patented, 3-pocket design, forged from premium 4340 steel, maximizes strength while minimizing rotating weight. This revolutionary design dramatically improves the rod's big-end stability under tensile loads and provides a 60% improvement in bending strength and 20% stress reduction in tension compared to H-beam designs. All of these benefits make BoostLine rods ideal for high-cylinder pressure engine combinations.

  • Purpose-Built For Boost / High Boost Ford Barra 4.0L Applications
  • Forged From Ultra-Strong 4340 Steel
  • Patented Three-Pocket Design
  • Capable of 1500+ HP
  • 3/8 x 1.600 in. ARP 2000 Fasteners
  • High Quality APMCO Bronze Pin Bushing
  • 26 Point Detailed CMM Inspection Report Included

Specifications

Rod Type

I-Beam

Material

Forged 4340 Steel

Center To Center Length

6.057 IN

Pin End Bore

.993 IN

Journal Size

2.242 IN

Main Bearing Bore Diameter

2.2394 IN

Big End Width

.993 IN

Pin End Width

.993 IN

Bolt Diameter

3/8 IN

Compatibility

  • Barra 4.0L

Boostline Ford Barra 4.0L XR6 Connecting Rod Set, 6.057 in. Length, .866 in. Pin, 2.242 in. Journal, 3/8 in. ARP 2000 Bolts, 4340 Steel, Patented Three-Pocket Design, Set of 6

BoostLine connecting rods are designed from the ground up for high-power forced induction and nitrous applications. A patented, 3-pocket design, forged from premium 4340 steel, maximizes strength while minimizing rotating weight. This revolutionary design dramatically improves the rod's big-end stability under tensile loads and provides a 60% improvement in bending strength and 20% stress reduction in tension compared to H-beam designs. All of these benefits make BoostLine rods ideal for high-cylinder pressure engine combinations.

  • Purpose-Built For Boost / High Boost Ford Barra 4.0L Applications
  • Forged From Ultra-Strong 4340 Steel
  • Patented Three-Pocket Design
  • Capable of 1500+ HP
  • 3/8 x 1.600 in. ARP 2000 Fasteners
  • High Quality APMCO Bronze Pin Bushing
  • 26 Point Detailed CMM Inspection Report Included
Rod Type

I-Beam

Material

Forged 4340 Steel

Center To Center Length

6.057 IN

Pin End Bore

.993 IN

Journal Size

2.242 IN

Main Bearing Bore Diameter

2.2394 IN

Big End Width

.993 IN

Pin End Width

.993 IN

Bolt Diameter

3/8 IN

  • Barra 4.0L
