Description

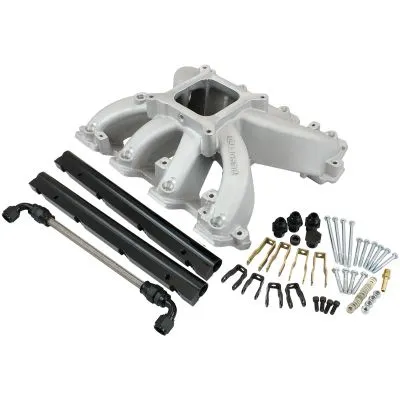

Convert your GM LS engine to allow a 4150 style throttle body to sit on top of your engine for retrofit applications with this Aeroflow Performance Hi Rise Race cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket 4150 square-bore throttle bodies or adapter plates for turbocharged applications. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS3 rectangle port cylinder heads.

‚Ģ Fits GM LS3 Rectangle Port Engines.

‚Ģ EFI Applications.

‚Ģ This is designed for GM LS Engines with EFI only. Use AF6040-6005 for NON-EFI applications.

‚Ģ This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).

‚Ģ Requires the use of 14mm short (33.60mm) fuel injectors (Sold Separately).

‚Ģ Fits GM LS3 Engines.

‚Ģ Single Plane Configuration.

‚Ģ High Rise Intake Manifold.

‚Ģ RPM operating range - 2500 to 7000.

‚Ģ Natural Cast Finish.

‚Ģ- Intake manifold Flat style gasket (must use Fel Pro 1222-2 or 1222-3).

Specifications

Manifold Specifications

- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 172mm (Ensure to Check Bonnet Clearance)
- Port Size: 1.08" x 2.45"
- Intake manifold Flat style gasket (must use Fel Pro 1222-2 or 1222-3).
- 5/16-18" carburettor studs (x4)
- 4 x M6 x 1.00mm Mounting Holes for fuel rails.

Intake Manifold Includes
- 10 x M6 x 1.00mm Hex Screws (50mm UHL)
- 10 x M6 Flat Washers

Fuel Rail Kit includes
- 2 x Two Fuel Rails (-8ORB)
- 1 x -8AN cross over 100 series braided line and two 90 degree non full flow taper fittings
- 3 x -8an to -8ORB fittings
- 1 x -8ORB hex port plug
- 4 x mounting brackets
- 6 xM6 x 1.00mm socket cap screws (25mm UHL)
- 6 x M6 x 1.00mm hex screws (12mm UHL)
- 4 x M6 nuts

Compatibility

  • GM LS Series Engines

Convert your GM LS engine to allow a 4150 style throttle body to sit on top of your engine for retrofit applications with this Aeroflow Performance Hi Rise Race cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket 4150 square-bore throttle bodies or adapter plates for turbocharged applications. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS3 rectangle port cylinder heads.

‚Ģ Fits GM LS3 Rectangle Port Engines.

‚Ģ EFI Applications.

‚Ģ This is designed for GM LS Engines with EFI only. Use AF6040-6005 for NON-EFI applications.

‚Ģ This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).

‚Ģ Requires the use of 14mm short (33.60mm) fuel injectors (Sold Separately).

‚Ģ Fits GM LS3 Engines.

‚Ģ Single Plane Configuration.

‚Ģ High Rise Intake Manifold.

‚Ģ RPM operating range - 2500 to 7000.

‚Ģ Natural Cast Finish.

‚Ģ- Intake manifold Flat style gasket (must use Fel Pro 1222-2 or 1222-3).

Manifold Specifications

- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 172mm (Ensure to Check Bonnet Clearance)
- Port Size: 1.08" x 2.45"
- Intake manifold Flat style gasket (must use Fel Pro 1222-2 or 1222-3).
- 5/16-18" carburettor studs (x4)
- 4 x M6 x 1.00mm Mounting Holes for fuel rails.

Intake Manifold Includes
- 10 x M6 x 1.00mm Hex Screws (50mm UHL)
- 10 x M6 Flat Washers

Fuel Rail Kit includes
- 2 x Two Fuel Rails (-8ORB)
- 1 x -8AN cross over 100 series braided line and two 90 degree non full flow taper fittings
- 3 x -8an to -8ORB fittings
- 1 x -8ORB hex port plug
- 4 x mounting brackets
- 6 xM6 x 1.00mm socket cap screws (25mm UHL)
- 6 x M6 x 1.00mm hex screws (12mm UHL)
- 4 x M6 nuts

  • GM LS Series Engines
