Description

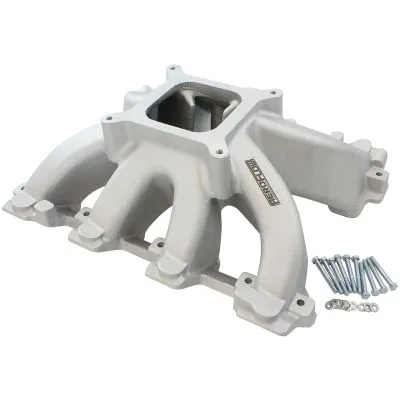

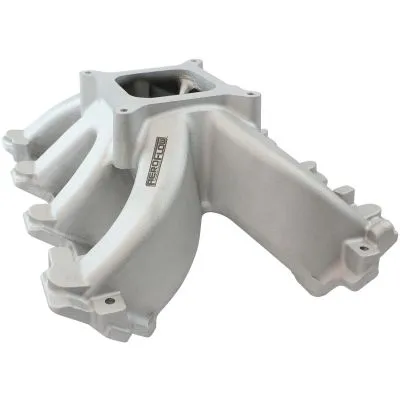

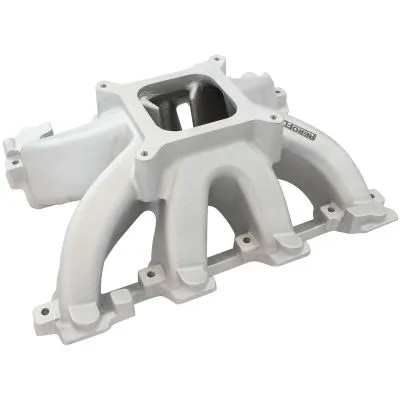

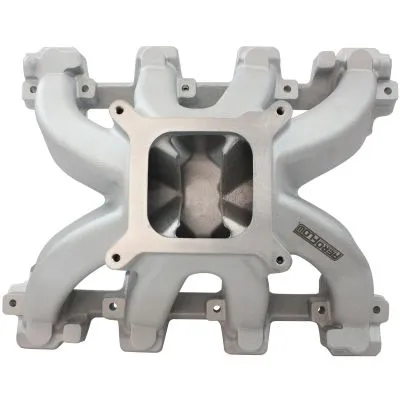

Convert your GM LS engine from EFI to Non-EFI carburettor in retro-fit applications with this Aeroflow Performance hi rise (Super Victor Style) cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket 4150 square-bore carburettors with either manual or electric choke options available on today?¢¬Ĭôsmarket. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS1/LS2 cathedral port cylinder heads. This product is intended for carburetted, throttle body EFI, or port EFI applications.

This manifold is a Hi-Rise race style manifold designed for high rpm and large cubic inch engines.

‚Ģ Fits GM LS1/LS2 Cathedral Port Engines.

‚Ģ Non-EFI Applications.

‚Ģ Fits GM LS1/LS2 Engines.

‚Ģ Single Plane Configuration.

‚Ģ RPM operating range - 3500 to 8000.

‚Ģ Natural Cast Finish.

‚Ģ- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).

Specifications

Manifold Specifications

- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 171mm (Ensure to Check Bonnet Clearance)
- Port Size: 1.08" x 2.50"
- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
- 5/16-18" carburettor studs (x4)

Intake Manifold Includes
- 10 x M6 x 1.00mm Hex Screws (50mm UHL)
- 10 x M6 Flat Washers

Compatibility

  • GM LS Series Engines

Convert your GM LS engine from EFI to Non-EFI carburettor in retro-fit applications with this Aeroflow Performance hi rise (Super Victor Style) cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket 4150 square-bore carburettors with either manual or electric choke options available on today?¢¬Ĭôsmarket. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS1/LS2 cathedral port cylinder heads. This product is intended for carburetted, throttle body EFI, or port EFI applications.

This manifold is a Hi-Rise race style manifold designed for high rpm and large cubic inch engines.

‚Ģ Fits GM LS1/LS2 Cathedral Port Engines.

‚Ģ Non-EFI Applications.

‚Ģ Fits GM LS1/LS2 Engines.

‚Ģ Single Plane Configuration.

‚Ģ RPM operating range - 3500 to 8000.

‚Ģ Natural Cast Finish.

‚Ģ- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).

Manifold Specifications

- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 171mm (Ensure to Check Bonnet Clearance)
- Port Size: 1.08" x 2.50"
- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
- 5/16-18" carburettor studs (x4)

Intake Manifold Includes
- 10 x M6 x 1.00mm Hex Screws (50mm UHL)
- 10 x M6 Flat Washers

  • GM LS Series Engines
