Description

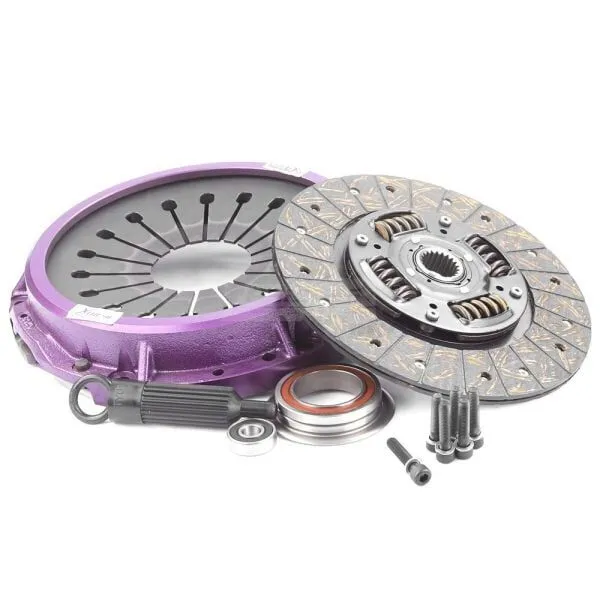

Stage 1A Sprung Organic Clutch Kits are recommended for Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Transmission Type:

    Manual Transmission

  • Number of Teeth:

    21

  • Hub Profile:

    29,0 x 21T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with pressure plate bolts

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    560

  • Friction Lining Outer Diameter [mm]:

    236

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Organic

  • Compatibility

    • 1996 - 2001 > TOYOTA > CHASER > Petrol Engine 2.5 (JZX100_, JZX100) _X10_ Sedan 147KW
    • 1996 - 2001 > TOYOTA > CHASER > Petrol Engine 2.5 (JZX100_, JZX100) _X10_ Sedan 206KW
    • 1992 - 1996 > TOYOTA > CHASER > Petrol Engine 2.5 (JZX90) JZX90,JZX93 Sedan 132KW
    • 1992 - 1996 > TOYOTA > CHASER > Petrol Engine 2.5 Turbo (JZX90) _X9_ Sedan 206KW
    • 1992 - 1996 > TOYOTA > MARK II > Petrol Engine 2.5 (JZX90) Sedan 206KW
    • 1996 - 2001 > TOYOTA > MARK II > Petrol Engine 2.5 VVTi (JZX100) _X10_ Sedan 206KW
    • 1990 - 2000 > TOYOTA > SOARER > Petrol Engine 2.5 Turbo (JZZ30) _Z3_ Coupe 206KW
    • 2000 - 2003 > TOYOTA > VEROSSA > Petrol Engine 2.5 VVTi (JZX110) _X11_ Sedan 206KW
    • 1990 - 1993 > TOYOTA > SUPRA > Petrol Engine 2.5 i Bi-Turbo (JZA70) _A7_ Coupe 206KW
    • 1996 - 2001 > TOYOTA > CRESTA > Petrol Engine 2.5 VVTi (JX100) _X10_ Sedan 206KW

    Stage 1A Sprung Organic Clutch Kits are recommended for Street use in vehicles with minor engine modifications.

    Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Transmission Type:

    Manual Transmission

  • Number of Teeth:

    21

  • Hub Profile:

    29,0 x 21T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with pressure plate bolts

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    560

  • Friction Lining Outer Diameter [mm]:

    236

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Organic

    • 1996 - 2001 > TOYOTA > CHASER > Petrol Engine 2.5 (JZX100_, JZX100) _X10_ Sedan 147KW
    • 1996 - 2001 > TOYOTA > CHASER > Petrol Engine 2.5 (JZX100_, JZX100) _X10_ Sedan 206KW
    • 1992 - 1996 > TOYOTA > CHASER > Petrol Engine 2.5 (JZX90) JZX90,JZX93 Sedan 132KW
    • 1992 - 1996 > TOYOTA > CHASER > Petrol Engine 2.5 Turbo (JZX90) _X9_ Sedan 206KW
    • 1992 - 1996 > TOYOTA > MARK II > Petrol Engine 2.5 (JZX90) Sedan 206KW
    • 1996 - 2001 > TOYOTA > MARK II > Petrol Engine 2.5 VVTi (JZX100) _X10_ Sedan 206KW
    • 1990 - 2000 > TOYOTA > SOARER > Petrol Engine 2.5 Turbo (JZZ30) _Z3_ Coupe 206KW
    • 2000 - 2003 > TOYOTA > VEROSSA > Petrol Engine 2.5 VVTi (JZX110) _X11_ Sedan 206KW
    • 1990 - 1993 > TOYOTA > SUPRA > Petrol Engine 2.5 i Bi-Turbo (JZA70) _A7_ Coupe 206KW
    • 1996 - 2001 > TOYOTA > CRESTA > Petrol Engine 2.5 VVTi (JX100) _X10_ Sedan 206KW
